Panthera S3 Manual de usuario

Panthera AB, Gunnebogatan 26, SE-163 53 Spånga, Sweden, +46-8-761 50 40, www.panthera.se

ASSEMBLY INSTRUCTIONS

art.nr. mont-kryckkäppshållare-S3-eng

Rev.2018-03

CRUTCH HOLDER S3

1) Take the crutch apart 2) Remove the plastic hose from the up-

per part of the crutch.

3) Slide the upper attachment onto the

upper part of the crutch. The upper at-

tachment ts tube diameter 19,2 to 23

mm, including the plastic bushings.

Assembly instructions for:

Crutch holder S3

art.no. 9900301

NOTE! The mounting could vary depending on type of crutch.

Tools needed:

Small Philips head screw driver (Bits PH 0)

4) Tighten one of the screws slightly.

With a small philips head screw driver.

(Bits PH 0)

5) Remount the plastic hose. 6) Remove the rubber shoe from the lo-

wer part of the crutch.

Link to assembly

video

Link to user manual

Panthera AB, Gunnebogatan 26, SE-163 53 Spånga, Sweden, +46-8-761 50 40, www.panthera.se

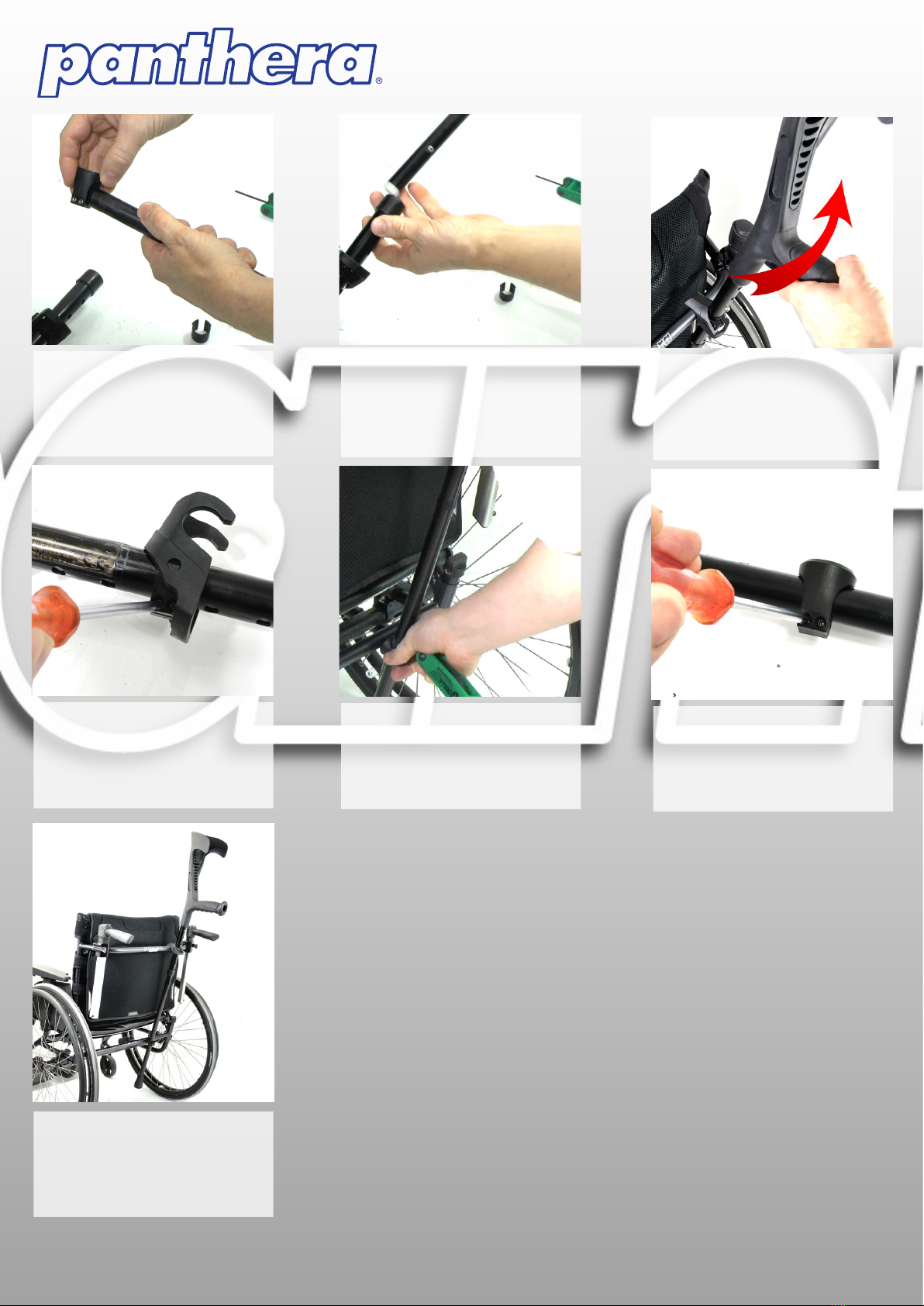

7) Slide the lower, magnetic, attachment

onto the lower part of the crutch. The lo-

wer attacment ts tube diameter 16,5 to

19,2 mm, including the plastic bushings.

Don´t tighten the screws yet.

8) Remount the crutch. 9) Hang the crutch with the upper at-

tachment on the backrest tube. Turn

the crutch until the handle of the crutch

points backwards, away from the wheel-

chair.

10) Tighten the screws by turns with a

small philips head screw driver (Bits PH

0). Use moderate force when tightening

the screws.

11) Adjust the lower, magnetic, attach-

ment in height until it is level with the

chassis tube.

12 Tighten the screws by turns with a

small philips screw driver. Use moderate

force when tightening the screws.

13) Attach the crutch to the wheelchair

with its mounted attachments.

Repeat the procedure on the other

crutch, if there is one.
