Panduit TX6 PLUS Manual de usuario

2.0" (50.8mm) 0.5"

(12.7mm)

TX6 PLUS and TX5e UTP Jack Modules

Page 1 of 2

INSTALLATION INSTRUCTIONS

©Panduit Corp. 2011

For Technical Support: www.panduit.com/resources/install_maintain.asp

Part Numbers: CJ688TG**, CJD688TG**, CJK688TG**, CJE688TG**,

CJQ688TG**, CJ5E88TG**, CJD5E88TG**, CJK5E88TG**, CJE5E88TG**

CWST

TERMINATION STEPS

CJ688TG**

Cable End 1 Cable End 2 6

Jack

Wire Cap

Strain

Relief

Collar

Cable End 1 Cable End 2

Pr1

Pr2

Pr3

Pr4

Pr1

Pr2

Pr3

CJ5E88TG**

CJD688TG**

CJD5E88TG**

Trim pair separator and/or ripcord if present.

** Denotes color.

Note: For bulk packaged TG Style Jack Modules add -24 to end of part number.

8EGJT

PN403L

CWST

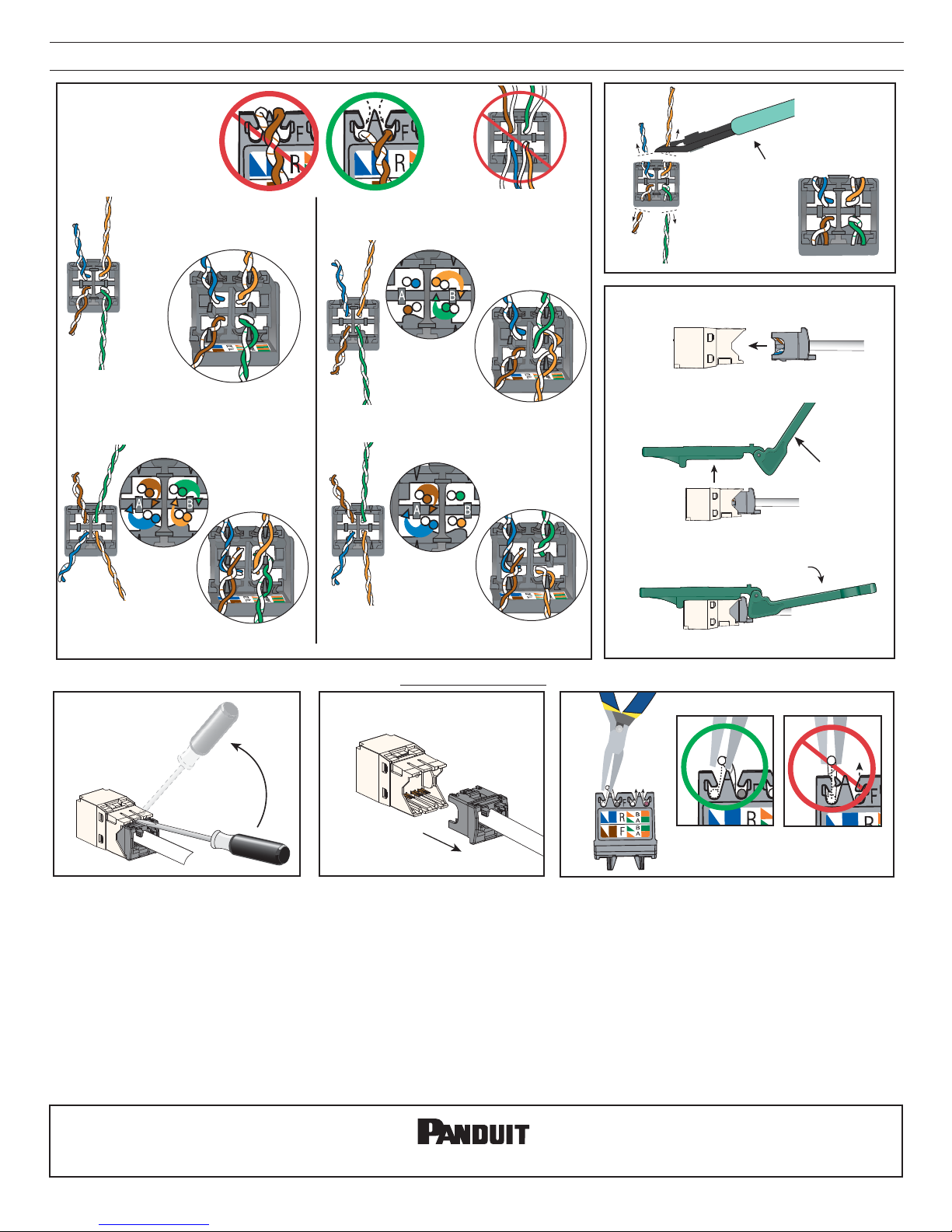

INSTALLATION INSTRUCTIONS

Cable End 1

Cable End 2

Cable End 1

Cable End 2

T568B T568A

EGJT

Notes:

1. For specified performance, follow ANSI/NECA/BICSI-568-2006 installation guidelines.

2. Jack Modules can terminate 22-26 AWG solid or stranded IWC data cable with 0.062 (1.57 mm) maximum insulated conductor outside diameter.

3. Jack Modules may be re-terminated a minimum of 20 times.

4. On cable end 2 for A & B wiring and cable end 1 of A wiring, wrap the designated pairs around the proper center dividing post (A or B) and terminate in

the proper location.

5. For technical and performance information, consult Panduit Technical Support.

As with all Communication Components, the following statements apply:

1. Never install communications wiring during a lightning storm.

2. Never install communications wiring in wet locations unless the jack is specifically designed for use in wet locations.

3. Never touch uninsulated communications wiring or terminals unless the communication line has been disconnected at the network interface.

4. Use caution when installing or modifying communication wiring.

Page 2 of 2

For Instructions in Local Languages

and Technical Support:

http://www.panduit.com/resources/install_maintain.asp

E-mail:

[email protected]

Phone:

866-405-6654

www.panduit.com

REMOVAL STEPS

See note 4.

PN403L

©Panduit Corp. 2011
