Pando E-220 Manual de usuario

EXTRACTOR HOOD

E-220

INSTALLATION CUIDE

660066400072

1. – MINIMUM DISTANCE

Befote to install the E-220 in your kitchen , please, make sure, that there is a minimum dis-

tance of 180mm between the CEILING and the FALSE CEILING. Please note that the maximum dis-

tance between the FALSE CEILING and the FLOOR should be no more than 2,40 m.

The threaded rods, included with the extractor hood, allow to adjust the height between 180 and

340mm.

2.– OUTLET AIR EXTRACTION

Please note , that the outlet air extraction in on the lefth of the hood, and it is impossible to

change the position of this outlet air extraction. The unit is supplied with a 100x180mm flexible

ductwork (2 m), it is possible to connect it to rectangular adaptor of 100x180mm and to round

adaptor of Ø150mm.

(Adaptor of Ø150 mm is not included. In case of using the adaptor Ø150mm, please, consult the total

height of the hood, it can be changed)

E-220 INSTALLATION GUIDE

Page 2

3.– DRILLING HOLES INTO THE CEILING

On the solid ceiling, draw the outline of the hole required to house the extractor hood E-220.

This model is supplied with threaded rods which screw into the frame. The adjusting nuts can

be used to set the required height for the extractor hood (beetween 180mm and 340mm)

Drill 4 holes into the ceiling, following the measurements , undicated on the drawing. Insert

the plugs supplied with the extractor hood into the holes and then screw in the rods.

MEASUREMENTS OF HOLE FOR THE HOOD:

1200 —- 1130 X 730

Page 3

E-220 INSTALLATION GUIDE

Page 4

5– CONNECTIONS

All connections should be made befote fitting the extractor hood into the hole.

Fume extractor pipe connections.

Unscrew the adaptor from

the junction of the extractor

hood.

Lift the adaptor to the FALSE CEILING and join it

with the fume extractor pipe of 100x260 mm.

IMPORTANT : Seal the adaptor and the fime ex-

tractor pipe with aluminium foil tape. Make sure, that

there are no air leaks.

4– ACCES IN THE FALSE CEILING

For the correct installation of the extractor hood and realization of all connections, Before the

false ceiling is closed, some form of acces panel must be installed on the side of the extractor hood

where the conduit is connected.

6º– POSITIONING AND SECURING THE EXTRACTOR HOOD

Once the connections are completed, we can lift the extractor hood and insert it in the correct

position inside the hole. Before doing so, we must open the door of the hood and remove the filtres.

Insert the extractor hood into the niche, fitting the threated rods into the corresponding holes;

the outer edge of the extractor hood should line up perfectly with the false ceiling. Place the small

plates, supplied with the extractor hood, and the nuts onto the threaded rods and tighten them correc-

tly.

Page 5

E-220 INSTALLATION GUIDE

Page 6

COMMISSIONING:

Alter opening the door and removing the filtres, we can see the connection box. The ON

switch for the extractor hood is opposite the connection box. If all the coonnections have been com-

pleted, you can swith on the extractor hood.

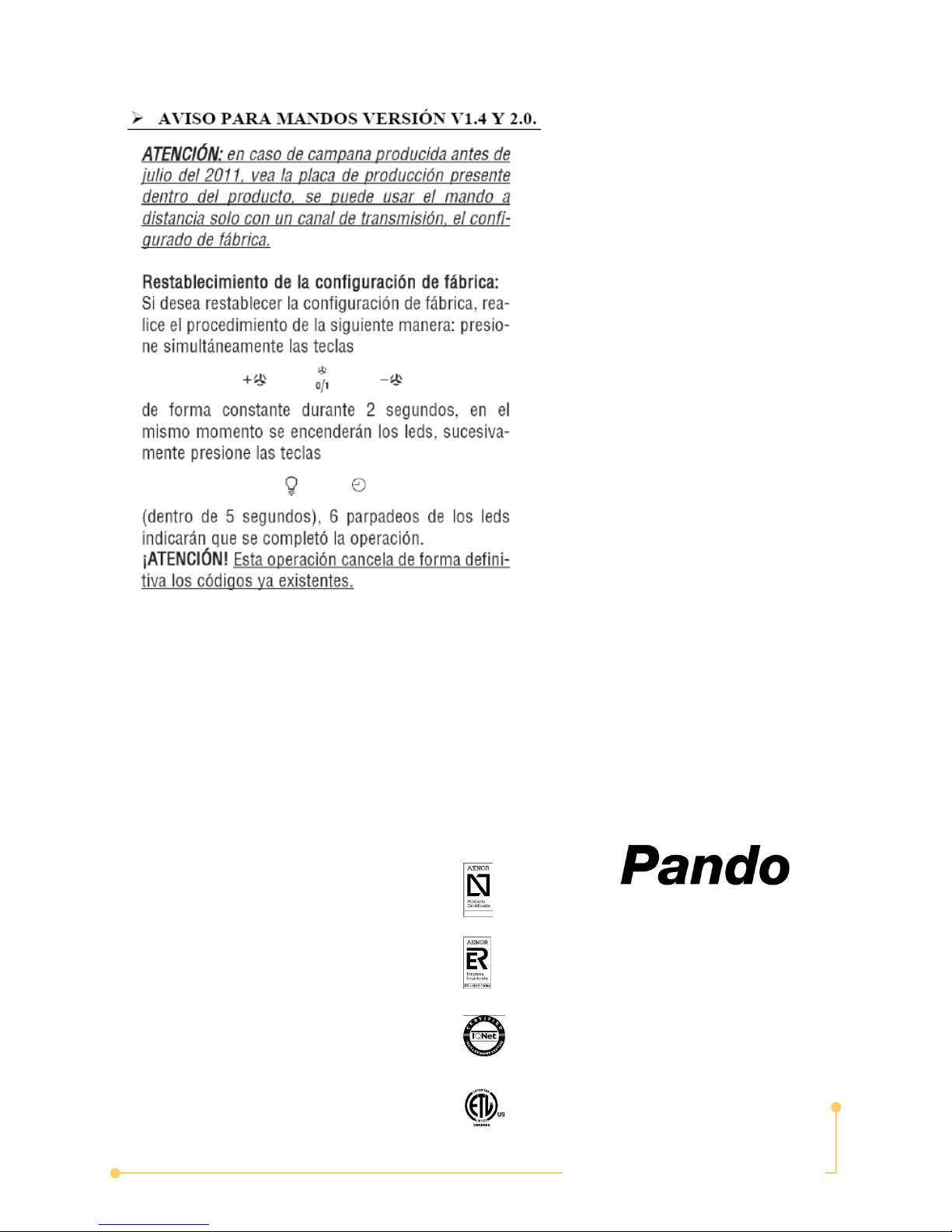

¡¡IMPORTANT!! After the commissioning of your range hood, please, syncronize the remo-

te control. (Page 7)

7—CONNECTING THE FUME EXTRACTOR PIPE AND POWER CONNECTION:

After the installation of the extractor hood, screw the adaptor of the fume extractor pipe to the

hood.You can realice this operation through the access in the false ceiling.

Realice power connection.

Replace the filtres in their correct position and close the door:

Page 8

E-220 INSTALLATION GUIDE

POINTS TO BE CONSIDERED:

*Extraction conduit pipe connection to the extractor hood.

Before the false ceiling is closed, some form of access panel must be installed on the side of the

extractor hood , where the conduit is connected.

*The ceiling where the extractor hood is to be installed must be completely flat, with no une-

ven ares of any kind.

*For optimal operation of the E-220, ventilation grilles are must be installed at ground level to

ensure a continuous flow of air.

*The maximum distance between the FALSE CEILING and the FLOOR should be no more

than 2,40 m.

*IMPORTANT: For the optimal operation, the extractor hood must be centered over the

cooking area.

Fabricado por INOXPAN S.L.

Pol. Ind. El Cros — Av. El Molí de les Mateves, 11

Apdo. Correos nº21

08310 ARGENTONA (Barcelona - Spain)

Tel. +34 93 757 94 11

Fax. +34 93 757 96 53

www.pando.es

Com.pando@pando.es

Certificación de Producto AENOR

UNE-EN 60335

Certificado de Empresa de Gestión de la

Calidad UNE-EN ISO 9001:2008

The International Certification Network

Quality Management System ISO

9001:2008

Certificación de Producto U.L.

(U.S.A. - Canadá) U.L. 507-2001

E-220 INSTALLATION GUIDE

Página 10
