Panasonic NA-V10FX1 Guía del producto

AWW9901A30A0-0B0

Contents

Safety Precautions 2

Checking Your Washing Machine

Before Washing 7

Control Panel 8

Detergent 10

Washing 12

Program List 14

Details of Programs 16

Washing Tips 18

Changing Program Settings 20

Changing Appliance Settings 26

Maintenance 27

Troubleshooting 31

Error Display 37

Installation

Choosing the Right Location 38

Moving and Installing 39

Connecting the Hoses 41

Test Run 43

Specifications 44

Thank you for purchasing this product.

- Read these instructions carefully for optimum

performance and safety before use.

- Keep this manual for future reference.

Operating & Installation

Instructions

Washing Machine

(Household Use)

Model No. NA-V10FX1 NA-V90FX1 NA-V80FX1

NA-V10FG1 NA-V90FG1 NA-V80FB1

zIf the power cord is

damaged, it must

be replaced by the

manufacturer, its service

agent or similarly qualified

persons in order to avoid

a hazard.

Safety Precautions

May cause serious injury or death

May cause fire or electric shock

WARNING

Children must not use it alone.

zThis appliance is not intended for use by

persons (including children) with reduced

physical, sensory or mental capabilities, or lack

of experience and knowledge, unless they have

been given supervision or instruction concerning

use of the appliance by a person responsible for

their safety.

zChildren should be supervised to ensure that

they do not play with the appliance.

Setting the Child Lock. (P. 26)

Hold

5 sec.

Do not touch it

with wet hands.

Fully insert it.

Do not hold or

pull on the cord.

Do not use.

Damaged

Do not use.

Plug adaptor

Extension cord

WARNING

May cause failure

In case of failure or damaged power cord,

stop use and ask the electrical technician.

Securely insert the ground prong.

Ask the electrical technician for a new socket.

Use a socket appropriate for this

appliance.

e.g.)

zThe plug shape, socket shape and rating

requirement vary with the region.

Accumulated dust

may cause fire.

Wipe the power plug

periodically.

Keep away from

flammable materials.

Do not disassemble, repair or modify it by yourself.

Safety Precautions (continued)

May cause injury

May cause water leakage

CAUTION

Be careful not to get your

fingers caught.

Do not touch when it is hot.

Do not climb on the appliance.

Turn off the water faucet. Use new hose-sets.

zNew hose-sets

supplied with the

appliance are to

be used and old

hose-sets should

not be reused.

For maximum mass of dry cloth and pressure of tap water, see P. 44.

CAUTION

May cause failure

Keep away from heat and direct

sunlight.

Do not obstruct.

zDo not obstruct

the openings of

the bottom face

with carpet, etc.

Remove anchor bolts before

operation.

Do not use hot water.

Over 50 ºC

For machine-washable items only.

zThis appliance is intended to be used in household.

This appliance is not intended to be used in

applications such as:

- staff kitchen areas in shops, offices and other

working environments;

- farm houses;

- by clients in hotels, motels and other residential

type environments;

- bed and breakfast type environments;

- areas for communal use in blocks of flats or in

launderettes.

Do not wash excessively oily clothes.

150

MAX

100

Part names

Checking Your Washing Machine

Detergent drawer (P. 10)

Accessories

Control panel

(P. 8)

DrumDoor

Door seal

Drain filter cover

(P. 30)

Hinge

Water inlet (P. 42)

Anchor bolts

(P. 40)

Drain hose

(P. 41, 42)

Power cord and plug*

*The plug shape varies

with the region.

Adjustable feet

(P. 40)

Elbow (P. 42) Cover caps (4) (P. 40)

Water supply hose (P. 41, 42) Bottom plate (P. 39)

Before Washing

Preparing laundry

Pre-laundry check

Reverse

Clothes likely to pill

Paper diapers

zObserve care labels.

zPretreat for heavily stains.

NOTE

V10FG1 V90FG1V80FX1V10FX1 V90FX1

z“Mud / Oily Sauce / Collar & Sleeve”

programs (P. 15) are recommended

for removing stains.

Wash separately

White

clothes Coloured

clothes

Use laundry nets for delicates

and small items

Overpack

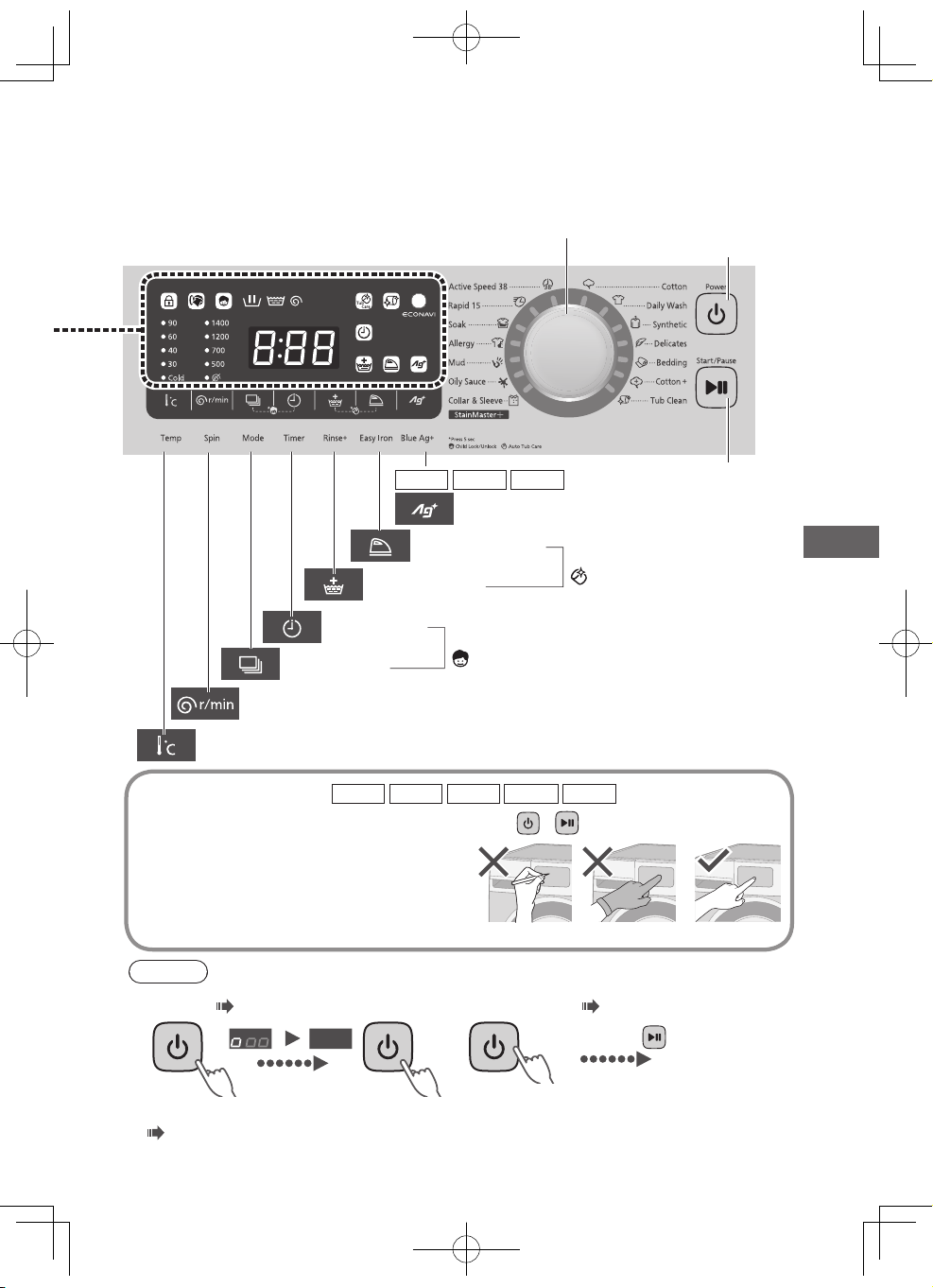

Control Panel

Display

Add Wash lamp:

You can add clothes while lit. (P. 12)

Lock The door is locked

The door and buttons are

all locked (Child Lock) (P. 26)

Process Wash

Rinse

Spin

ECONAVI lamp

(P. 18)

Water temperature

Spin speed

: Drain only

(No spin) Remaining time

Error display (P. 37)

(e.g. U11)

Optional function lamp

NA-V10FG1/NA-V90FG1

NA-V80FB1

Auto Tub Care (P. 24)

V10FG1 V90FG1

V80FX1V10FX1 V90FX1

(P. 24) (P. 23)

(P. 29) (P. 23)

(P. 22) (P. 25)

V80FX1

V10FX1

V90FX1

zImages in these instructions are of the

NA-V10FX1, unless otherwise indicated.

Program selection dial (P. 14)

Power button

Start/Pause button

Temp (P. 20)

Control buttons

Spin (P. 21)

Mode (P. 21)

Timer (P. 22)

Rinse+ (P. 23)

Easy Iron (P. 23)

V80FX1V10FX1 V90FX1

Blue Ag+ (P. 25)

NOTE

zTurn off back on zNo operation auto power off

3 sec.

Turn off On

( ) Auto

Power off

(Not pressed )

10 min.

zIn case of a power failure

When the power recovers, operation resumes from where it stopped.

(Auto Restart)

Press at the same time:

Auto Tub Care (P. 24)

Press at the same time:

Child Lock (P. 26)

NA-V10FX1/NA-V90FX1/NA-V80FX1

Touch operation

V10FG1 V90FG1V80FX1V10FX1 V90FX1

Operation buttons are capacitive (Except for / ).

zIf water, detergent or softener gets

on, turn off and wipe off with a

towel etc. immediately. (Cause of

malfunction)

Detergent

NOTE

STARTSTART

Detergent

Use a low foam detergent.

zTo prevent powder detergent from

remaining in the detergent drawer:

Wet Dry

Lumps Powder

Fabric softener

150

MAX

100

Separated

or solidified

softeners

Concentrated

softener

Water

Detergent

Powder detergent Liquid detergent

Bleach
