ORDER NO. TAM1408002CE

NA-FS95G3/NA-FS85G3

‧Product Color : White

‧Destination : Australia

Unauthorized copying and distribution is a violation of law.

Page

CONTENTS

1.Specifications……………………………………………………………...1

2.Technical Descriptions……………………………………………………2

3.How to Install……………………………………………………………...3

4.Operation Instruction……………………………………………………..7

5.Test Mode………………………………………………………………….9

6.Troubleshooting Guide………………………………………………….11

7.Disassembly Instructions……………………………………………….13

8.Wiring Diagram…………………………………………………………..18

9.Parts Location & Replacement Parts List……………………………..19

10.Washing capacity & Serial Number Identification……………………30

New Zealand

‐1‐

1. Specifications

Models

Items NA-FS95G3 NA-FS85G3

Power source AC 220 V- 240 V, 50 Hz AC 220 V- 240 V, 50 Hz

Power consumption 360 W 325 W

(Motor) Output 220 W 220 W

Laundry amount 9.5 kg 8.5 kg

Spin (Clothes load) 650 r/min 650 r/min

Pulsator (Clothes load) 110 r/min 110 r/min

Dimension(mm) Width:640 / Depth:690 /

Height:1070 Width:640 / Depth:690 /

Height:1070

Water level(L) 99 / 92 / 86 / 80 / 72 / 65 / 58

/ 52 / 46 / 42 / 38 98 / 92 / 86 / 80 / 74 / 68 / 62 /

56 / 50 / 45 / 38

Standardized water consumption 205 L 200 L

Operating Water pressure 30 kPa to 1000 kPa 30 kPa to 1000 kPa

Machine weight 52 kg 52 kg

Safety switch Lid and unbalance switch Lid and unbalance switch

Buzzer Cycle-end buzzer,

Abnormal alarm Cycle-end buzzer,

Abnormal alarm

Bleach inlet Providing Providing

Cassette lint filter Providing Providing

Softener Dispenser Providing Providing

Auto power off Providing Providing

Accessories Water Supply Hose

(One each for cold and hot water) Water Supply Hose

(One each for cold and hot water)

‐2‐

2. Technical Explanation

2.1 The water flow of pulsator

Rotating fins on the bottom suck in water

which is pumped to the upper nozzle and

released as a high-pressure splash.

Bottom

Strong splashes are sprayed

over a wide area

A powerful motor rotates the Big Beat (BB)

Flapper to create a vortex.

(1)Stream of a big horizontal rotation is made

from the big outer blades of Pulsator.

(2) The stream of a small horizontal rotation is

made fromthe small blades of Pulsator.

(3)Special designed Pulsator and control by

software to produce Dancing Water flow.

Top

Beat Screw

Beat Flash

Beat Tide

2.2 Air Dry Course

When the tub is rotating, it can suck dry air inlet and keep the tub dry.

Purpose to prevent mold growing on the surface of the tub and the outer tub.

‐3‐

3. How To Install

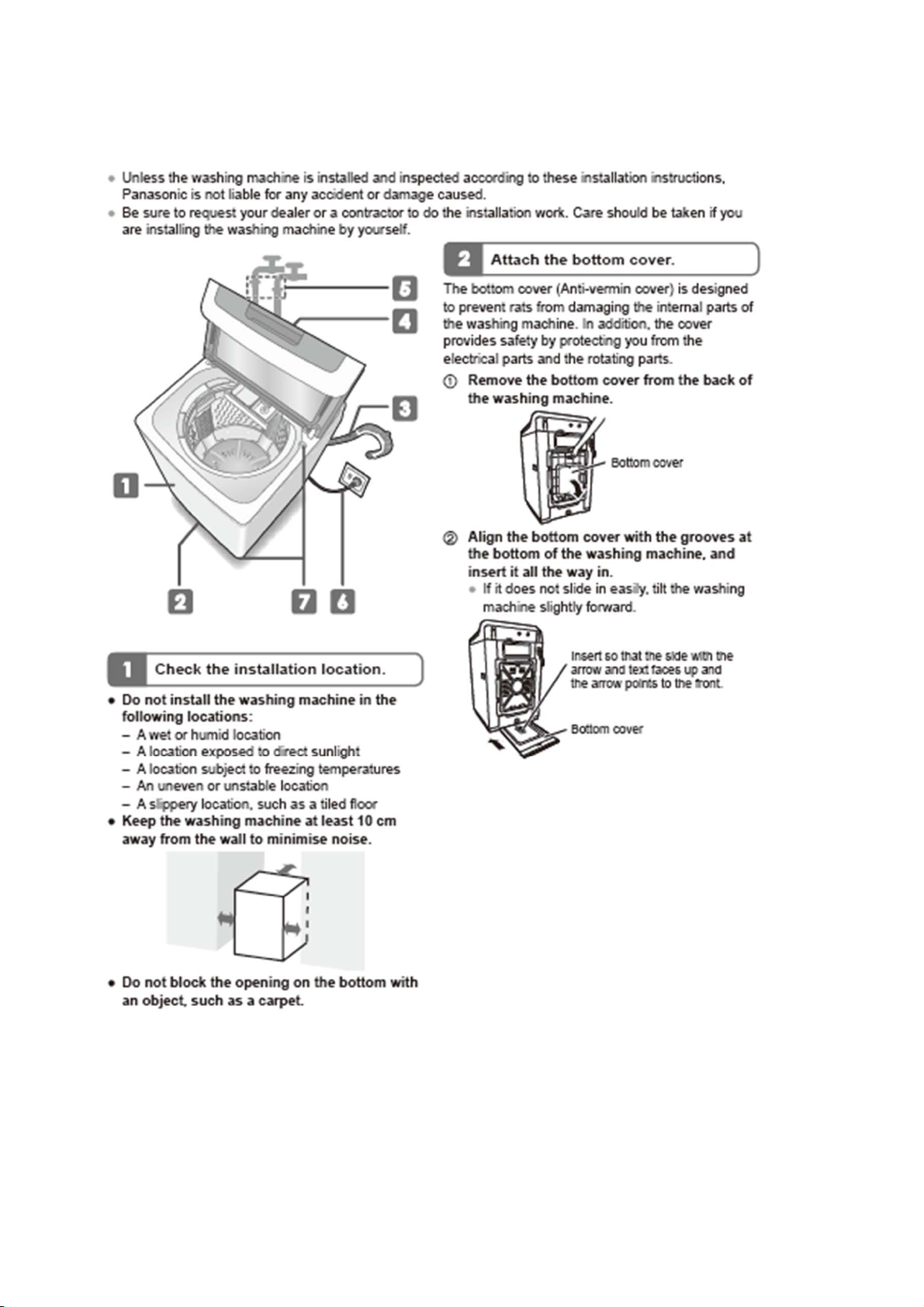

3.1

‐4‐

3. How To Install

3.2

‐5‐

3. How To Install

3.3

‐6‐

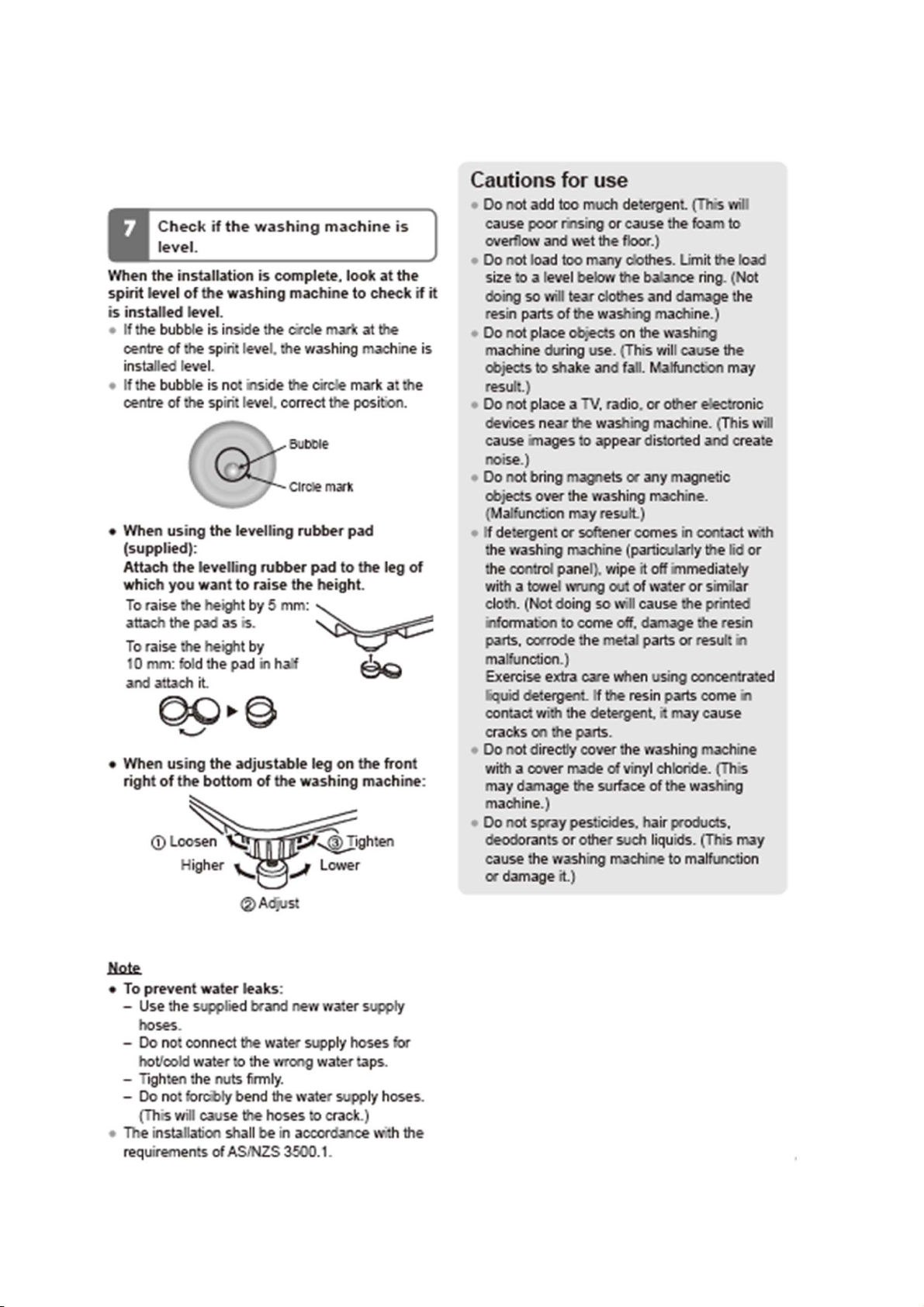

3. How To Install

3.4

‐7‐

4. Operation Instruction

4.1 Indicators and buttons

‐8‐

4. Operation Instruction

4.2 Wash Cycle

●Thesedefaultwaterlevelscanbechangedtodesiredlevels.

●Therequiredtimesincludethefilltimeandthedraintimeandmaybecomelongerdependingonthe

pressureofthewatersupply,drainconditions,amountofclothes,andotherconditions.

*Thepulsator rotatesduringthefirst3minutestofullydissolvedetergent.Afterthisoperation,the

pulsator rotatesandstopsperiodicallytosoaktheload.

‐9‐

5. Test Mode

Check H Check G Check M Check E

Check A Check B Check C

(2) (1)

1. Set the power switch to "off".

2. Press and hold both the "Water lever" and "Wash" buttons with one hand.

3. Press the power switch to "on".

4. Release your fingers from the buttons and power switch which you pressed in steps (2) and (3) .

(Check A can be carried out in this state with your fingers released)

5. Within three seconds press the "Water lever " button to set the desirer check procedure.

(Carry out checks B, C, E, M, G and H)

Numberoftimes

the"Waterlevel"

buttonispressed

Check

Procedure CheckContents LampIllumination

Condition OperationCondition

•Cycleendbuzzer

•Timerindicator

•Autopoweroff

•Whentheendbuzzersoundsthree times,the

lampswillsimultaneously flashonandoffin

theremainingtimedisplay,andthepowerwill

automaticallybe switchedoffimmediately

afteroperationisfinished.

•Washing

operation

•Evenifthereisnowaterinthetub,the

washingoperationwill continuefor10

minutes.

•Pressthe"Rinse"buttononceFV‐1operates,

andpresstwicetooperateFV‐2,press3time

hotwatervalve(FV‐3)operates.

•IfthePCBfaultoccurred,anerrorindication

"H05"willdisplay.

•Spinoperation

•Lid/SFswitch

•Thespinningoperationwill continuefor6

minutes.

•Checkthelid&SFswitchoperation, while

openinglid

1) "74L"lightsup…Lidswitchworking

2) "86L"lightsup…SFswitchworking
