Operating & Installation Instructions
Fully Automatic Washing Machine
(Household Use)
Model No. NA-FD12X1
AWW9901C9BC0-0C0
Manufacturer
Panasonic Appliances (Vietnam) Co., Ltd.
Yen My, Hung Yen, Vietnam
Importer
Panasonic Marketing Middle East & Africa FZE
Jebel Ali Dubai United Arab Emirates
2
Safety Precautions
May cause serious injury or death.
WARNING
Children must not use it alone.
zThis appliance is not intended for use by persons
(including children) with reduced physical, sensory
or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision
or instruction concerning use of the appliance by a
person responsible for their safety.
zChildren should be supervised to ensure that they do
not play with the appliance.
Do not touch the tub until it stops.
zIf the tub does not stop within 15 sec:
May cause fire or electric shock.
Do not touch it
with wet hands.
Do not hold or
pull on the cord.
Do not use.
Fully insert it. Do not use.
zIf the power cord is damaged,
it must be replaced by the
manufacturer, its service agent
or similarly qualified persons
in order to avoid a hazard.
Damaged
Plug adaptor
Extension cord
3
WARNING
In case of failure or damaged power cord,
stop use and ask the electrical technician.
Accumulated dust
may cause fire.
Securely insert the ground prong.
Ask
the electrical technician for a new socket.
Wipe the power plug
periodically.
Use a socket appropriate for this
appliance.
Keep away from
flammable materials.
e.g.)
zThe plug shape, socket shape and rating
requirement vary with the region.
External water heater safety
zUnder certain conditions, hydrogen gas may be produced in your hot water heater
that has not been used for two weeks or more. Hydrogen gas can be explosive
under these circumstances. To prevent the possibility of damage or injury, you
should turn on all hot water faucets in your home, and let the water ow out for
several minutes before connecting to your washer. This will allow any built-up
hydrogen gas to escape. Since hydrogen gas is ammable, do not smoke or use
an open ame or start appliance during this process.
4
Safety Precautions (continued)
CAUTION
May cause injury.
Be careful not to get your fingers
caught.
Be careful of your
hands and feet.
Do not climb or put objects on the appliance.
May cause water leakage.
Turn off the water faucet. Use new hose-sets.
zNew hose-sets
supplied with the
appliance are to be
used and old hose-sets
should not be reused.
zIf the lid is broken,
immediately stop using.
May cause failure.
Do not disassemble, repair or modify it by yourself.
WARNING
5
For maximum mass of dry cloth and pressure of tap water, see page 32.
May cause failure.
Keep away from heat and direct
sunlight.
Do not wash waterproof
items.
Raincoats, wet suits, etc.
Do not obstruct.
Do not incorrectly attach HOT/
COLD water supply hoses.
zDo not obstruct
the openings of
the bottom face
with carpet, etc.
Cold
Cold Hot
Hot
Over 60 ºC
For Machine-washable items only.
zThis appliance is intended to be used in household.
This appliance is not intended to be used in
applications such as:
- Staff kitchen areas in shops, oces and other
working environments;
- farm houses;
- by clients in hotels, motels and other residential type
environments;
- bed and breakfast type environments;
- areas for communal use in blocks of ats or in
launderettes.
CAUTION
6
Part Names / Accessories
Lint filter (P. 20)
Lid
Leveller (P. 27)
Power cord and
plug* (P. 27)
* The plug shape
varies with the
region.
Detergent and
softener drawer
(P. 12)
Pulsator
Tub
Drain hose (P. 25)
Accessories
Water supply hose for
HOT (White) (1) (P. 26)
• Length: 1.5 m
Water supply hose for
COLD (Gray) (1) (P. 26)
• Length: 1.5 m
Bottom cover (1) (P. 25)
Screw (1) (P. 25)
Drain hose (1)
Hose band (2)
(P. 25)
Adjustable leg (P. 27)
Operation panel (P. 8) Water supply valve (P. 26)
Hot
Cold
7
Before Washing

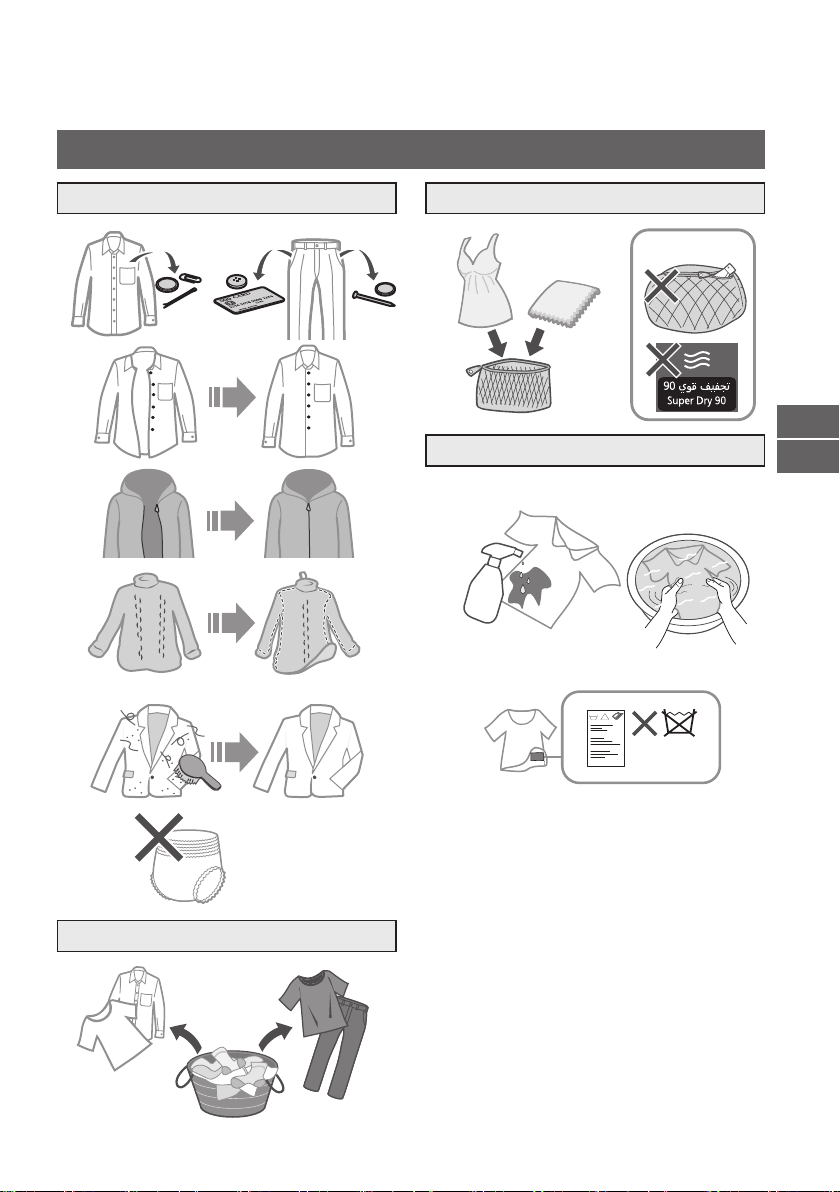

Laundry preparation and check
Use laundry nets for delicates
Overpack
For “Stain Master”
(P. 16)
zPretreatments for heavily stains
zObserve the clothes' care labels
Pre-laundry check
Reverse
Clothes likely to pill
Paper diapers
Wash separately
White
clothes Coloured
clothes
8
Program selection
(P. 10)
NOTE
zIn case of a power failure.
Operation will resume from where it stopped when the power recovers.
zIf you do not press within 10 minutes after power-on. Auto power off.
Stain Master
(P. 16)
Power
On/Off
Super Dry 90
(P. 17)
Start/Pause
Child Lock
lamp (P. 18)
Operation Panel
Preset
(P. 14)
Detergent volume
Water level (L) Detergent *
77 70 65
60 55 50
45
40 35
25
* : 1 scoop/cap of detergent
Change process
settings (P. 14)
Flashing
(in progress)
Tangle
Care
(P. 10)
Water amount
Approx.
5 sec
Remaining time
Auto Tub
Clean
(P. 18)
Refill (P. 19) ECONAVI (P. 17)
Temp Setting
zThe approximate water
temperature in the tub
(When hot water supply is 60 ºC
and cold water supply is 20 ºC)
Hot 40 ºC
Warm 30 ºC
Cold 20 ºC
zDo not touch hot water during
supply.
zNot available:
Super Dry 90, Delicate,
Tub Hygiene
9
1
2
(P. 10)
Preset timer
(P. 14)
3Measures the
amount of laundry.
10 sec 5 sec
20 sec
4
(P. 8)
(P. 12)
5
Washing
After pressing “Start”
zTo change each operation (while washing).
Pause Start
zTo check or change the water level (while washing).
zYou cannot change the program.
Temp Setting
(P. 8)
10
Variety of Programs
Program Purpose
Max.
capacity
(kg)
Wash
Normal (P. 9)
zEveryday clothes
12.0
zAnti-tangling
• Washing more gently than “Normal”to
reduce tangle.
• Disentangling clothes after spin:
6 kgor less.
Speedy (P. 9)
zFor light soil
12.0
Delicate (P. 15)
zWashing gently
4.2
Water Save
(P. 9)
zSaving water and energy
12.0
Comforter (P. 15)
zComforters and blankets
With a machine-washable tag
4.2
Tangle
Care (P. 9)
