Panasonic MC-YL625T147-AE Manual de usuario

© 2013 Panasonic Manufacturing Malaysia Berhad

(6100-K). Unauthorized copying and distribution is a

violation of law.

PMMA130101CE

Vacuum Cleaner

Model No. MC-YL625T147-AE

MC-YL625T747-SA

MC-YL625T747-NG

MC-YL625T149-KW

MC-YL625T149-AE

MC-YL625T149-LY

MC-YL625T149-LB

MC-YL625T149-JO

MC-YL625T149-EG

MC-YL625T149-QA

MC-YL625T149-OM

MC-YL625T146-BN

MC-YL625TN146-VN

MC-YL625TB41-TH

Destination : SINGAPORE 2, THAILAND, VIETNAM,

SAUDI ARABIA 2, KUWAIT, NIGERIA,

UAE, OMAN, QATAR, PGF, JORDAN,

LIBYA, LEBANON, EGYPT

TABLE OF CONTENTS

PAGE PAGE

2

1 Specifications ------------------------------------------------------3

2 Pictorial Diagram -------------------------------------------------3

3 Schematic Diagram ----------------------------------------------3

4 Disassembly and Assembly Instruction ------------------4

4.1. Disassembly of Lower Body-----------------------------4

4.2. Disassembly of Body Cover -----------------------------4

4.3. Disassembly of Main Switch Ass’y --------------------5

4.4. Disassembly of Motor -------------------------------------6

5 Trouble Shooting Chart ----------------------------------------7

6 Exploded View and Replacement Parts List -------------8

6.1. Exploded View ----------------------------------------------8

6.2. Attachment Exploded View ------------------------------9

6.3. Packing Instruction--------------------------------------- 10

6.4. Replacement Parts List--------------------------------- 11

3

1 Specifications

2 Pictorial Diagram

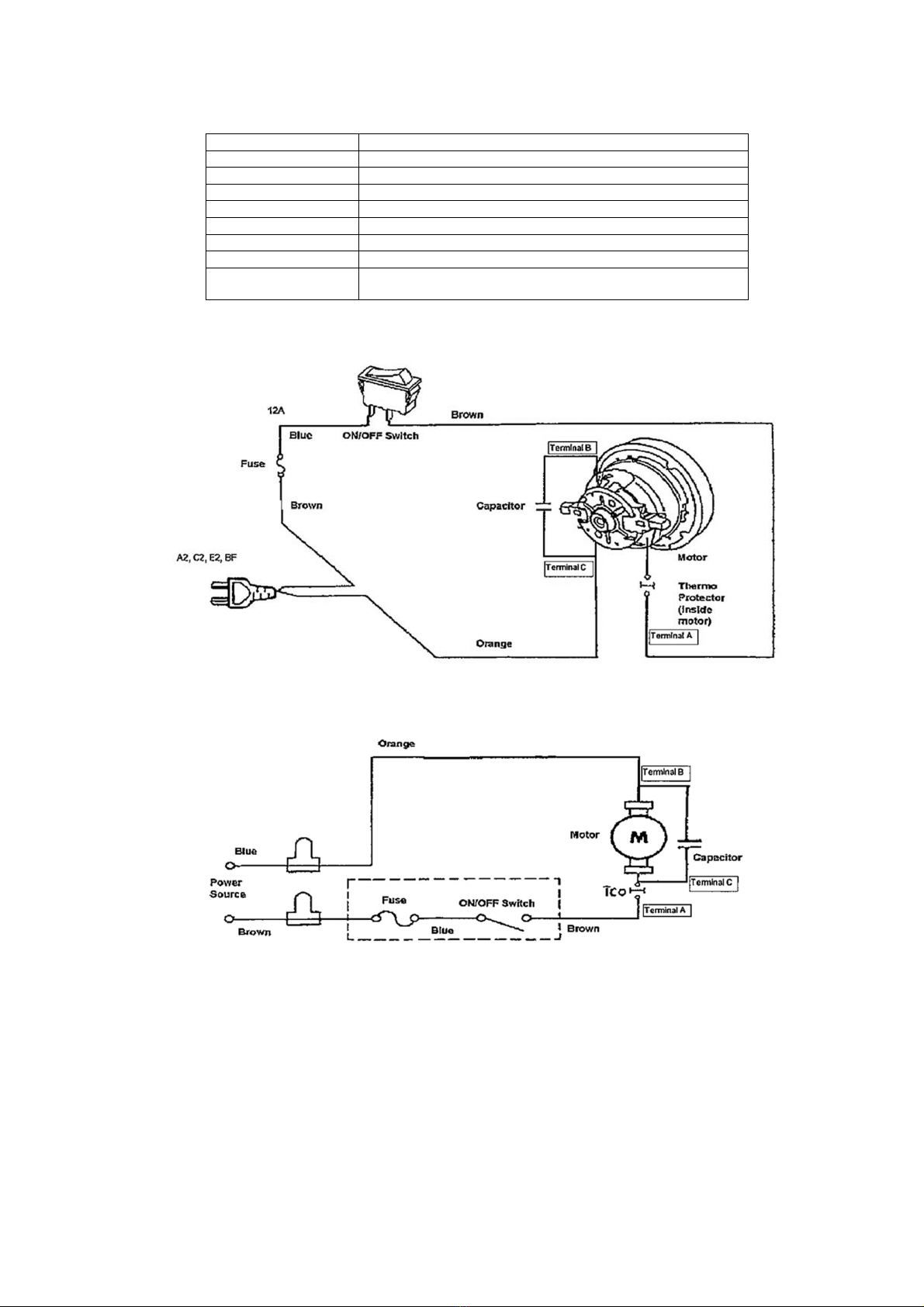

3 Schematic Diagram

Model MC-YL625T SERIES

Power Source 220 - 240V

Frequency ( Hz ) 50/60Hz, 50Hz

Motor Power 1800W

Dimensions (L x W x H) 366mmX340mmX544mm

Nett Weight (kg) 6.9 kg

Extension Wands Metal

Floor Nozzel Bottom Plate

Attachments Hose, Extension Wand, Floor Nozzle, Curved Ward, Crevice Nozzle,

Upholstery Nozzle

4

4 Disassembly and Assem-

bly Instruction

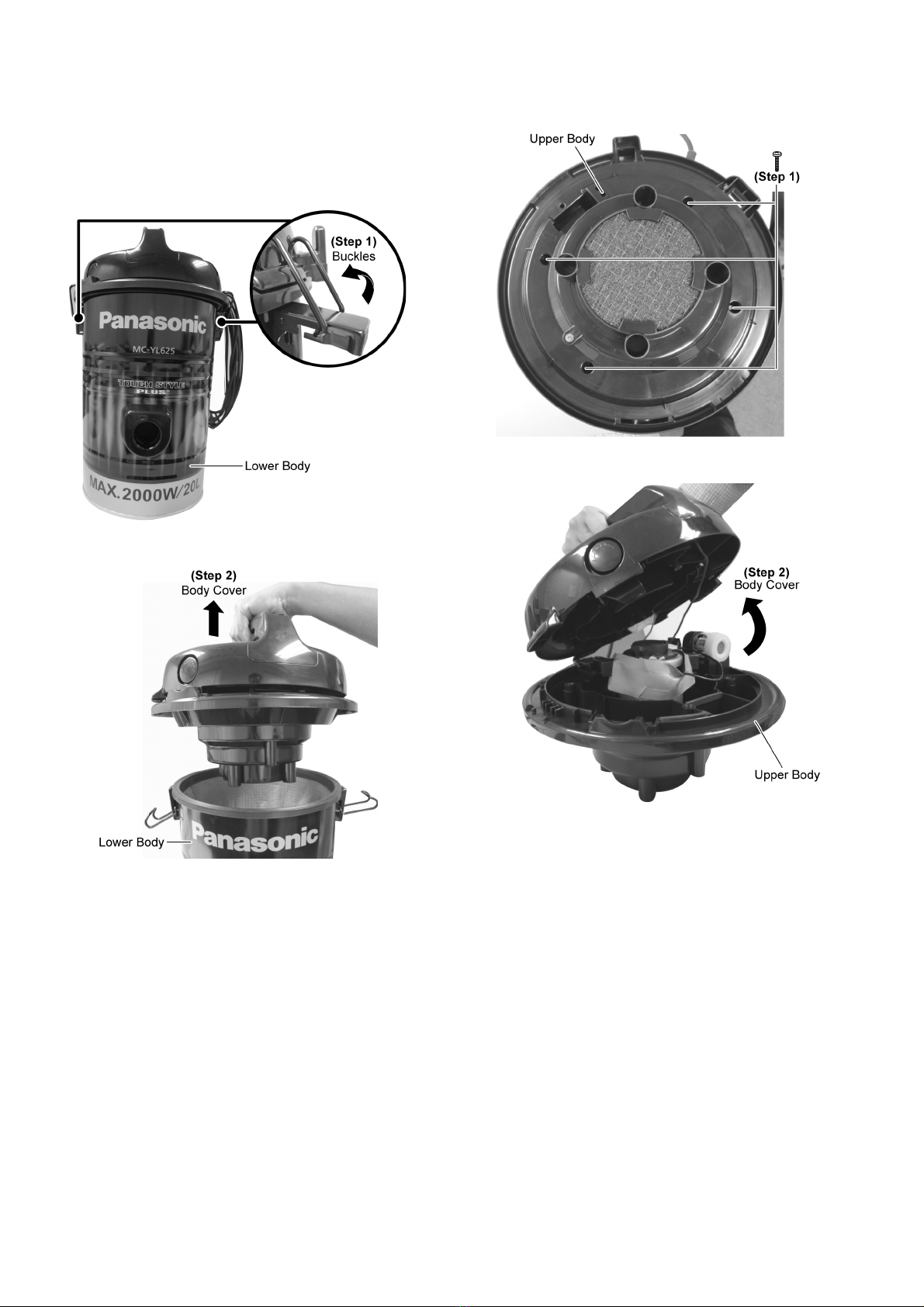

4.1. Disassembly of Lower Body

Step 1 Release Buckles.

Step 2 Take out Body Cover from Lower Body.

4.2. Disassembly of Body Cover

Step 1 Remove 4 screws from Upper Body.

Step 2 Take out Body Cover from Upper Body.

5

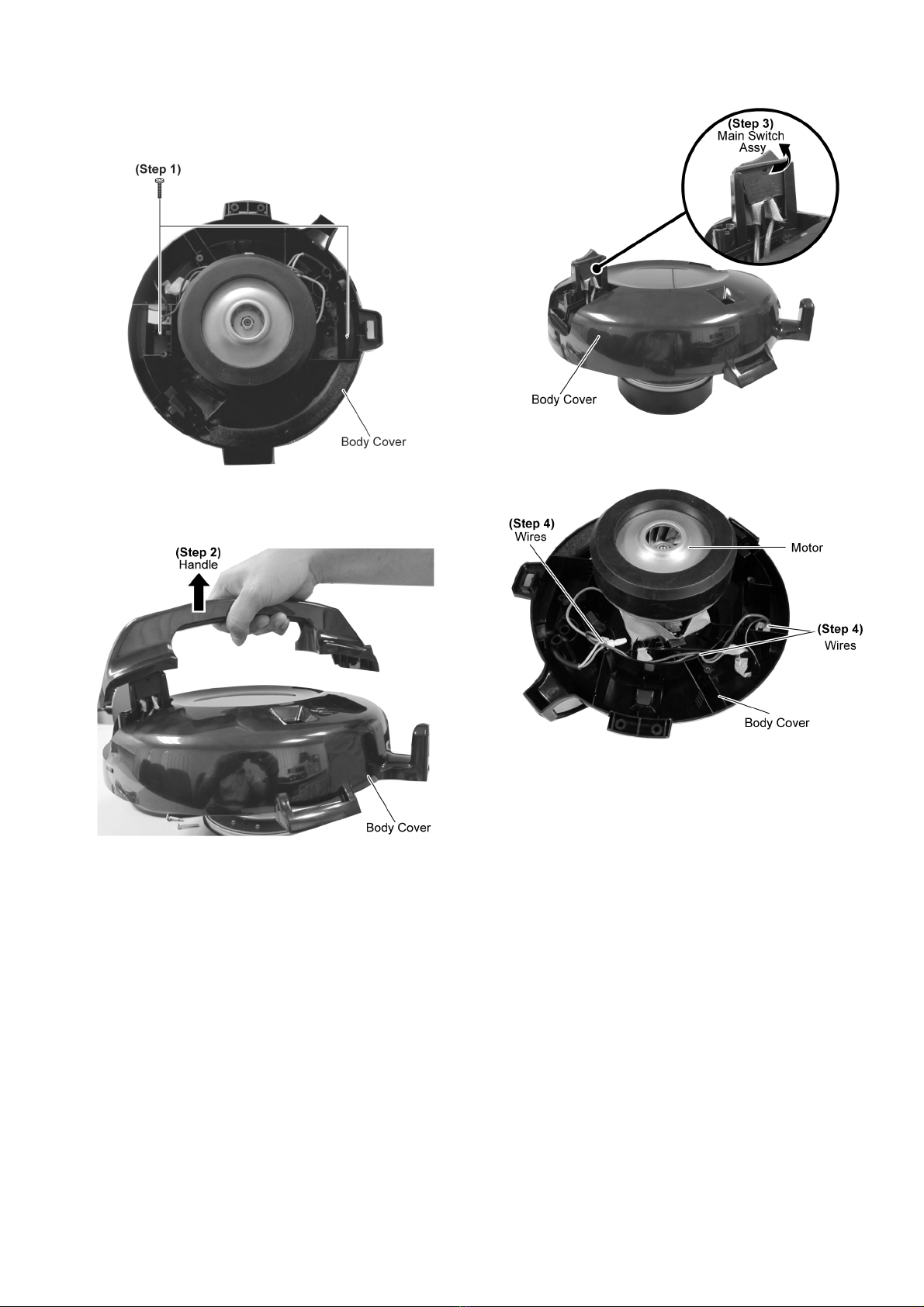

4.3. Disassembly of Main Switch

Ass’y

Step 1 Remove 2 screws from Body Cover.

Step 2 Take out Handle from Body Cover.

Step 3 Remove Main Switch Assy from Body Cover.

Step 4 Release Wires from Wire Holder.

6

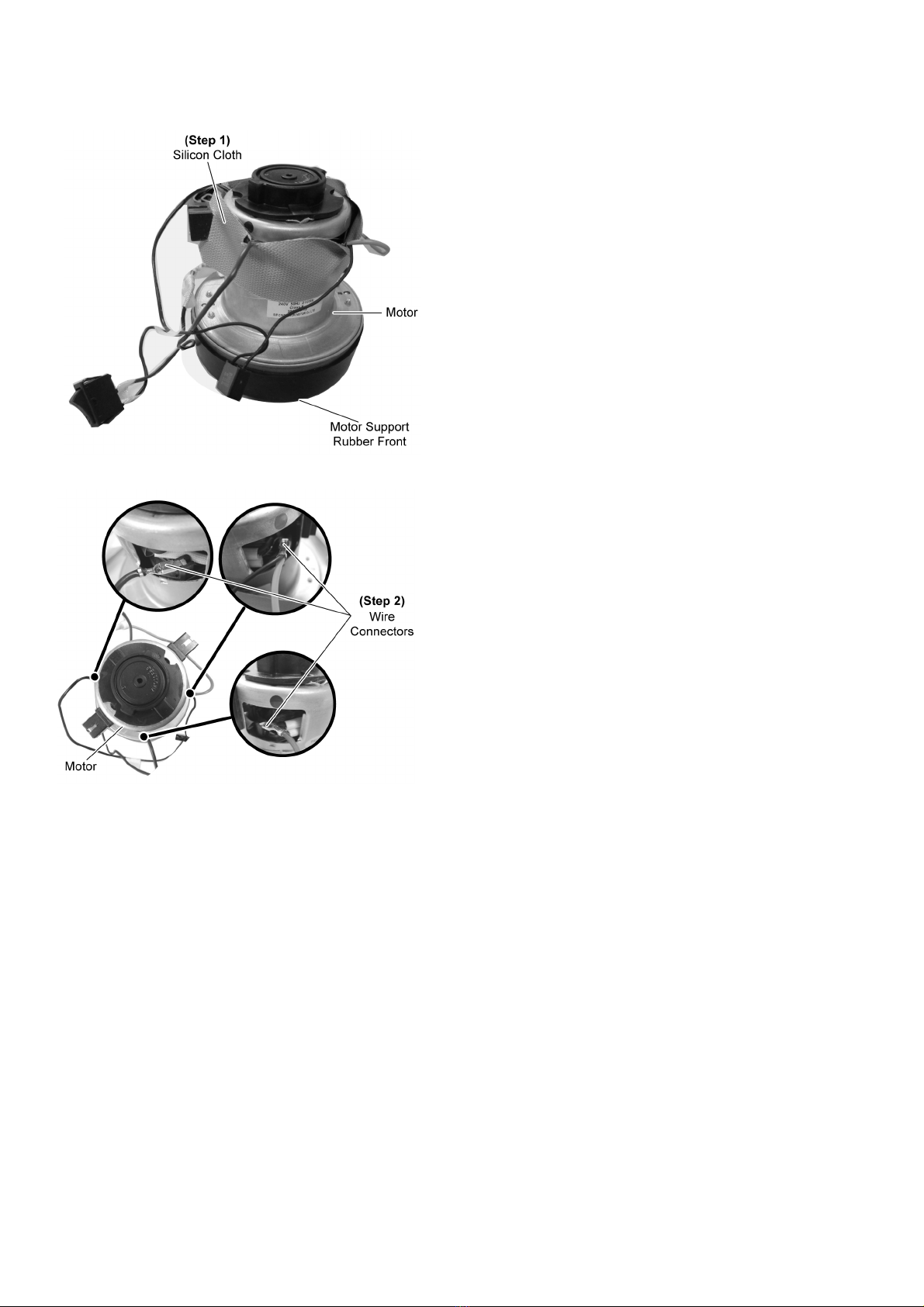

4.4. Disassembly of Motor

Step 1 Take out Silicon Cloth.

Step 2 Release Wire Connectors from Motor.

7

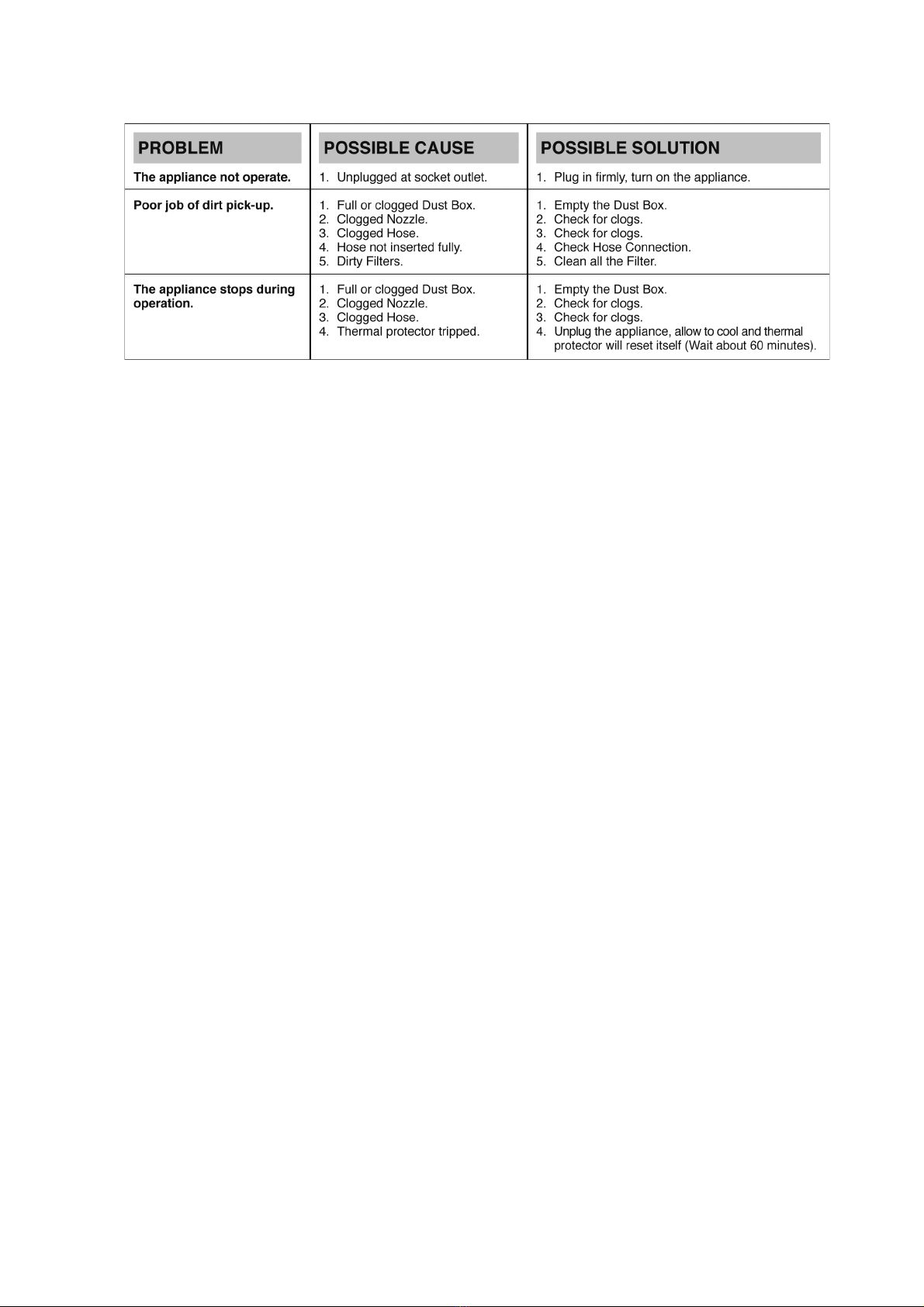

5 Trouble Shooting Chart

8

6 Exploded View and Replacement Parts List

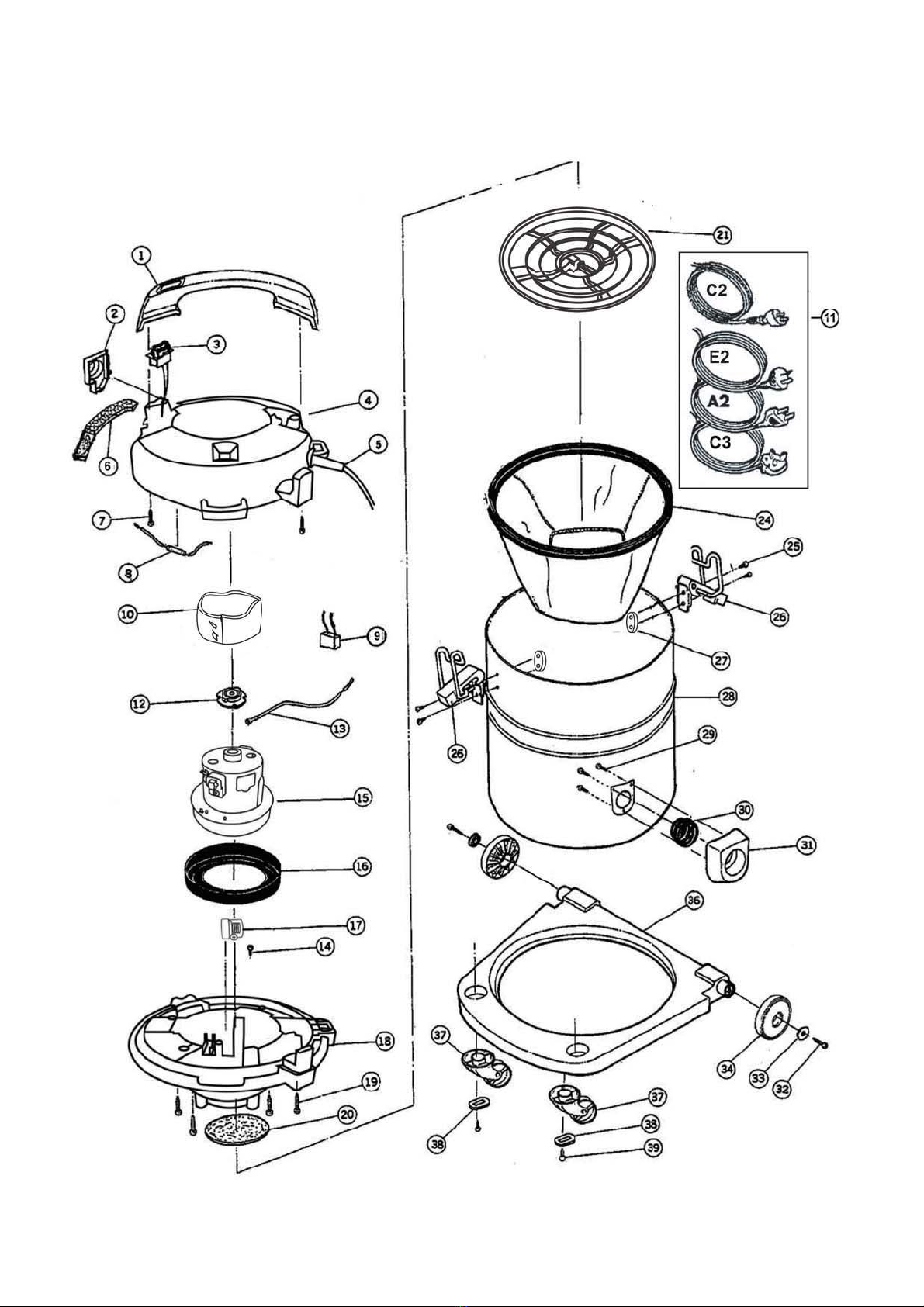

6.1. Exploded View

9

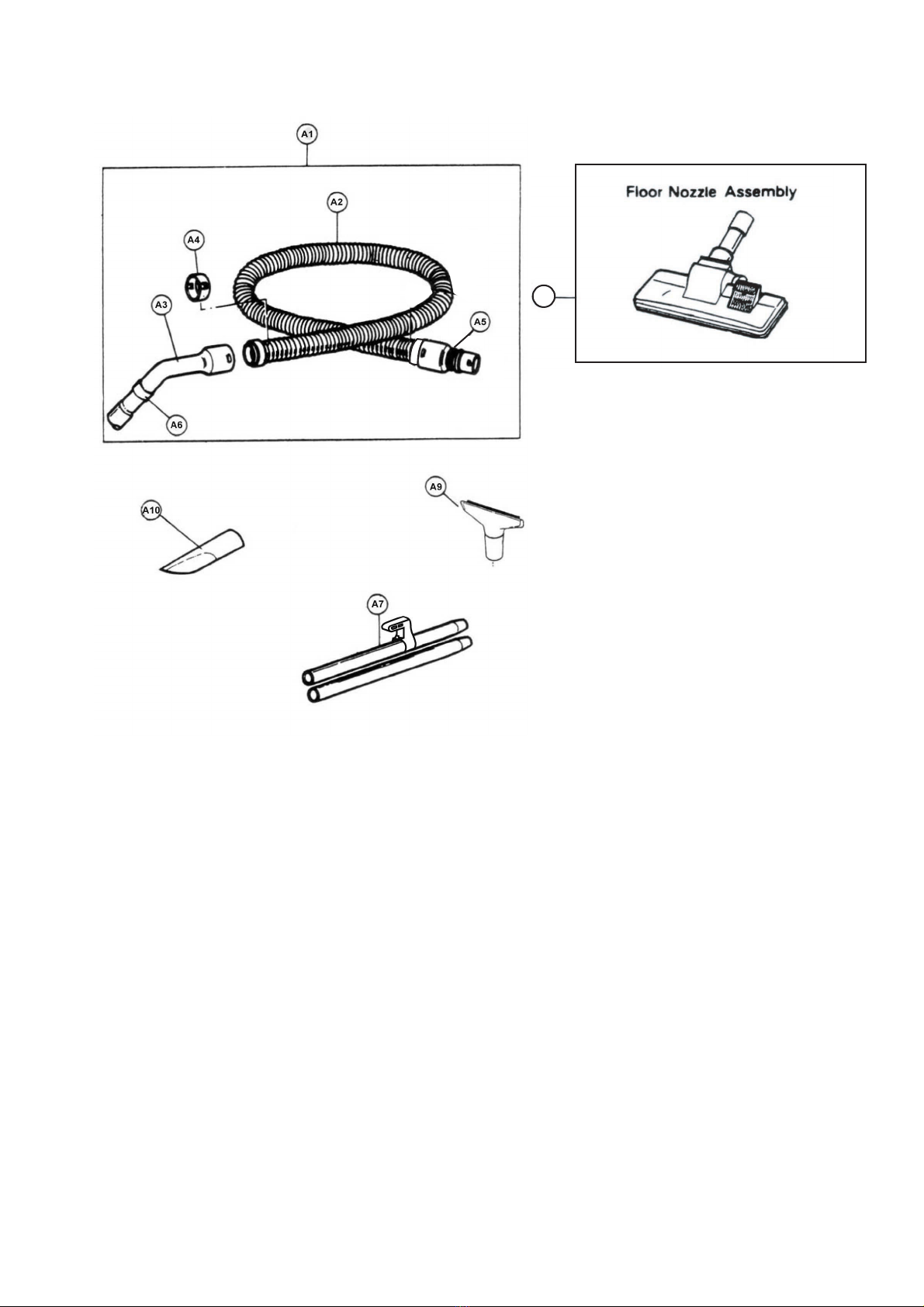

6.2. Attachment Exploded View

A11

10

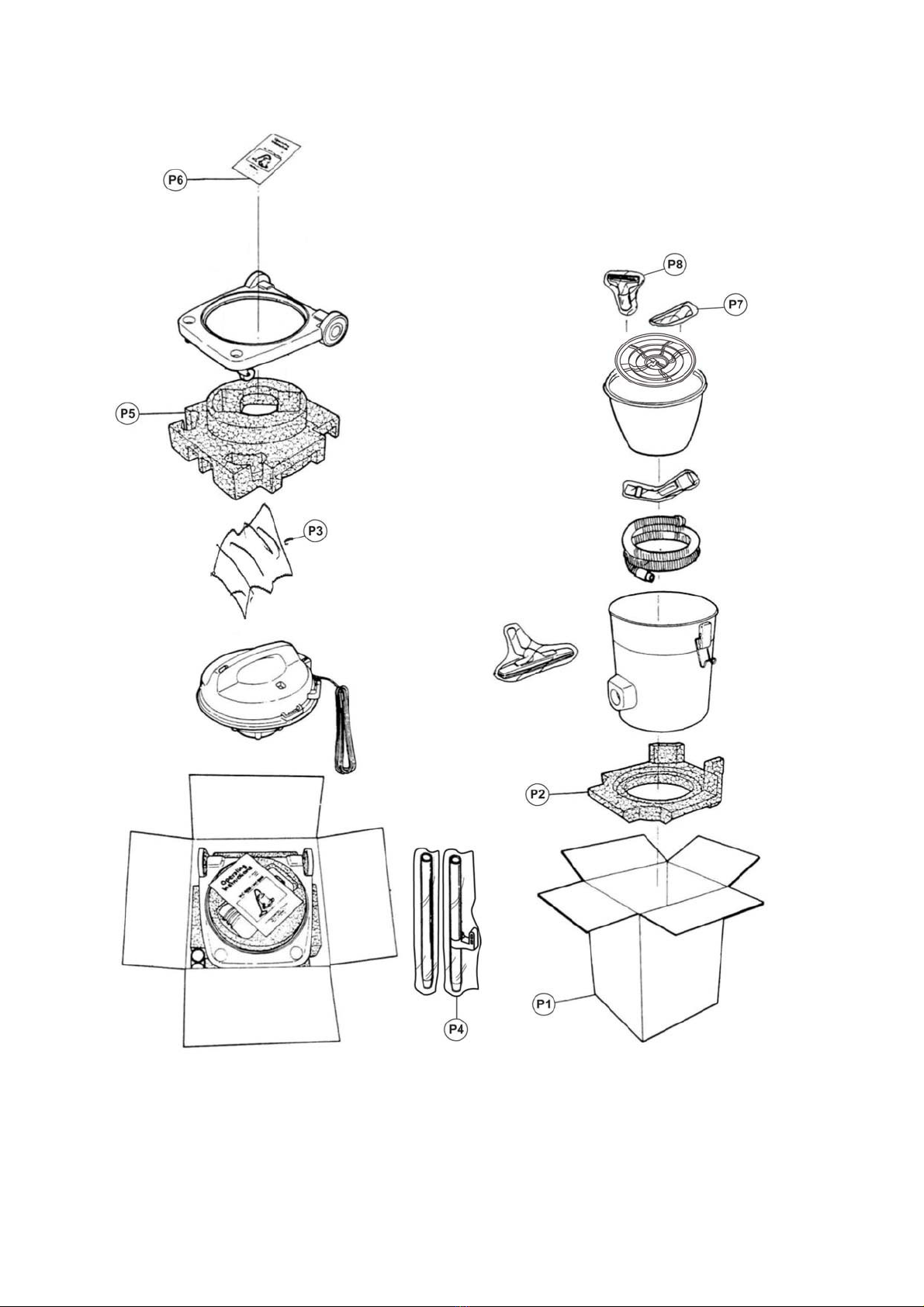

6.3. Packing Instruction

Este manual sirve para los siguientes modelos

13
