TQB8E3224---eng

TX---29AS10C/B

Colour television

Operating Instructions

English

This is an unapproved issue --- for your information only

Dear Panasonic Customer,

Welcome to the Panasonic family of customers. We hope that you have many years of enjoyment from your

new colour television. This is a very advanced television; however, the Quick Start Guide will tell you how to

have the TV operating quickly. You can then read the instructions completely and retain them for future

reference.

Warnings and Precautions 2.......................

Accessories 3....................................

Quick Start Guide 4...............................

Basic Controls 6..................................

Using the On Screen Displays 7....................

Aspect controls 8.................................

Picture Menu 10..................................

Sound Menu 11...................................

Setup Menu 12...................................

Tuning Menu 13..................................

Tuning Menu -- Programme edit 14.................

Tuning Menu -- Auto Setup 18......................

Tuning Menu -- Manual tuning 19...................

OSD Language 20................................

Q-- Link 21.......................................

AV Select and Setup 22...........................

VCR/DVD Operation 23...........................

Te l e t e x t O p e r a t i o n 2 4.............................

Audio / Video (AV) Connections 26.................

Via the front AV3 Audio / Video (RCA)

and Headphone Sockets 26........................

SCART and S-- Video Terminal Information 26..........

ViatherearAV1/AV221Pin(SCART)

and RCA Audio Out terminals 27.....................

Troubleshooting 28...............................

Foryourguidance 28.............................

Specifications 29.................................

DThis TV set is designed to operate on A.C. 220 -- 240V, 50Hz.

DTo prevent damage which might result in electric shock orfire,

do not expose this TV set to rain or excessive moisture.

DWARNING : HIGH VOLTAGE !!!

Donotremovetherearcoveraslivepartsareaccessiblewhen

it is removed. There are no user serviceable parts inside.

DAvoid exposing the TV set todirect sunlightand othersources

of heat.

DThe On/Off switch on this model does not fully disconnect the

TV from the mains supply. Remove the mains plug from the

wall socket when the TV set is not used for a prolonged period

of time.

DCABINET AND PICTURE TUBE CARE

Remove the mains plug from the wall socket. The cabinet and

picture tube can be cleaned with a soft cloth moistened with

mild detergent and water. Do not use solutions containing

benzol or petroleum. TV sets can produce static electricity,

care must be taken whenever touching the TV screen.

DAdequate ventilation is essential to prevent failure of electrical

components, we recommend that a gap of at least 5cm is left

all around this television receiver even when it is placed inside

a cabinet or between shelves.

WELCOME

CONTENTS

WARNINGS AND PRECAUTIONS

Batteries for the Remote Control

Transmitter.

(2 x R6 (UM3) size)

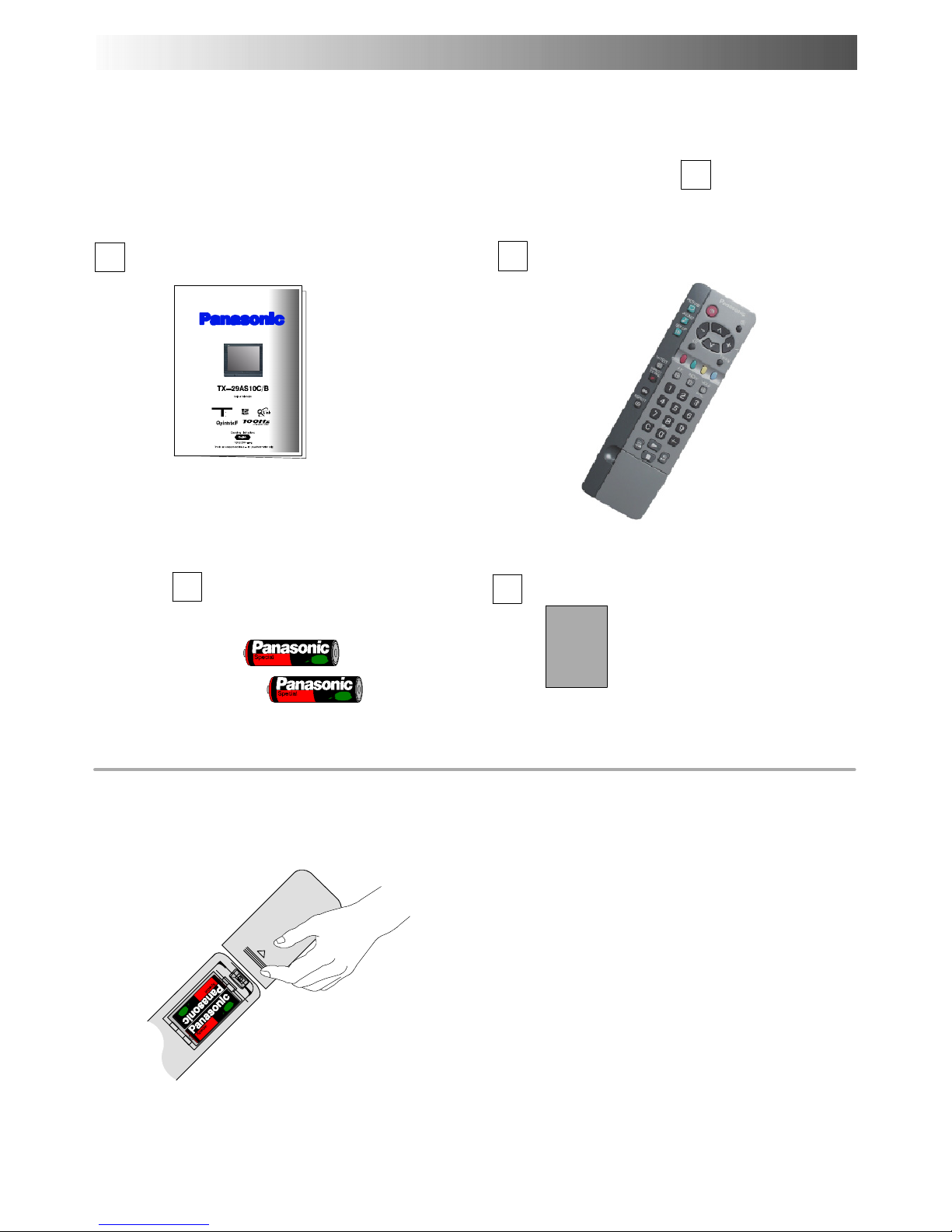

Check that you have the accessories and items shown

Operating Instruction book

DMake sure that the batteries are fitted

the correct way round.

DDo not mix old batteries with new

batteries. Remove old, exhausted

batteries immediately.

DDo not mix different battery types, i.e.

Alkaline and Manganese or use

rechargeable (Ni---Cad) batteries.

Remote control batteries

Remote Control Transmitter

EUR511211

TV Guarantee

ACCESSORIES

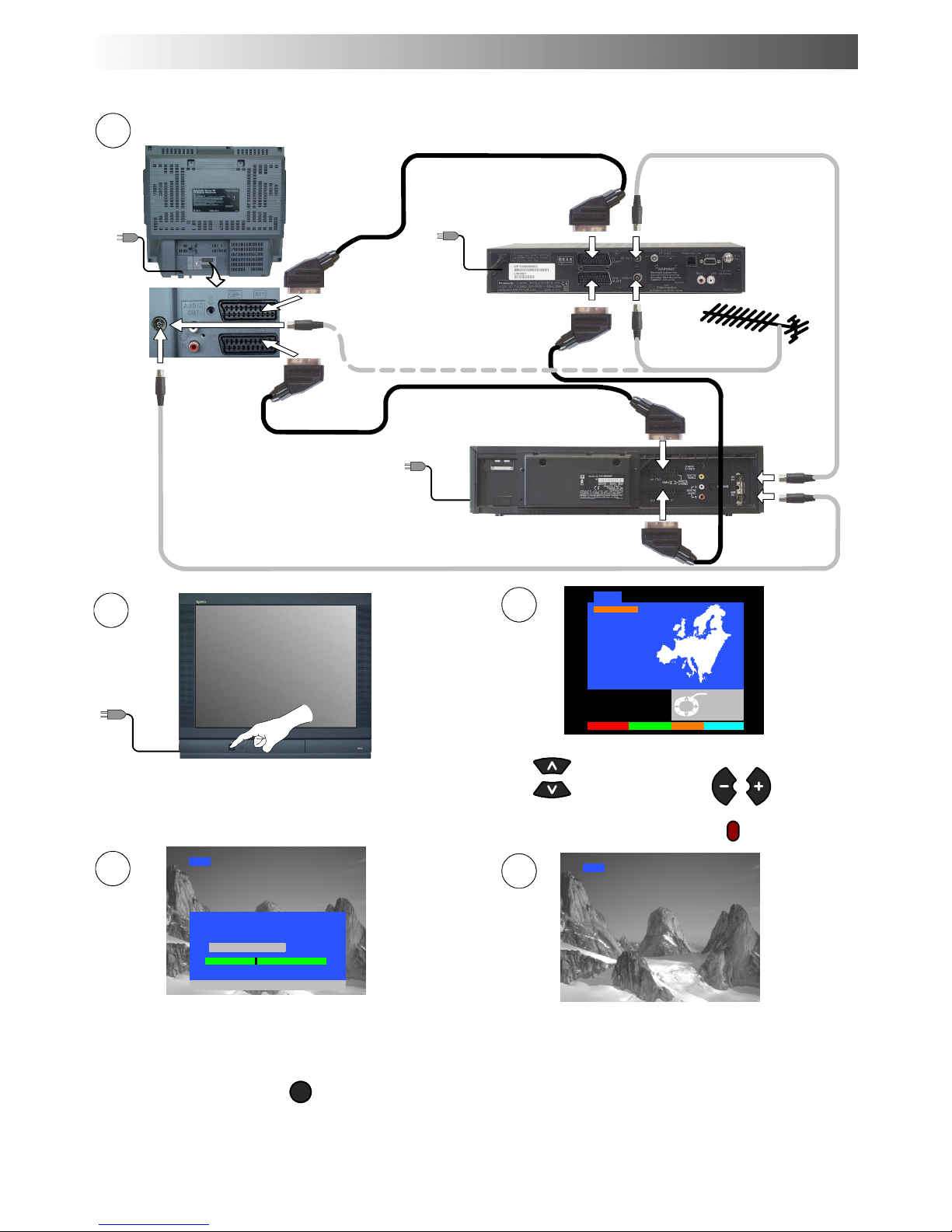

Plug in aerial and connect ancillary equipment.

First, ensure that the VCR is in Standby mode.

Plug in TV and switch on.

Auto setup will begin, your stations will be located and stored.

Use the Programme Edit menu to delete unwanted stations

(see page 14).

Press the TV/AV button to exit.

If you are installing a new Q---Link compatible VCR, you can now

switch it ON. Downloaded tuning data will match the television’s.

If you are installing a new NEXTVIEWLINK compatible VCR, you will

need to initiate download manually.

See the VCR handbook for details.

DIf the VCR has not accepted download data from the TV, you may need to select the Download option from the VCR’s menu.

DIf Q---Link is not operating correctly, check it is connected to the television’s AV2 socket, the SCART lead is a “full function” type, and

the VCR is compatible with Q---Link, NEXTVIEWLINK or similar technologies. Ask your dealer for further details.

DFor further information on Q---Link and connecting equipment, see pages 21, 26 and 27.

5CH41

TV/AV

VCR

SATELLITE RECEIVER

AV2

AV1

AV2

AV1

Start ATP Suchlauf Abbruch

Land

Auswählen

Deutschland

Österreich

France

Italia

España

Portugal

Nederland

Danmark

Sverige

Norge

Suomi

Belgien

Schweiz

ELLADA

E.Eu

Select your country For Switzerland and Belgium, select

the desired language

Press the red button

ATP AKTIV

SUCHE LÄUFT : BITTE WARTEN

TV / AV : Abbruch

02 78:01 41

CH41

CH41 XYZ

QUICK START GUIDE

Press and release here to open flap

6Slight tilting of the picture may be noticeable or coloured patches may sometimes appear at the corners of the

screen (colour purity). The Geomagnetic Correction feature can be used to eliminate them, if necessary:

First, ensure the ATP and Q---Link download procedures are complete.

The screen should not be showing any On---Screen Display menus.

Press the Fbutton repeatedly until the Geomagnetic

Correction feature is displayed

Press the +or --- buttons repeatedly until the picture

appears to be level

--- / v

Press the Fbutton again to return to normal viewing.

Close the flap to prevent damage

Adjust Volume Change Programme

You are now ready to begin viewing programmes

The cursor controls provide the two basic functions:

002

STR F --/v +/ TV/AV

Geomagnetic correction

F : Exit

--,+ : Adjust

7We recommend that as soon as the ATP feature is

completed, the picture controls are reset to normal

viewing levels. To do this, press the ”N” button, found

under the remote control’s pull down flap.

QUICK START GUIDE

Switch between viewing TV or AV input

(see page 22)

Standby ON/OFF switch

Switches TV On or Off standby.

Programme position for selection of

two digit programmes (10-99) using

numeric buttons

Programme / channel change

buttons (0-9) and Teletext page

buttons (see page 24)

Menu buttons

Press to access the Picture, Sound

and Setup menus (see page 7)

Sound mute On/Off

Direct Channel Access

During normal TV viewing or when

in the Tuning, Programme edit or

Manual tuning menus, press and

then enter channel number using

the numeric buttons

Teletext buttons (see page 24)

Coloured buttons used for

Programme Edit functions (see page 14)

Teletext functions (see page 24)

AV selection (see page 22)

MAINS

Power

On/Off

switch

STR (Normalisation store)

Used to store tuning and other

function settings

F (Function select)

Displays the On Screen Display functions,

use repeatedly to select from the available

functions -Volume, Contrast, Brightness,

Colour, Sharpness, Tint (in NTSC mode),

Bass, Treble, Balance, Tuning mode and

Geomagnetic Correction.

Increases or decreases the programme

position by one. When a function is

already displayed, press to increase or

decrease the selected function.

TV/AV switch (see page 22)

Headphonesocket(seepage26)

RCA Audio/Video sockets (page 26)

Red light indicates Standby mode.

The N button will recall settings

stored with STR

STR (Normalisation store)

Cursor buttons to make selections and

adjustments

The Help button provides a

demonstrationofOnScreen

Display menus

Ambience on/off

Direct TV Record button

(see page 21)

Status button

Press to display programme position,

programme name, channel number,

TV system, time stereo mode

and programme table

VCR / DVD buttons

(see page 23)

S ---VHS socket (see page 26)

Aspect control button (see page 8)

BASIC CONTROLS : FRONT PANEL AND REMOTE CONTROL

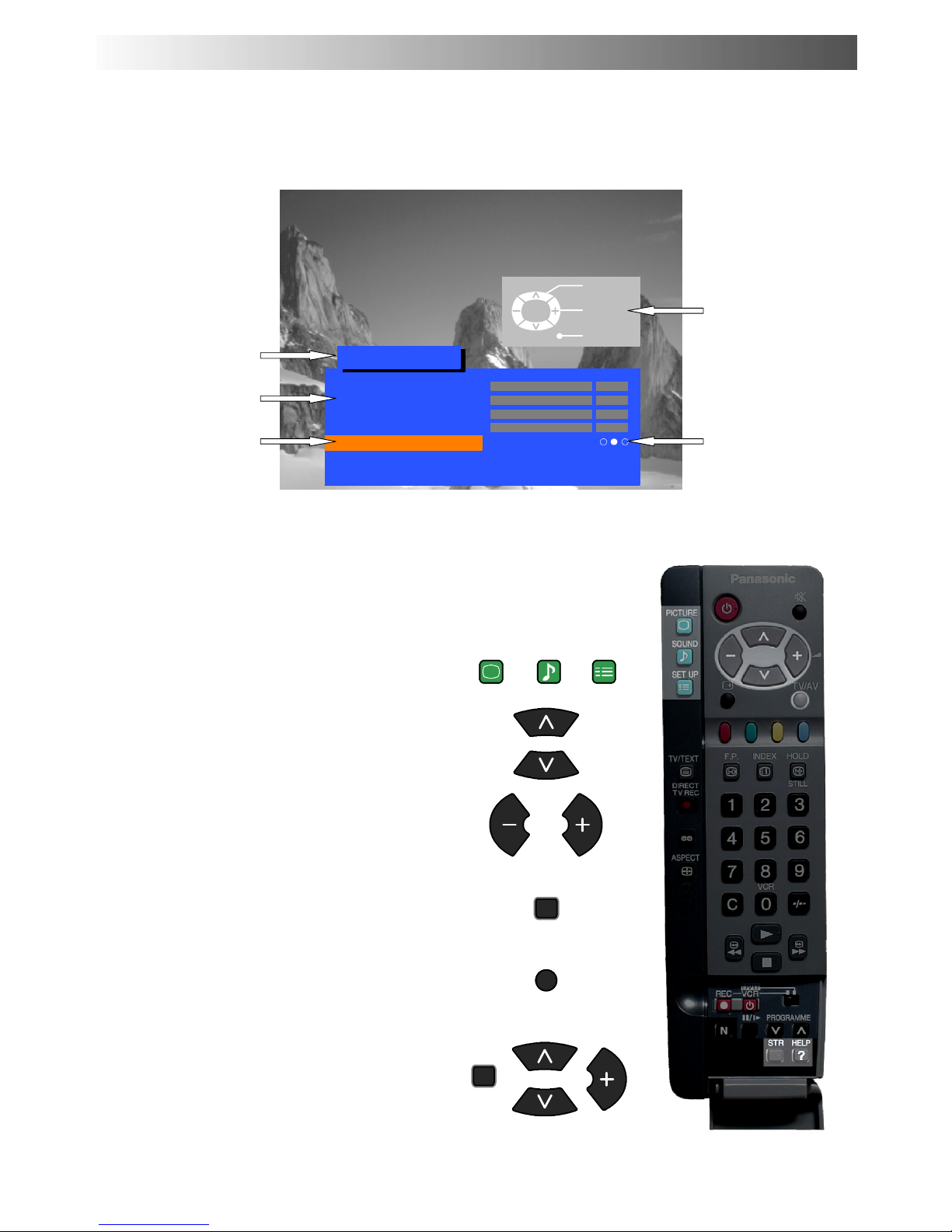

This TV has a comprehensive system of On Screen Display menus to access

adjustments and options

Picture menu

Contrast

Brightness

Colour

Sharpness

Colour balance Normal

P-- NR Off

AI On

Select

Change

Exit

TV/AV

Some selections, for example, Contrast, Brightness, Colour and Sharpness

will allow you to increase or decrease their level.

Some selections, for example, Off timer, allow a choice to be made.

Some selections, for example Tuning menu, will lead to a further menu.

The PICTURE,SOUND and SET UP buttons are

used to open the main menus and also to return to

the previous menu.

The up and down cursor buttons are used to move

the cursor up and down the menus.

The left and right cursor buttons are used to access

menus, adjust levels or to select from a range of

options.

The STR button is used to store settings after

adjustments have been made or options have

been set.

The TV/AV button is used to exit the menu system

and return to the normal viewing screen.

The HELP button will run a demonstration of the

menus available. Press the HELP button and

select one of the options.

Menu Title

Selection bar

Sub-- menus

Indicator for options

Instructions

PICTURE SOUND SET UP

STR

HELP

TV/AV

If the HELP button is pressed whilst a menu is

displayed, the ’Instructions’ box will be hidden

from view. Press the HELP button again to show

the ’Instructions’ box.

USING THE ON SCREEN DISPLAYS

Press the ASPECT button to move

through the four aspect options:

Auto,4:3,16:9andS---Zoom.

Auto

Selecting AUTO mode of this TV will

automatically cause the TV to display

any incoming picture at its correct

format,i.e.16:9or4:3.

4:3

4:3 will display a 4:3 picture at its

standard 4:3 size and can be selected if

youwishtoviewinthisformat.

ASPECT CONTROLS

ASPECT

Auto

4:3

16:9

4:3

16:9

16:9 will diplay a 16:9 picture at its

standard 16:9 size and can be selected

if you wish to view in this format.

S--Zoom

S --- Z o o m allows increased

magnification and the ability to move the

picture horizontally and vertically.

The on screen selector keys that appear

for some aspect function will clear after a

few seconds. If you subsequently wish

to select an operation then press the

Aspect key once more for the keys to

reappear.

If, in Auto mode, you experience

problems with the screen display size

when playing back widescreen format

recordings from your VCR then it is

possible that the tracking control of your

VCR requires adjustment (your VCR

instruction book will contain adjustment

details).

Still Control

The STILL key allows you to freeze the

picture at any time.

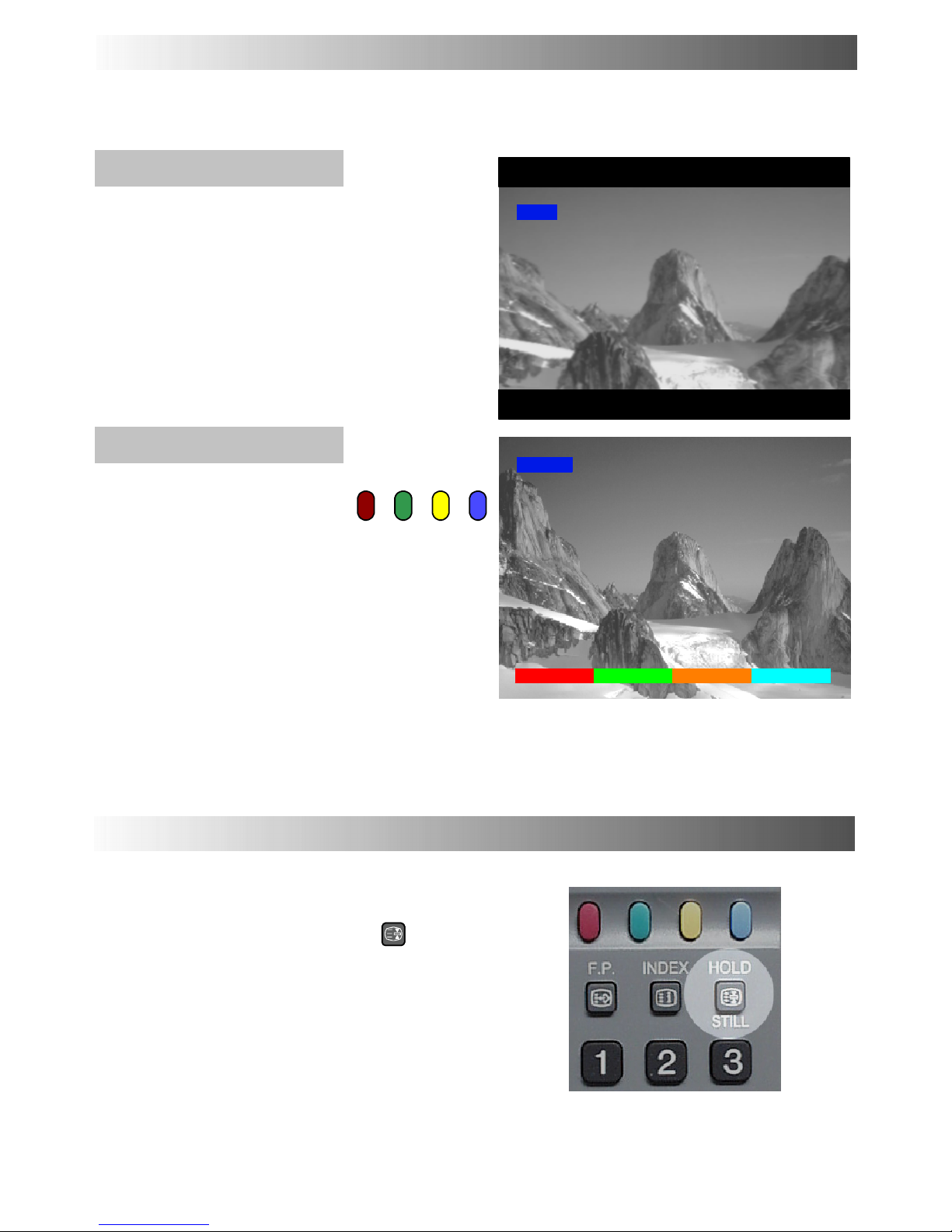

ASPECT CONTROLS

S--Zoom

16:9

Increased magnification with S --- Z o o m .

H--pos--H--pos+ V--pos--V--pos+... .... ....

STILL CONTROL

HOLD

STILL

This menu allows you to make adjustments to the picture quality

Open the Picture menu

Move to your choice

Increase or decrease levels or

set options

Press the TV/AV button to exit

the Picture menu

The Contrast, Brightness, Colour and

Sharpness levels can be adjusted to suit

your own preferences and the viewing

conditions.

The Tint adjustment will only appear as

a menu item if you have an NTSC signal

source connected to the TV and will

allow adjustment of the hue.

The Colour balance settingallows you to

set the overall colour tone of the picture.

P-- NR will automatically reduce

unwanted picture interference.

The AI setting automatically analyses

the incoming picture and processes it to

give improved contrast, optimum depth

of field and vivid colour tones.

PICTURE MENU

TV/AV

Picture menu

Contrast

Brightness

Colour

Sharpness

Colour balance Normal

P-- NR Off

AI On

Select

Adjust

Exit

TV/AV

Picture menu

Contrast

Brightness

Colour

Sharpness

Colour balance Normal

P-- NR Off

AI On

Select

Adjust

Exit

TV/AV

Sharpness

Contrast

Tint

Colour

Brightness

Sharpness

Colour balance

P-- NR

Tabla de contenidos

Otros manuales de TELEVISOR de Panasonic

Panasonic

Panasonic TC-21PM50Z Manual de usuario

Panasonic

Panasonic CT-27G24 Manual de usuario

Panasonic

Panasonic Viera TC-L50ET60 Manual de usuario

Panasonic

Panasonic Viera TC-L32B6 Manual de usuario

Panasonic

Panasonic TX-29S90Z Manual de usuario

Panasonic

Panasonic TX-W28D2F Manual de usuario

Panasonic

Panasonic TX-29P180B Manual de usuario

Panasonic

Panasonic TX-21AD2 Manual de usuario

Panasonic

Panasonic CT-F2921L Manual de usuario

Panasonic

Panasonic TC AS660 Series Instrucciones de montaje

Panasonic

Panasonic CT2017F - 20" COLOR TV Manual de usuario

Panasonic

Panasonic TX-28EX2F Manual de usuario

Panasonic

Panasonic TX-40CW304 Manual de usuario

Panasonic

Panasonic Viera TX-26LE7F Manual de usuario

Panasonic

Panasonic TX-2980Z Manual de usuario

Panasonic

Panasonic TCL32X34 Guía de inicio rápido

Panasonic

Panasonic TX-28MD4P Manual de usuario

Panasonic

Panasonic CT27E13G - 27" COLOR TV Manual de usuario

Panasonic

Panasonic TX-29PS11P Manual de usuario

Panasonic

Panasonic TX-32ES600E Instrucciones de montaje

Panasonic

Panasonic Viera TC-55LE54 Manual de usuario

Panasonic

Panasonic TX-28SL1F / TX-25SL1? Manual de usuario

Panasonic

Panasonic Viera TX-26LE7FA Manual de usuario

Panasonic

Panasonic TC-21S10M Manual de usuario

Manuales populares de TELEVISOR de otras marcas

Philips

Philips Colour Television Manual de usuario

Toshiba

Toshiba 27A10 Manual de usuario

Philips

Philips 42PF9630A/37 Manual de usuario

Hitachi

Hitachi 32FX48B Manual de usuario

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Manual de usuario

Changhong Electric

Changhong Electric uhd55b6000is Manual de usuario

Philips

Philips Matchline 21CE7551 Manual de usuario

Toshiba

Toshiba 19A20 Manual de usuario

Philips

Philips 25PT4523-16 Manual de usuario

Sony

Sony XBR-100Z9D Manual de usuario

Philips

Philips PR0930X3 Manual de usuario

Philips

Philips Brilliance 231P4QPY Manual de usuario

Samsung

Samsung 55S9 B Series Manual de usuario

Philips

Philips 32HF9385D Guía de solución de problemas

Sharp

Sharp LC-40FI5012E Manual de usuario

Loewe

Loewe Table Stand Reference 55 Manual de usuario

Philips

Philips 32PFH5300 Manual de usuario

Sylvania

Sylvania 6427FB Manual de usuario
