Panasonic TX-29P180B Manual de usuario

Power Source AC Auto 110-240 V, 50/60 Hz

Power Consumption 197 W

Standby condition: 11 W

Receiving System

Function 21 Systems

Reception of broadcast PAL B, G, H

transmissions and Playback PAL I

from Video Cassette Tape PAL D, K

Recorders SECAM B, G

SECAM D, K

SECAM K1

NTSC M (NTSC 3.58/4.5 MHz

Playback from special NTSC 4.43/5.5 MHz

VCRs NTSC 4.43/6.0 MHz

NTSC 4.43/6.5 MHz

NTSC 3.58/5.5 MHz

NTSC 3.58/6.0 MHz

NTSC 3.58/6.5 MHz)

SECAM I

Playback from Special Disc PAL 60 Hz/5.5 MHz

Players and Special VCRs PAL 60 Hz/6.0 MHz

PAL 60 Hz/6.5 MHz

SECAM 60 Hz/5.5 MHz

SECAM 60 Hz/6.0 MHz

SECAM 60 Hz/6.5 MHz

NTSC 50 Hz/4.5 MHz

Receiving Channels Regular TV

rights reserved. Unauthorized copying and

distribution is a violation of law.

TX-29P180B

MD3N Chassis

VHF BAND 2-12 (PAL/SECAM B, K1)

0-12 (PAL B AUST.)

1-9 (PAL B N.Z.)

1-12 (PAL/SECAM D)

1-12 (NTSC M Japan)

2-13 (NTSC M U.S.A.)

UHF BAND 21-69 (PAL G,H,I/SECAM G,K,K1)

28-69 (PAL B AUST.)

13-57 (PAL D,K)

13-62 (NTSC M Japan)

14-69 (NTSC M U.S.A.)

CATV S1-S20 (OSCAR)

1-125 (U.S.A. CATV)

C13-C49 (JAPAN)

S21-S41 (HYPER)

Z1-Z37 (CHINA)

5A, 9A (AUST.)

Receiving Stereo System NICAM I, NICAM B/G, NICAM D, A2

(German)

Tuning System Frequency synthesizer

Auto Search Tuning

POSITION: 100 Position

DIRECT: 125 Position

High Voltage 31.0 ± 1.0 kV at zero beam current

Picture Tube Overall Picture tube measured

diagonally: 73 cm

Viewable Picture tube measured

Colour Television

Specifications

OrderNo.

diagonally: 68 cm

CRT Deflection: 104°

Audio Output 8W x 2 (Speaker) 14W (Woofer)

Headphones 3.5 mm Plug

Aerial Impedance 75 ΩUnbalanced Coaxial

Video/Audio/Component

AV 1, 2, 3, 4

S-Video In Y:1 Vp-p, 75 Ω

DVD C:0:3 Vp-p 75 Ω

Y1.0Vp-p,75Ω

PB0.7Vp-p, 75Ω

PR0.7Vp-p, 75Ω

Monitor Out Video In 1 Vp-p, 75 Ω

Audio In Approx 0.4 V 47 kΩ

Video Out 1 Vp-p, 75 Ω

Audio Out Approx. 0.4 V 1 kΩ

AV1 IN (Rear): S-Video,

Video, Audio L/R terminals

1 Safety Precautions 3

1.1. General Guide 3

1.2. Leakage Current Cold Check 3

1.3. Leakage Current Hot Check (See Fig. 1) 3

1.4. X-Radiation 4

2 SERVICE HINTS 5

2.1. HOW TO REMOVE THE REAR COVER 5

2.2. HOW TO MOVE THE CHASSIS INTO SERVICE

POSITION 5

2.3. HOTEL MODE 5

3 SELF CHECK 6

4 SERVICE MODE FUNCTION 7

4.1. HOW TO ENTER SERVICE 1 7

4.2. HOW TO ENTER SERVICE 2 7

5 ADJUSTMENT PROCEDURE 11

5.1. VOLTAGE CONFIRMATION 11

5.2. E.H.T CHECK 11

5.3. SUB CONTRAST 11

5.4. SUB TINT 12

5.5. SUB COLOUR 12

5.6. VRS ADJUSTMENT 13

5.7. COLOUR PURITY 14

5.8. CONVERGENCE 14

5.9. CUT OFF 15

5.10. WHITE BALANCE 16

5.11. FOCUS 16

AV2 IN (Front): S-Video,

Video, Audio L/R RGB

Terminals

AV3 IN (Rear): Video, Audio

L/R terminals

AV4 IN (Rear): Video or

Y/PB/PR, Audio L/R

terminals

RGB Input High-DENSITY D-sub 15 pin

31.5 kHz/60 Hz (640 x 480 dot) and

31.5 kHz/70 Hz (640 x 400 dot)

Remote Control Transmitter R6 (AA) Battery x 2

75 Ωcoaxial aerial plug

Dimensions (W x D x H) 699 mm x 509 mm x 584 mm

Weight (Mass) 53 kg (Net)

Note:

Design and Specifications are subject to change without notice.

Weight and Dimensions shown are approximate.

5.12. GEOMAGNETIC 16

5.13. SUB BRIGHT 16

6 DEFLECTION ADJUSTMENT 17

6.1. V-ADJUSTMENT/CONFIRMATION (4:3 MODE) 17

6.2. H-DEFLECTION CONFIRMATION/ADJUSTMENT (4:3

MODE) 18

6.3. EW ADJUSTMENT/CONFIRMATION (4:3 MODE) 18

6.4. V LINIALITY ADJUSTMENT / CONFIRMATION (4:3

MODE) 20

6.5. DEFLECTION (16:9 MODE) ADJUSTMENT /

CONFIRMATION 21

6.6. 525p DEFLECTION ADJUSTMENT / CONFIRMATION

6.7. 625p DEFLECTION ADJUSTMENT 22

6.8. VGA480 / 60 Hz DEFLECTION ADJUSTMENT /

CONFIRMATION 22

6.9. VGA400 / 70 Hz DEFLECTION ADJUSTMENT /

CONFIRMATION 23

6.10. TABLE 1 23

7 CONDUCTOR VIEWS 25

7.1. A-Board 25

8 SCHEMATIC DIAGRAMS 26

8.1. SCHEMATIC DIAGRAM NOTES 26

9 PARTS LOCATION 29

10 Replacement Parts List 31

10.1. Replacement Parts List Notes 31

10.2. Replacement Part List 32

CONTENTS

Page Page

TX-29P180X

1 Safety Precautions

1.1. General Guide

1. It is advisable to insert an isolation transformer in the AC

supply before servicing a hot chassis.

2. When servicing, observe the original lead dress, especially

the lead dress in the high voltage circuits. If a short circuit is

found, replace all parts which have been overheated or

damaged by the short circuit.

3. After servicing, see to it that all the protective devices such

as insulation barriers, insulation papers, shields and

isolation R-C combinations, are properly installed.

4. When the receiver is not to be used for a long period of

time, unplug the power cord from the AC outlet.

5. Potential, as high as 32.0 kV is present when this receiver

is in operation. Operation of the receiver without the rear

cover involves the danger of a shock hazard from the

receiver power supply. Servicing should not be attempted

by anyone who is not thoroughly familiar with the

precautions necessary when working on high voltage

equipment. Always discharge the anode of the picture tube

to the receiver chassis before handling the tube.

6. After servicing make the following leakage current checks to

prevent the customer from being exposed to shock

hazards.

1.2. Leakage Current Cold Check

1. Unplug the AC cord and connect a jumper between the two

prongs on the plug.

2. Turn on the receiver’s power switch.

3. Measure the resistance value, with an ohmmeter, between

the jumper AC plug and each exposed metallic cabinet part

on the receiver, such as screw heads, aerials, connectors,

control shafts, etc. When the exposed metallic part has a

return path to the chassis, the reading should be between 4

MΩ

ΩΩ

Ωand 20 MΩ

ΩΩ

Ω. When the exposed metal does not have a

return path to the chassis, the reading must be infinite.

1.3. Leakage Current Hot Check

(See Fig. 1)

1. Plug the AC cord directly into the AC outlet. Do not use an

isolation transformer for this check.

2. Connect a 2kΩ, 10 W resistor in series with an exposed

metallic part on the receiver and an earth such as a water

pipe.

3. Use an AC voltmeter, with high impedance type, to

measure the potential across the resistor.

4. Check each exposed metallic part, and measure the

voltage at each point.

5. Reverse the AC plug in the AC outlet and repeat each of the

above measurements.

6. The potential any point should not exceed 1.0 V rms. In the

case of a measurement being outside of the limits specified,

there is a possibility of a shock hazard, and the receiver

should be repaired and rechecked before it is returned to

the customer.

TX-29P180X

1.4. X-Radiation

Warning:

1. The potential sources of X-Radiation in TV sets are the EHT

section and the picture tube.

2. When using a picture tube test rig for service, ensure that

the rig is capable of handling 32.0 kV without causing X-

Radiation.

Note: It is important to use an accurate periodically calibrated

high voltage meter.

1. Set the brightness to minimum.

2. Measure the High Voltage. The meter reading should

indicate 31.0 ± 1 kV. If the meter indication is out of

tolerance, immediate service and correction is required to

prevent the possibility of premature component failure.

3. To prevent the possibility of X-Radiation, it is essential to

use the specified picture tube.

TX-29P180X

2 SERVICE HINTS

2.1. HOW TO REMOVE THE REAR

COVER

1. Remove the 9 screws as shown in Fig. 1.

Fig. 1

2.2. HOW TO MOVE THE CHASSIS

INTO SERVICE POSITION

1. Hold and lift the rear of the chassis and gently pull the

chassis towards you as shown in Fig. 3.

2. Release the respective wiring clips and rotate the chassis

vertically through 90°anticlockwise.

3. After servicing replace the bead clamper and ensure all

wiring is returned to its original position before returning the

receiver to the customer.

2.3. HOTEL MODE

Purpose

1. At Hotels, this Mode prevents the customer from changing

the TV preset data such as Channel preset data.

Note: This Mode is useful for Hotels. You should not get

into “Hotel mode”with Normal use.

Operation

1. To get into “Hotel Mode”, press the remote control “Recall”

button and Channel up “[+/ ]”key on the TV set

simultaneously, after setting the “Off-Timer”mode.

2. In this mode, the Channel up and down Function will be

enabled as normal and the maximum volume level for this

mode is set at the current volume level, i.e. the setting at

the level before entering the mode. However, other

functions will be disabled.

To exit this mode, exit “Off-Timer”mode and the “Volume

Down [-/ ]”key simultaneously.

* This information is informed by Service Manual only.

TX-29P180X

3 SELF CHECK

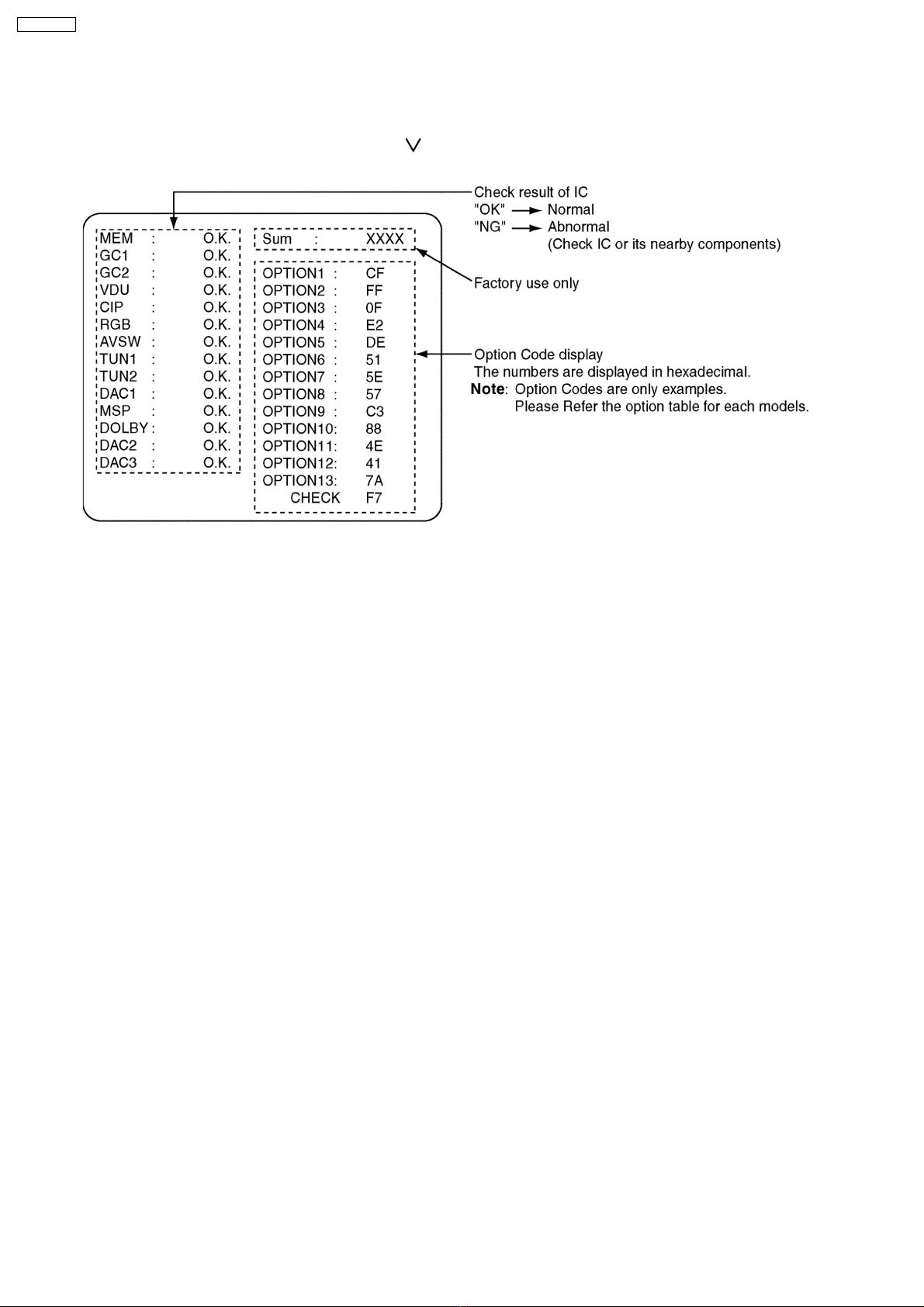

1. Self-Check is used to automatically check the bus lines and hexadecimal code of the TV set.

2. To get into the Self-Check mode, press the down n [-/ ] button on the customer controls at the front of the set, at the same

time pressing the HELP button on the remote control and the screen will show:

TX-29P180X

4 SERVICE MODE FUNCTION

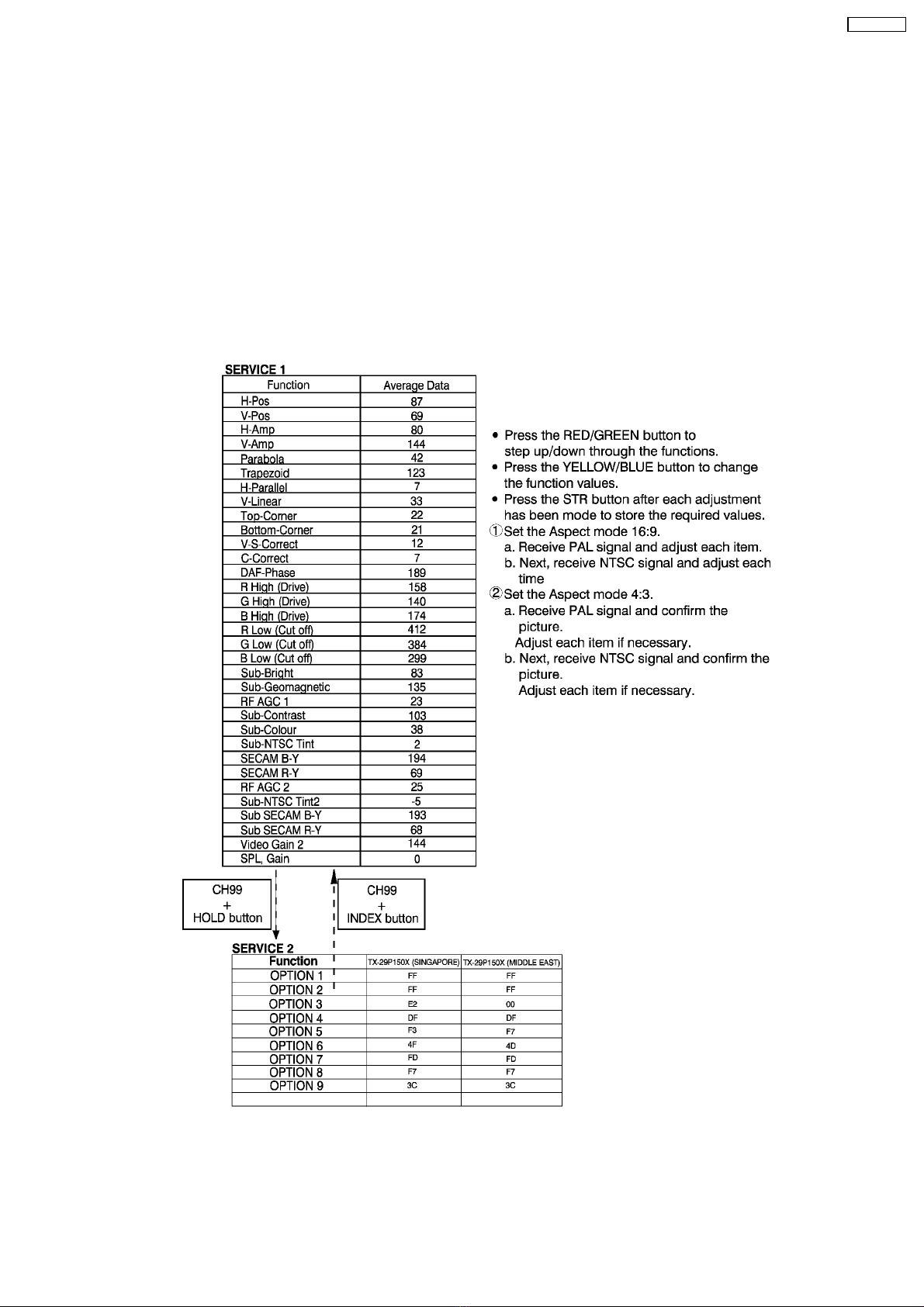

MPU controls the functions switching for each IIC through IIC bus in this chassis. The following setting and adjustment can be

adjusted by remote control in Service Mode.

4.1. HOW TO ENTER SERVICE 1

1. In sound menu, set BASS to MAX and set TREBLE to MINIMUM.

2. Simultaneously press INDEX button on remote control and VOLUME DOWN button [-] on the TV set.

4.2. HOW TO ENTER SERVICE 2

1. Set the channel to CH99.

2. Press HOLD button on remote control.

Note:

To exit Service mode, press N or Power button on remote control.

TX-29P180X

Options

Model

Description

option1 00

0E0 b0 1 Colour system (TV) PAL(1)

b1 1 SECAM(1)

b2 1 NTSC(1)

b3 1 M.NTSC(1)

b4 0 Colour system (AV) PAL(1)

b5 0 SECAM(1)

b6 1 NTSC(1)

b7 1 M.NTSC(1)

option2 00

0E1 b0 1 CH Plan ASIA/M.E/HK/UK/CHINA(1)

b1 1 NZ/INDNES(1)

b2 1 AUSTRALIA(1)

b3 1 E.EUROPE(1)

b4 1 SPECIAL(1)

b5 1 AMERICA(1)

b6 1 CATV(1)

b7 1 JAPAN(1)

option3 00

0E2 b0 1 A2 enable 4.5(1)

b1 1 5.5(1)

b2 1 6.0(1)

b3 1 NICAM enable 6.5(1)

b4 0 4.5(1)

b5 0 5.5(1)

b6 0 6.0(1)

b7 0 6.5(1)

option4 00

0E3 b0 0 A2 select 6.5MHz 5.742MHz(0) 6.742MHz(1)

b1 1 NICAM priority ASIA/M.E.(1)

b2 0 HK/UK(1)

b3 0 CHINA(1)

b4 0 NZ/INDONESIA(1)

b5 1 AUSTRALIA(1)

b6 1 E.EUROPE(1)

b7 1 SPECIAL(1)

option5 00

0E4 b0 0 Virtual Dolby Surround enable(1)

b1 1 NICAM C4 bit enable(1)

b2 1 Noise mute Noise mute enable(1)

b3 1 Monitor out AV1 mute Monitor out AV1 mute(1)

b4 1 SIF 4.5(1)

b5 1 5.5(1)

b6 1 6.0(1)

b7 1 6.5(1)

TX-29P180X

Options

Model

Description

option6 00

0E5 b0 1 Reserved Geomagnetic Enable (1)

b1 0 Geomagnetic Sensor Geomagnetic sensor enable (1)

b2 0 Geomagnetic Polarity Geomagnetic polarity Plus+(0), Minus-(1)

b3 0 P.NR. Enable(1)

b4 1 SASO enable SASO enable(1)

b5 0 Search speed Slow(1) Fast(0)

b6 1 VCR/GAME in search On(0) Off(1)

b7 0 Tuner MACO tuner (0), ALPS tuner (1)

option7 00

0E6 b0 0 TEXT enable(1)

b1 1 TEXT TOP TOP enable (1)

b2 1 TEXT language English(1)

b3 1 Cyrillic(1)

b4 1 E.Europe 1(1)

b5 0 E.Europe 2(1)

b6 1 Arabic(1)

b7 0

option8 00

0E7 b0 1 VGA enable(1)

b1 1 Reserved 1080i Enable(1)

b2 0 Reserved ID-1 Enable(1)

b3 0 Australia enable(1)

b4 1 OSD language ARABIC(1)

b5 0 RUSSIAN(1)

b6 1 CHINESE(1)

b7 0 free

option9 00

0E8 b0 1 Panasonic LOGO Display(1)

b1 1 MPX status Display(1)

b2 0 Scan mode AUTO for P-NTSC Progressive2(0), Progressive(1)

b3 0 free

b4 0 free

b5 0 free

b6 1 X-ray protection Enable(1)

b7 1 5V detect protection Enable(1)

option10 00

0E9 b0 1 free enable(1)

b1 1 OSD language enable(1)

b2 1 Noise mute enable(1)

b3 1 Monitor out AV1 mute(1)

b4 1 free 4.5(1)

b5 1 free 5.5(1)

b6 1 free 6.0(1)

b7 1 Protect 5V detect 6.5(1)

TX-29P180X

Options

Model

Description

option11 4E

0EA b0 0 Shop mode enable(1)

b1 1 Full/16.9 display Reserved

b2 1 Sub Headphone enable(1)

b3 1 Scan mode Blanking Blanking enable(1)

b4 0 User aspect 14:9 enable(1)

b5 0 NICAM C4 bit enable(1)

b6 1 ID-1 enable(1)

b7 0 1080i enable(1)

option12 41

0EB b0 1 Asia Asia(1), Europe(0)

b1 0

b2 0 Ireland not use

b3 0 UK not use

b4 0

b5 0 (Reserved for 29 inch etc.)

b6 1 Large size 52(1) / 42(0) for PTV, 36(1) / 32(0) for wide, 34(1) / 29(0) for 4:3

b7 0 PTV PTV (1)

option13 7A Temporary

0EC b0 0 VDU Version A21 (0), A12 (1)

b1 1 GC Version ES5(0), ES6(1)

b2 0 UV Swap Swap(1)

b3 1 TEXT Enable(1)

b4 1 Main GC ES7 ES7(1), ES5/6(0)

b5 1 Sub GC ES7v ES7(1), ES5/6(0)

b6 1

b7 0 CIP2 without CIP1(0), with CIP1(1)

TX-29P180X

Tabla de contenidos

Otros manuales de TELEVISOR de Panasonic

Panasonic

Panasonic PT52DL10 - 52" DLP REAR PJ HDTV Manual de lista de piezas

Panasonic

Panasonic PV-M2044 Manual de usuario

Panasonic

Panasonic Viera TH-P50V10Z Manual de usuario

Panasonic

Panasonic TX-21AS1P Manual de usuario

Panasonic

Panasonic TX-W32D5DPF Manual de usuario

Panasonic

Panasonic CT20SX10B - 20" COLOR TV Manual de usuario

Panasonic

Panasonic TX-32PS12P Manual de usuario

Panasonic

Panasonic TX-32PM2 Manual de usuario

Panasonic

Panasonic Viera TH-37PX70B Manual de usuario

Panasonic

Panasonic Viera TX-32LX60F Manual de usuario

Panasonic

Panasonic TX-28LD4P Manual de usuario

Panasonic

Panasonic TX-28PL10D Manual de usuario

Panasonic

Panasonic TX-P50VT60T Manual de usuario

Panasonic

Panasonic CT-20D12D Manual de usuario

Panasonic

Panasonic VIERA TH-50PZ85U Manual de usuario

Panasonic

Panasonic TX-21AP1P Manual de usuario

Panasonic

Panasonic AG527DVDE - DVD/VCR/MONITOR Manual de usuario

Panasonic

Panasonic Viera TX-P42G10E Manual de usuario

Panasonic

Panasonic TH-50PZ700U Manual de usuario

Panasonic

Panasonic TX-29F225R-IRAN Manual de usuario

Panasonic

Panasonic CT-36G24 Manual de usuario

Panasonic

Panasonic CT-20SL15 - 20" CRT TV Manual de usuario

Panasonic

Panasonic TX-40CXW704 Instrucciones de montaje

Panasonic

Panasonic TC-21FX20RG Manual de usuario

Manuales populares de TELEVISOR de otras marcas

Philips

Philips Colour Television Manual de usuario

Toshiba

Toshiba 27A10 Manual de usuario

Philips

Philips 42PF9630A/37 Manual de usuario

Hitachi

Hitachi 32FX48B Manual de usuario

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Manual de usuario

Changhong Electric

Changhong Electric uhd55b6000is Manual de usuario

Philips

Philips Matchline 21CE7551 Manual de usuario

Toshiba

Toshiba 19A20 Manual de usuario

Philips

Philips 25PT4523-16 Manual de usuario

Sony

Sony XBR-100Z9D Manual de usuario

Philips

Philips PR0930X3 Manual de usuario

Philips

Philips Brilliance 231P4QPY Manual de usuario

Samsung

Samsung 55S9 B Series Manual de usuario

Philips

Philips 32HF9385D Guía de solución de problemas

Sharp

Sharp LC-40FI5012E Manual de usuario

Loewe

Loewe Table Stand Reference 55 Manual de usuario

Philips

Philips 32PFH5300 Manual de usuario

Sylvania

Sylvania 6427FB Manual de usuario
