© 2008 Matsushita Electric Industrial Co., Ltd. All

rights reserved. Unauthorized copying and distribu-

tion is a violation of law.

ORDER NO. ITD0804013CE

Plasma Display ceiling-hanging bracket

TY-CE103PS10

TABLE OF CONTENTS PAGE PAGE

1 Warning-------------------------------------------------------------- 2

2 Specifications ----------------------------------------------------- 4

3 Location of Controls and Components ------------------- 5

3.1. Constituent parts------------------------------------------- 5

4 Disassembly and Assembly Instructions ---------------- 6

4.1. Prior to installation work --------------------------------- 6

4.2. Assembly (Vertical hanging)---------------------------- 8

4.3. Assembly (Inclined hanging)---------------------------- 9

4.4. On-site installation----------------------------------------11

4.5. REmoving the display -----------------------------------11

5Dimensions--------------------------------------------------------12

6 Exploded View and Replacement Parts List -----------14

All manuals and user guides at all-guides.com

all-guides.com

2

1Warning

All manuals and user guides at all-guides.com

3

All manuals and user guides at all-guides.com

4

2 Specifications

Model Name TY-CE103PS10 Applicable models

Type Plasma Display ceiling-hanging bracket TH-103PF10 series

Angle Adjustment 5 settings (No incline, 5°, 10°, 15°, 20°)

Dimensions 63 3/16” (160.5cm) (W) x 263/16 (66.5cm) (D) x 55 15/16 (142.1cm) (H)

*Maximum dimension at an angle of 20 degree.

Weight 81.57 lb (37 kg)

Dimensions with Packaging 65 15/64” (165.7 cm) (W) x 8 47/64 (22.2 cm) (D) x 10 3/4(27.3 cm) (H)

Weight with Packaging 92.59 lb (42 kg)

Material Entire pressed part : Melted galvanizing steel board (SGHC-MO-F06)

Square pipe (Supporting post): Rectangular steel tube for machine structural use.

(STKMR 40x40)

All manuals and user guides at all-guides.com

5

3 Location of Controls and Components

3.1. Constituent parts

All manuals and user guides at all-guides.com

6

4 Disassembly and Assembly Instructions

4.1. Prior to installation work

4.1.1. Check the strength of the installation location.

4.1.2. Prepare the Plasma Display

All manuals and user guides at all-guides.com

all-guides.com

7

4.1.3. Preparation of components

All manuals and user guides at all-guides.com

8

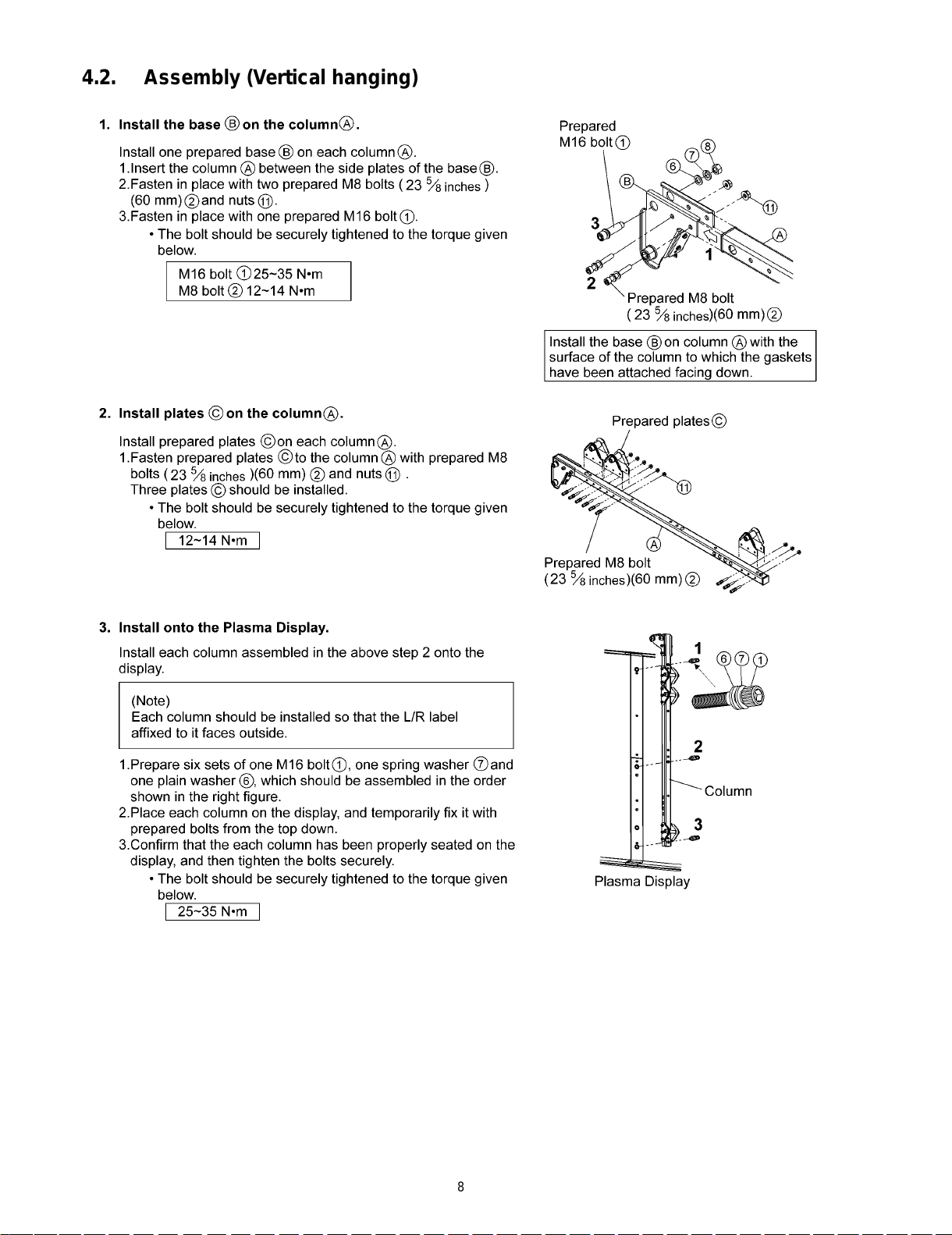

4.2. Assembly (Vertical hanging)

All manuals and user guides at all-guides.com

9

4.3. Assembly (Inclined hanging)

All manuals and user guides at all-guides.com

10

All manuals and user guides at all-guides.com
