Panasonic Magi'c Box Manual de usuario

Magi’c Box

User manual

Electromechanical Control Business Division

Industrial Solutions Company

Panasonic Corporation

Product description

Magi’c Box

Part Number

Panasonic’s part number

Country of origin

Japan

Application

Consumer wireless control system

Model number

ZERS1901

1. System Overview

This product is a two-button switch unit used in consumer wireless control system.

When the switch button is pressed by the operation of a lever etc. into which this

product is embedded, electric power is generated by its mechanical operation. The

generated electric power is used to transmit information such as which of the two

buttons is pressed using 2.4GHz to a wireless receiver of a wireless control system

installed at a remote location. The wireless receiver that has received the signal reads

the switch unit ID and the state of each button from the signal, and outputs the read

signal to the external devices as a control signal.

The following diagram shows the wireless control system example for the

demonstration purpose. It consists of one Magi’c box (transmitter switch) and one

receiver and a windows 64bit PC.

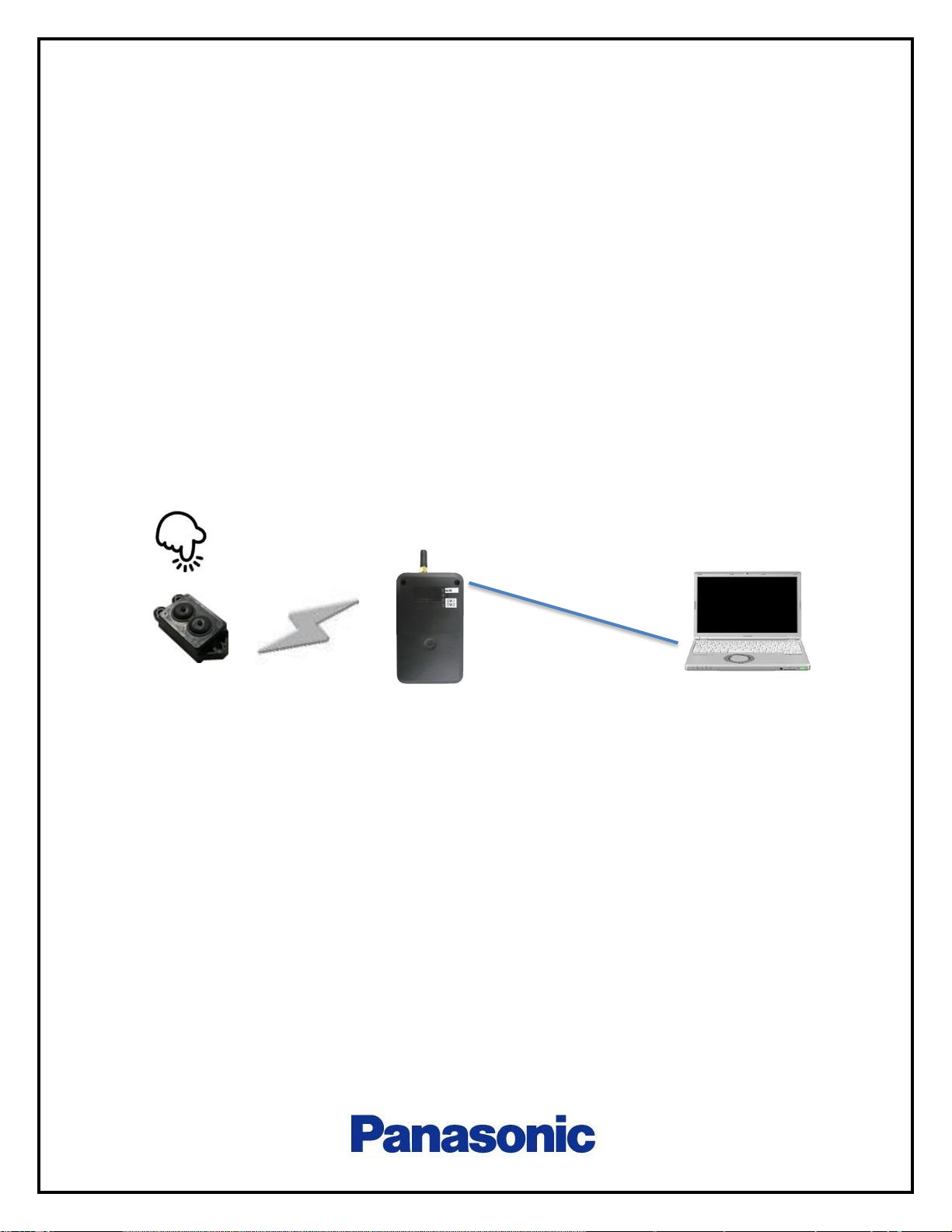

Fig.1 System Overview of wireless control system

Receiver

Windows 64bit PC

Magi’c box

(Transmitter switch)

USB Cable

2.4Ghz

1.1. Precautions

This device complies with part 15 of the FCC Rules. Operation is subject to the following

two conditions:

(1) This device may not cause harmful interference, and (2) this device must accept any

interference received, including interference that may cause undesired operation.

FCC CAUTION

Changes or modifications not expressly approved by the party responsible for compliance

could void the user’s authority to operate the equipment.

Note: This equipment has been tested and found to comply with the limits for a Class B

digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a residential installation. This

equipment generates, uses and can radiate radio frequency energy and, if not installed

and used in accordance with the instructions, may cause harmful interference to radio

communications. However, there is no guarantee that interference will not occur in a

particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off and on,

the user is encouraged to try to correct the interference by one or more of the following

measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

This transmitter must not be co-located or operated in conjunction with any other antenna

or transmitter.

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled

environment and meets the FCC radio frequency (RF) Exposure Guidelines as this

equipment has very low levels of RF energy.

2. Magi’c Box Overview

The following pictures shows the Magi’c box appearance.

It has two button, A and B. It transmit data when these buttons are pushed.

Fig.2 Pictures of Magi’c box

Top

Side

Bottom

Front

Back

A Button

B Button

Label

3. Test Receiver

The following pictures shows the test receiver for theMagi’c box switch.

Fig.2 Pictures of Test Receiver

3.1. LED

Test receiver has three LED and those display is defined as follows.

LED name

Lights up

Blink

Power

Power active

3 times blink : cypher key exchanged done

SW 1

Received signal (SW1 ON)

SW2

Received signal (SW2 ON)

Antenna

LED Indicator

Power switch

USB Connector

4. Setup of test receiver

4.1. Installing USB driver to PC

Prior to connect the test receiver to PC, please install the USB driver which is

provided by FTDI, D2XX Direct driver (CDM v2.12.28 WHQL Certified.zip) to you PC.

The driver should be for Windows OS 64bit version.

4.2. Installing application software to PC

Please install application software, Setup_Test_Receiver_1.0.xlsm on your PC. It

is a Microsoft Excel Macro. It can be installed to any directory. The dll file,

cypher_gen64.exe should be installed to c:\test_receiver

Fig.4 Image of Setup_Test_Receiver_1.0.xlsm

4.3. Setting of Test receiver

(1) Power slide switch should be set to USB side

(2) Connect test receiver to PC by USB cable

(3) Check if the power indicator lights up or not.

(4) Start a terminal software, like “tera term”on PC

(5) Set the the terminal software to be as follows

Serial port communication

Baud rate : 115200

Data: 8bit

Parity: none

Stop bit : 1 bit

Flow control : none

Terminal return code setting : CR+LF (both TX and RX)

Local echo : ON

4.4. Connecting serial port of test receiver with PC

Push the button as follows to connect serial port of test receiver with PC.

Fig.5 Connecting serial port test receiver with PC

4.5 Paring Magi’c box to test receiver

(1) Enter the address of Magi’c box that you want to pair to yellow box.

The length of address should be 12 characters 0-9, a-f

(2) Push the “generate initial key”button

(3) Push the “Write”button

(4) Push the “Read”button to check if writing has been done correctly.

(5) Push the “Key exchange”button

(6) Push the Magi’c box button several times.

Push the button until the

display gets “Port Close”

Fig.6 Paring Magi’c box to test receiver

(1)

(2)

(3)

(4)

(5)

5 Logout message

The example of Logout messages are shown as below.

If the pairing has not been completed, the payload cannot be decrypted as the third

line message.

Fig.7 Logout message example when pairing is not complete

Fig.8 Logout message example when pairing is complete

Time stamp

Magi’c box address

RSSI

SW A or B

10: Decrypted success

Decrypted payload

Sequence num

Rx OK

Payload( not decrypted)

Time stamp

RSSI

Log out
