PANASONIC&HS-6000&SYSTEM&USER’S&GUIDE& &

This&guide&contains&specific&notes&regarding&equipment&in&the&EMG&Panasonic&HS-6000&

Switching&Rack.&

It&is&meant&as&a&reference&for&troubleshooting&and&initial&orientation&of&the&system.&

All&diagrams&and&photos&are&the&property&of&Evolve&Media&Group&and&cannot&be&duplicated&or&

distributed&without&express&written&consent.&

I. OVERVIEW(

• Panasonic&HS-6000&Switcher&

o 2ME&with&4&keyers&each&

o Separate&DSK&with&4&keyers&

o Supports&HD/3G/4K&Operating&modes&

§ HD&1080i&Mode&!"#$%&'()*+,#)&-'#..)+(/#012.#).3#42$2#,5&

• 32&Inputs&

• 16&Outputs&

• 4&MVR’s&(Assignable&to&Outputs)&

• 8&Auxes&(Assignable&to&Outputs)&

• 2&DVI-D&Inputs&

§ 3G&1080p&Mode&

• 16&Inputs&(Odd&numbered,&White&labels)&

• 8&Outputs&(Odd&numbered,&Light&Blue&labels)&

• 2&MVR’s&(Assignable&to&Outputs)&

• 4&Auxes&(Assignable&to&Outputs)&

• DVI-D&Inputs&Disabled&

§ 4K&2160p&Mode&

• 8&Inputs&

• 4&Outputs&

• 1&MVR&(Assignable&to&an&Outputs)&

• 2&Auxes&(Assignable&to&Outputs)&

• DVI-D&Inputs&Disabled&

[TYPE&HERE]&[TYPE&HERE]&[TYPE&HERE]&

o Four&up-converter&(UC)&inputs&

§ Inputs&27,28,31,32&

§ 1080i&to&1080p&when&in&3G&mode&

§ 720p&to&1080i&when&in&HD&mode&

§ Input&31&is&Bars&pattern&from&Ross&signal&generator&

o Two&down-converter&(DC)&outputs&

§ Outputs&14&and&16&

§ 1080i&to&720p&

§ 1080p&to&1080i/720p&

• Ross&OpenGear&Trays&

o 1-&Analog&DA&for&Timecode&from&the&Ross&TSG-2200&

o 3-&Analog&DA’s&for&Reference&(Analog&Black)&from&the&Ross&TSG-2200&

o 8-&3G-SDI&DA’s&that&are&user&patchable&on&the&back&of&the&patch&bay&

o 4-&Black&Magic&3G-SDI&to&HDMI&converter&cards&

o 4-&Apantec&Genlockable&Scaler&cards&

o 1-&SDI&audio&embedder&card&

II. PRE-PATCHED(ITEMS(

Input(31&

The&test&pattern&output&from&the&Ross&TSG-2200&is&connected&to&input&31.&&This&allows&for&the&

pattern&to&be&available&in&both&HD&1080i&and&3G&1080p&modes&since&input&31&has&an&up-

converter.&

MVR(1(and(2&

In&the&Output&assignment,&MVR&1&and&2&are&assigned&to&outputs&11&and&13&respectively.&Outputs&

11A&and&13A&are&wired&directly&to&the&two&17”&monitors&in&the&bridge.&The&“B”&sides&of&those&

outputs&are&available&on&the&main&patch&bay&and&are&labelled&in&green.&

In&HD&1080i&mode,&there&are&four&MVR’s&available.&The&user&can&assign&these&to&any&of&the&

output&connectors.&

REF(IN&

The&REF(IN&on&the&patch&bay&allows&for&an&external&sync&source&to&be&run&to&the&Ross&TSG-2200’s&

reference&input.&This&allows&the&entire&system&to&be&synchronized&to&an&external&source.&

[TYPE&HERE]&[TYPE&HERE]&[TYPE&HERE]&

III. APANTEC(SCALER(CARDS(

The&output&resolution&and&settings&for&the&Apantac&cards&can&be&adjusted&through&the&Ross&

Dashboard&interface&which&is&loaded&on&the&system&laptop&PC.&

The&cards&can&accept&single&link&DVI,&HDMI&(with&adapter)&and&VGA&analog&(with&adapter)&

signals.&The&input&is&default&for&HDMI&input&with&1080i&as&the&HD-SDI&output&signal.&&

Genlock&for&these&cards&is&provided&through&the&Ross&OpenGear&frame&which&is&referenced&to&

the&Ross&TSG.&

IV. TALLY(

Eight&tallies&from&the&Panasonic&switcher&

are&available&on&the&patch&panel.&Refer&to&

the&Panasonic&HS-6000&User&Guide&on&how&

to&assign&tallies&to&cross-points.&

DO(NOT&use&both&the&XLR&and&terminal&

post&connectors&at&the&same&time.&Pick&

one&or&the&other&for&tally&connection.&

V. POWER(

The&rack&has&a&single&120V&input&line.&Amp&draw&for&the&system&is&2-3&amps.&

There&are&no&redundant&power&supplies&for&any&of&the&components.&

VI. TOUCH(SCREEN(GUI(FOR(SWITCHER(

The&GUI&stores&in&the&second&drawer&of&the&system.&

The&Vesa&plate&and&DVI&inter-connect&cable&stay&

attached&to&the&back&of&the&monitor.&

DO&NOT&CONNECT&THE&MONITOR&TO&THE&SWITCHER&

WITH&THE&POWER&ON.&

Make&sure&the&control&power&is&off&when&attaching&

the&DVI.&

[TYPE&HERE]&[TYPE&HERE]&[TYPE&HERE]&

VII. SYSTEM(LAPTOP(

In&the&top&drawer,&is&a&pre-configured&touchscreen&PC&laptop.&It&contains&the&Ross&Dashboard&

application&and&PDF’s&of&the&manuals&loaded&on&the&Desktop.&

Also&loaded&is&the&Panasonic&switching&application&which&allows&you&to&switch&the&ME’s&via&the&

laptop.&

The&system&IP&scheme&is&192.168.2.XXX.&

APANTAC LLC www.apantac.com 5

US-3x00 User Manual

Control and Configuration:

Software:

The Apantac OG-US-3x00 models are controlled and configured through the openGear frame’s

control software ‘Dashboard’ by Ross Video inc. Dashboard can be acquired through the Ross

Video website; https://www.rossvideo.com/control-systems/dashboard/products/dashboard/#download

Dashboard software runs on PC’s and connects to the openGear frame’s control card via Ether-

net. The IP address of the openGear frame is displayed on the LCD panel on the front of the

frame. The openGear frame may have a fixed IP address or use DHCP.

The openGear frame’s control card communicates to the individual openGear cards via the

frame’s internal CANBUS (Controlled Area Network). CANBUS communicates to the frame’s

slots, the Apantac OG-US-3x00 cards do not possess an IP address. All control and configura-

tion of the OG-US-3x00 cards is through the Dashboard-CANBUS channels.

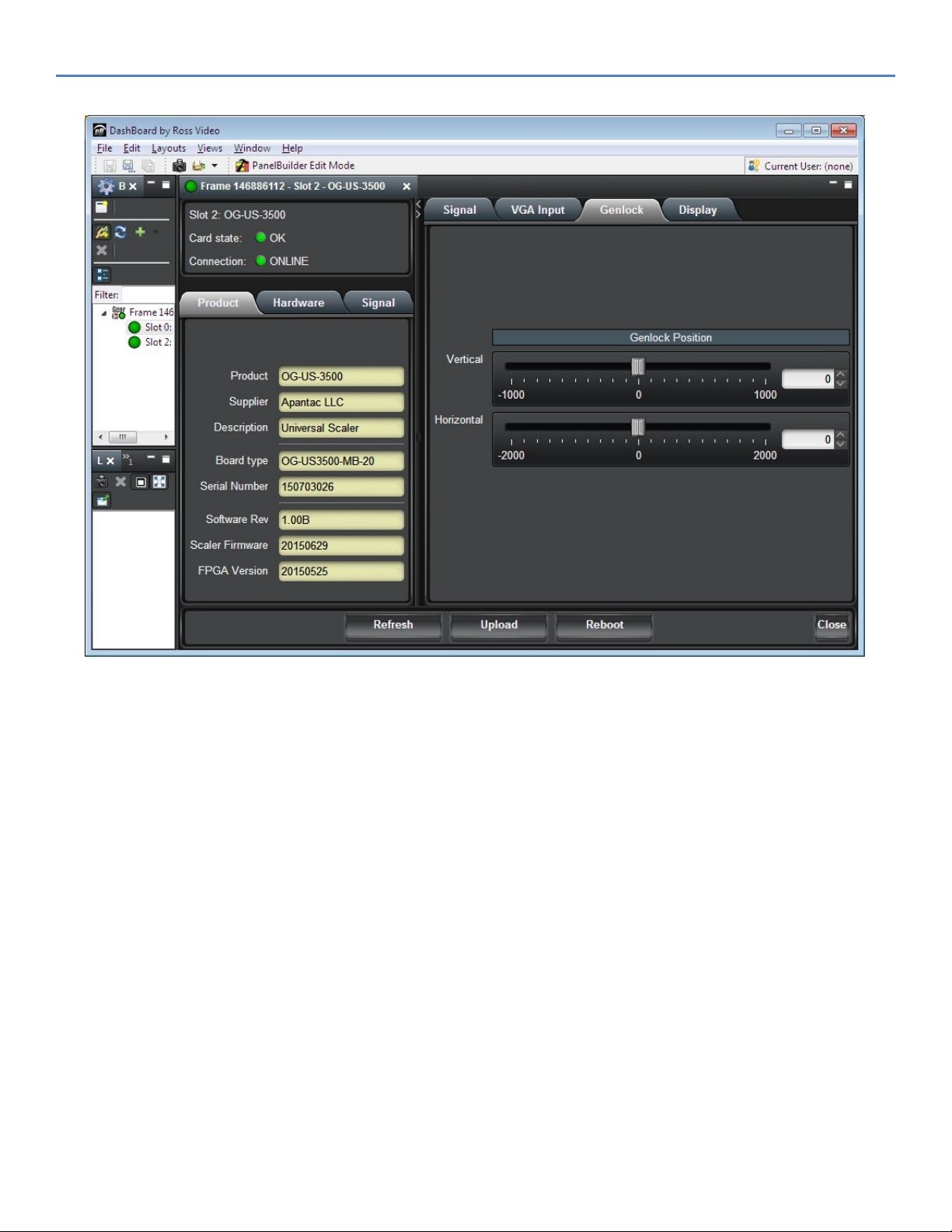

The Apantac OG-US-3x00 Dashboard interface is shown above. Each Apantac OG-US-3x00 card

should be recognized by Dashboard and displayed by the installed slot number.

APANTAC LLC www.apantac.com 6

US-3x00 User Manual

Signal Tabs:

Unit Status Indicators:

Card State: Indicates whether Dashboard software detects an error state from the card.

Connection: Indicates whether Dashboard software is communicating via CANBUS with the card.

Signal Status Indicators:

Input Signal: Indicates whether the OG-US-3x00 has detected and locked-on to the incoming video signal.

SDI Output: Indicates whether the OG-US-3x00 is generating an SDI video signal on the outputs. Requires a

successful Input Video Signal lock.

Reference:

(OG-US-3500 only)

Indicates the OG-US-3x00 is receiving a valid genlock reference signal.

Lock Status:

(OG-US-3500 only)

Indicates whether the SDI output video signal is locked to the genlock refer-

ence signal.

APANTAC LLC www.apantac.com 7

US-3x00 User Manual

Input Format:

The OG-US-3x00’s video input is not auto-detecting. The card must be configured for the type of video.

OG-US-3x00 accessories include adapters for connecting the various video sources.

The input video choices are:

 HDMI/DVI

 VGA

 YPbPr (component video)

 CVBS (composite video)

Output Format:

This option configures the SDI video output signal.

Options are:

 1080p

 1080i

 720p

 576i (PAL)

 480i (NTSC)

Output Frequency:

This option configures the SDI video output signal. Options are restricted according to the Output Format

chosen. Options include:

 50 Hz

 60 Hz

 59.94 Hz

Mode:

(VGA sources only)

This option configures the SDI video output signal. This option can aid in maintaining the aspect ratio of

the incoming video signal. Options are:

 Fullscreen (the input video is stretched to fill the output screen)

 1:1 (the input video aspect ratio is maintained and the remainder of the output screen is

drawn black)

Embedded Audio:

This option configures the SDI video output signal. Options are:

 Enabled

 Disabled (outputs SDI video without audio)

Genlock:

(OG-US-3500 only)

This option configures the SDI video output signal. Options are:

 Enabled

 Disabled

Signal Tab:

(continued)

APANTAC LLC www.apantac.com 8

US-3x00 User Manual

VGA Input Tab:

VGA Position:

VGA video sources will typically require timing sync adjustments. This tab only applies when the video input format

is configured to ‘VGA’ on the Signal tab.

Auto Adjust:

When the Auto Adjust button is clicked, the system attempts to lock to and adjust the incoming VGA signal. The Au-

to Adjust action can be repeated if necessary. If the Auto Adjust fails the adjustments can be performed manually

with the Vertical and Horizontal shift buttons.

Vertical:

The Vertical ’Shift Up’ and ’Shift Down’ buttons allow manual alignment of the VGA input video within the SDI video

output screen.

Horizontal:

The Horizontal ’Shift Left’ and ’Shift Right’ buttons allow manual alignment of the VGA input video within the SDI vid-

eo output screen.

APANTAC LLC www.apantac.com 9

US-3x00 User Manual

Genlock Tab:

(OG-US-3500 only)

Genlock:

(OG-US-3500 only)

The OG-US-3500 model includes the feature of locking the SDI output video signal timing to the openGear frame’s

reference signal.

Notes:

 The feature is enabled or disabled on the ‘Signal’ tab. (see the previous sections)

 Genlock adjustments require the use of external test equipment.

Genlock Position - Vertical:

The vertical offset can be adjusted using either moving the slider bar control with a mouse, or by the up or down

arrow buttons adjacent to the number on the right of the slider bar.

Genlock Position - Horizontal:

The horizontal offset can be adjusted using either moving the slider bar control with a mouse, or by the up or down

arrow buttons adjacent to the number on the right of the slider bar.

APANTAC LLC www.apantac.com 10

US-3x00 User Manual

Display Tab:

Extended Display ID (EDID):

The video input port of the US-3x00 includes a programmable EDID. VGA, DVI. and HDMI sources will read this

EDID and detect the US-3x00 as a monitor. The US-3x00 EDID can be set to the generic, factory set EDID or it can

copy the EDID of any monitor.

To copy the EDID of a monitor:

 Connect the US-3x00 video input port to an input of any monitor.

 Power on the monitor.

 Click the “Read EDID from current display” option on this tab page.

 The EDID Status line will indicate the EDID is being copied, and then return to ‘ready’.

To reset the EDID to its factory default:

 Click the “Reset to default” option on this tab page.

 The EDID Status line will indicate the EDID is being reset, and then return to ‘ready’.
