Panasonic SAPM11 - MINI HES W/CD PLAYER Manual de usuario

ORDERNO. MD0104084C1

CD StereoSystem

SA-PM11

Colour

(W)... White Type

Area

(P)... U.S.A.

TAPE SECTION:

AR2MECHANISMSERIES

CD SECTION:

RAE0152Z-3 TRAVERSE DECK SERIES

SPECIFICATIONS

Specifications

AMPLIFIERSECTION

Poweroutput

10%Total harmonicdistortion

1kHz, both channelsdriven 45 W perchannel (6)

70 Hz-16 kHz, both channelsdriven

40 W perchannel (6)

Inputsensitivity

AUX 250 mV

InputImpedance

AUX 13 k

FMTUNERSECTION

Frequencyrange 87.9-107.9MHz(200 kHzsteps)

87.5-108.0MHz(100 kHzsteps)

Sensitivity 2.5V(IHF)

S/N26 dB 2.2V

Antennaterminal(s) 75 (unbalanced)

AMTUNERSECTION

Frequencyrange

AM 520-1710 kHzMHz(10 kHz

steps)

Sensitivity

S/N20 dB(at1000kHz) 560 V/m

Antennaterminal(s) 75 (unbalanced)

CASSETTEDECK SECTION

Track system 4track, 2channel

Heads

Record/playback Solid permalloyhead

Erasure Doublegap ferritehead

Motor DCservo motor

Recording system ACbias 100 kHz

Erasing system ACerase 100 kHz

Tapespeed 4.8cm/s

Frequencyresponse (+3 dB, -6dBatDECK OUT)

NORMAL (TYPEI) 50 Hz-13 kHz

HIGH(TYPEII) 50 Hz-13 kHz

S/N 50 dB(Aweighted)

Wowand flutter 0.18 %(WRMS)

Fastforward and rewind time Approx. 120 secondswith

C-60 cassettetape

CDSECTION

Sampling frequency 44.1kHz

Decoding 16 bitlinear

Beam source/wavelength Semiconductorlaser/780 nm

Numberofchannels Stereo

Frequencyresponse 20 Hz-20 kHz(+1, -2dB)

Wowand flutter Belowmeasurablelimit

Digital filter 8fs

D/Aconverter MASH(1bitDAC)

GENERAL

Powersupply AC120 V, 60Hz

Powerconsumption 125 W

Dimensions(W xHxD) 200 x260 x345 mm

(529/32”x10 1/4”x10 1/2”)

Weight 5.6kg (12.3lb)

SYSTEM

SC-PM11(P) MusicCenter:SA-PM11(P)

Speaker:SB-PM11(P)

Notes:

1. Specificationsaresubjectto changewithout notice. Weight and

dimensionsareaproximate.

2. Total harmonicdistortion ismeasuredbythedigital spectrum

analyzer.

1. SafetyPrecaution

(This“SafetyPrecaution”isappliedonlyinU.S.A.)

1. Beforeservicing, unplug thepowercordtopreventanelectric

shock.

2. Whenreplacing parts, use onlymanufacturer’srecommended

components forsafety.

3. Check thecondition ofthepowercord. Replace ifwearordamage

isevident.

4. Afterservicing, besuretorestoretheleaddress, insulation

barriers, insulation papers, shields, etc.

5. Beforereturning theservicedequipmenttothecustomer, besure

tomake thefollowing insulation resistance test to

preventthecustomerfrombeing exposedtoashock hazard.

1.1. Insulation Resistance Test

1. Unplug thepowercordand shortthetwoprongsoftheplug witha

jumperwire.

2. Turnon thepowerswitch.

3. Measuretheresistance valuewithohmmeterbetweenthejumper

ACplug and eachexposedmetal cabinet part, suchas

screwheads, antenna, control shafts, handlebrackets, etc.

Equipmentwithantennaterminalsshouldreadbetween3M and

5.2M toall exposedparts*.(Fig.1)

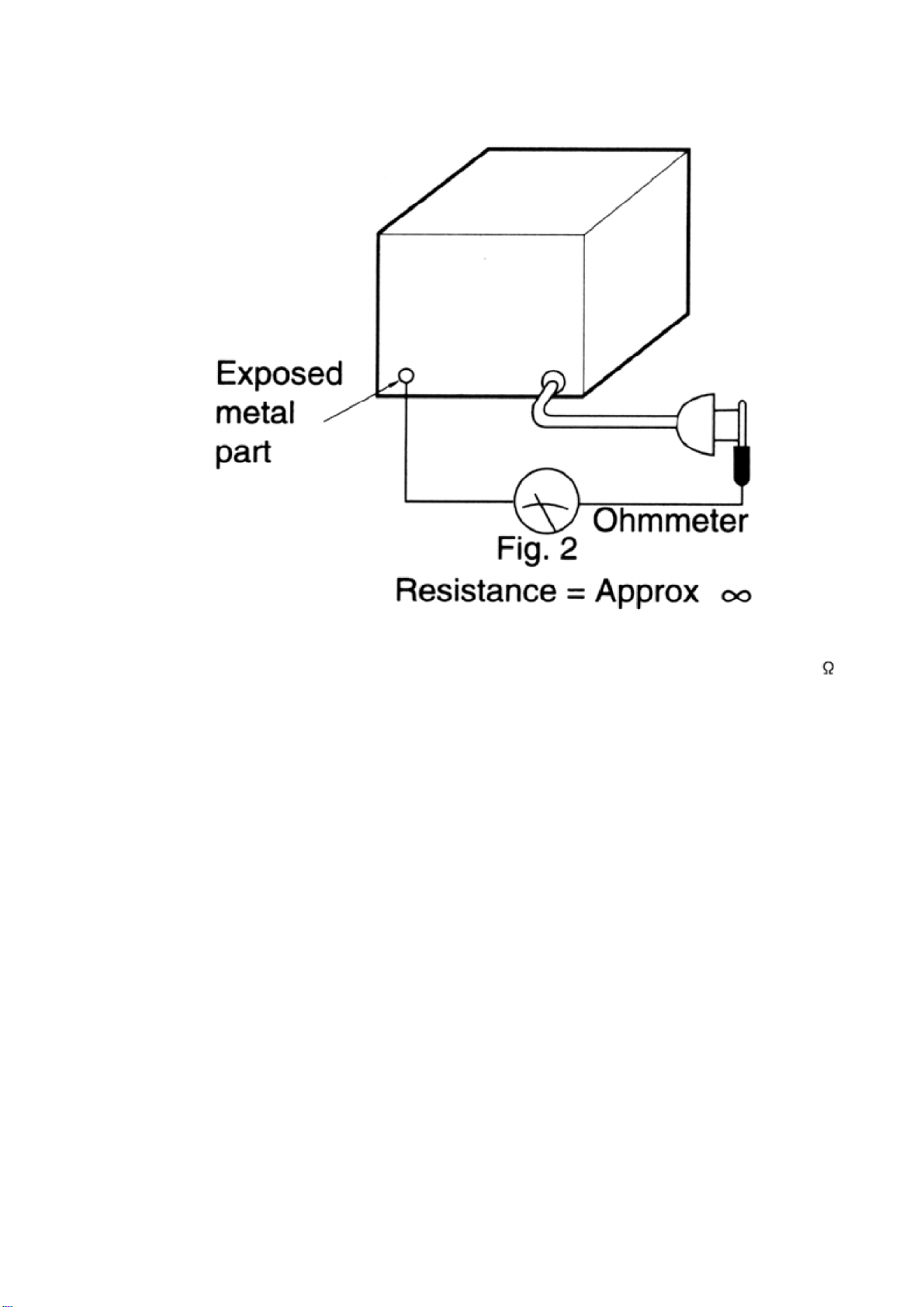

Equipmentwithoutantennaterminalsshouldreadapproximately

infinitytoall exposedparts.(Fig.2)

*Note:Someexposedparts maybeisolatedfromthechassisby

design. These will readinfinity.

4. Ifthemeasurementisoutsidethespecifiedlimits, thereisa

possibilityofashock hazard. Theequipmentshouldberepaired

and recheckedbeforeitisreturnedtothecustomer.

2. BeforeRepairand Adjustment

DisconnectACpower, dischargePowerSupplyCapacitorsC506, C507 and C508 through a10 ,

5Wresistor toground.

DONOTSHORT-CIRCUITDIRECTLY(withascrewdriverblade, for instance), as thismay destroy

solidstatedevices.

Afterrepairsarecompleted, restorepowergraduallyusing avariac, toavoidovercurrent.

Currentconsumption atAC120V, 60 HzinNOSIGNALmodeshouldbe~420mA.

3. Protection Circuitry

Theprotection circuitrymay have operatedifeitherofthefollowing conditionsarenoticed:

-Nosound isheardwhenthepoweristurnedon.

-Sound stopsduring aperformance.

Thefunction ofthiscircuitryistopreventcircuitrydamageif, for example, thepositive and

negative speakerconnection wires are

“shorted”, or ifspeakersystemswithanimpedance less thantheindicatedratedimpedance of

theamplifierareused.

Ifthisoccurs, followtheprocedureoutlines below:

1. Turnoff thepower.

2. Determinethecause oftheproblemand correct it.

3. Turnon thepoweronce againafteroneminute.

Note:

Whentheprotection circuitryfunctions, theunitwill notoperateunless thepowerisfirstturned

off and thenon again.

4. Accessories RemoteControl Transmitter

FMindoor antenna

ACmainslead

AMLoop antenna

5. Handling Precautions ForTraverse Deck

Thelaserdiodeinthetraverse deck (optical pickup)may break downduetopotential difference

causedbystaticelectricityofclothes or humanbody.

So, becareful ofelectrostaticbreakdownduring repairofthetraverse deck (optical pickup).

-Handling oftraverse deck (optical pickup)

1. Donotsubject thetraverse deck (optical pickup)tostatic

electricityas itisextremelysensitivetoelectrical shock.

2. Theshortland betweentheNo.4(LD)and No.5(GND)pinson the

flexibleboard(FFC)isshortedwithasolderbuild-up toprevent

damagetothelaserdiode.To connect tothePCboard, besureto

openbyremoving thesolderbuild-up, and finishtheworkquickly.

3. Take carenottoapplyexcessivestress totheflexibleboard(FFC).

4. Donotturnthevariableresistor(laserpoweradjustment). Ithas

alreadybeenadjusted.

-Grounding forelectrostaticbreakdownprevention

1. Humanbodygrounding

Use theanti-staticwrist straptodischargethestaticelectricity

fromyourbody.

2. Worktablegrounding

Putaconductivematerial (sheet) orsteel sheet on thearea where

thetraverse deck (optical pickup)isplaced, and ground thesheet.

Caution :

Thestaticelectricityofyourclothes will notbegroundedthrough

thewrist strap. So, take carenottolet yourclothes touchthe

traverse deck (optical pickup).

Caution whenReplacing theTraverse Deck :

Thetraverse deck has ashortpointshortedwithsoldertoprotect

thelaerdiodeagainst electroststics breakdown. Besuretoremove

thesolderfromtheshortpointbeforemaking connections.

6. Precaution of LaserDiode

CAUTION:

Thisunitutilizes aclass 1laser.

Invisiblelaserradiation isemittedfrom theoptical pickup lens.

Whentheunitisturnedon:

1. Donotlookdirectlyintothepick up lens.

2. Donotuse optical instruments tolookat thepick up lens.

3. Donotadjust thepreset variableresistoron thepickup lens.

4. Donotdisassembletheoptical pick up unit.

5. Iftheoptical pick up isreplaced, use themanufacturer’sspecified

replacementpick up only.

6. Use ofcontrol oradjustments orperformance ofprocedures other

thanthose specifiedhereinmayresultinhazardousradiation

exposure.

CAUTION!

THIS PRODUCTUTILIZES ALASER.

USE OFCONTROLS ORADJUSTMENTS ORPERFORMANCE OFPROCEDURES OTHERTHAN

THOSE

SPECIFIEDHEREINMAYRESULTINHAZARDOUS RADIATIONEXPOSURE.

7. Operation Procedures

8. Disassemblyand MainComponent Replacement

Procedures
