Panasonic KV-S2065L Manual de usuario

file://///serwer/instr/CD/900-999/CD945/KV-S2065L_ALL_SVC/Viewing/SGML_VIEW_DATA/ALL/KV-S2065L/SVC/s0000000000.html

Service Manual

TOP NEXT

ORDER NO. KM70104623C0

G14

High Speed Scanner

● KV-S2065L/KV-S2065W

TOP NEXT

file://///serwer/instr/CD/900-999/CD945/KV-S2065L_A...g/SGML_VIEW_DATA/ALL/KV-S2065L/SVC/s0000000000.html [2010-08-24 21:07:46]

file://///serwer/instr/CD/900-999/CD945/KV-S2065L_ALL_SVC/Viewing/SGML_VIEW_DATA/ALL/KV-S2065L/SVC/s0100000000x.html

1 GENERAL PRECAUTIONS

TOP PREVIOUS NEXT

1.1 Safety Precautions

1.2 Electrical Tests

1.3 For Service Technicians

TOP PREVIOUS NEXT

file://///serwer/instr/CD/900-999/CD945/KV-S2065L_A.../SGML_VIEW_DATA/ALL/KV-S2065L/SVC/s0100000000x.html [2010-08-24 21:08:32]

file://///serwer/instr/CD/900-999/CD945/KV-S2065L_ALL_SVC/Viewing/SGML_VIEW_DATA/ALL/KV-S2065L/SVC/s0101000000.html

1.1 Safety Precautions

TOP PREVIOUS NEXT

1. Before servicing, unplug the power cord to prevent electrical shock hazard.

2. When replacing parts, user only manufactures recommended components for safety.

3. Check the condition of power cord. Replace if wear or damage is evident.

4. After servicing, be sure to restore the lead dress, insulation barriers, insulation papers, shields,

etc.

5. Before returning the serviced equipment to the customer, perform the following electrical tests

to prevent shock hazard.

TOP PREVIOUS NEXT

file://///serwer/instr/CD/900-999/CD945/KV-S2065L_A...g/SGML_VIEW_DATA/ALL/KV-S2065L/SVC/s0101000000.html [2010-08-24 21:08:37]

file://///serwer/instr/CD/900-999/CD945/KV-S2065L_ALL_SVC/Viewing/SGML_VIEW_DATA/ALL/KV-S2065L/SVC/s0102000000.html

1.2 Electrical Tests

TOP PREVIOUS NEXT

1. Unplug the power cord and check for continuity between the earth ground connection on the

plug and the Interface Board Cover. There should be zero ohm resistance

2. With the unit unplugged, short the AC live-neutral of the plug with a jumper wire.

3. Turn ON the power switch.

4. Measure the resistance value with an ohmmeter between the jumpered AC plug and an exposed

metal cabinet part, such as screwheads, etc. (Refer to Fig.2)

Note:

Some exposed parts may be isolated from the chassis by design. They read infinity.

5. If the measurement is less than 1MΩ, a possibility for electric shock may exit.

Note:

This hazardous condition must be corrected before the unit is returned to the end user.

TOP PREVIOUS NEXT

file://///serwer/instr/CD/900-999/CD945/KV-S2065L_A...g/SGML_VIEW_DATA/ALL/KV-S2065L/SVC/s0102000000.html [2010-08-24 21:08:39]

file://///serwer/instr/CD/900-999/CD945/KV-S2065L_ALL_SVC/Viewing/SGML_VIEW_DATA/ALL/KV-S2065L/SVC/s0103000000.html

1.3 For Service Technicians

TOP PREVIOUS NEXT

ICs and LSIs are vulnerable to static electricity. When repairing, the following precautions will help

to prevent recurring malfunctions.

1. Cover the plastic parts with aluminum foil.

2. Ground the soldering irons.

3. Use a conductive mat on the worktable.

4. Do not grasp IC or LSI pins with bare fingers.

TOP PREVIOUS NEXT

file://///serwer/instr/CD/900-999/CD945/KV-S2065L_A...g/SGML_VIEW_DATA/ALL/KV-S2065L/SVC/s0103000000.html [2010-08-24 21:08:39]

file://///serwer/instr/CD/900-999/CD945/KV-S2065L_ALL_SVC/Viewing/SGML_VIEW_DATA/ALL/KV-S2065L/SVC/s0200000000x.html

2 SPECIFICATION

TOP PREVIOUS NEXT

Item Model No.

KV-S2065L KV-S2065W

Scanner Scanning face Duplex scanning

Scanning method Front side: CIS (Contact Type Image Sensor)

Back side: CIS (Contact Type Image Sensor)

Scanning speed Simplex scanning: Approx. 60 ppm (Letter, fed lengthwise,

200 dpi)

Duplex scanning: Approx. 110 ipm (Letter, fed lengthwise,

200 dpi)

Resolution Main scanning direction: 100-600 dpi (1 dpi step)

Sub-scanning direction: 100-600 dpi (1 dpi step) (Same as

main scanning direction)

Optical resolution is 400 dpi.

Tonal gradation Binary mode, Grayscale mode (4/8 bit), 64-step gradation

(dither) mode, 64-step gradation (error diffusion) mode

Image control Image emphasis, Dynamic threshold (DIMM required),

Automatic threshold, Automatic separation, Monochrome

reversing, Automatic back control

Compression MH, MR, MMR

Paper Size Scanning size: 48 x 70mm

(1.9 x 2.75 in.) to 216 x

431mm (8.5 x 17 in.)

Feeding size: 48 x 70mm

(1.9 x 2.75 in.) to 305 x

838mm (12 x 33 in.)

Scanning size: 48 x 70mm

(1.9 x 2.75 in.) to 298 x

431mm (11.7 x 17 in.)

Feeding size: 48 x 70mm

(1.9 x 2.75 in.) to 305 x

838mm (12 x 33 in.)

Thickness Single paper feeding: 0.025 to 0.2mm (1.0 to 7.9 mils)

Continuous paper feeding: 0.06 to 0.2mm (2.4 to 7.9 mils)

Note: 1 mil=1/1000 in.

Weight Single paper feeding: 20 to 157g/m2 (5.3 to 42 lbs.)

Continuous paper feeding: 50 to 157g/m2 (13 to 42 lbs.)

Interface (Transfer rate) SCSI 3 (20MB/sec), 50pin

Unit External dimensions(WidthxDepthxHeight) 495 x 575 x 246mm (19.5 x 22.6 x 9.7 in.)

Mass (Weight) 19kg (41.8 lbs.)

Power requirement AC100-120V, 50/60Hz

AC220-240V, 50/60Hz

Power consumption Maximum(Scanning) 1.3A (AC100-120V)/98W0.8A (AC220-240V)/98W

Minimum(Standby) 0.5A (AC100-120V)/30W0.3A (AC220-240V)/30W

Sleep mode 0.13A (AC100-120V)/11W 0.07A (AC220-240V)/11W

Operating Environment Operating temperature and humidity 15°C to 30°C (59°F to 86°F), 30% to 80% RH

Storage Environment Storage temperature and humidity 0°C to 35°C (32°F to 95°F), 10% to 80% RH

file://///serwer/instr/CD/900-999/CD945/KV-S2065L_AL...g/SGML_VIEW_DATA/ALL/KV-S2065L/SVC/s0200000000x.html (1 z 2) [2010-08-24 21:08:40]

file://///serwer/instr/CD/900-999/CD945/KV-S2065L_ALL_SVC/Viewing/SGML_VIEW_DATA/ALL/KV-S2065L/SVC/s0200000000x.html

Option Roller exchange kit (KV-SS009), Imprinter option (KV-SS010), Roller cleaning paper (KV-SS03), Ink cartridge

(KV-SS06), White roller kit for KV-S2065W (KV-SS048), White roller kit for KV-S2065L (KV-SS071)

Weight in pounds represents the weight of 500 [17x22 inches (432x559mm)] sheets.

TOP PREVIOUS NEXT

file://///serwer/instr/CD/900-999/CD945/KV-S2065L_AL...g/SGML_VIEW_DATA/ALL/KV-S2065L/SVC/s0200000000x.html (2 z 2) [2010-08-24 21:08:40]

file://///serwer/instr/CD/900-999/CD945/KV-S2065L_ALL_SVC/Viewing/SGML_VIEW_DATA/ALL/KV-S2065L/SVC/s0300000000x.html

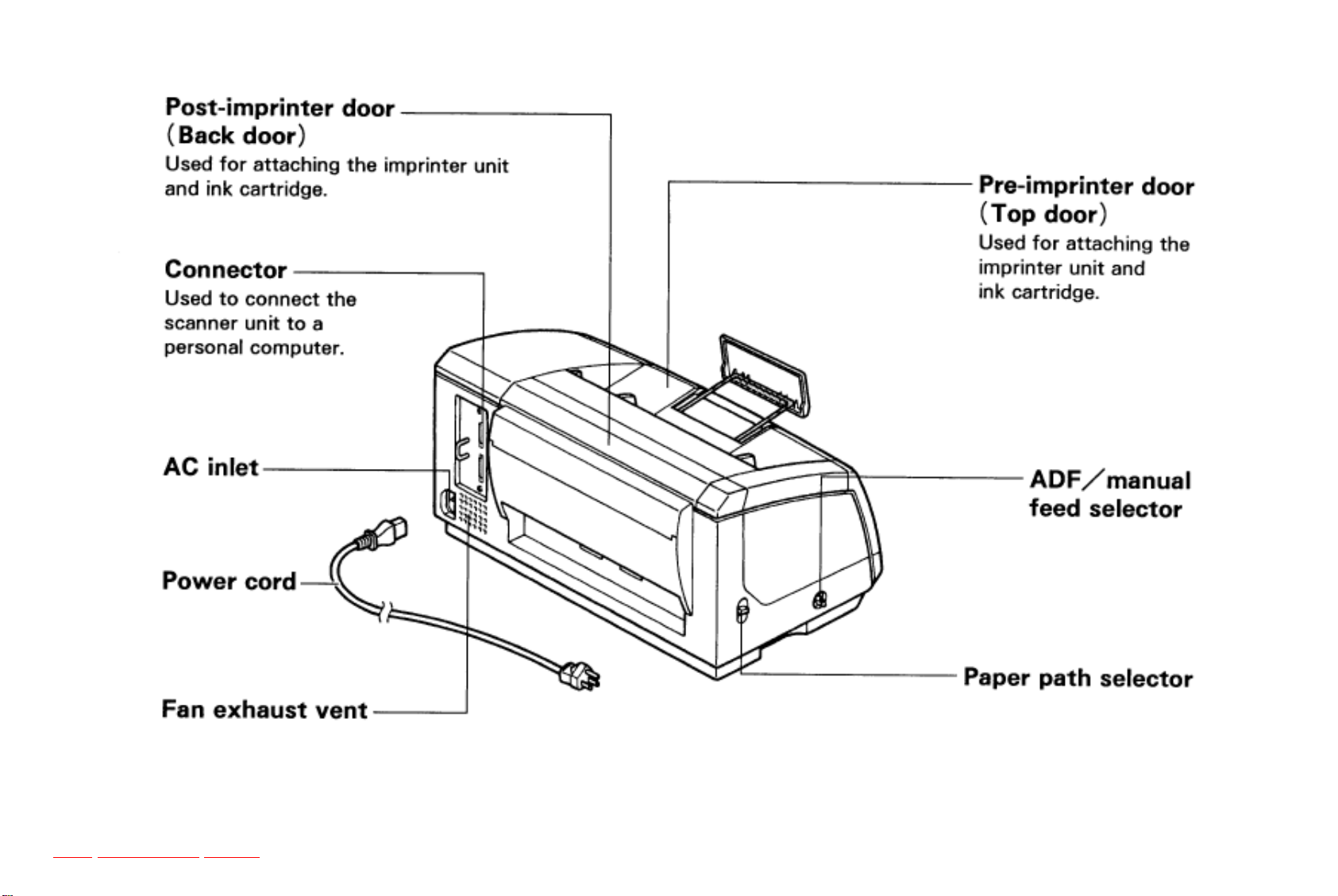

3 COMPONENT IDENTIFICATION

TOP PREVIOUS NEXT

file://///serwer/instr/CD/900-999/CD945/KV-S2065L_ALL_SVC/Viewing/SGML_VIEW_DATA/ALL/KV-S2065L/SVC/s0300000000x.html (1 z 2) [2010-08-24 21:08:41]

file://///serwer/instr/CD/900-999/CD945/KV-S2065L_ALL_SVC/Viewing/SGML_VIEW_DATA/ALL/KV-S2065L/SVC/s0300000000x.html

TOP PREVIOUS NEXT

file://///serwer/instr/CD/900-999/CD945/KV-S2065L_ALL_SVC/Viewing/SGML_VIEW_DATA/ALL/KV-S2065L/SVC/s0300000000x.html (2 z 2) [2010-08-24 21:08:41]

file://///serwer/instr/CD/900-999/CD945/KV-S2065L_ALL_SVC/Viewing/SGML_VIEW_DATA/ALL/KV-S2065L/SVC/s0400000000x.html

4 INSTALLATION

TOP PREVIOUS NEXT

4.1 Minimum Space Requirements

4.2 Removing and Keeping Screw and Fixture

4.3 DIMM Module Extension

4.4 Removing SCSI Board

4.5 Installing DIMM Module

4.6 Installing the SCSI Board

4.7 Connecting the Unit to a Personal Computer

4.8 System Conditions Requirements

4.9 LCD Settings

4.9.1 Setting the language

4.9.2 Setting the SCSI ID and Terminator

TOP PREVIOUS NEXT

file://///serwer/instr/CD/900-999/CD945/KV-S2065L_A.../SGML_VIEW_DATA/ALL/KV-S2065L/SVC/s0400000000x.html [2010-08-24 21:08:43]
