EN-1

Contents

1. Important Safety Instructions ...............................................EN-2

2. Names and Operations ........................................................EN-3

3. Installing Batteries................................................................EN-5

4. Setting the Current Time ......................................................EN-6

5. Operation .............................................................................EN-7

6. Timer Operation ...................................................................EN-9

7. Adjusting the Wind Direction ..............................................EN-11

8. Operating Multiple In/Outdoor Units Simultaneously .........EN-12

9. Using the Remote Control..................................................EN-13

10. For Best Results.................................................................EN-13

11. Addresses ..........................................................................EN-14

12. Emergency Operation ........................................................EN-17

13. Miscellaneous Settings ......................................................EN-19

14. Before Requesting Service ................................................EN-20

15. Speciﬁcations.....................................................................EN-21

Instructionhonbunall.indbEN-1Instructionhonbunall.indbEN-1 2011/04/1817:54:322011/04/1817:54:32

1. Important Safety Instructions

EN-2

Before using the system, be sure to read these

“Important Safety Instructions”.

After reading this manual, save it in a convenient

place.

Warning

Installation Precautions

• Do not install yourself

Installation should always be performed by your

dealer or a professional service provider.

Electric shock or ﬁre may result if an

inexperienced person performs any installation

or wiring procedures incorrectly.

• Use only speciﬁed air conditioners

Always use only air conditions speciﬁed by the

dealer.

Precautions for Use

• Do not touch switches with wet hands

Electric shock and damage to the system can

result.

• Protect the remote controller from water Damage

to the system can result.

• Stop the system and turn the power off if you

sense unusual smells or other irregularities

Continuing operation when the system is out of

order can result in electric shock, ﬁre, and

damage to the system. Contact your dealer.

• Do not swallow the battery.

Moving and Repair Precautions

• Do not repair

Never repair the system by yourself.

• Contact your dealer before moving the system

Contact your dealer or a professional service

provider about moving and reinstalling the system.

Electric shock or ﬁre may result if an

inexperienced person performs any installation

procedures incorrectly.

Instructionhonbunall.indbEN-2Instructionhonbunall.indbEN-2 2011/04/1817:54:332011/04/1817:54:33

2. Names and Operations

EN-3

1. Operation Display

Displays the operation status. (The ﬁgure

shows all the statuses.)

• The auto-ﬂap display may be different,

depending on the installed unit. (See Page

EN-11)

2. Start/Stop button

Pressing this button once starts and pressing

again stops the operation.

3. Fan speed button

4. Swing/Wind Direction button

5. Timer setting button

Use for operating with a timer.

6. Reset button

Use this button after changing the batteries.

7. Cover

Press at the top center and then slide down.

8. Transmitter

9. Remote control sensor

Detects the temperature at the remote

controller when detection has been switched

to the remote control by the sensor button.

10. Temperature setting buttons

raises the temperature setting 1 °C at

a time.

lowers the temperature setting 1 °C at

a time.

11. Filter button

CZ-RWSC2

Press to turn off the ﬁlter lamp on the

receiver.

12. Mode Select button

Press to switch the operation mode.

13. Ventilation button

Use this when connected to an aftermarket

fan. Pressing this button starts and stops the

fan. When the air conditioner is started or

stopped, the fan starts or stops at the same

time. ( appears on the display of the

remote control when the fan is operating.)

14. Address button

15. Sensor button

Use this when switching to detect the

temperature at the remote control. At

shipping the default setting is set to detect

the temperature at the unit. At this time is

shown on the display.

16. Clock button

Use this when setting the clock.

REMOTE CONTROL One remote control can control a group of up to eight indoor units.

(See Page EN-12)

From this page on the names of remote control

buttons will be abbreviated as the illustration of

the “button”.

E.g.: Start/Stop button Æ

Instructionhonbunall.indbEN-3Instructionhonbunall.indbEN-3 2011/04/1817:54:332011/04/1817:54:33

EN-4

1. Receiver

Receives the signal sent from the remote

control.

2. Emergency operation button

Display lamps

When an error occurs, one of the lamps ﬂashes. When a

display lamp is blinking, refer to “14. Before Requesting

Service”.

3. Operating lamp

This lamp is lit when the unit is operating.

4. Timer lamp

This lamp is lit when the timer is set.

5. Standby lamp

• When the heater is working, the lamp lights

at the following times. When the thermostat

has operated during defrosting at the time

of the startup.

• The lamp ﬂashes when an error occurs.

6. Filter lamp

This lamp is for notifying you when the ﬁlter

needs to be cleaned.

7. Swing button

8. Normal/Stop All switch

Use in the Normal position. It does not

operate in the Stop All position.

Remote control, main / remote control,

secondary, switch

In normal use this should be on remote

control, main. It is also possible to use both

in conjunction with a wired remote control

(sold separately). (Consult with the dealer

where the product was purchased about

making the settings.)

Test/On switch

This is used during service. It is not for

normal use.

Test Run/On switch

This is used during service. It is not for

normal use.

9. Address switch

Differentiate between incoming and outgoing

signals.

Note

• If a heat pump model is being used, it will beep

twice and the operating lamp will light up on the

display; if the timer and standby lamps blink

alternately, a conﬂict between the heating and

cooling exists, so the unit cannot operate in the

desired mode. (On models that do not have an

Auto function, even if Auto is selected, it works in

the same way.)

• When the local operation is disabled by such as

the centralized control, and if the Start, Stop, Mode

or Temperature setting buttons are pressed, the

unit will beep ﬁve times and the change will not be

made.

Receiver

2. Names and Operations (Cont.)

Instructionhonbunall.indbEN-4Instructionhonbunall.indbEN-4 2011/04/1817:54:332011/04/1817:54:33

3. Installing Batteries

EN-5

1. Remove the cover.

2. Insert two AAA alkaline batteries.

Put the batteries in with the polarity [+/–] as shown in the

ﬁgure.

3. Gently insert one end of an unfolded paper clip

(or a similar object that can ﬁt) into the Reset hole

and press the reset button inside the hole and

then put the cover back on.

Note

• Change the batteries when the display of the remote control

gets weak or if it will not work unless close to the receiver.

(Alkaline batteries generally last about one year.)

• When changing batteries, always use two fresh batteries of the

same make.

• If the remote control will not be used for a long period of time,

remove the batteries.

• Please dispose of batteries appropriately.

• After changing the batteries, follow the procedures on the next

page to reset the current time.

HOW TO REMOVE BATTERIES

1. Remove the cover.

2. Press the battery toward the negative end and

lift it out by its positive end. (As shown at right)

3. Remove the other battery in the same way.

Note

• Dispose of the used batteries at the designated location in

compliance with the applicable local ordinances.

Warning

• Do not swallow the battery.

• After removing the battery from remote control unit, keep it away from the reach of children.

The battery can cause death by suffocation if swallowed.

• When inserting the battery, make sure the polarities (+ and -) are correct.

Reset hole

Cover

Instructionhonbunall.indbEN-5Instructionhonbunall.indbEN-5 2011/04/1817:54:332011/04/1817:54:33

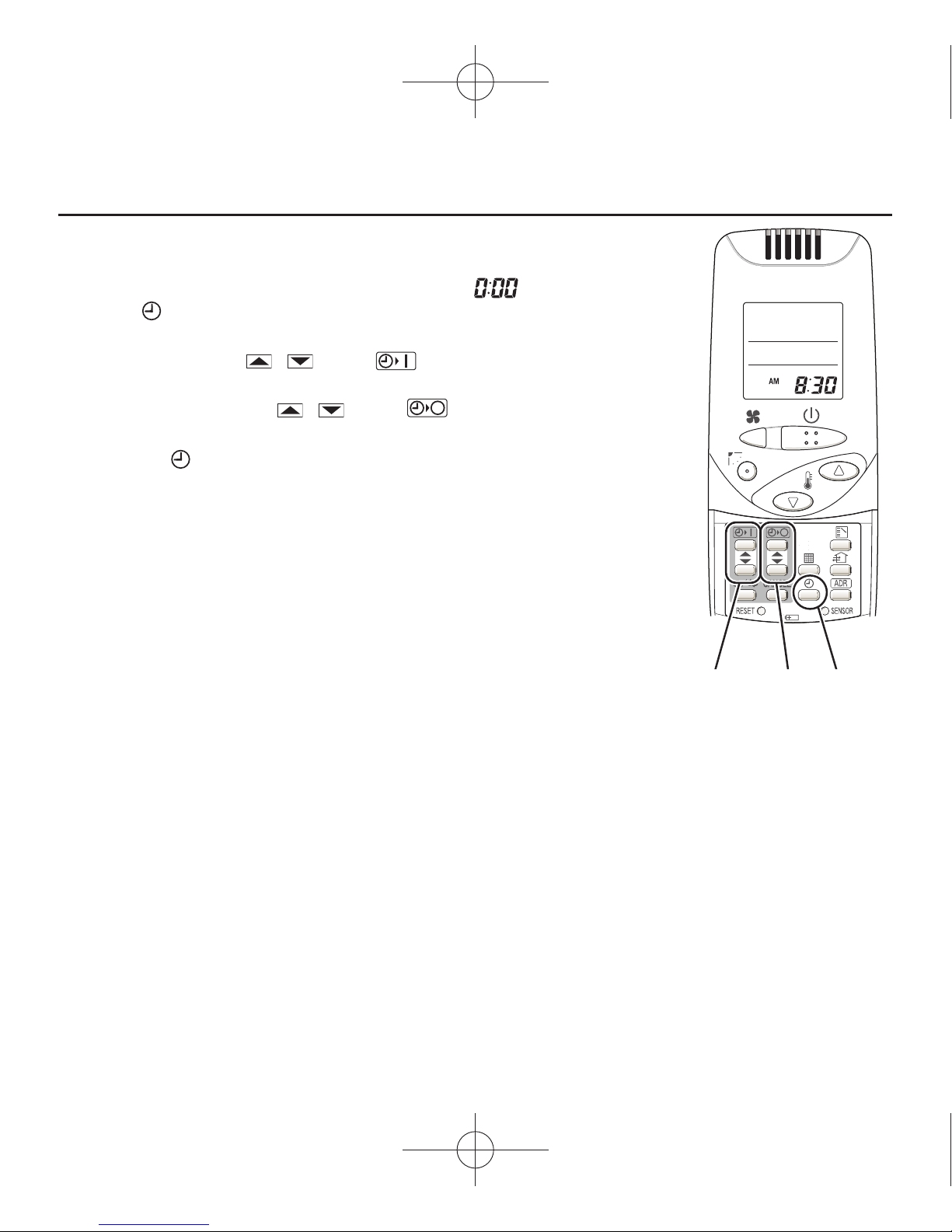

4. Setting the Current Time

EN-6

After changing the batteries and pressing reset, be sure to reset the

current time.

(When reset is pressed, the current time reverts to [ ])

1. Press for two seconds or more.

Once the clock displays starts blinking, the clock can be set.

2. Set the hour with / of the .

If you press and hold the button, the time changes quickly.

3. Set the minutes with / of the .

If you press and hold the button, the time changes quickly.

4. Pressing completes the time setting.

• While you are setting the current time, the time display ﬂashes but

the colon does not.

• If the buttons are not pressed for three minutes while setting the

current time, it is set to the displayed time.

Note

• When reset is pressed, the timer settings are deleted.

21, 4

Instructionhonbunall.indbEN-6Instructionhonbunall.indbEN-6 2011/04/1817:54:332011/04/1817:54:33

Otros manuales para CZ-RWSU2

Este manual sirve para los siguientes modelos

Tabla de contenidos

Idiomas:

Otros manuales de Mando a distancia de Panasonic

Panasonic

Panasonic TX LXD6 Series Manual de usuario

Panasonic

Panasonic AK-HRP1005G Manual de usuario

Panasonic

Panasonic CZ-RTC2 Manual de lista de piezas

Panasonic

Panasonic EUR7722KN0 Manual de usuario

Panasonic

Panasonic AWCB400N - REMOTE OPERATION PANEL Manual de usuario

Panasonic

Panasonic KX-HNK102C Manual de usuario

Panasonic

Panasonic EUR511151C Manual de usuario

Panasonic

Panasonic CZ-RTC5A Manual de usuario

Panasonic

Panasonic EUR501375 Manual de usuario

Panasonic

Panasonic CZ-RTC6BLW Manual de usuario

Panasonic

Panasonic EUR501371 Manual de uso y mantenimiento

Panasonic

Panasonic CZ-RD52CP Manual de usuario

Panasonic

Panasonic CZ-RTC4A Manual de usuario

Panasonic

Panasonic EUR511511 guide Manual de usuario

Panasonic

Panasonic AW-RP150G Manual de usuario

Panasonic

Panasonic CZ-RD52CU Manual de usuario

Panasonic

Panasonic Lumix DMW-RSL1 Manual de usuario

Panasonic

Panasonic AK-HRP1005G Manual de usuario

Panasonic

Panasonic CZ-RWSK2 Manual de usuario

Panasonic

Panasonic CZ-RWSU2N Manual de usuario

Panasonic

Panasonic EUR7603Z10 Manual de usuario

Panasonic

Panasonic CZ-RWSU2 Manual de usuario

Panasonic

Panasonic CZ-RD514C Manual de instalación y operación

Panasonic

Panasonic cz-rd515u Manual de usuario

Manuales populares de Mando a distancia de otras marcas

Bang & Olufsen

Bang & Olufsen Beo4 Manual de usuario

Sunwave Tech.

Sunwave Tech. RemoteComm SRC-7000 Manual de usuario

Multiplex

Multiplex PROFI TX 9 Manual de usuario

One Remote

One Remote RMB4 Manual de usuario

FUTABA

FUTABA 9ZAP - PART2 Manual de usuario

HR Matic

HR Matic HR MULTI 3 Manual de usuario

Yamaha

Yamaha ACC-GNRST-30-20 Manual de usuario

EisSound

EisSound KBSOUND Manual de usuario

Marantz

Marantz RC101 Manual de usuario

Conrad

Conrad FS20 TC6 Manual de usuario

Anritsu

Anritsu MP1777A Manual de usuario

Niles

Niles WVC100 Guía de solución de problemas

RCA

RCA RCU1300 Manual de usuario

Bang & Olufsen

Bang & Olufsen BEO6 Manual de usuario

GE 94901 Manual de usuario

Onbon

Onbon YQ1-75 Manual de usuario

FUTABA

FUTABA R7108SB Instrucciones de instalación

Invacare

Invacare G91S Manual de usuario
