Panasonic AK-HRP1015G Manual de usuario

DVQP2526ZAW0321AM0 -PS

ENGLISH

For details of operating Remote Operation Panel AK-HRP1015G, please

visit the Panasonic website (https://pro-av.panasonic.net/manual/en/index.

html), and refer to the Operating Instructions (HTML or PDF).

Read this document when using the AK-HRP1015G Remote Operation Panel in

conjunction with AW-HR140 or AW-HE130 Series HD Integrated Cameras.

Operating Guide

Remote Operation Panel

Model No. AK-HRP1015G

Connecting the Unit to AW-HR140/AW-HE130

Series Cameras 3

Connection examples 3

Connections 5

Compatible Functions List 6

ROP Menu (when AW-HR140/AW-HE130 is

connected) 9

ROP menu list 9

01 SCENE 14

02 SHUTTER SPEED 15

03 FILTER 16

04 PEDESTAL 17

05 CHROMA 18

06 GAIN 19

07 WHITE BALANCE 20

08 GAMMA 21

09 KNEE 22

10 WHITE CLIP 23

11 DETAIL 24

12 MATRIX 25

13 COLOR CORRECTION 26

14 DNR 29

15 DIGTAL HAZE CLEAR 30

16 HOUSING 31

17 BRIGHTNESS 32

18 LENS CONTROL 33

19 IRIS RELATIVE 34

20 SYSTEM CAM 35

21 CAMERA MENU CONTROL 36

22 ROP SETTING 37

23 CONNECT SETTING 38

24 ROP IP SETTING 39

25 CAMERA IP SETTING 39

26 SWITCHER LINK 39

27 AW CONTROLLER LINK 39

- 2 -

Table of Contents

Connecting the Unit to AW-HR140/AW-HE130 Series

Cameras

Connection examples

Serial connection with AW-HR140

External DC

power supply

HD Integrated Camera

AW-HR140

<RS-422> connector

* Prepare a cable that is in accordance

with the following serial connection

cable specifications.

PoE compatible

switching hub or injector

IP connection with AW-HR140

LAN cable (straight cable)

HD Integrated Camera

AW-HR140

LAN cable (straight cable)

Switching hub with

PoE support

<LINK/ACT> connector

External DC

power supply

- 3 -

Connecting the Unit to AW-HR140/AW-HE130 Series Cameras

Serial connection with AW-HE130

External DC

power supply

HD Integrated Camera

AW-HE130

<RS-422> connector

* Prepare a cable that is in accordance

with the following serial connection

cable specifications.

PoE compatible

switching hub or injector

IP connection with AW-HE130

HD Integrated Camera

AW-HE130

LAN cable (straight cable)

Switching hub with

PoE support

LAN cable (straight cable)

<LINK/ACT> connector

External DC

power supply

Serial connection cable specifications

ヒヤモヮチチュモヵユドラナ⾺⾺⾼⾼Pin No. Function Polarity Flow of signal

ビヤヰヮチチュモヵユドロナピヤヰヮチチヤヰワヵドラナフヤヰヮチチヤヰワヵドロナヤモヮēチンヰヱヤモヮēチンヰヱンヰヱチēチヤモヮンヰヱチēチヤモヮブヤヰヮチチワㄐハチモプヤヰヮチチワㄐハチャヘヤヰヮチチワㄐハチヤベヤヰヮチチワㄐハチュペ

ヒビチヷ

ヒパヨワュヒヨンュヵモロロヺンヹュノヵヹュノヵヹュヌンヹュヌチ⾼チ⾼ビピフブプヘベラㄊㄓㄐㄔㄆホチランヒパモノヒパヱノヒパブドヘピナAW-HR140/AW-HE130

<RS-422> connector side (RJ45)

AK-HRP1015G

[CCU] connector side

- 4 -

Connecting the Unit to AW-HR140/AW-HE130 Series Cameras

Connections

Set the connection setting to [Serial(AW2)] or [LAN(AW2)] in the [CONNECT SETTING] menu.

ヒチバチヒヘ

ヤヰワワユヤヵチヴユヵヵリワヨヤヰワワユヤヵチヮヰュユドㄑㄖㄔㄉナヤモヮビヤヰワワユヤヵチヮヰュユドㄑㄖㄔㄉナヤモヮブヤモヮピヤモヮプヤモヮヒヤモヮフヴㄆㄓㄊ㄂ㄍドモヸビナロモワドモヸビナワヰワワヰワワヰワワヰワ

NOTE

To connect with the AW-HR140/AW-HE130, upgrade the system version of the unit to 2.00-00-0.00 or later.

When connecting, observe the following points.

Serial connection

Use a dedicated cable to connect the [CCU] connector of this unit to the <RS-422> connector of the AW-HR140/AW-

HE130.

Use a PoE power supply for the power supply.

LAN connection

Connect the [LAN] connector on this unit to the <LINK/ACT> connector on the AW-HR140/AW-HE130 using a LAN

cable (sold separately).

Configure the camera IP address and port number settings of the connection destinations in [CAMERA IP SETTING] as

well.

This unit can be powered using PoE. Use a switching hub with PoE support.

Use a straight cable (category 5e or higher; up to 100 m (328.0 ft) in length) for the LAN cable (STP).

For details on switching hubs and PoE injectors that have been verified to support PoE, consult with your dealer.

- 5 -

Connecting the Unit to AW-HR140/AW-HE130 Series Cameras

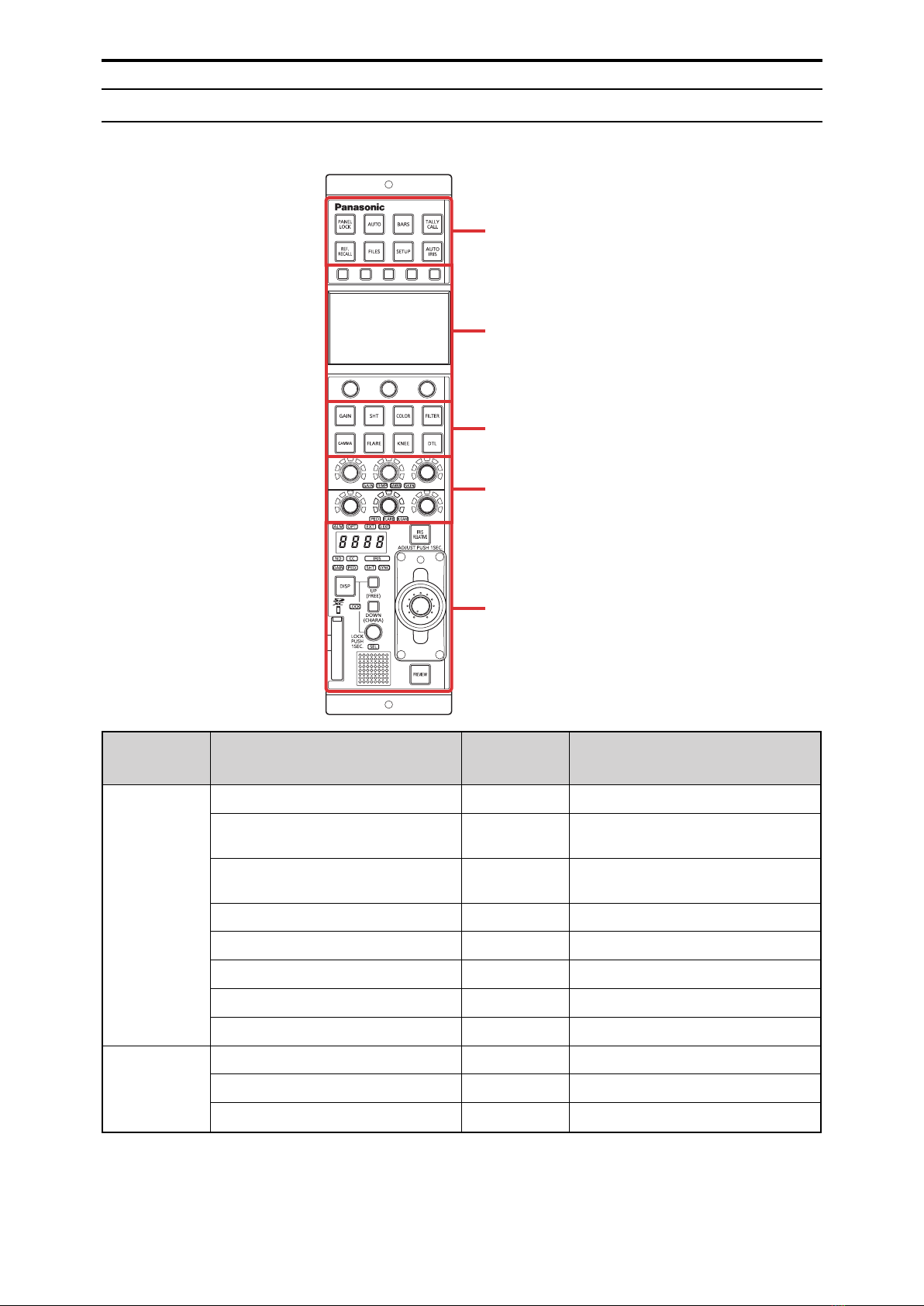

Compatible Functions List

When the unit is used in conjunction with an AW-HR140 Series or AW-HE130 Series HD Integrated Camera, there will be functions that are

limited or disabled for some of the unit’s buttons, dials, and other controls. Be sure to refer to the following table.

Front panel 1

Front panel 2

Front panel 3

Front panel 4

Front panel 5

Front panel 6

Number Part name

✓: Enabled

×: Disabled

Remarks

Front panel 1

[PANEL LOCK] button ✓

[AUTO] button ✓If auto setup has been assigned, this will not

operate.

[BARS] button ✓Only the ON/OFF for the color bar signal

output will function.

[TALLY/CALL] lamp/button ×

[REF. RECALL] button ×

[FILES] button ✓This is always lit.

[SETUP] button ✓

[AUTO IRIS] button ✓

Front panel 2

Function buttons ✓

LCD panel ✓

Menu operation dials ✓

- 6 -

Connecting the Unit to AW-HR140/AW-HE130 Series Cameras

Number Part name

✓: Enabled

×: Disabled

Remarks

Front panel 3

[GAIN] button ✓When this button is pressed, the gain menu

appears on the LCD panel. The button is lit

during menu display.

[SHT] button ✓When this button is pressed, the shutter

menu appears on the LCD panel. The button

is lit during menu display.

[COLOR] button ✓The menus will switch with each press of the

button. The button is lit during menu display.

[CHROMA] > [MATRIX] > [COLOR

CORRECTION] > Menu off (status screen)

[FILTER] button ✓When this button is pressed, the filter menu

appears on the LCD panel. The button is lit

during menu display.

[GAMMA] button ✓When this button is pressed, the gamma

menu appears on the LCD panel. The button

is lit during menu display.

[FLARE] button ×

[KNEE] button ✓The menus will switch with each press of the

button. The button is lit during menu display.

[KNEE] > [WHITE CLIP] > Menu off (status

screen)

[DTL] button ✓The menus will switch with each press of the

button. The button is lit during menu display.

[DETAIL] > [DNR] > Menu off (status screen)

Front panel 4

[GAIN], [TEMP], [GAMMA], [SKIN]

adjustment block

✓When [GAIN] is lit, [GAIN R] and [GAIN B] are

adjusted using the red (R) and blue (B)

adjustment dials respectively.

When [TEMP] is lit, [COLOR TEMP] is

adjusted using the green (G) adjustment

dial.

When [GAMMA] is lit, the master gamma is

adjusted using the green (G) adjustment

dial.

[SKIN] adjustment is disabled.

[PED], [FLARE], [B.GAM] adjustment block ✓When [PED] is lit, [PED R], [M.PED] and

[PED B] are adjusted using the red (R),

green (G), and blue (B) adjustment dials,

respectively.

[FLARE] and [B.GAM] adjustment is

disabled.

- 7 -

Connecting the Unit to AW-HR140/AW-HE130 Series Cameras

Number Part name

✓: Enabled

×: Disabled

Remarks

Front panel 5

[ALM] indicator ✓

[OPT] indicator ×

[EXT] indicator ×

[D.EXT] indicator ✓

Adjustment value display ✓A value is also not displayed when

[SHUTTER] is [SYNC]. The display will be bar

display.

When the shutter speed value is “10000”,

“9999” is displayed.

[ND] indicator ✓

[CC] indicator ✓This lights but does not function.

[IRIS] indicator ✓The iris value is not displayed.

[GAIN] indicator ✓

[PED] indicator ✓

[SHT] indicator ✓

[SYNC] indicator ✓

[DISP] button ✓

[UP (FREE)] button ✓

[DOWN (CHARA)] button ✓

[LOCK] indicator ✓

[SEL] dial ✓

Front panel 6

Memory card slot ✓

Memory card access indicator ✓

Camera number/tally display ✓

[IRIS RELATIVE] button ✓

Torque adjustment screw ✓

IRIS lever ✓

Master pedestal dial ✓

[PREVIEW] button ×

- 8 -

Connecting the Unit to AW-HR140/AW-HE130 Series Cameras

ROP Menu (when AW-HR140/AW-HE130 is connected)

ROP menu list

When an AW-HR140/AW-HE130 HD Integrated Camera is connected, the ROP menu will be as follows.

For details on menu operations, refer to the following sections in the Operating Instructions.

“Displaying menus”

“Basic menu operations”

01 SCENE

SCENE1(push) “SCENE1(push)” (see page 14)

SCENE2(push) “SCENE2(push)” (see page 14)

SCENE3(push) “SCENE3(push)” (see page 14)

SCENE4(push) “SCENE4(push)” (see page 14)

02 SHUTTER SPEED

MODE “MODE” (see page 15)

SPEED “SPEED” (see page 15)

03 FILTER ND “ND” (see page 16)

04 PEDESTAL

M.PED “M.PED” (see page 17)

PED R “PED R” (see page 17)

PED B “PED B” (see page 17)

05 CHROMA LEVEL(%) “LEVEL(%)” (see page 18)

06 GAIN

SUPER GAIN “SUPER GAIN” (see page 19)

GAIN “GAIN” (see page 19)

AGC MAX GAIN “AGC MAX GAIN” (see page 19)

07 WHITE BALANCE

MODE “MODE” (see page 20)

COLOR TEMP “COLOR TEMP” (see page 20)

GAIN R “GAIN R” (see page 20)

GAIN B “GAIN B” (see page 20)

ATW SPEED “ATW SPEED” (see page 20)

ATW WIDTH “ATW WIDTH” (see page 20)

08 GAMMA

TYPE “TYPE” (see page 21)

GAMMA “GAMMA” (see page 21)

DRS “DRS” (see page 21)

09 KNEE

KNEE MODE “KNEE MODE” (see page 22)

KNEE POINT “KNEE POINT” (see page 22)

KNEE SLOPE “KNEE SLOPE” (see page 22)

10 WHITE CLIP

WHITE CLIP “WHITE CLIP” (see page 23)

WHITE CLP LV(%) “WHITE CLP LV(%)” (see page 23)

11 DETAIL

M.DTL “M.DTL” (see page 24)

V DTL LEVEL “V DTL LEVEL” (see page 24)

DTL BAND “DTL BAND” (see page 24)

NOISE SUPPRESS “NOISE SUPPRESS” (see page 24)

FLSHTN NIS SUP. “FLSHTN NIS SUP.” (see page 24)

SW “SW” (see page 24)

- 9 -

ROP Menu (when AW-HR140/AW-HE130 is connected)

12 MATRIX

TYPE “TYPE” (see page 25)

R-G “R-G” (see page 25)

R-B “R-B” (see page 25)

G-R “G-R” (see page 25)

G-B “G-B” (see page 25)

B-R “B-R” (see page 25)

B-G “B-G” (see page 25)

13 COLOR CORRECTION

TYPE “TYPE” (see page 27)

COLOR CORRECT “COLOR CORRECT” (see page 27)

SAT “SAT” (see page 27)

PHASE “PHASE” (see page 27)

SAT B_Mg “SAT B_Mg” (see page 27)

PHASE B_Mg “PHASE B_Mg” (see page 27)

SAT Mg “SAT Mg” (see page 27)

PHASE Mg “PHASE Mg” (see page 27)

SAT Mg_R “SAT Mg_R” (see page 27)

PHASE Mg_R “PHASE Mg_R” (see page 27)

SAT Mg_R_R “SAT Mg_R_R” (see page 27)

PHASE Mg_R_R “PHASE Mg_R_R” (see page 27)

SAT R “SAT R” (see page 28)

PHASE R “PHASE R” (see page 28)

SAT R_R_Yl “SAT R_R_Yl” (see page 28)

PHASE R_R_Yl “PHASE R_R_Yl” (see page 28)

SAT R_Yl “SAT R_Yl” (see page 28)

PHASE R_Yl “PHASE R_Yl” (see page 28)

SAT R_Yl_Yl “SAT R_Yl_Yl” (see page 28)

PHASE R_Yl_Yl “PHASE R_Yl_Yl” (see page 28)

SAT Yl “SAT Yl” (see page 28)

PHASE Yl “PHASE Yl” (see page 28)

SAT Yl_G “SAT Yl_G” (see page 28)

PHASE Yl_G “PHASE Yl_G” (see page 28)

SAT G “SAT G” (see page 28)

PHASE G “PHASE G” (see page 28)

SAT G_Cy “SAT G_Cy” (see page 28)

PHASE G_Cy “PHASE G_Cy” (see page 28)

SAT Cy “SAT Cy” (see page 28)

PHASE Cy “PHASE Cy” (see page 28)

SAT Cy_B “SAT Cy_B” (see page 28)

PHASE Cy_B “PHASE Cy_B” (see page 28)

SAT B “SAT B” (see page 28)

PHASE B “PHASE B” (see page 28)

14 DNR DNR “DNR” (see page 29)

15 DIGTAL HAZE CLEAR

LEVEL “LEVEL” (see page 30)

SW “SW” (see page 30)

- 10 -

ROP Menu (when AW-HR140/AW-HE130 is connected)

Otros manuales para AK-HRP1015G

Tabla de contenidos

Otros manuales de Mando a distancia de Panasonic

Panasonic

Panasonic CZ-RD52CU Manual de usuario

Panasonic

Panasonic AW-RP50E Manual de usuario

Panasonic

Panasonic CZ-RTC6WBL Manual de usuario

Panasonic

Panasonic CZ-RWSU1U Manual de usuario

Panasonic

Panasonic PVCC50 - COLOR CORRECTOR Manual de usuario

Panasonic

Panasonic AJ-RC5 Manual de usuario

Panasonic

Panasonic TNQ2AE013 Manual de usuario

Panasonic

Panasonic CZ-01ESM11P Manual de usuario

Panasonic

Panasonic WVCU650 - SYSTEM CONTROLLER ADDENDUM Manual de usuario

Panasonic

Panasonic AK-HRP1005G Manual de usuario

Panasonic

Panasonic CZ-01RT11P Manual de usuario

Panasonic

Panasonic AJRC10G - REMOTE CONTROL UNIT Manual de usuario

Panasonic

Panasonic CZ-RWSD2U Manual de usuario

Panasonic

Panasonic TNQ2AE007 Manual de usuario

Panasonic

Panasonic AK-HRP1000G Manual de usuario

Panasonic

Panasonic CZ-RTC5 Manual de usuario

Panasonic

Panasonic CZ-RTC2 Manual de usuario

Panasonic

Panasonic AW-RP150G Manual de usuario

Panasonic

Panasonic EUR7722KM0 Manual de usuario

Panasonic

Panasonic AK-HRP1000G Manual de usuario

Panasonic

Panasonic EUR511156 Manual de usuario

Panasonic

Panasonic CZ-RTC6BLW Manual de usuario

Panasonic

Panasonic EUR511170B Manual de usuario

Panasonic

Panasonic WVCU550B - SYSTEM CONTROLLER Manual de usuario

Manuales populares de Mando a distancia de otras marcas

Bang & Olufsen

Bang & Olufsen Beo4 Manual de usuario

Sunwave Tech.

Sunwave Tech. RemoteComm SRC-7000 Manual de usuario

Multiplex

Multiplex PROFI TX 9 Manual de usuario

One Remote

One Remote RMB4 Manual de usuario

FUTABA

FUTABA 9ZAP - PART2 Manual de usuario

HR Matic

HR Matic HR MULTI 3 Manual de usuario

Yamaha

Yamaha ACC-GNRST-30-20 Manual de usuario

EisSound

EisSound KBSOUND Manual de usuario

Marantz

Marantz RC101 Manual de usuario

Conrad

Conrad FS20 TC6 Manual de usuario

Anritsu

Anritsu MP1777A Manual de usuario

Niles

Niles WVC100 Guía de solución de problemas

RCA

RCA RCU1300 Manual de usuario

Bang & Olufsen

Bang & Olufsen BEO6 Manual de usuario

GE 94901 Manual de usuario

Onbon

Onbon YQ1-75 Manual de usuario

FUTABA

FUTABA R7108SB Instrucciones de instalación

Invacare

Invacare G91S Manual de usuario
