Installation Instructions

Wired Remote Controller

Model No. CZ-RTC6BLW

CZ-RTC6WBLW

Safety Precautions ……………………… 2

System Overview ………………………… 5

Part Names (Control panel) …………… 6

Dimensions ………………………………… 6

Installation Precautions ………………… 7

Mounting …………………………………… 8

Setting ……………………………………… 10

Test run …………………………………… 14



Troubleshooting

…………………………… 15

Speciﬁcations …………………………… 16

Page

ENGLISH

Read through the Installation Instructions before you proceed with the installation.

In particular, please carefully read the “Safety Precautions”.

Please Read Before Starting

These instructions are all you need for most installation sites and maintenance

conditions. If you require help for a special problem, contact our sales/service outlet or

your certiﬁed dealer for additional instructions.

●

This product is a remote controller that comes equipped with Bluetooth®wireless

technology.

NOTICE

The English text is the original instructions. Other languages are translations of the

original instructions.

Safety Precautions

We assume no responsibility for accidents or damages resulting from methods other than those

described in the Installation Instructions or methods using unspeciﬁed parts.

Malfunctions that occur due to unauthorised installation methods are not covered by the product

warranty.

●

This remote controller must be installed in accordance with National Wiring Regulations.

●

Please also read installation instructions of connected devices.

●

When relocating or repairing this remote controller, provide the Installation Instructions to the

servicing personnel.

WARNING CAUTION

This symbol refers to a hazard or unsafe

practice which can result in severe personal

injury or death.

This symbol refers to a hazard or unsafe

practice which can result in personal injury or

product or property damage.

Prohibited matters

Precautions for Installation setup

WARNING

Turn oﬀthe circuit breaker of the units before

installation.

Select an installation location which is rigid and strong

enough to support or hold this remote controller, and

select a location for easy maintenance.

Use only the parts speciﬁed by Panasonic as supplied

accessories.

Ensure cables are installed properly so that external

forces cannot aﬀect them.

Disassembly and modiﬁcation of this remote controller is

not permitted under any circumstances.

WARNING

This remote controller must be installed by the sales dealer

or installer.

When installing the remote controller, use appropriate

protective equipment and tools for safety.

This remote controller should be securely installed in

accordance with the Installation Instructions.

Electric work must be performed by authorised personnel

in accordance with the local regulations and in accordance

with the Installation Instructions.

To avoid malfunctions caused by radio wave interference,

keep the remote controller away from devices such as

other wireless device, microwaves and the device that use

2.4 GHz signal. Depending on the area, the module may

not be available.

Attach the electrical cover to the indoor unit securely.

Make sure to connect the remote controller to the P.C.

board and terminal board of the indoor unit properly.

Do not set up in hospitals or places where electronic

medical devices are located.

If you have a cardiac pacemaker or implantable

cardioverter deﬁbrillator, please keep at least 15 cm away

from the remote controller.

Do not use the remote controller near to automatic control

equipment (automatic door, ﬁre alarms, etc.).

In case of an abnormal condition (such as a burning smell),

stop the indoor unit and turn the breaker OFF.

Do not operate with wet hands.

Do not splash water on the remote controller or use it in the

bathroom.

CAUTION

Ground yourself to discharge static electricity before

performing any wiring.

Do not install the remote controller in places with direct

sunlight or where the ambient temperature is 40 ˚C or more

or is 0 ˚C or less. Follow speciﬁcations. (P.16)

The connecting cable must not touch piping directly.

Do not set up where children can reach the remote controller.

Do not stand on an unstable surface when operating or

checking the remote controller.

Do not use in special environments.

Use in places with much oil (including machine oil),

steam, ﬂammable or corrosive gas, voltage ﬂuctuation,

surrounding the metal body, may lead to severe decrease

in functionality and damage to parts.

Do not use the remote controller nearby other wireless

devices, microwaves, cordless phones, or facsimiles.

NOTE

●

Install this remote controller vertically.

●

When attaching this remote controller, be sure to use the supplied screws and conﬁrm

that remote controller is ﬁxed to the surface so that there are no gaps.

●

The warranty does not cover the product if it falls from an elevated location.

●

Requires a mobile device that is iOS/Android™ compatible.

●

The End user should read and accept the Terms of use and Privacy Notice in the

contents of “Panasonic H&C Control App”.

●

Please avoid to set up multiple remote controller registrations at the same time.

●

Users are responsible for all carrier costs associated with installing the

“Panasonic H&C Control App” on the mobile device.

●

Panasonic Wired Remote Controller is designed for communication to the

“Panasonic H&C Control App”.

●

Third party Bluetooth®interfaces cannot be connected to the “Panasonic H&C Control App”.

●

Updates to the service may mean there are changes to the design of the “Panasonic

H&C Control App” screen and display.

datanavi

This unit supports datanavi.

For details on the usage, supporting regions, etc.,

visit the following URL.

https://datanavi.ac.smartcloud.panasonic.com/global/

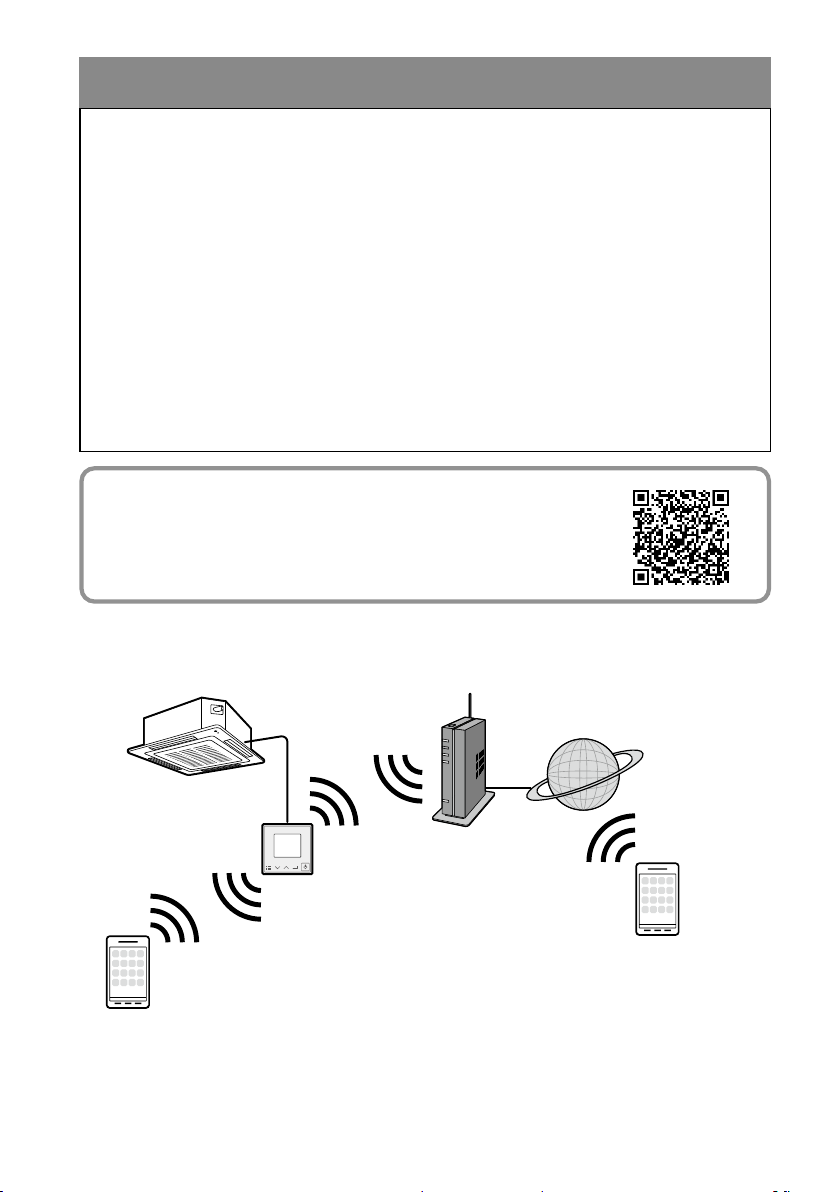

System Overview

Indoor unit (example: 4-way cassette)

Mobile device

(“

Panasonic H&C Control App

”)

Remote controller

CZ-RTC6BLW / CZ-RTC6WBLW

Bluetooth®

functionality

Router

Internet

Mobile device

(

“Panasonic ComfortCloud”

)

Wireless

LAN

Part Names (Control panel)

The control panel colour of CZ-RTC6WBLW is white.

5) Start/Stop button

Starts/Stops operation.

2) Menu button

4) Enter button

Fixes the selected

content.

3) Up/Down

buttons

Selects an item.

1) LCD screen

●

When pressed repeatedly

during operation, this shows

operating status conﬁrmation,

set temperature, operation

mode, fan speed, ﬂap, and

the menu screen.

●

The menu screen is

displayed if you press while

stopped.

repeatedl

this shows

con

ﬁ

rmation,

, o

per

ation

, ﬂ

, a

u p

ress while

Note

Press centre No pen No glove

Dimensions

25 25 䃥4

4×10

3030

1510

Supplied accessories

Screw

M3.8 x 16

(2)

Operating

Instructions

(1)

Installation

Instructions

(1)

Instruction

(1)

Clamper

(1)

Remote control wiring is not supplied. (ﬁeld supplied item)

(mm)

Installation Precautions

Installation location

1 to

1.5m

Floor

Install at the height of 1 to 1.5 m from the ﬂoor

(

Location where average room temperature can be detected

Keep a space around the remote controller as detailed

on the ﬁgure shown left.

Avoid the following locations for installation.

• In the shadow or backside of objects deviated from the

room airﬂow

• Location where condensation occurs

(

The remote controller is not moisture proof or drip proof

)

• Location near heat source



Keep distance of 1 m or more from the TV, radio and PC.

(Image blur or related noise may occur)



Do not use in special environments.

Use in places with much oil (including machine oil),

steam, ﬂammable or corrosive gas, voltage ﬂuctuation,

surrounding the metal body, may lead to severe

decrease in functionality and damage to parts.

Remote control wiring

Wiring diagram

Indoor unit

Terminals for RC wiring

RC wiring (ﬁeld supply)

• No polarity

Type of wiring

Use cables of 0.75 to 1.25 mm2.

Total wire length: 100 m or less

Number of connectable units

Remote controller:

1 unit connection only

Indoor unit: Max. 8



Use the ﬁeld supplied RC wiring with at least 1 mm in thickness of insulation part including the

sheath.

Wiring Regulations may diﬀer depending on location. For ﬁeld wiring rules, please refer to your

LOCAL ELECTRICAL CODES.

You must ensure that installation complies with relevant rules and regulations.



Be careful not to connect cables to other terminals of indoor units (e.g. power source wiring

terminal). Malfunction may occur.



Do not bundle together with the power source wiring or store in the same metal tube. Operation

error may occur.



If noise is induced to the unit power supply, attach a noise ﬁlter.

Attention

Wiring as shown below is prohibited.

R1 R2

Indoor unit Indoor unit

RC wiring

Mounting

1 Remove the top case.

1Insert the screwdriver to the bottom case.

Insert the ﬂat-blade screwdriver to the claws as show in

the ﬁgure.

2Push the ﬂat-blade screwdriver in.

Push down the ﬂat-blade screwdriver along with the slope

of the claws until the top case comes oﬀ.

Bottom case

Topcase

Claw (2 locations)

Flat-blade screwdriver

Topcase

Bottom case

Claw

Flat-blade screwdriver

View A

2 Mount to the wall.

There are 2 types of wall-mounting methods: Exposed type and Embedded type.

Mounting the bottom case

Tighten the screws securely until the screw heads touch the bottom

case.

(Otherwise, loose screw heads may hit the PCB and cause

malfunction when mounting the top case.)

Do not over-tighten the screws.

(The bottom case may be deformed, resulting in the unit becoming

detached from the surface it is ﬁxed to.)

Connection to the remote controller terminal board

Depress the push button using a round bar or ﬁnger, insert the

remote control wiring securely from the wiring insertion slot and

release the push button.

Pull the remote control wiring lightly, and conﬁrm it is secured.

There is the danger of shorting if copper wire is exposed. Make sure

the wire is properly inserted.

insertion slot

push button

remote controller terminal board

Attention

Exposed type

*It is also possible to mount in the order

→

Screw

(Supplied)

Claw (2 locations)

1Mount the bottom case to the wall.

●Pass the wire through the wiring

hole in the bottom case and lay the

wire out along the groove.

Mount the top case.

●

Align the claws of the top

case and then align the

claws of the bottom case.

Cut here with

a nipper and

remove the burr

with a file.

Connect the remote control wiring.

• Be sure not to allow unnecessary wires to remain

in the remote controller case when wiring. Be

careful not to allow wires to be in contact with

parts on the PCB. For connection method, refer

“

Connection to the remote controller terminal

board

”

“

Attention

”

Avoid the

wire being

caught.

Hole for screw

Clamper

(supplied)

•

Insert the clamper from the

position indicated by the arrow,

as shown in the diagram at right.

•

Put the locking part of the

clamper in the channel as

indicated by the arrow.

•

If you lock at the top, it may not

be possible to close the bottom

case.

Remove the coating. Approx. 9 mm

Remove the sheath. Approx. 130 mm

●Make sure the wiring connection is in the

correct direction.

●

There will be a slight diﬀerence in length due

to the wiring diameter, so make adjustments

on site when performing the installation.

Remote controller

terminal board

Push the sheath

in to the back as

shown on the

illustration.

Insert the wire properly

into the channel on the

bottom case, and make

sure the wire is not

pinched when the case

is attached to the wall.

A protective ﬁlm is attached on the Control panel.

Setting

For Wireless LAN setting method, refer to the Operating Instructions.

Preparation: Turn on the circuit breaker of units and then turn the power on. The remote controller starts, and

wait until the [Assigning] display disappears.

(If [Assigning] continues to blink for 10 minutes or more, check the address setting of indoor units.

Refer to indoor/outdoor unit installation details.)

Language Clock

Bluetooth®functionality

Steps 1 and 2 are common operations for each item.

1When stopped

Press .

When operating

Press repeatedly until the menu

screen is displayed.

•To return to the top screen, press .

2Select the

item to set.

Press

→.

Number for the

selected item

Total number of items

Embedded type

*It is also possible to mount in the order

→

Screw

(Supplied)

Claw (2 locations)

Connect the remote control wiring.

• Be sure not to allow unnecessary wires to remain

in the remote controller case when wiring. Be

careful not to allow wires to be in contact with

parts on the PCB. For connection method, refer

“

Connection to the remote controller terminal

board

”

“

Attention

”

Hole for screw

Mount the top case.

●

Align the claws of the top

case and then align the

claws of the bottom case.

●

If the wiring is difficult to

move, loosen the screw in

the lower case, work on the

wiring, then screw in the

screw after finishing the work.

3Mount the bottom case to

the wall.

●Pass the wire through the

wiring hole in the bottom case.

Avoid the

wire being

caught.

Clamper

(supplied)

•

Insert the clamper from the

position indicated by the arrow,

as shown in the diagram at right.

•

Put the locking part of the

clamper in the channel as

indicated by the arrow.

•

If you lock at the top, it may not

be possible to close the bottom

case.

Remote controller

terminal board

Remove the coating. Approx. 9 mm

●

Make sure the wiring connection

is in the correct direction.

Pass the wire under the rib.

A protective ﬁlm is attached on the Control panel.

Otros manuales para CZ-RTC6BLW

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Mando a distancia de Panasonic

Panasonic

Panasonic AJRC10G - REMOTE CONTROL UNIT Manual de usuario

Panasonic

Panasonic PVCC50 - COLOR CORRECTOR Manual de usuario

Panasonic

Panasonic CZ-RWSU2 Manual de usuario

Panasonic

Panasonic EUR7702KE0 Manual de usuario

Panasonic

Panasonic AW-RP60G Manual de uso y cuidado

Panasonic

Panasonic WVCU650 - SYSTEM CONTROLLER ADDENDUM Manual de usuario

Panasonic

Panasonic AKHRP200 Manual de usuario

Panasonic

Panasonic CZ-RWSU2 Manual de usuario

Panasonic

Panasonic AWCB400N - REMOTE OPERATION PANEL Manual de usuario

Panasonic

Panasonic TY-RM50VW Manual de usuario

Panasonic

Panasonic EUR7603Z10 Manual de usuario

Panasonic

Panasonic WV-CU20E Manual de usuario

Panasonic

Panasonic EUR511156 Manual de usuario

Panasonic

Panasonic EUR511511 guide Manual de usuario

Panasonic

Panasonic EUR511510 Manual de usuario

Panasonic

Panasonic AWRP50N - REMOTE CAMERA CONTROLLER Manual de usuario

Panasonic

Panasonic CZ-RTC5A Manual de usuario

Panasonic

Panasonic AW-RM50AG Manual de usuario

Panasonic

Panasonic EUR511170B Manual de usuario

Panasonic

Panasonic CZ-RL511D Manual de instalación y operación

Panasonic

Panasonic TY-RM09SL Manual de usuario

Panasonic

Panasonic CZ-RWSU3 Manual de usuario

Panasonic

Panasonic EUR7702KE0 Manual de usuario

Panasonic

Panasonic CZ-01RT11P Manual de usuario

Manuales populares de Mando a distancia de otras marcas

Bang & Olufsen

Bang & Olufsen Beo4 Manual de usuario

Sunwave Tech.

Sunwave Tech. RemoteComm SRC-7000 Manual de usuario

Multiplex

Multiplex PROFI TX 9 Manual de usuario

One Remote

One Remote RMB4 Manual de usuario

FUTABA

FUTABA 9ZAP - PART2 Manual de usuario

HR Matic

HR Matic HR MULTI 3 Manual de usuario

Yamaha

Yamaha ACC-GNRST-30-20 Manual de usuario

EisSound

EisSound KBSOUND Manual de usuario

Marantz

Marantz RC101 Manual de usuario

Conrad

Conrad FS20 TC6 Manual de usuario

Anritsu

Anritsu MP1777A Manual de usuario

Niles

Niles WVC100 Guía de solución de problemas

RCA

RCA RCU1300 Manual de usuario

Bang & Olufsen

Bang & Olufsen BEO6 Manual de usuario

GE 94901 Manual de usuario

Onbon

Onbon YQ1-75 Manual de usuario

FUTABA

FUTABA R7108SB Instrucciones de instalación

Invacare

Invacare G91S Manual de usuario
