Panasonic PressIT TY-SB01WP Manual de usuario

Operating Instructions

Basic Guide

Wireless Presentation System Receiver Board

For business use

Model No. TY-SB01WP

Thank you for purchasing the Panasonic product.

• Please read these instructions before operating this product and retain

them for future reference.

•Be sure to read “Safety Precautions ” (page 2) before use.

DPQX1531ZA/X1DA0121TS0 -PB

Safety Precautions 2

Part Names 4

Transmitter Extension Method (Pairing) 8

Installtion of the receiver board 5

Basic Use 6

Setting 10

Notes on Using Wireless LAN 15

Request Regarding Security 17

Specifications 19

English

* PressIT is a nickname for “Wireless Presentation System”.

Precautions for use 3

2 English

Safety Precautions

WARNING:

When mounting or removing this product on or from

the flat panel display unit, be sure to turn the power

off, and remove the power plug from the socket.

Otherwise, electric shock may occur.

Never attempt to disassemble or modify this product.

Doing so may cause fire, electric shock or operation

errors.

If you sense smoke, unpleasant odour or unusual

noises, immediately disconnect the power plug from

the socket.

Using the product in an abnormal condition may cause

fire or electric shock.

For mounting or removing this product on or from

the flat panel display unit, ask a qualified technician

or sales dealer.

Installing the product improperly may cause a

malfunction or electric shock.

• If you terminate the use of the product, ask a

professional to remove it promptly.

Use the product 15 cm or more away from a location

where a cardiac pacemaker is embedded.

Radio waves may affect the operation of the pacemaker.

Do not use the product in an airplane.

The operational safety may be impaired.

Do not use the product near an automatic door, fire

alarm or other automatic control devices.

Radio waves from this product may affect automatic

control devices, which may cause an operational error,

resulting in an accident.

Do not use the product in hospital or a location with

medical equipment.

Radio waves from this product may affect medical

equipment, which may cause an operational error,

resulting in an accident.

Do not wet the product.

Doing so may cause a fire or electric shock.

CAUTION:

Do not place the product at a high-temperature

location, humid or dusty location, or location subject

to oil smoke or steam (such as a cooking table and

humidifier).

Doing so may cause a fire or electric shock.

Do not place the product in locations subject to

direct sunlight or extremely high temperature.

• The internal parts may be damaged, or fire may occur.

3English

Precautions for use

This product is a Wireless Presentation System

Receiver Board used by being attached to a

Panasonic display.

Do not touch this product directly by hand.

• Static electricity may occur, destroying the

components. Static electricity is also generated from

clothing or human body. Let the static electricity

escape by touching metallic objects such as a steel

cabinet beforehand.

The illustrations and figures in this manual are for

explanatory purposes and may differ from the actual

product.

Details of usage

For details of usage, read “Operating Instructions -

Functional Manual”.

Download the “Operating Instructions - Functional

Manual” from the following URL.

https://panasonic.net/cns/prodisplays/wps2/

For detailed usage of a display supporting this product,

read the operating instructions of the display.

4 English

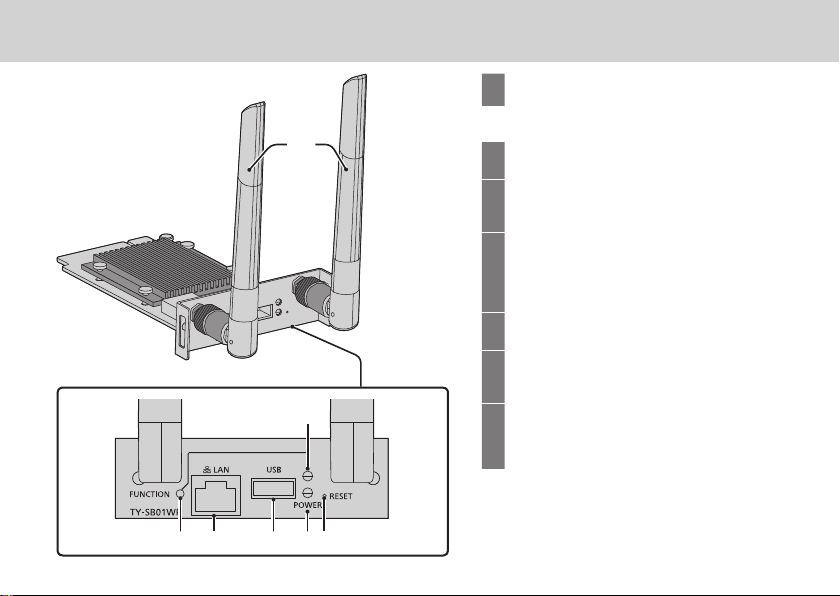

Part Names

1Antenna

▼Connectionterminals/Controls

2FUNCTION button

Used to save a pairing file to the USB memory.

3LAN terminal (RJ45)

Connectstothenetworktochangethesettingsofthe

product.

4USB terminal (Type-A)

ConnectsthetransmitterorUSBmemorywhen

pairing devices.

Use this by connecting an HID device (mouse, touch

module).

5FUNCTION LED

Displays the pairing status.

6Power Indicator

Displays the power supply status, and connection

statuses of LAN and USB.

7Reset button

Restores the product to the factory default state.

Reset operation starts when the reset button is

pressed for 5 seconds or more.

▼Connectionterminals/Controls

2 3 4

6 7

5English

Installtion of the receiver board

The installation instruction below is based on the flat

panel display SQ1 series as an example.

For attaching or removing this product to or from the flat

panel display unit, it is recommended to ask a qualified

technician or sales dealer. A malfunction may occur due

tostaticelectricity,etc.Consultthesalesdealer.

Follow the steps below.

Note

• Be sure to turn off the display unit and connected

devices, remove the power plug from the socket, and

disconnect the cables from the display.

•

When attaching/removing the receiver board, do not allow

the metal to damage the back cover or display label.

1Remove the 2 screws, and then remove

the slot cover or receiver board from the

display unit.

To remove the receiver board, hold the handle of

the receiver board and pull it out slowly in the arrow

direction.

2Insert the receiver board to the main unit

slot, and tighten the 2 screws.

Fix the receiver board with the 2 screws removed in

step 1.

●Tightening torque guideline: 0.5 N·m or less

Note

• When replacing another receiver board with this

product, the customer shall keep the replaced receiver

board for future repair or servicing.

6 English

Basic Use

Receiver board

1Turn on the display.

2Switch the input of the display to [SLOT].

3Pair the receiver board and the transmitter.

(when connecting for the first time, see page 8)

4When the standby screen appears on the

display, preparation of the receiver board is

complete.

Standby screen

Transmitter

1Connect the USB terminal and HDMI input

terminal of the transmitter to the image

output device.

• For power supply to the transmitter, 5 V/0.9 A

power supply is necessary.

HDMI input

terminal

TY-WPBC1

USB terminal

TY-WPB1

ForTY-WPBC1,connecttheUSBterminal(Type-C)to

an image output device that supports the DisplayPort

ALT Mode.

7English

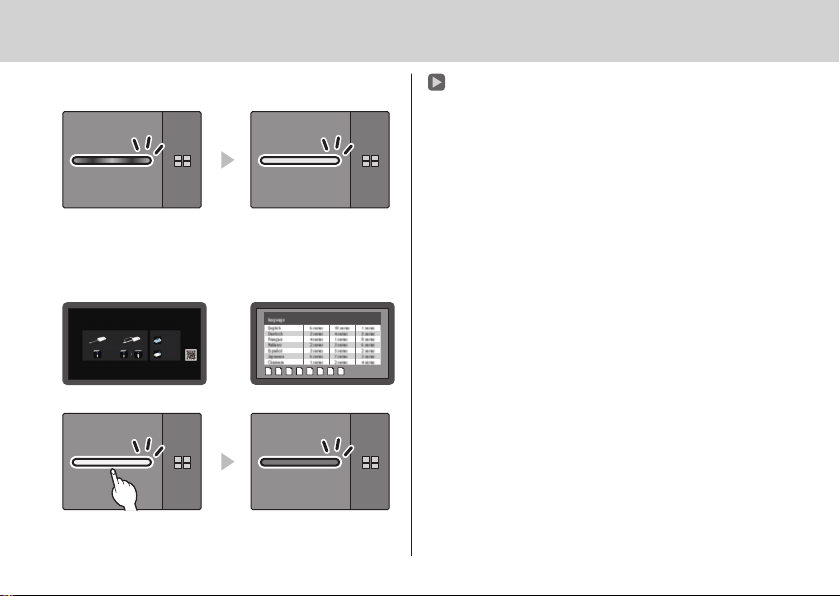

Main LED changes from red blinking

(connecting) to white illumination (standby).

Red blinking (connecting) White illumination

(standby)

3Press the main button of the transmitter.

The image is displayed.

Standby screen Full screen display

White illumination

(standby)

Green illumination

(display)

Pressing the main button again changes the main

LED to white and returns to standby state.

(The screen returns to the standby screen as well.)

• When using multiple transmitters, the image is

switched to the image of the transmitter of which

the main button is pressed.

8 English

Transmitter Extension Method (Pairing)

Pairing by connecting the receiver board

and transmitter

1Slide the mode switch to the STD side.

Connect the USB terminal of the transmitter

to the USB terminal of the receiver board.

TY-WPB1 TY-WPBC1

ToconnecttheTY-WPBC1,

use the conversion adaptor

for pairing supplied with

theTY-WP2BC1/TY-

WPBC1.

WaitforawhileuntiltheFUNCTIONLEDofthe

receiver board blinks in white. Then, pairing starts

automatically.

“Pairing…” (pairing in progress) is displayed on the

standby screen.

3Pairing is complete.

“Pairing OK”isdisplayedandtheFUNCTIONLEDof

the receiver board lights up in white.

Pairing... Pairing OK

4Remove the USB cable of the transmitter

from the receiver board.

9English

Pairing by saving a file to the USB memory

Supported device

●CommerciallyavailableUSBmemorydevicesare

supported. (Those with security functions are not

supported.)

●USB memory devices other than those formatted in

FAT16 or FAT32 cannot be used.

●Up to 32 GB of USB memory in size are supported.

●Only single partition configuration is supported.

1Connect the USB memory to the USB

terminal of the receiver board.

2Press the FUNCTION button.

TheFUNCTIONLEDlightsupinwhiteandthe

pairing file is saved to the USB memory.

3Remove the USB memory.

4Slide the mode switch to the EXT side.

5Supply power to the transmitter.

TY-WPB1

TY-WPBC1

5 V/0.9 A

Power supply

5 V/0.9 A

Power supply

6Connect the USB memory to the USB

terminal of the transmitter.

7Pairing is complete.

The main LED of the transmitter lights up in white.

8Remove the USB memory from the

transmitter.

10 English

Setting

[Setup] menu (display setting)

When this product is connected to the compatible

display and the [Setup] menu is set, the following

functions can be used.

This section explains each setting using the

display SQ1 series as an example. For settings

on other models, see the Panasonic information

site.

Panasonic display link function

Just connect the receiver board to a Panasonic display

supporting this product and turn them on to perform

the link operation. (It is necessary to set [Wireless

presentation link] to [On].)

Set link function details in the following setting menus.

■External device link settings

Sets external device link.

[External device link settings]- submenu screen

External device link settings

Device information Off

Wireless presentation link

●[Device information]

Sets whether to display or hide the information of the

device connected to the HDMI terminal and SLOT.

[Off]: Connecteddeviceinformationisnot

displayed.

[On]: Connecteddeviceinformationisdisplayedas

shown below.

SLOT

16:9

PressIT

Note

• The obtained information of either signal or HDMI-

CECisdisplayed.

• Up to the first 16 characters obtained are displayed.

Tabla de contenidos

Otros manuales de Receptor de Panasonic

Panasonic

Panasonic WX-SR204P Manual de usuario

Panasonic

Panasonic RF-SW50 Manual de usuario

Panasonic

Panasonic WX-SR202P Manual de usuario

Panasonic

Panasonic SHFX71 - WIRELESS SYSTEM Manual de usuario

Panasonic

Panasonic SAXR55 - A/V RECEIVER Manual de usuario

Panasonic

Panasonic SH-FX60 - Wireless Audio Delivery System Manual de usuario

Panasonic

Panasonic CF-AA5713A Series Manual de usuario

Panasonic

Panasonic RF-2400D Manual de usuario

Panasonic

Panasonic K-SRC14 Manual de usuario

Panasonic

Panasonic SAHE100 - RECEIVER Manual de usuario

Panasonic

Panasonic HD-PLC DA-PU100 Manual de usuario

Panasonic

Panasonic WVRC100 - BROADCAST RECEIVER Manual de usuario

Panasonic

Panasonic SA-HR50 Manual de usuario

Panasonic

Panasonic TU-PT600E Manual de usuario

Panasonic

Panasonic WVRC100 - BROADCAST RECEIVER Instrucciones de funcionamiento

Panasonic

Panasonic CZ-TAW1 Guía del usuario

Panasonic

Panasonic Ramsa WX-RP810 Manual de usuario

Panasonic

Panasonic SiriusXM CQ-RXBT490U Manual de usuario

Panasonic

Panasonic CQ-C1305U Manual de usuario

Panasonic

Panasonic BL-PA100A - HD-PLC Ethernet Adaptor Manual de usuario

Panasonic

Panasonic SA-HE100S Operating Manual de usuario

Panasonic

Panasonic CQ-C8351N Manual de usuario

Panasonic

Panasonic CZ-RWRY3 Manual de usuario

Panasonic

Panasonic WVRC150 - CONTROLLER Manual de usuario

Manuales populares de Receptor de otras marcas

Garmin

Garmin GA 23 Manual de usuario

Aiphone

Aiphone PS-12F Manual de usuario

IMES

IMES TCS-01CA-PMI Manual de usuario

BWI Eagle

BWI Eagle AIR-EAGLE SR Manual

AMIMON

AMIMON AMN12310 WHDI Manual de usuario

Dual

Dual DMCPA79BT Instrucciones de funcionamiento

Sound Associates

Sound Associates SA652P Manual de usuario

Sherwood

Sherwood NewCastle R-772 Manual de usuario

Audio

Audio A10-RX Series Manual de usuario

AllSee

AllSee PushShare PSRV1.1 Manual de usuario

DEMAG

DEMAG DRC-DR D2 Manual de usuario

Teleco

Teleco TVRCL868A02 Manual de usuario

Bosch

Bosch RF3222E Manual de usuario

Kramer

Kramer 631R Manual de usuario

Xpress

Xpress xmc10 Manual de usuario

JVC

JVC KD-MR1BTS Manual de usuario

Omega Engineering

Omega Engineering UWTC-REC3 Manual de usuario

e-survey

e-survey E300 Pro Manual de usuario
