Before attempting to connect or install this product,
please read these instructions carefully and save this manual for future use.
Wall Mount Bracket
Model No. WV-Q110E
■Introduction
This bracket is used for mounting the colour camera WV-CW860 or WV-CW864 onto a wall.
There are two ways of cable exit available from the front or rear of the bracket.
• Installations for this product should be performed by qualified service personnel or system installers.
• Consult an expert about the resistible load weight of the installation surface and structure. Insufficient strength may
cause falling of the camera. Refer to the specifications of the products for weight.
Caution
The camera in the illustration is separately sold.
-2-
Front Cable Exit
1. Preparations
Specify the bracket fixing location, and then put in
four anchor bolts, or drill four bolt holes on the
installation surface. Refer to Dimensions on page 6.
2. Cable Bushing
Fit the supplied cable bushing into the front cable
exit of the bracket.
3. Cable Route
Route the connection cables from the front cable
exit through the bracket, and pull them out of the
pipe mouth.
4. Fixing Bracket
Fix the bracket to the wall using appropriate hard-
ware (not supplied): bolts and nuts, anchor bolts
and nuts, or the like.
5. Disassembly of Camera
(1) Remove the upper base from the camera by
loosening three screws, and then turn the upper
base to separate it.
(2) Remove the attachment pipe from the upper
base by loosening four screws.
Mark hole positions
Cable Bushing
Fixing Hardware
(Locally Procured)
Upper Base
Attachment Pipe
Camera
x3
x4
-3-
6. Setting Switches
Refer to Setting the Switches in the manual includ-
ed with the camera.
7. Cable Connection
Refer to CONNECTIONS in the manual included
with the camera.
8. Mounting Upper Base
Fix the upper base to the bracket using four screws.
9. Waterproofing
Fill the front cable exit with sealant.
10. Mounting Camera
(1) Aim the START arrow at the bent portion of the
leaf spring on top of the camera.
(2) Be sure to hook the fall prevention wire to the
bracket.
(3) Fix the camera to the upper base.
• Move up the camera so that the guide pins of
the camera come to the guide holes of the
upper base.
• Turn the camera counter-clockwise to the end,
viewing from the bottom.
• Fasten three screws.
START
Sealant
Cable Bushing
Outside
Inside the bracket
Cables
Camera Fixing Screw
x4
Upper Base
Bending Leaf Spring
Fall Prevention Wire
x3
Upper Base
Camera
-4-
Rear Cable Exit
1. Preparations
Specify the bracket fixing location, and then put in
four anchor bolts (not supplied), or drill four bolt
holes on the surface.
Remember that a cable access hole is necessary on
the wall in this case.
Refer to Dimensions on page 6.
2. Rear Cable Exit
(1) Remove the rear plate, and then punch out the
cable exit on it.
(2) Fit the supplied blank bushing into the front
cable exit of the bracket.
(3) Fit the supplied cable bushing into the rear cable
exit of the plate.
(4) Replace the rear plate to the bracket fastening
four screws.
3. Cable Routing
Route the connection cables from the rear cable exit
through the bracket, and pull them out of the pipe
mouth.
4. Waterproofing
Fill the rear cable exit with sealant.
5. Fixing Bracket
Fix the bracket to the wall using appropriate hard-
ware (not supplied): bolts and nuts, anchor bolts
and nuts, or the like.
Cable Access Hole
on the wall
Front Cable Exit
(Not Used) Rear Cable Exit
Rear Plate
Blank Bushing Cable Bushing
Fixing Hardware
(Locally Procured)
Sealant
Cable Bushing
Outside
Inside the Bracket
Cables
Mark hole positions
-5-

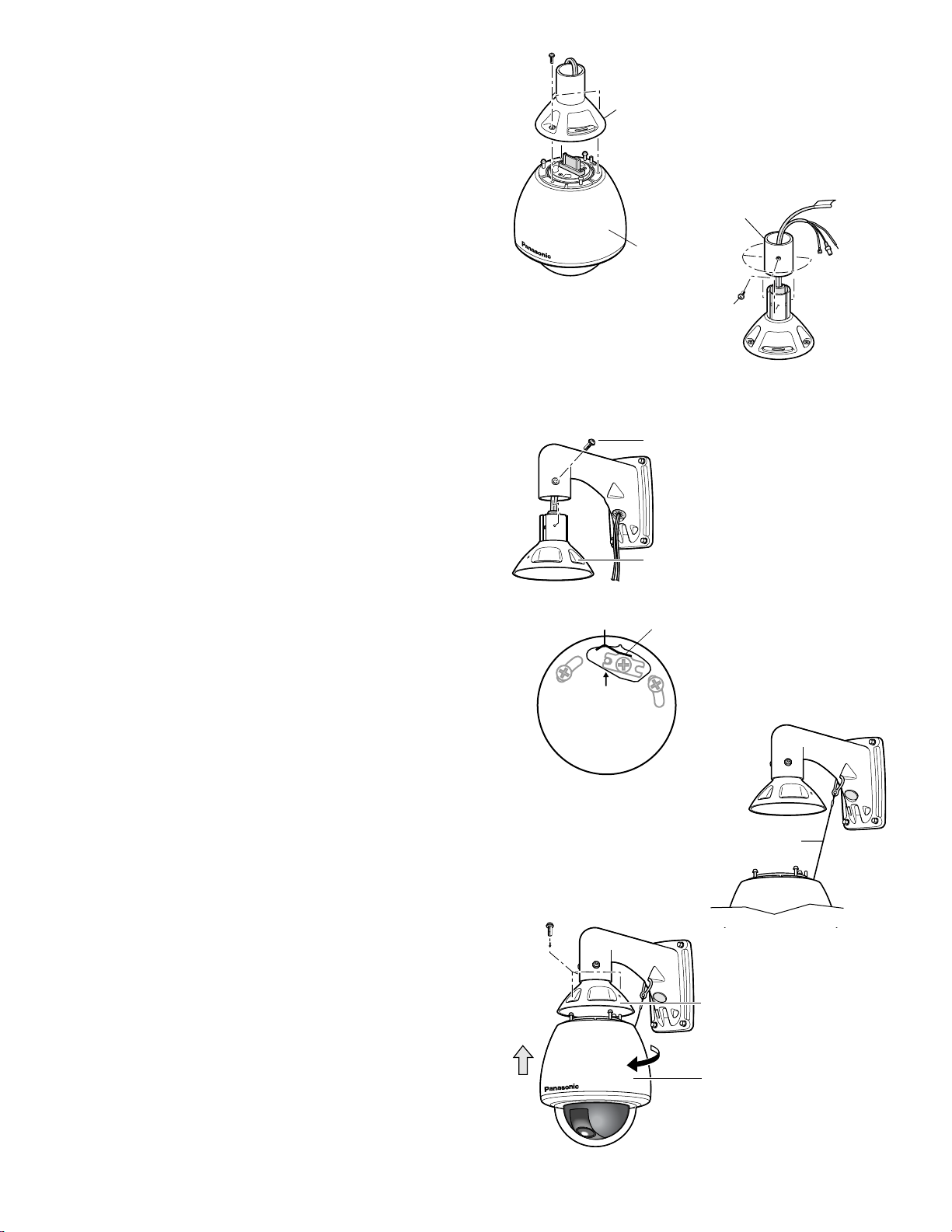

6. Disassembly of Camera
(1) Remove the upper base from the camera by
loosening three screws, and then turn the upper
base to separate it.
(2) Remove the attachment pipe from the upper
base by loosening four screws.
7. Setting Switches
Refer to Setting the Switches in the manual includ-
ed with the camera.
8. Cable Connection
Refer to CONNECTIONS in the manual included
with the camera.
9. Mounting Upper Base
Fix the upper base to the bracket using four screws.
10. Mounting Camera
(1) Aim the START arrow at the bent portion of the
leaf spring on top of the camera.
(2) Be sure to hook the fall prevention wire to the
bracket.
(3) Fix the camera to the upper base.
• Move up the camera so that the guide pins of
the camera come to the guide holes of the
upper base.
• Turn the camera counter-clockwise to the end,
viewing from the bottom.
• Fasten three screws.
START
Upper Base
Attachment Pipe
Camera Fixing Screw
x4
Upper Base
Bending Leaf Spring
Fall Prevention Wire
x3
Upper Base
Camera
Camera
x3
x4
-6-
25
Ø58
(269)
80
(111.5)
180
(210.5)
4-Ø10
240
Unit: mm
(50)
(90)
30
Ø25.4

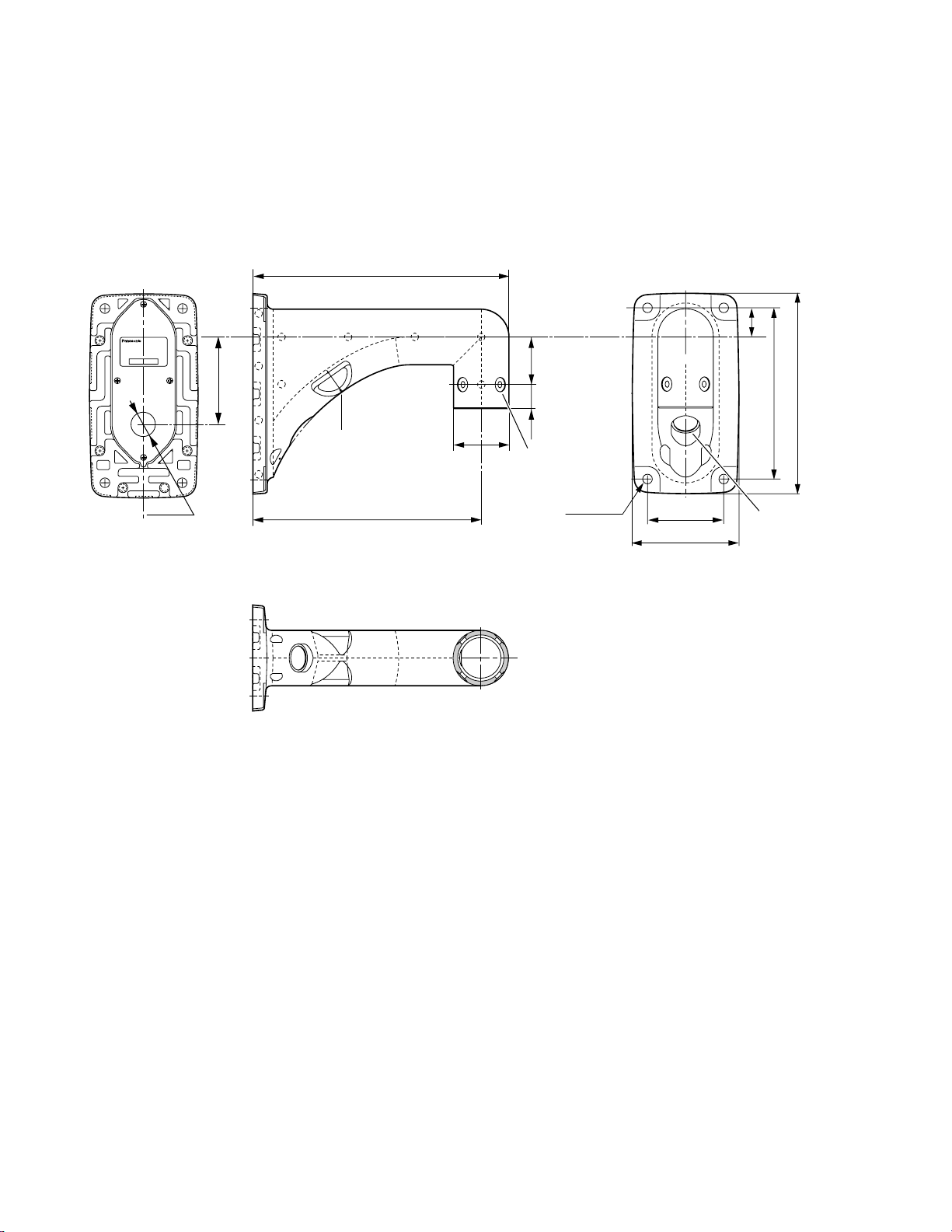

■Dimensions
Fall Prevention
Wire Hook
Rear Cable Exit
(Punch out the hole when using)
Camera Fixing
Screw Hole x4
Front Cable Exit
-7-
■Specifications
Dimensions: 111.5(W) x 210.5(H) x 269(D) mm
Weight: 2 kg approx.
Weight and dimensions indicated are approximate.
Specifications are subject to change without notice.
■Accessories
Camera Fixing Screw .................................4 pcs
Cable Bushing............................................1 pc
Blank Bushing ............................................1 pc
NM0102-0 V8QA5987AN Printed in Japan
N19
2002 © Matsushita Communication Industrial Co., Ltd. All rights reserved
Matsushita Electric Industrial Co., Ltd.
Web Site : http://www.panasonic.co.jp/global/
