Panasonic HL-FD615SJPQ Manual de usuario

Operating and Installation Instructions 2 - 19

Thank you for purchasing the Panasonic product.

• This appliance is intended for household use only.

• Please read these instructions carefully before attempting to install, operate or service this product.

• For optimum performance and safety, please read these instructions carefully and follow safety precautions when

using this product.

• Before using this product please pay extra attention to “Safety Precautions” (Page 3 - 5).

Keep this Operating and Installation Instructions for future use

Operating and Installation Instructions

Household Use

Built-in Oven

Model No. : HL-FD615SJPQ

Safety Precautions 3 - 5

Parts Identiﬁcation 6 - 7

• Parts Identiﬁcation 6

• Accessories

• Control Panel

Using the Oven 8 - 12

• Function Setting

• Before Using the Oven 9

• While Using the Oven 9

• Operations

• Rack Placement Warning

• Cooking Advice and Instructions 11 - 12

• Tips for Energy Saving 12

Cleaning and Maintenance 13 - 14

• Cleaning the Oven Door 13

• Cleaning the Inside of the Oven 13

• Bulb Replacement

Speciﬁcations 15

For Installer

Installation Instructions 16 - 19

• IMPORTANT

• Electrical Connection

16 - 17

• Positioning the Oven 18 - 19

• Securing the Oven to a Cabinet 19

Tables of Contents

In order to prevent accidents or injuries to the users, other people, and damage to

property, please follow the instructions below.

ڦThe following charts indicate the degree of damage caused by wrong operation.

ڦThe symbols are classiﬁed and explained as follows.

Safety Precautions

Make sure to follow these instruc

tions

WARNING

Indicate

serious injury

or death.

CAUTION

Indicate risk of

injury or property

damage.

These symbols indicate

prohibition.

This symbol indicates requirement

that must be followed.

WARNING

Stop using the product when any

abnormality/failure occurs and

turn ‘OFF’ the isolating switch or

remove power plug if ﬁtted.

(Risk of smoke/ﬁre/electric shock)

Example of abnormality/failure:

• Abnormal noise or heat.

• Abnormal emission of smoke, ﬁre.

• The product sometimes does not start

when turned on.

• The power is sometimes disconnected

when the cord is moved.

• Burnt odour or abnormal noise is

detected during operation.

• The body is deformed or abnormally

hot.

• The Oven door is cracked.

Contact a Panasonic Authorised

Service Centre immediately for

maintenance/repair.

The oven must be earthed. Plug

the power cord to socket outlet

with earthing continuity terminal.

Improper grounding could cause

electric shock.

If the supply cord is damaged,

it must be replaced by the

manufacturer, its service agent or

similarly qualiﬁed persons in order

to avoid a hazard.

Ensure that the appliance is

switched OFF before replacing the

lamp to avoid the possibility of

electric shock.

When disconnecting the Power

Plug, hold the plug itself. Do not

pull the cord in anyway. The cord

may be damaged and may cause

ﬁre or electric shock.

The means for disconnection must

be incorporated in the ﬁxed wiring

in accordance with the wiring

rules.

This appliance is necessary to

allow disconnection from the

supply after installation. The

disconnection may be achieved

by having the plug accessible or

by incorporating a switch in the

ﬁxed wiring in accordance with the

wiring rules.

Be sure to disconnect the Power

Plug from the wall outlet or switch

OFF the external switch before

maintenance, repair or service.

Also, do not handle the Power Plug

or external switch with wet hand.

Safety Precautions

Make sure to follow these instruc

tions

Installation and servicing must be

carried out by competent persons

in accordance with the regulation

in force.

Never obstruct the openings and

slits provided for ventilation and

heat release.

Before the oven is operated, all

the protective ﬁlm applied must

be removed (apart from the Name

Plate).

Take care that no objects are stuck

in the door of the oven.

Please use caution when

unpacking, installing or moving

this product, as some exposed

edges may be sharp to the touch

and may cause injury if not

handled with care.

Oven become very hot during use.

Suitable heat-proof gloves should

be worn when handling.

All cooking operations must take

place with the door closed.

CAUTION

WARNING

This appliance is not intended

for use by persons (including

children) with reduced physical,

sensory or mental capabilities,

or lack of experience and

knowledge, unless they have been

given supervision or instruction

concerning use of the appliance

by a person responsible for

their safety. Children should be

supervised to ensure that they do

not play with the appliance.

During use the appliance becomes

hot. Care should be taken to avoid

touching heating elements inside

the oven.

Accessible parts may become hot

during use. Young children should

be kept away.

Make sure the Wire Shelf and

Enamel Baking Tray are fully

inserted and not in contact with

the glass door, it may cause

shattering of glass door.

Insert the Power Plug ﬁrmly,

otherwise it may cause ﬁre or

electric shock.

Clean the Power Plug regularly

with dry cloth, otherwise, it may

cause insufﬁcient insulation due

to moisture, and may cause ﬁre.

Do not damage the power cord or

Power Plug.

Do not connect the power voltage

other than 220 - 240 V , may

cause ﬁre or electric shock.

The oven must not be installed

behind a decorative door in order

to avoid overheating.

Do not disassemble the oven for

reconstruction.

Do not discard the packaging

or any part of it, or leave it

unattended. It can constitute a

suffocation hazard for children,

especially the plastic bags.

Safety Precautions

Make sure to follow these instruc

tions

CAUTION

When the oven is ﬁrst switched

on, it may emit an unpleasant

smell. This is due to the bonding

agent used for insulating panels

within the oven. Heat up the new

empty oven with the conventional

cooking function, 250 °C for

15 - 20 minutes in order to remove

any manufacturing residues. It is

normal that there will be a slight

smoke and odours.

Spray cleaner is not to be used for

cleaning.

Do not use harsh abrasive

cleaners or sharp metal scrapers

to clean the oven door glass, since

they can scratch the surface,

which may result in shattering of

the glass.

A steam cleaner is not to be used.

Do not use this oven for heating

rooms.

Do not rest any weight or sit on the

open door of the oven.

The Name Plate with the technical

data, serial number and brand

name has been visibly afﬁxed to

the oven.

DO NOT REMOVE THE NAME

PLATE FOR ANY REASON.

Do not allow residues of sugary

food (such as jam) to set inside the

oven since they might damage the

enamel lining of the oven.

Do not use plastic kitchenware or

containers.The high temperatures

inside the oven could melt the

plastic and damage the oven.

Do not use sealed tins or

containers in the oven. Over

pressure may occur inside the

containers during cooking,

creating a danger of explosion.

Do not leave the oven unattended

during cooking process where fats

or oils could be released. Fats and

oils may catch ﬁre.

Do not cover the bottom of the

oven with aluminium or tin foil

sheets during cooking and do not

place pans or trays on it to avoid

damage to the enamelled surface.

If the surfaces are still very hot

during cooking, do not pour water

directly onto the trays. The steam

could cause severe burns and

damage to the enamelled surfaces.

Do not insert pointed metal

objects into any aperture in the

oven.

Do not modify this oven.

Do not replace the parts of the

appliance with spare parts other

than authorised Panasonic parts.

Do not put inﬂammable material

inside the oven; if it is switched on

by accident, it may cause a ﬁre.

■Note:

• Contact the Panasonic service centre or authorized dealer for maintenance and repair.

1. Control Panel

2. Oven Lamp

3. Moulded Rack

4. Removable Door

5. Name Plate

Parts Identiﬁcation

Control Panel

1. Function Setting Rotary Knob

2. Temperature Setting Rotary Knob

3. Indicator Light

• Will light off to conﬁrm that the set temperature has been reached.

Parts Identiﬁcation

Accessories

Wire Shelf

For roasting and grilling.

Enamel Baking Tray

For cooking large quantities of food such as moist cakes,

pastries and frozen food or for collecting fat/spillage and

meat juices.

Warranty Card

Operating and Installation Instructions

(a) (b)

Screw Pack

a. Screw Cap (2 pcs.)

a. Screw (2 pcs.)

■Note:

• Contact the Panasonic service centre or authorized dealer for maintenance and repair.

• Use original Panasonic accessories only.

Function Setting

To select the desired cooking function, turn the knob to the related symbol.

Symbol Function description

Oven Lamp

Enables the user to observe the progress of cooking without opening the door.

Defrost

The circulation of air at room temperature enables quicker thawing of frozen food,

(without the use of any heat). It’s a gentle but quick way to speed up the defrosting

time and thawing of ready-made dishes and cream ﬁlled product, etc.

Bottom Heat

A concealed element in the bottom of the oven provides a more concentrative heat

to the base of food without browning. This is ideal for slow cooking dishes such as

casseroles, stews, pastries and pizzas where a crispy base is desired.

Conventional Cooking

The top and bottom elements work together to provide conventional cooking.

Conventional Cooking with Fan

Combination of the fan and both heating elements provides more even heat

penetration, saving up to 30 - 40% of energy. Dishes are lightly browned on the

outside and still moist on the inside.

■Note:

• This function is suitable for grilling or roasting big pieces of meat at a higher

temperature.

Radiant Grilling

The inner grill element switches on and off to maintain the temperature.

Double Grilling

The inside radiant element and top element are working.

Double Grilling with Fan

The inside radiant element and top element are working with fan.

Using the Oven

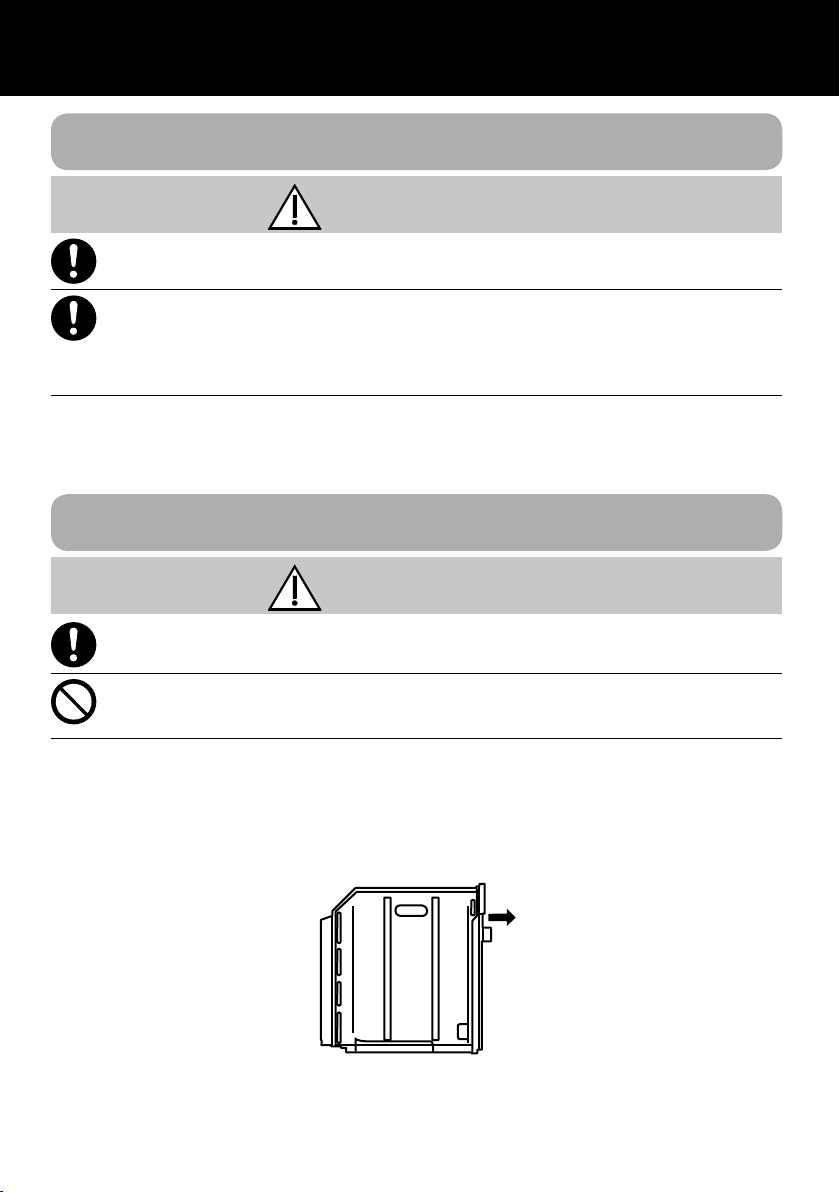

Before Using the Oven

CAUTION

Before the oven is operated, all the protective ﬁlm applied must be removed

(apart from the Name Plate).

When the oven is ﬁrst switched on, it may emit an unpleasant smell. This is

due to the bonding agent used for insulating panels within the oven. Heat up

the new empty oven with the conventional cooking function, 250 °C for

15 - 20 minutes in order to remove any manufacturing residues. It is normal

that there will be a slight smoke and odours.

■Note:

• Before the ﬁrst operation, remove all accessories and clean with soft cloth and mild

detergent.

While Using the Oven

CAUTION

All cooking operations must be carried out with the door fully closed.

Do not cover the bottom of the oven with aluminium or tin foil sheets during

cooking and do not place pans or trays on it to avoid damage to the enamel

coating surface.

■Note:

• The oven is equipped with a cooling system which comes into operation when

temperature sensor detects 70 °C during cooking, the fan causes a steady outﬂow of

air from above the door. If the temperature drops to below 60 °C, the fan will stop its

operation.

Using the Oven

Operations

Function Setting

1. Rotate “Function Setting” knob to choose the cooking function as require.

2. Rotate “Temperature Setting” knob to choose the cooking temperature as require.

3. The heating will start immediately after step 2.

■Note:

• The oven lamp will light up for all the cooking functions.

• and functions are not for heating.

Start/Cancel Function

1. For every function, rotate “Temperature Setting” knob to a temperature to start

operating the function.

2. To cancel the function, rotate “Temperature Setting” knob back to 0 °C.

Rack Placement Warning

To ensure the Wire Shelf or Enamel Baking Tray operates safely, correct insertion and

correct placement between the oven rack are necessary.

Alternatively, the level numbering which is embedded at front of the oven when the door is

opened can be referred. (There are total 5 levels.)

This will ensure that during careful removal of the Wire Shelf or Enamel Baking Tray, hot

food items should not slide out from the back.

CAUTION

Use oven gloves as the oven and accessories will be extremely hot.

Using the Oven

Tabla de contenidos

Otros manuales de Horno de Panasonic

Panasonic

Panasonic HL-SF498S Manual de usuario

Panasonic

Panasonic NB-G100P Manual de usuario

Panasonic

Panasonic HL-CK644S Manual de usuario

Panasonic

Panasonic NN-K652 Manual de usuario

Panasonic

Panasonic NB-HM3810 Manual de usuario

Panasonic

Panasonic NU-SC180BYPQ Manual de usuario

Panasonic

Panasonic NN-DS59NB Manual de usuario

Panasonic

Panasonic NTT13P - TOASTER OVEN-LOW P Manual de usuario

Panasonic

Panasonic NB-H3800 Manual de usuario

Panasonic

Panasonic HomeCHEF NU-SC180 Manual de usuario

Panasonic

Panasonic HL-CX667S Manual de usuario

Panasonic

Panasonic NN-CS596S Instrucciones de funcionamiento

Panasonic

Panasonic NE-SCV2 Manual de usuario

Panasonic

Panasonic HL-BD82S Manual de usuario

Panasonic

Panasonic NU-SC180W Manual de usuario

Panasonic

Panasonic HL-CK614S Manual de usuario

Panasonic

Panasonic NTT13P - TOASTER OVEN-LOW P Manual de usuario

Panasonic

Panasonic HL-PX665SEPG Guía del producto

Panasonic

Panasonic NT-H900 Manual de usuario

Panasonic

Panasonic NB-DT50 Manual de usuario

Panasonic

Panasonic HL-PF697S Guía del producto

Panasonic

Panasonic NU-SC300B Manual de usuario

Panasonic

Panasonic NB-G100P Manual de usuario

Panasonic

Panasonic NB-H3200 Manual de usuario

Manuales populares de Horno de otras marcas

Bosch

Bosch HVA531NS0 Manual de usuario

Electrolux

Electrolux EOF6P46X Manual de usuario

NEFF

NEFF B44S32 5GB Series Manual de usuario

Combi

Combi BLODGETT BC142GDS Manual de usuario

AEG

AEG COMPETENCE 311704300 Manual de usuario

Falcon

Falcon DOMINATOR PLUS G3106 Series Guía del usuario

Rational

Rational SCC WE 61G Manual de usuario

Smeg

Smeg DOSPA38X Manual de instalación y operación

Electrolux

Electrolux air-o-convect 20 GN 2/1 Manual de usuario

Miele

Miele HR 1954-2 Manual de usuario

KHIND

KHIND OT50 Manual de usuario

Henny Penny

Henny Penny Smoker Box Manual de usuario

Lang

Lang ECOD-AP Manual de usuario

AEG

AEG BEK455310M Manual de usuario

Frigidaire

Frigidaire FNGE90JGR Manual de usuario

Hotpoint

Hotpoint FE9 S831 JSH IX Manual de usuario

GE Advantium SCB2000 Manual de usuario

AEG

AEG DE401301DM Manual de usuario
