Panasonic CQ-C3203U Manual de usuario

ORDERNO.ACED060111C7

AUTOMOTIVE AFTERMARKET

CQ-C3203U / CQ-C3103U

MP3 CD Player/Receiver

SPECIFICATIONS

Specifications*

General

Power Supply DC 12V (11V - 16V),

Test Voltage14.4V

NegativeGround

Current Consumption Less than2.1A(CD mode; 0.5W

4-channels)

MaximumPower Output 50W×4ch(at 1kHz)

Volume control maximum

ToneAdjustment Range Bass ; ±12dB at 100Hz

Treble; ±12dB at 10kHz

Speaker Impedance 4-8

Pre-AmpOutput Voltage 2.5V (CD mode; 1kHz, 0dB)

Pre-AmpOutput Impedance 200

Front AUX Input

Input Impedance 10k

AllowableExternal Input 2.0V

Connector 3.5mm Stereomini-pin

FM StereoRadio

FrequencyRange 87.9MHz - 107.9MHz

UsableSensitivity 10.2dBf. (0.9 V,75 )

50dB quieting Sensitivity 15.2dBf. (1.6 V,75 )

FrequencyResponse 30Hz-15kHz (±3dB)

AlternateChannel Selectivity 75dB

StereoSeparation 35dB (1kHz)

ImageRejection Ratio 55dB

IFRejection Ratio 100dB

Signal toNoise Ratio 62dB

AM Radio

FrequencyRange 530kHz - 1,710kHz

UsableSensitivity 27dB/ V (22 V, S/N 20dB)

CD Player

Sampling Frequency 8 Times Oversampling

DAConverter 1bit DAC System

Pick-UpType Astigma 3-beam

Light Source SemiconductorLaser

WaveLength 790nm

FrequencyResponse 20Hz to20kHz (±1dB)

Signal toNoise Ratio 93dB

Total HarmonicDistortion 0.01%(1kHz)

Wowand Flutter Belowmeasurablelimits

Channel Separation 75dB

Dimensions** 7”×1-15/16”×6-5/16”

(178×50×160mm)

Weight** 3lbs1oz (1.4kg)

*Specificationsand thedesign are subject topossible

modification without notice duetoimprovements.

** Dimensionsand Weight shownare approximate.

-Abovespecificationscomplywith EIAstandards.

Unauthorized copying and distribution isaviolation of law.

1. ABOUT LEAD FREE SOLDER (PbF)

Distinction of PbF PCB:

PCBs (manufactured) using leadfree solderwill have a PbF stampon the PCB.

Caution :

-Pb free solder has ahigher melting point than standard solder;

Typicallythe melting point is50 -70°F (30 -40°C)higher. Please

use asoldering iron with temperature control and adjust itto 700 ±

20°F (370 ± 10°C). Incase of using high temperature soldering

iron, please be careful not to heat too long.

-Pb free solder will tend to splash when heated too high (about

1100°F/600°C)

-Thislead free solder will be used for the products after serial No.

1,000,001.

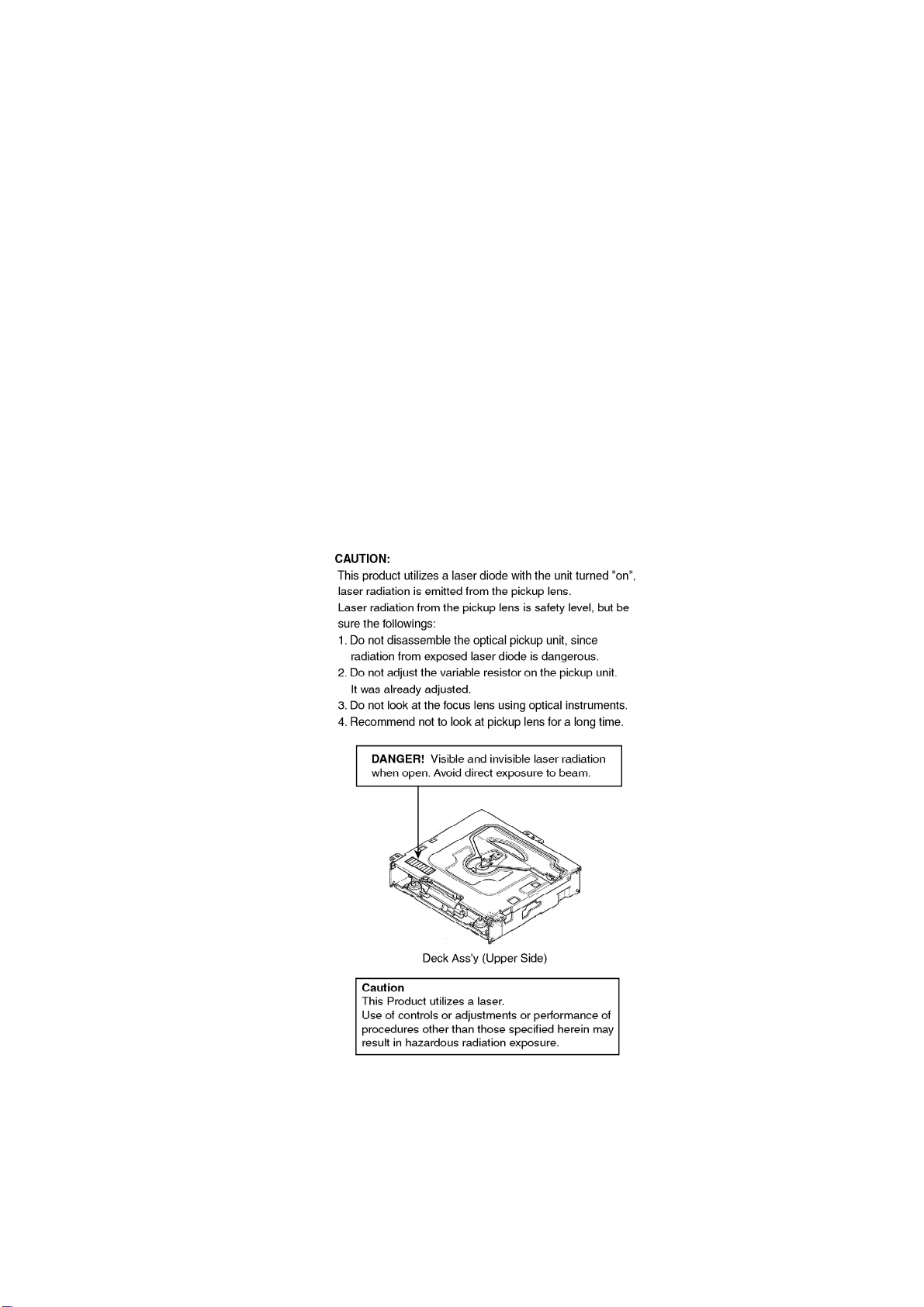

2. LASER PRODUCTS

3. FEATUERS

-Large-sized volume control.

-SQ (Sound Quality).

-The AUXinput terminal isequipped on the front panel.

-Thismanual isfor 2modelsCQ-C3203Uand CQ-C3103U. The

following tabledescribes the differences among 2models.

4. REPLACING THE FUSE

Use fuses of the same specifiedrating (15amps). Using different substitutes orfuses with

higherratings, orconnecting the product directlywithout a fuse, couldcause fire ordamage to

the stereounit.

5. MAINTENANCE

Yourproduct is designedand manufacturedtoensure a minimumof maintenance. Use a dry, a

soft clothforroutine exteriorcleaning. Neveruse benzine, thinnerorothersolvents.

6. NOTES

[RADIO BLOCK]

Donot align the AM/FM package block. Whenthe package block is necessary, it will be supplied

alreadyalignedat the factory.

[CD DECK BLOCK]

This model has no servoalignment points because microcomputercontrols the servocircuit.

7. DIMENSIONS

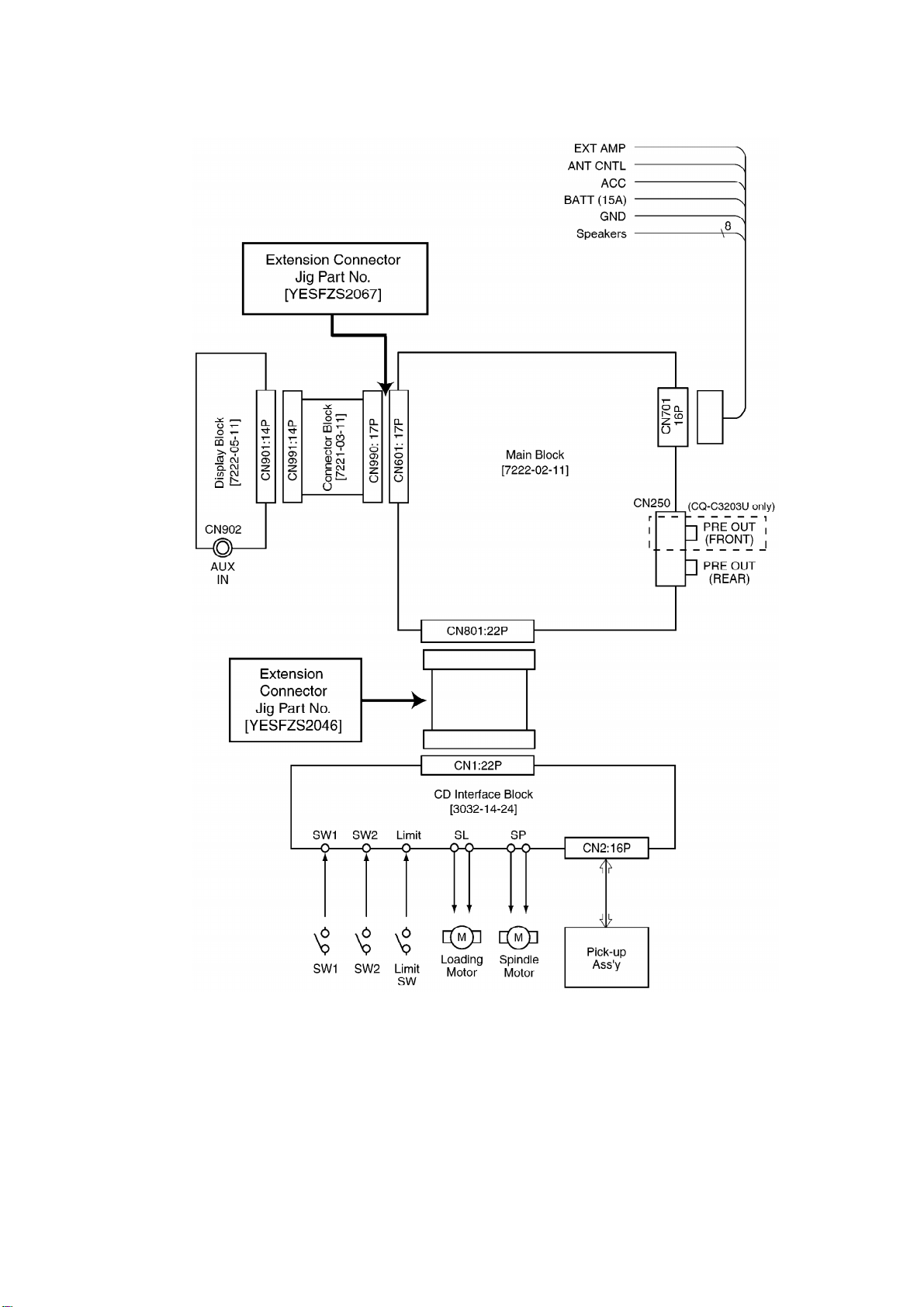

8. WIRING CONNECTION

9. TERMINALS DESCRIPTION

9.1. MainBlock

IC601 : YESAM350

No. Port Description I/O (V)

FM AM CD

1 XIN Crystal oscillator I 2.5 2.5 2.5

2TEST2 Ground I 0 0 0

3VREG Bypass condenser

connected. O2.9 2.9 2.9

4VSSCPUGround - 0 0 0

5NC - - - - -

6 NC - - - - -

7 NC - - - - -

8 NC - - - - -

9LCD

DO LCD data output I 5 5 5

10 LCD DI LCD data input O 4.9 5 4.9

11 LCD

CLK LCD clock O 5.1 5.1 5.1

12 LCD CE LCD chipenable

output O 0 0 0.3

13 CD DO CD data output I 5.1 5.2 4

14 CD DI CD data input O 0 0 4.6

15 CD

CLK CD clock O 4.9 49 4.9

16 CD CE CD chipenable O 0 0 1

17 CD LM

(+) CD loading motor

control O 0 0 0

18 CD LM

(-) CD loading motor

control O 0 0 0

19 CD S/L CD spindle motor

control O5.1 5.1 5.1

20 SUB

READY Sub CPU ready

signal I 0 0 5

21 CD

INSW1 CD insert SW input I 0 0 0

22 CD

SW2 CD mechanism

SW2 I 5.1 5.1 0

23 CD

LIMIT

CD limit SW I 0.2 0.2 5.1

24 CD

MUTE CD Mute signal I 5.1 5.1 5.1

25 CD RST CD reset O 5.1 5.1 5.1

26 CD

DMUTE CD mute O 0 0 5.1

27 LOW

BATT Batterylowlevel

detect I 5.1 5.1 0

28 NC - - - - -

PANEL

Panel

detect

switch

PANEL

Panel

detect

switch

No. Port Description I/O (V)

FM AM CD

30 NC - - - - -

31 NC - - - - -

32 NC - - - - -

33 NC - - - - -

34 NC - - - - -

35 NC - - - - -

36 NC - - - - -

37 NC - - - - -

38 NC - - - - -

39 VDD

PORT Powersupply(+5V) - 5.1 5.1 5.1

40 VSS

PORT Ground - 0 0 0

41 NC - - - - -

42 NC - - - - -

43 NC - - - - -

44 NC - - - - -

45 NC - - - - -

46 NC - - - - -

47 NC - - - - -

48 NC - - - - -

49 PWR

CNT Poweron control O 4.9 5 5

50 AMP

CNT Ampcontrol signal O 5.1 5.1 5.1

51 AMP

MUTE PowerIC mute

signal O 5.1 5.1 5.1

52 STBY PowerIC standby

control O5.1 5.1 5.1

53 SSC Tunersearch

sensitivitychange O 0 0 5.1

54 AF

MUTE AFmute O 5.1 5.1 5.1

55 I2C

DATA Electronic VOL

data O 5.1 5.1 5.1

56 I2C

CLK Electronic VOL

clock O 5.1 5.1 5.1

57 NC - - - - -

58 POWER

LED PowerLED O 0 0 0

59 NC - - - - -

60 NC - - - - -

61 NC - - - - -

62 NC - - - - -

No. Port Description I/O (V)

FM AM CD

63 OP/CL Panel open/close

signal I - - -

64 EJECT Eject switchsignal I 5.1 5.1 5.1

65 EJ ILL Eject LED drive

control O5.1 5.1 5.1

66 TEL

MUTE Telephone mute

signal I 5.1 5.1 5.1

67 BATT Batterydetection I 5.1 5.1 5.1

68 MODE

BRotaryencoder

input B I 5 5 5

69 NC - - - - -

70 RM

DATA Remote control

data I - - -

71 MODE

ARotaryencoder

input A I 5 5 5.1

72 NC - - - - -

73 NC - - - - -

74 NC - - - - -

75 AM

MODE RadioAM mode

control O8.2 0 8.2

76 FM

MODE RadioFM mode

control O 0 8.2 0

77 LEVEL Audiosignal input

forlevel meter I 0 0 1.5

78 INITC Initial setting port I 0 0 0

79 INITB Initial setting port I - - -

80 INITA Initial setting port I 5 5 5

81 VSSADCGround - 0 0 0

82 NC - - - - -

83 ST FM stereosignal I 5.1 5.2 5.2

84 SD FM/

AM Radiosignal

strength I 0 0 0

85 NC Ground I 0 0 0

86 RESET Reset signal I 5 5 5

87 ACC ACC signal input I 5.3 5.3 5.3

88 NC Ground I 0 0 0

89 NC Ground I 0 0 0

90 FM/AM

IFC FM/AM IFinput I 1.4 1.3 1.3

91 NC - - - - -

92 NC - - - - -

93 VDDPLLPowersupplyof

PLL -5.1 5.1 5.1

94 NC - - - - -

No. Port Description I/O (V)

FM AM CD

95 OSC

FM/AM FM/AM osc input I 1.4 1.3 1.3

96 VSSPLLGround - 0 0 0

97 NC - - - - -

98 EO1 PLL phase

comparison error

output

O2.2 2.1 2.3

99 TEST1 Ground I 0 0 0

100 XOUT Crystal oscillator O 2.6 2.6 2.6

9.2. DisplayBlock

IC901 : C0HBA0000195

No. Port Description I/O (V)

1 GREEN

CNT LED control (Green) O 0

2RED CNT LED control (Red) O 4.9

3 -39 SEG3 -39 LCD segment data O 2.5

40 -43 COM1 -4 LCD common O 2.5

44, 45 SEG40,

41 LCD segment data O 2.5

46 -49 KS3-6 Keyscan O 5.0

50 -54 Kl1-5 Keydata I 0

55 TEST (Connecting toground) - 0

56 VDD +5V powersupply - 5.0

57 VDD1 VDD1 filterterminal - 3.3

58 VDD2 VDD2 filterterminal - 1.7

59 VSS Ground - 0

60 OSC Oscillatorterminal - 3.8

61 DO Keydata output O 5.0

62 CE LCD driverchipenable I 0.3

63 CLK LCD clock I 5.1

64 DI LCD data I 4.9

10. PACKAGE AND IC BLOCK DIAGRAM

10.1. MainBlock PA051 : YESAP387
