Panasonic NN-H264SFR Manual de usuario

Unauthorized copying and distribution is a violation

of law.

NN-P295 NN-H275

NN-S255 NN-S245

NN-H264SFR

NN-H264BFR

NN-H264WFR

NN-S254SFR

NN-S254BFR

NN-S254WFR

APH(USA)

CPH(CANADA)

Microwave Oven

Please file and use this manual together with the service manual for Model NN-S262SF (Order

No.SIMMC0203005C1)

ORDER NO.PHAMOS0503019A1

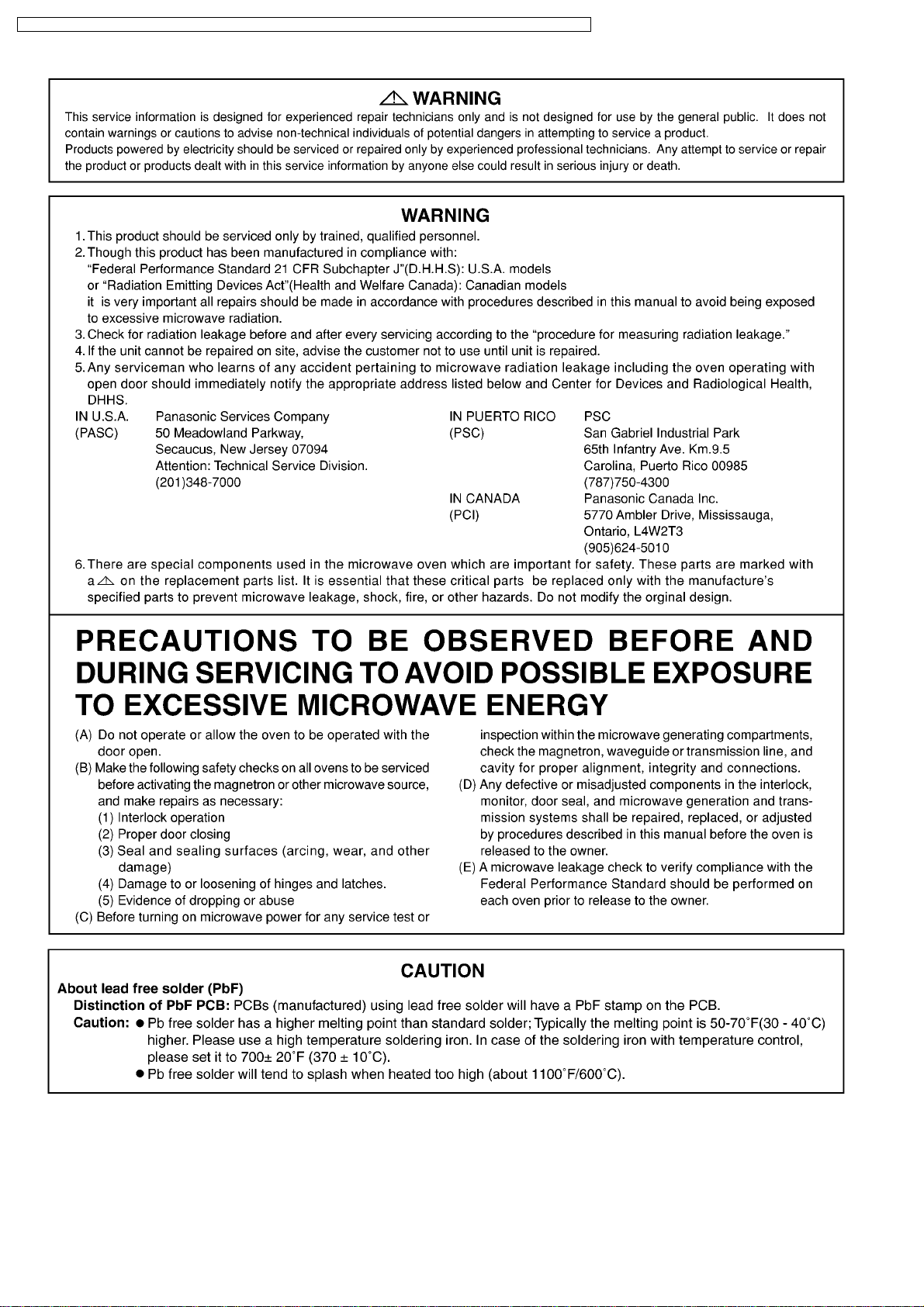

NN-P295 NN-H275 / NN-S255 NN-S245 / NN-H264SFR / NN-H264BFR / NN-H264WFR / NN-S254SFR / NN-S254BFR / NN-S254WFR

1 SCHEMATIC DIAGRAM 5

1.1. APH (NN-P295, H275) 5

1.2. APH (NN-S255) 6

1.3. APH (NN-H264*FR, S254*FR) 7

1.4. CPH (NN-P295, H275) 8

1.5. CPH (NN-S255, S245) 9

2 MEASUREMENTS AND ADJUSTMENTS 10

2.1. Adjustment of primary latch switch, secondary latch switch

and short switch. 10

2.2. Measurement of microwave output 10

3 PROCEDURE FOR MEASURING MICROWAVE ENERGY

LEAKAGE 11

3.1. Equipment 11

3.2. Procedure for measuring radiation leakage 11

3.3. Record keeping and notification after measurement 11

3.4. At least once a year, have the radiation monitor checked

for calibration by its manufacturer. 12

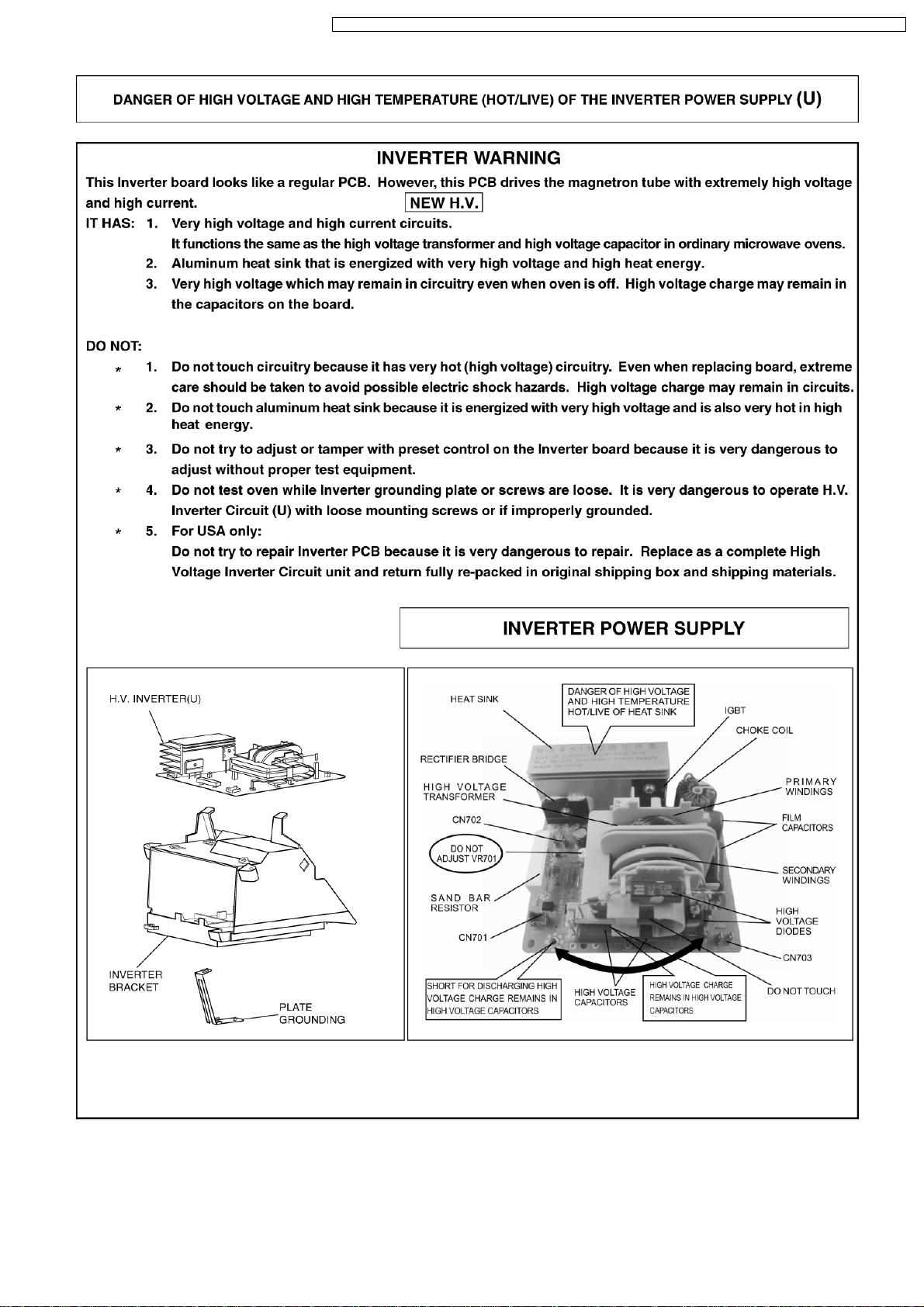

4 SIMPLE WAY OF H.V. INVERTER/MAGNETRON

TROUBLESHOUTING 13

5 H.V.INVERTER BOARD MAIN PARTS LIST

(F606Y6G00AP/F606Y6G00CP) 13

6 EXPLODED VIEW AND PARTS LIST 14

6.1. EXPLODED VIEW 14

6.2. PARTS LIST 15

6.3. DOOR ASSEMBLY 17

6.4. ESCUTCHEON BASE ASSEMBLY 18

6.5. PACKING AND ACCESSORIES 21

6.6. WIRING MATERIALS 22

7 DIGITAL PROGRAMMER CIRCUIT 23

7.1. NN-P295 APH/CPH 23

7.2. NN-H275 APH/CPH, NN-S255 APH/CPH 25

7.3. NN-S245 CPH, H264*FR APH, S254*FR APH 27

7.4. PARTS LIST 29

CONTENTS

Page Page

NN-P295 NN-H275 / NN-S255 NN-S245 / NN-H264SFR / NN-H264BFR / NN-H264WFR / NN-S254SFR / NN-S254BFR / NN-S254WFR

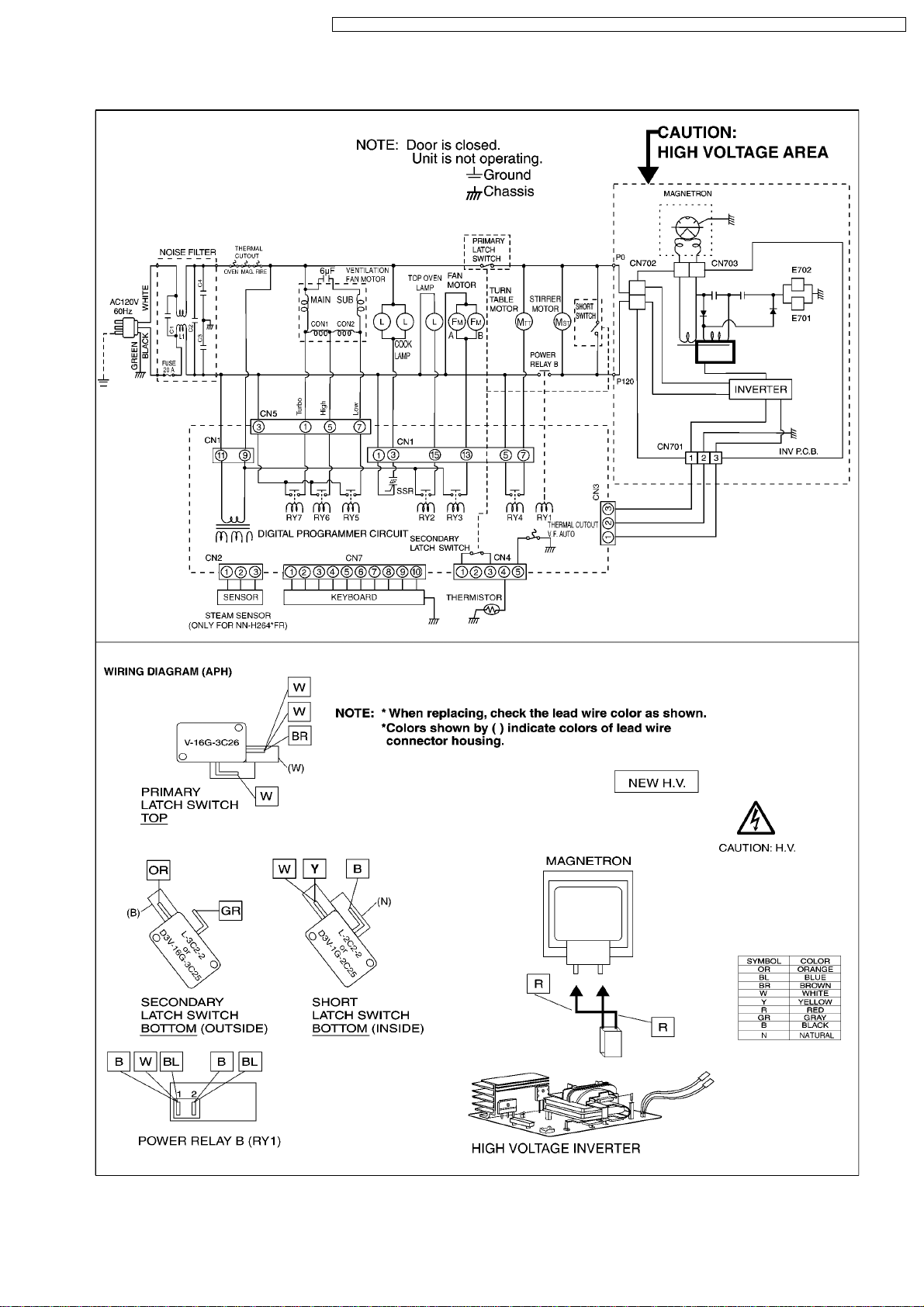

1 SCHEMATIC DIAGRAM

1.1. APH (NN-P295, H275)

NN-P295 NN-H275 / NN-S255 NN-S245 / NN-H264SFR / NN-H264BFR / NN-H264WFR / NN-S254SFR / NN-S254BFR / NN-S254WFR

1.2. APH (NN-S255)

NN-P295 NN-H275 / NN-S255 NN-S245 / NN-H264SFR / NN-H264BFR / NN-H264WFR / NN-S254SFR / NN-S254BFR / NN-S254WFR

1.3. APH (NN-H264*FR, S254*FR)

NN-P295 NN-H275 / NN-S255 NN-S245 / NN-H264SFR / NN-H264BFR / NN-H264WFR / NN-S254SFR / NN-S254BFR / NN-S254WFR

1.4. CPH (NN-P295, H275)

NN-P295 NN-H275 / NN-S255 NN-S245 / NN-H264SFR / NN-H264BFR / NN-H264WFR / NN-S254SFR / NN-S254BFR / NN-S254WFR

1.5. CPH (NN-S255, S245)

NN-P295 NN-H275 / NN-S255 NN-S245 / NN-H264SFR / NN-H264BFR / NN-H264WFR / NN-S254SFR / NN-S254BFR / NN-S254WFR

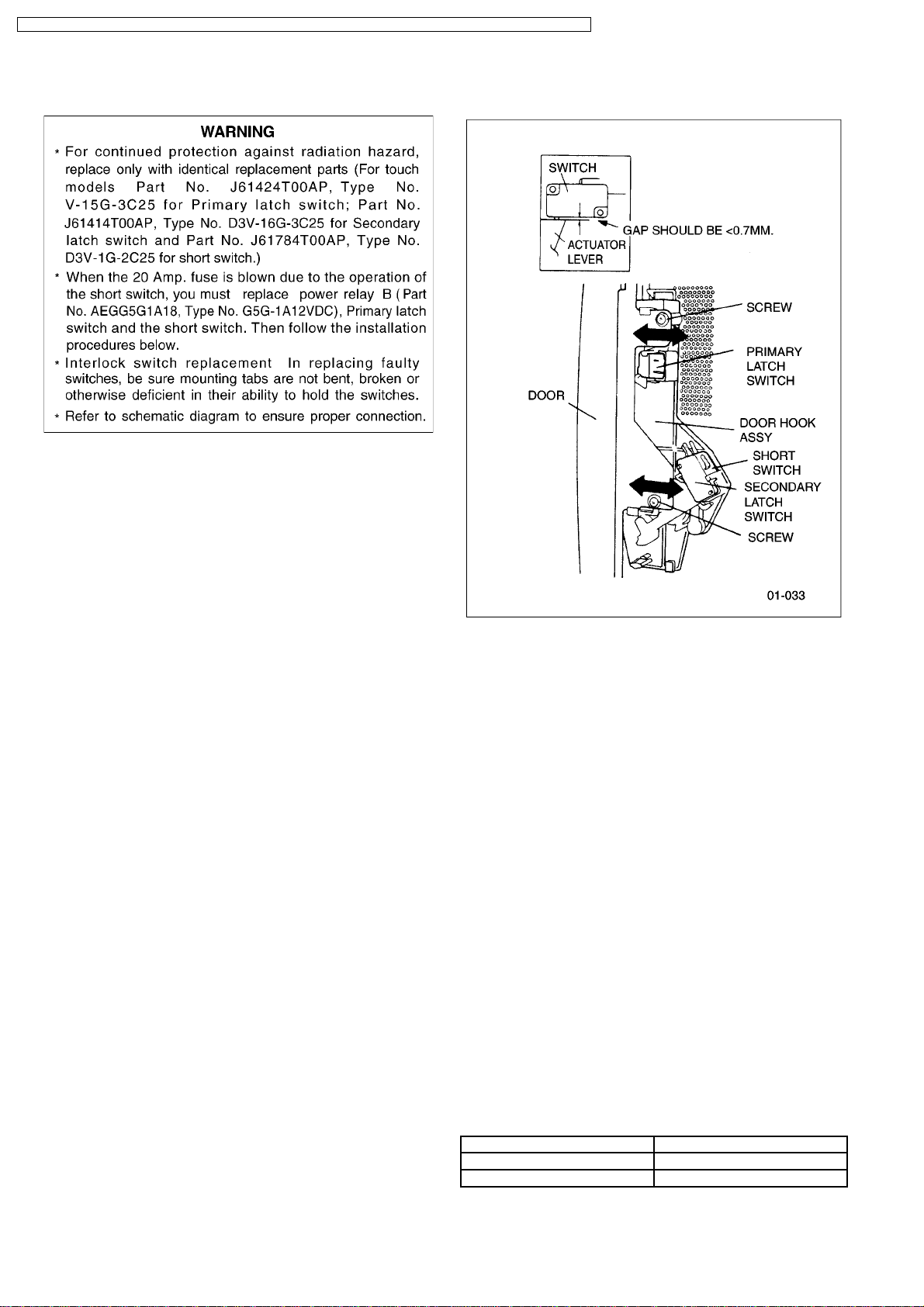

2.1. Adjustment of primary latch

switch, secondary latch switch

and short switch.

1.Mount the Primary latch switch, the Secondary latch switch

and the short switch to the door hook assembly as shown in

ILL.

NOTE:

No specific individual adjustments during

installation of the Primary latch switch, Secondary

latch switch or Short switch to the door hook are

required.

2.When mounting the door hook assembly to the oven

assembly, adjust the door hook assembly by moving it in

the direction of the arrows in the illustration so that the oven

door will not have any play in it. Check for play in the door

by pulling the door assembly. Make sure that the latch keys

move smoothly after adjustment is completed. Completely

tighten the screws holding the door hook assembly to the

oven assembly.

3.Reconnect the short switch and check the continuity of the

monitor circuit and all latch switches again by following the

component test procedures.

2.2. Measurement of microwave

output

The output power of the magnetron can be determined by

performing IEC standard test procedures. However,due to the

complexity of IEC test procedures, it is recommended to test

the magnetron using the simple method outlined below.

Necessary Equipment:

*1 liter beaker *Glass thermometer

*Wrist watch or stopwatch

NOTE:

Check the line voltage under load.Low voltage will

lower the magnetron output. Take the temperature

readings and heating time as accurately as possible.

1.Fill the beaker with exactly one liter of tap water.Stir the

water using the thermometer and record the water’s

temperature. (recorded as T1).

2.Place the beaker on the center of glass tray.

Set the oven for High power and heat it for exactly one

minute.

3.Stir the water again and read the temperature of the water.

(recorded as T2).

4.The normal temperature rise at High power level for each

model is as shown in table.

TABLE (1L-1min.test)

RATED OUTPUT TEMPERATURE RISE

1100W Min. 16.9°F(9.4°C)

1200W Min. 18.5°F(10.3°C)

2 MEASUREMENTS AND ADJUSTMENTS

NN-P295 NN-H275 / NN-S255 NN-S245 / NN-H264SFR / NN-H264BFR / NN-H264WFR / NN-S254SFR / NN-S254BFR / NN-S254WFR
