Panasonic NN-A890WB Manual de usuario

Order Number MOP00100021C2

Microwave Oven

NN-A890WB / NN-A860WB

SPG Scandinavian Countries

WPG Switzerland

SPECIFICATIONS

1

2

2000 Matsushita ElectricIndustrial Co., Ltd. All rights reserved.

Unauthorized copying and distribution isaviolation of law.

3

1. Inverter Warning

The inverterboardlooks like a regularPCB, however, this PCB drives the magnetron tube using

veryhigh voltages and current.

It has

1. Veryhigh voltage and high current

2. AnAluminium heat sink that becomes veryhot

3. The capacitors on the inverter circuitwill containahigh voltage

charge even when the oven isnot operating.

Donot

1. Donot touch the circuitryas itcontains veryhigh voltages. When

replacing the board please take extreme care to avoidpossible

electricshock. High voltages mayremaininthe circuit.

2. Donot touch the aluminium heat sink as itwill become veryhot. It

also contains high voltages.

3. Donot attempt to repairthe inverter PCB as thiscan be very

dangerous. Replace the high voltage inverter circuitas acomplete

unit. Return the oldunitfullyrepacked inthe original shipping

box and completed paper work.

4. Donot adjust or tamper with the preset volume on the inverter

board. Itisverydangerous to adjust thispreset without proper

test equipment.

5. Donot test the oven whilethe inverter grounding stripor screws

are loose. Itisverydangerous to operate the inverter circuitboard

without aproper ground connection.

Figure 1

4

InverterGounding

Figure 2

InverterPCB layout

2. Feature Chart

5

Function NN-A890WB

SPG/WPG NN-A860WB

SPG/WPG

Microwave 6 6

Grill 3 3

Convection 17 17

Combination YES YES

SensorReheat 2 -

SensorCook 6 -

SensorCombination 1 -

SensorCrisp 1 -

Weight Defrost 2 2

Weight Combination 6 6

Weight Reheat - 2

Weight Cook - 6

MemoryCook 1 1

Weight Crisp - 2

Stage Cooking 3 3

Delay/Stand YES YES

More/Less YES NO

Clock 24H 24H

Function NN-A890WB

SPG/WPG NN-A860WB

SPG/WPG

WordPrompt * *

StepbyStep LED NONE

*None, Danish, English

3. Control Panel

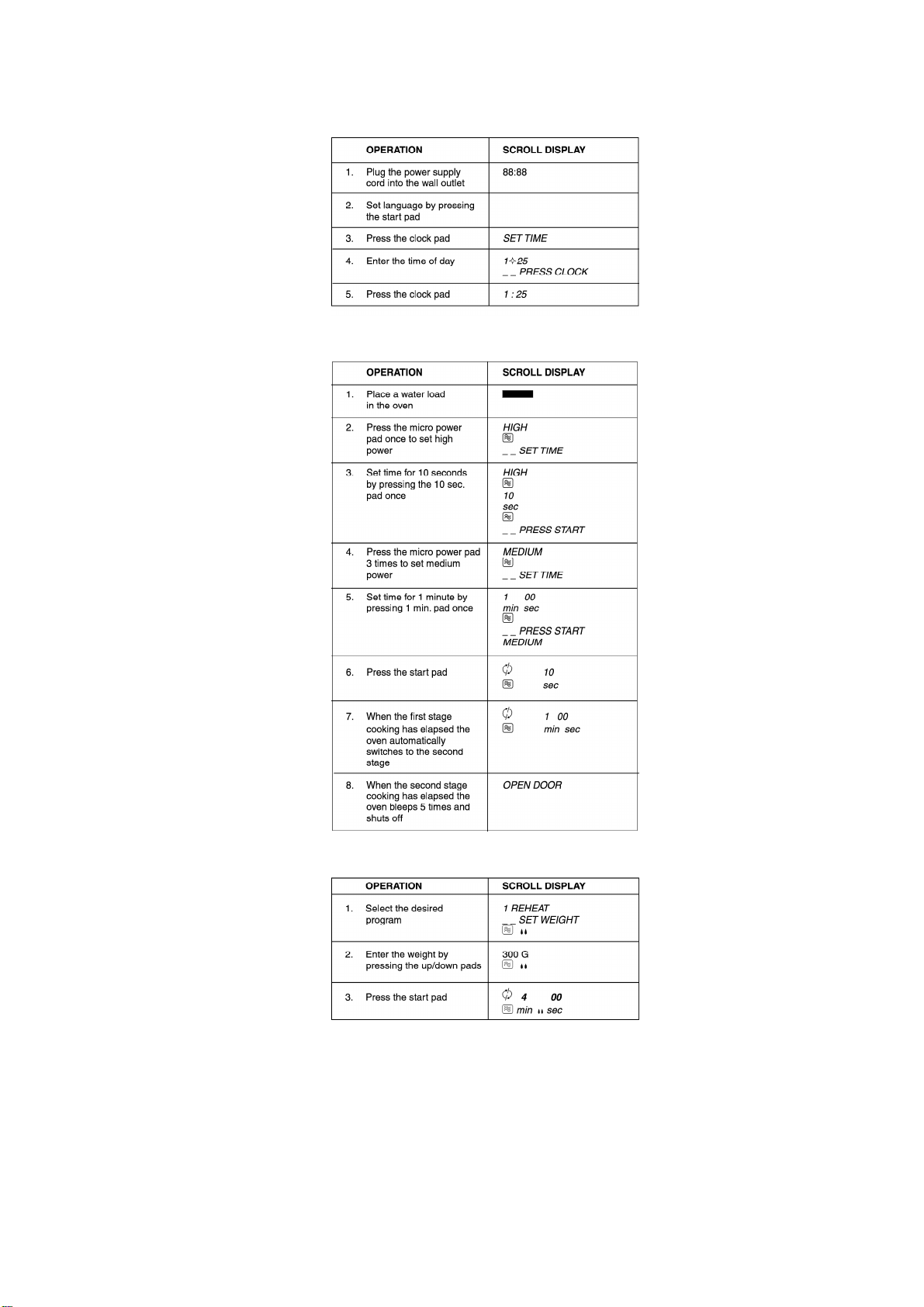

4. Operation And Digital Programmer Circuit Test

Procedure

4.1. Word Prompting

4.2. Setting the Clock

6

4.3. Microwave Cooking

4.4. Auto Weight Defrost

4.5. DelayStand

7

4.6. DelayStart

4.7. ChildLock

4.8. Grill Operation

4.9. Convection Operation

8

4.10. Turbo Bake Operation

4.11. Combination Cooking (Convection and Microwave)

4.12. Combination Cooking (Grill and Microwave)

9

4.13. Combination Cooking (Turbo Bake and Microwave)

4.14. Memory

10
