Service Manual

ORDER NO. PHAMOS0702020S1

E10

Microwave Oven

Supplement

Unauthorized copying and distribution is a violation

of law.

Please ﬁle and use this Supplement Service Manual together with following Service Manual.

NE-1024T/TC, 1054T/TC, 1064T/TC,ORDER NO. TAMC0103001C2.

NE-1064F

NE-1064C

NE-1054F

NE-1054C

NE-1024F

NE-1024C

APH (USA)

CPH (CANADA)

WARNING

This service information is designed for experienced repair technicians only and is not designed for use by the general public.

It does not contain warnings or cautions to advise non-technical individuals of potential dangers in attempting to service a product.

Products powered by electricity should be serviced or repaired only by experienced professional technicans.Any attempt to service or repair

the products or products dealt with in this service information by anyone else could result in serious injury or death.

Models

NE-1064F APH

NE-1064C CPH

NE-1064T APH

NE-1064TC CPH

NE-1054F APH

NE-1054C APH

NE-1054T APH

NE-1054TC CPH

NE-1024F APH

NE-1024C CPH

NE-1024T APH

NE-1024TC CPH

Speciﬁcations

Power Source:

120V AC Single Phase,60Hz

Power Requirement:

1500W (13.4A) 1500W (13.4A) 1500W (13.4A)

Output:

1000W *1000W *1000W *

Microwave Frequency:

2450MHz

Timer: 6 min.Rotary ······································································ for NE-1024F/C

99 min.99sec. ······································································ for NE-1064F/C & NE-1054F/C

Outside Dimensions:

20 1/8'' (W) X 14 3/16'' (D) X 12" (H)

510mm (W) X 360mm (D) X 306mm (H)

Oven Cavity Dimensions:

13'' (W) X 13'' (D) X 8 1/16" (H)

330mm (W) X 330mm (D) X 205mm (H)

Weight: Approx. 34 lbs /15.4 kg Approx. 34 lbs /15.4 kg Approx. 34 lbs /15.4 kg

PbF This product with PbF

Speciﬁcations subject to change without notice.

* IEC705-88 Test Procedure

Speciﬁcation:

Note:

* NE-1064F APH is based upon NE-1064T APH,the speciﬁcation and appearance is same, and the main difference is the manufacturer.

* NE-1064C CPH is based upon NE-1064TC CPH,the speciﬁcation and appearance is same, and the main difference is the manufacturer.

* NE-1054F APH is based upon NE-1054T APH,the speciﬁcation and appearance is same, and the main difference is the manufacturer.

* NE-1054C CPH is based upon NE-1054TC CPH,the speciﬁcation and appearance is same, and the main difference is the manufacturer.

* NE-1024F APH is based upon NE-1024T APH,the speciﬁcation and appearance is same, and the main difference is the manufacturer.

* NE-1024C CPH is based upon NE-1024TC CPH,the speciﬁcation and appearance is same, and the main difference is the manufacturer.

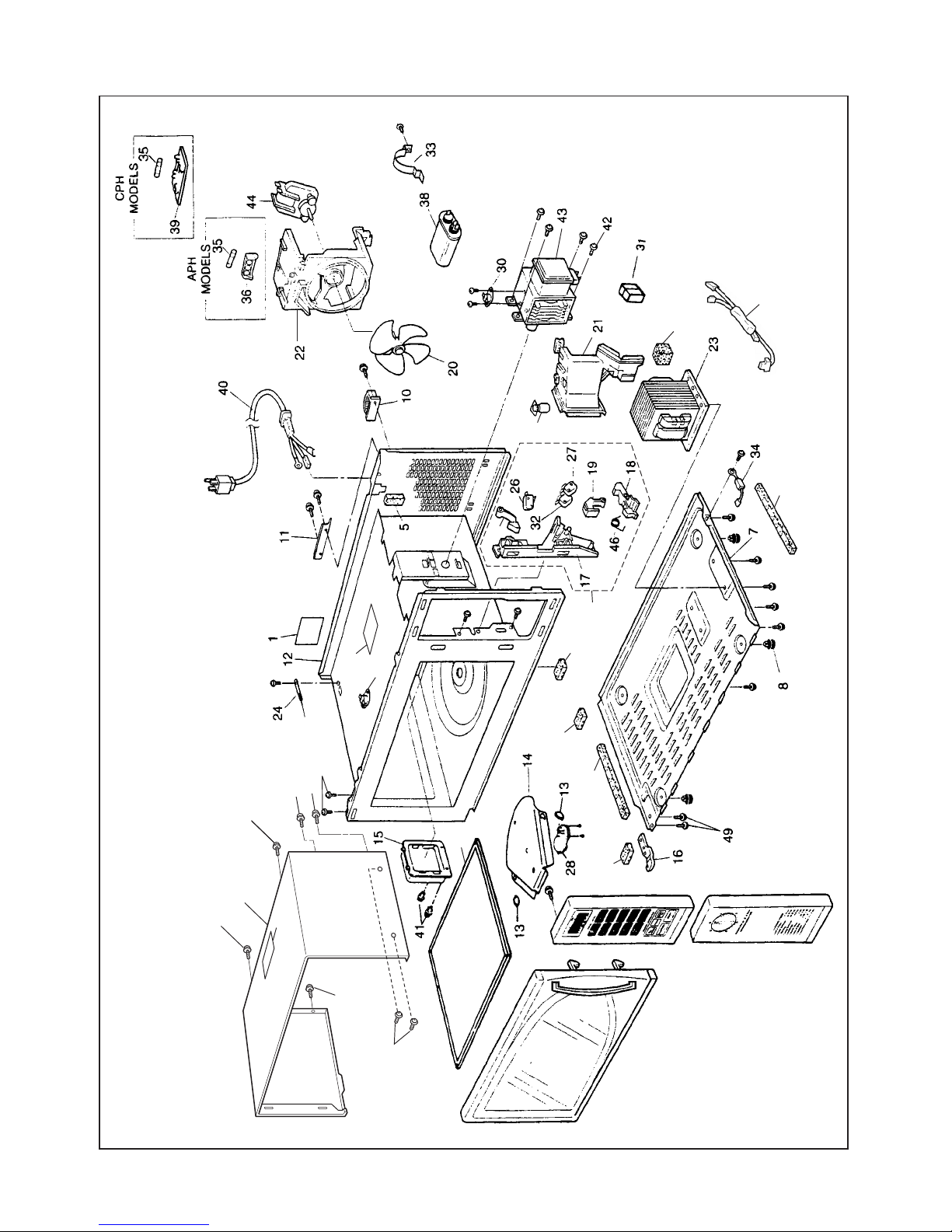

EXPLODED VIEW AND PARTS LIST

PARTS LIST

NOTE:

1. When ordering replacement part(s), please use part number(s) shown in this part list.

Do not use description of the part.

2. Important safety notice:

Components identiﬁed by mark have special characteristics important for safety.

When replacing any of these components, use only manufacture’s speciﬁed parts.

Ref.

No. Part No. Part name &

Description

Pcs/

Set Remarks

1 F00069660AP CAUTION LABEL 1 APH

1 F00067600CP CAUTION LABEL 1 CPH

2 F00338K00AP FUSE LABEL 1 APH

2 F00338K00CP FUSE LABEL 1 CPH

3 A010T3700BP CERAMIC TRAY 1 1064F APH,1064C CPH

3 A010T8K10AP CERAMIC TRAY 1 1054F APH,1054C CPH,1024F APH,1024C CPH

4 F0903000AG CUSHION RUBBER A 2

5 F0904000BB CUSHION RUBBER A 2

7 F10013700AP BASE 1

8 A1008-1180 RUBBER FOOT 4

9 F110D8K00AP CABINET BODY（U）1 1064F APH,1064C CPH

9 F110D8K10AP CABINET BODY（U）1 1054F APH,1054C CPH,1024F APH,1024C CPH

10 F11406V00HP STOPPER A 1

11 F10613130AP REAR COVER 1

12 F200A8K00AP OVEN CAVITY 1 1064F APH,1064C CPH

12 F200A8K10AP OVEN CAVITY 1 1054F APH,1054C CPH,1024F APH,1024C CPH

13 F20194210AQ ANTENNA SPACER 2

14 F202K3700BP MOVING ANTENNA 1

15 F20553130AP CEILING COVER 1

16 F30073700BP LOWER HINGE (B) 1

17 J3020-1480 DOOR HOOK 1

18 J3137-1480 HOOK SPACER B 1

19 J3138-1480 HOOK SPACER C 1

20 F4008-1480 FAN BLADE 1

21 F40253700BP AIR GUIDE A 1

22 F41445540AP ORIFICE 1

23 F621B6P10AP H.V.TRANSFORMER 1

24 F03538K00AP

TEMP SENSOR W/LEAD WIRE(U)

1 1064F APH,1064C CPH,1054F APH,1054C CPH

25 F612E5Y30AP INCANDESCENT LAMP (U) 1

26 J6142-1450 MICRO SWITCH 1 (V-16G-3C26-M) PRIMARY LATCH SWITCH

27 J6142-1450 MICRO SWITCH 1 1024F APH,1024C CPH

(V-16G-3C26-M) PRIMARY LATCH SWITCH

27 A61425180AP MICRO SWITCH 1 1054F APH,1054C CPH,1064F APH,1064C CPH

(L-3C2-2) SECONDARY LATCH SWITCH

28 F61448K00AP ANTENNA MOTOR 1

29 F61456N00AP THERMAL CUTOUT 1 FOR OVEN CAVITY

30 F61458K10AP THERMAL CUTOUT 1 FOR MAGNETRON

31 A50966520UP FERRITE CORE 1 CPH

32 ANE6161-3X0 MICRO SWITCH 1 (V-16G-2C25) SHORT SWITCH

33 F60374760GP CAPACITOR HOLDER 1

34 F62025G10XN DIODE,SI 1

35 F62308F20AP FUSE 1 18A

36 F62315G10XN FUSE HOLDER 1 APH

37 XTTBFE4T12A0 SCREW 5 FOR CABINET BODY

38 F60906N60XP H.V.CAPACITOR 1

39 F692Y7600CP NOISE FILTER (U) 1 CPH

40 F900C8K00AP AC CORD W/PLUG 1

Ref.

No. Part No. Part name &

Description

Pcs/

Set Remarks

41 A90823960AP CLIP 2 FOR COVER

42 XTWFA4+12T SCREW 4 FOR MAGNETRON

43 2M244-M1J1P MAGNETRON 1

44 J400A8K00AP FAN MOTOR 1 120V,AC SINGLE PHASE

45 J3136-1480 HOOK SPACER A 1

46 J3097-1480 LATCH SPRING 1

47 F0903000CD CUSHION RUBBER A 1

48 F10498K00AP SPACER CUSHION 1

49 XTWFA4+12LR SCREW 2

50 XYFBFE4+AF8 SCREW 2

51 XTC4+12BC SCREW 2 FOR CABINET BODY SIDE

60 F01728K00AP CAUTION LABEL 1 1064F APH,1064C CPH (ON THE CIBINET BODY)

61 F606V8K00AP PROTECTOR DIODE (U) 1

65 J393C3710BP DOOR HOOK (U) 1 1024F APH, 1024C CPH

65 J393C8890GP DOOR HOOK (U) 1 1054F APH, 1054C CPH, 1064F APH, 1064C CPH

D12

D16

D20

D10

D18

D11

D13

D14

D25

D17

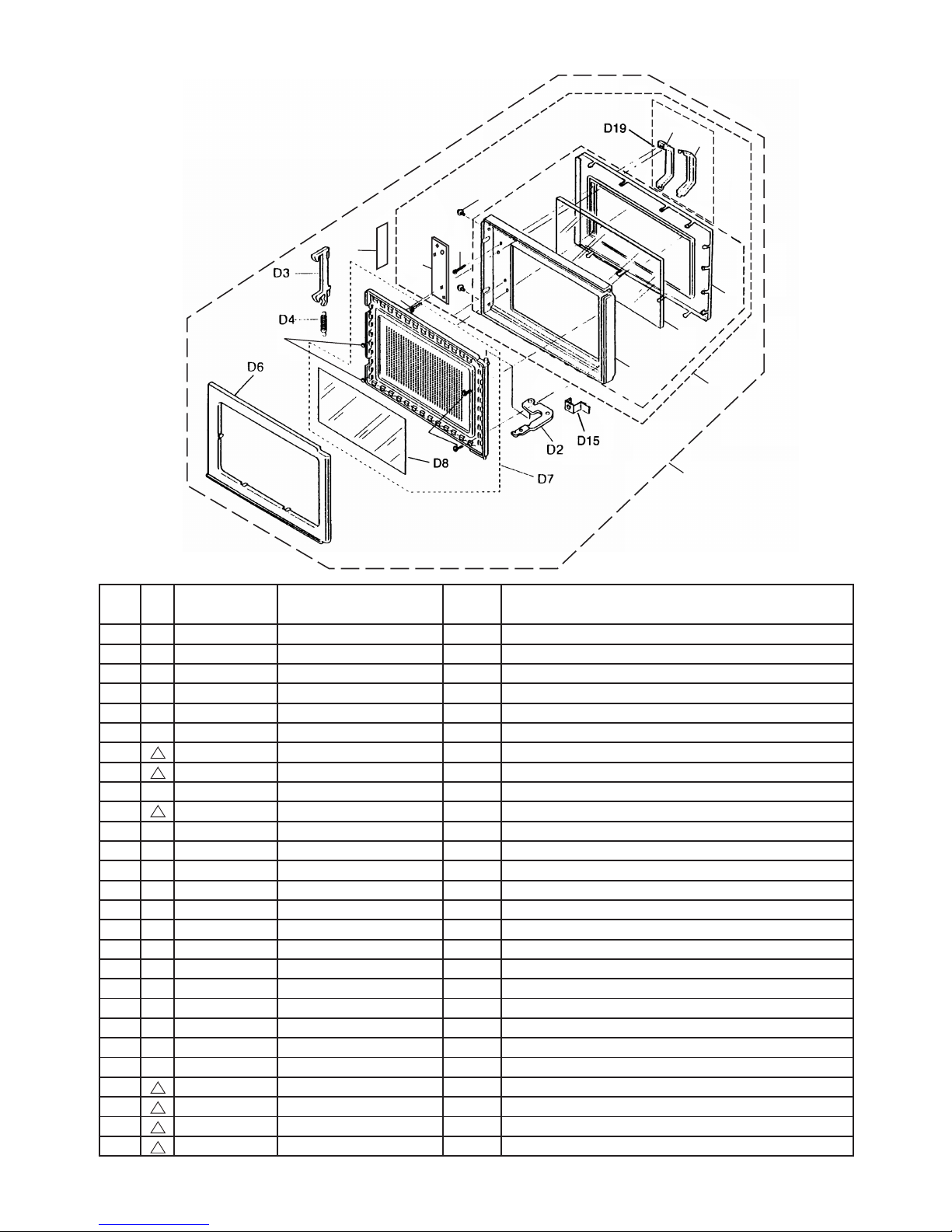

DOOR ASSEMBLY

Ref.

No. Part No. Part name &

Description

Pcs/

Set Remarks

D1 F02459660AP DHHS LABEL 1 APH

D1 F04114180CP CSA LABEL 1 CPH

D2 F30063700BP UPPER HINGE (A) 1

D3 F3018-1480 DOOR KEY A 1

D4 F30214000AP DOOR KEY SPRING 1

D5 XTN3+8BJ SCREW 2

D6 F30858960HN DOOR C 1

D7 F302K3700BP DOOR E (U) 1

D8 A31453700BP DOOR SCREEN A 1

D9 F30016P00AP DOOR A 1

D10 F30026P00AP DOOR B (U) 1

D11 F31466P00AP DOOR SCREEN B 1

D12 F32863700AP HANDLE BRACKET 1

D13 A30703170GP HANDLE PIECE A 1 1064F APH,1064C CPH

D13 F30706P00AP HANDLE PIECE A 1 1024F APH,1024C CPH, 1054F APH,1054C CPH

D14 ANE31348U1AP HANDLE PIECE B 1 1064F APH,1064C CPH

D14 F31346P00AP HANDLE PIECE B 1 1024F APH,1024C CPH, 1054F APH,1054C CPH

D15 F90096P00AP EARTH PLATE 1

D16 XTN4+16Q SCREW 2

D17 XTN4+8C SCREW 4

D18 XTCAFA4+12AFS SCREW 2 1024F APH,1024C CPH, 1054F APH,1054C CPH

D19 F301F6P00AP HANDLE (U) 1 1064F APH,1064C CPH

D19 F301F6P10AP HANDLE (U) 2 1024F APH,1024C CPH,1054F APH,1054C CPH

D20 F302A8K00SAP DOOR A (U) 1 1064F APH,1064C CPH

D20 F302A8K10SAP DOOR A (U) 1 1024F APH,1024C CPH,1054F APH,1054C CPH

D25 F390L8K00SAP DOOR (U) 1 1064F APH,1064C CPH

D25 F390L8K10SAP DOOR (U) 1 1024F APH,1024C CPH,1054F APH,1054C CPH

ESCUTCHEON BASE ASSEMBLY

E14

E13

E10

E12

E11

E10

Ref.

No. Part No. Part name &

Description

Pcs/

Set Remarks

E1 F00078K00SAP NAME PLATE 1 APH

E1 F00078K00SCP NAME PLATE 1 CPH

E2 F60018K20AP TIMER SWITCH 1 1024F APH,1024C CPH

E3 F603L6P10AP D.P.CIRCUIT (U) 1 1064F APH,1064C CPH,1054F APH,1054C CPH

E4 F630Y6P20AP MEMBRANE SWITCH (U) 1 1064F APH,1064C CPH

E4 F630Y6P10AP MEMBRANE SWITCH (U) 1 1054F APH,1054C CPH

E5 F80206P00AP TIMER KNOB 1 1024F APH,1024C CPH

E6 F80346P10AP ESCUTCHEON BASE 1 1064F APH,1064C CPH,1054F APH,1054C CPH

E6 F80346P00AP ESCUTCHEON BASE 1 1024F APH, 1024C CPH

E7 XTBAFE4+8FE SCREW 1 1064F APH,1064C CPH,1054F APH,1054C CPH

E8 F83376P20AP ESCUTCHEON SHEET 1 1064F APH, 1064C CPH

E8 F83376P10AP ESCUTCHEON SHEET 1 1054F APH, 1054C CPH

E9 F90096P10AP EARTH PLATE 1 1064F APH,1064C CPH,1054F APH,1054C CPH

E10 F80356P00AP ESCUTCHEON FACIA 1

E11 F82846P10AP CUSHION 1 1064F APH,1064C CPH,1054F APH,1054C CPH

E12 XTWEFNE3+8Q SCREW 3 1024F APH,1024C CPH

E13 F800L8K00SAP ESCUTCHEON BASE (BU) 1 1064F APH,1064C CPH

E13 F800L8K10SAP ESCUTCHEON BASE (BU) 1 1054F APH,1054C CPH

E14 F800L8K20SAP ESCUTCHEON BASE (BU) 1 1024F APH,1024C CPH

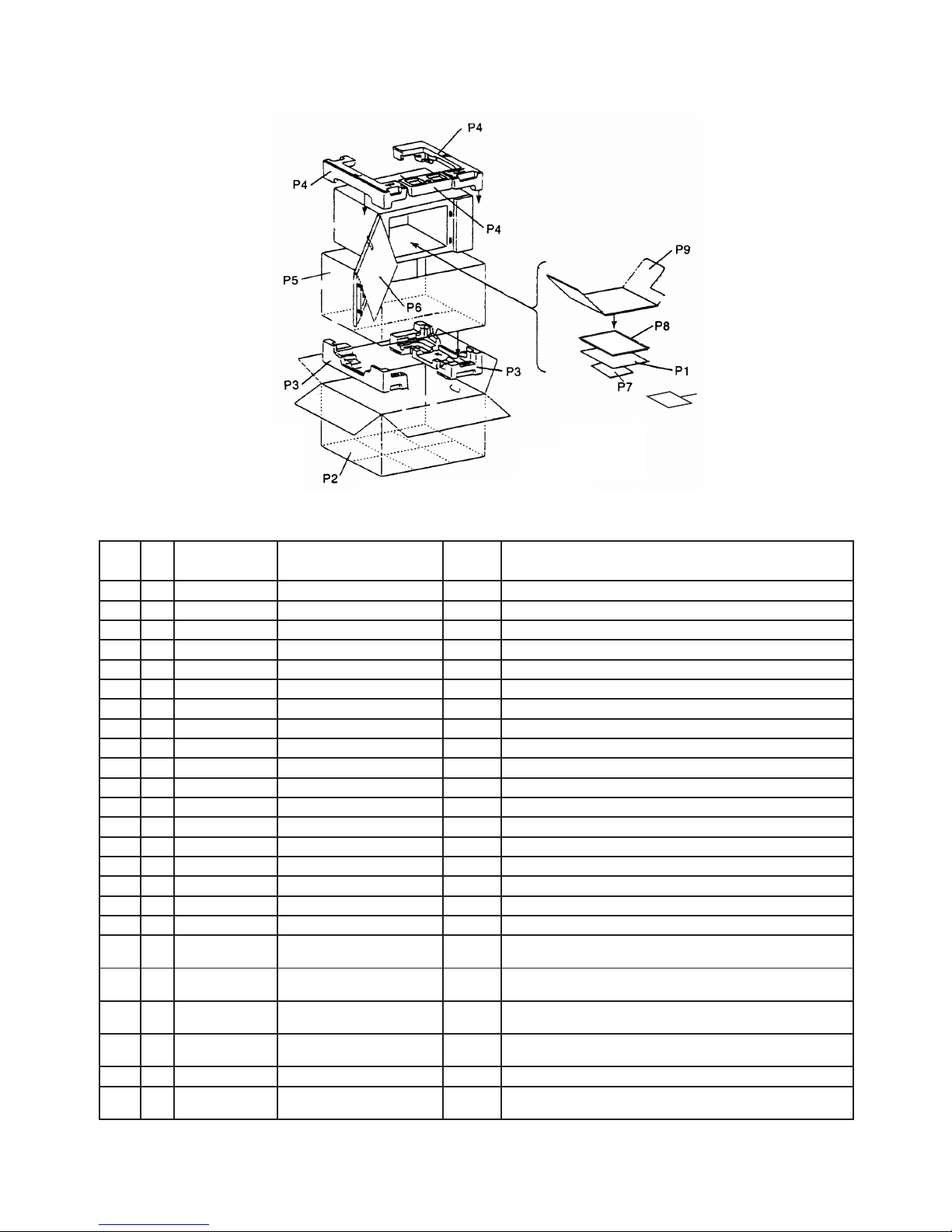

PACKING AND ACCESSORIES

P10

Ref.

No. Part No. Part name &

Description

Pcs/

Set Remarks

P1 F00036P00AP OPERATING INSTRUCTION 1 1054F APH,1024F APH

P1 F00036P10CP OPERATING INSTRUCTION 1 1054C CPH,1024C CPH

P1 F00036P20AP OPERATING INSTRUCTION 1 1064F APH

P1 F00036P20CP OPERATING INSTRUCTION 1 1064C CPH

P2 F01028K00AP PACKING CASE ,PAPER 1 1064F APH

P2 F01028K00CP PACKING CASE ,PAPER 1 1064C CPH

P2 F01028K10AP PACKING CASE ,PAPER 1 1054F APH

P2 F01028K10CP PACKING CASE ,PAPER 1 1054C CPH

P2 F01028K20AP PACKING CASE ,PAPER 1 1024F APH

P2 F01028K20CP PACKING CASE ,PAPER 1 1024C CPH

P3 F01048K00AP LOWER FILLER 1

P4 F01058K00AP UPPER FILLER 1

P5 F01067F50XN P.E.BAG 1

P6 F01078100XN DOOR SHEET 1

P7 F03343140AP MENU LABEL 1 1064F APH,1064C CPH,1054F APH,1054C CPH

P8 F04206P20AP

OPERATING GUIDE (ENGLISH)

1 1064F APH

P8 F04206P20RP

OPERATING GUIDE (SPANISH)

1 1064F APH

P8 F04206P20CP OPERATING GUIDE

(ENGLISH/FRENCH)

1 1064C CPH

P8 F04206P10AP OPERATING GUIDE

(ENGLISH)

1 1054F APH

P8 F04206P10RP OPERATING GUIDE

(SPANISH)

1 1054F APH

P8 F04206P10CP OPERATING GUIDE

(ENGLISH)

1 1054C CPH

P9 F01088K00AP TRAY PACKING 1

P10 F04243130AP SECURITY BOLT INSTALLA-

TION INSTRUCTION

WIRING MATERIAL

Ref.

No. Part No. Part name &

Description

Pcs/

Set Remarks

W1 F030A8K00AP LEAD WIRE HARNESS 1 1064F APH,1054F APH

W1 F030A8K00CP LEAD WIRE HARNESS 1 1064C CPH,1054C CPH

W1 F030A8K20AP LEAD WIRE HARNESS 1 1024F APH

W1 F030A8K20CP LEAD WIRE HARNESS 1 1024C CPH

W3 F03538K00AP LEAD WIRE (U) W/TEMP

SENSOR

1 1064F APH,1064C CPH,1054F APH,1054C CPH

61 F606V8K00AP PROTECTOR DIODE (U) 1

PROTECTOR

DIODE (U)
