Panasonic Viera TX-37LZD850A Manual de usuario

1 Information of LED Flashing Timing 1

copying and distribution is a violation of law.

TX-37LZD850A

LH69 Chassis

1.1. Explanation 1

LCD TV

Please file and use this manual together with the service manual for Model No. TX-37LZD850A, ORDER

NO. MTV0801620CE.

CONTENTS

Page Page

1 Information of LED Flashing Timing

1.1. Explanation

• When an abonormality has occurred in the unit, the protection circuits will operate and reset to the stand by mode. At this time,

the defective block can be identified by the number of blinks made by the Power LED on the front panel of the unit as follows:

Blinking times Indication

1 Lamp short protection

Lamp open protection

Arching protection

3 P board 30V / 18V / 9V decreased / short detection.

4 DTV12V decreased / short circuit , main convertor stop detection.

5 Sub 5V decreased / short circuit detection.

6 Sub 5V decreased / short circuit detection (same as 5 times LED blinking).

7 Sub 3.3V decreased / short circuit detection.

8 Sub 5V decreased / short circuit detection (same as 5 times LED blinking).

9 Audio amp SOS.

13 Peaks communication error SOS.

ORDER NO. MTV0801592SE

1 Hotel Mode Access 1

1. Purpose

Restrict a function for hotels.

2. Access command to the Hotel mode setup menu.

In order to display the Hotel mode setup menu, please enter

the following command (within 2 second).

[TV] : Hold Vol [Down] + [Remote] : Press AV button 3

times.

Then, the Hotel mode setup menu is displayed.

copying and distribution is a violation of law.

TX-37LXD80A

TX-37LZD800A

TX-37LZD850A

3. To exit the Hotel mode setup menu.

Disconnect AC power cord from wall outlet or switch off the

power with the [POWER] button on the main unit.

4. Explain the Hotel mode setup menu.

LCD TV

Please use this Manual together with the manual Model No. TX-37LXD80A, TX-37LZD800A and TX-

37LZD850A, ORDER NO. MTV0801619CE , MTV0801620CE and MTV0801622CE.

CONTENTS

Page

1 Hotel Mode Access

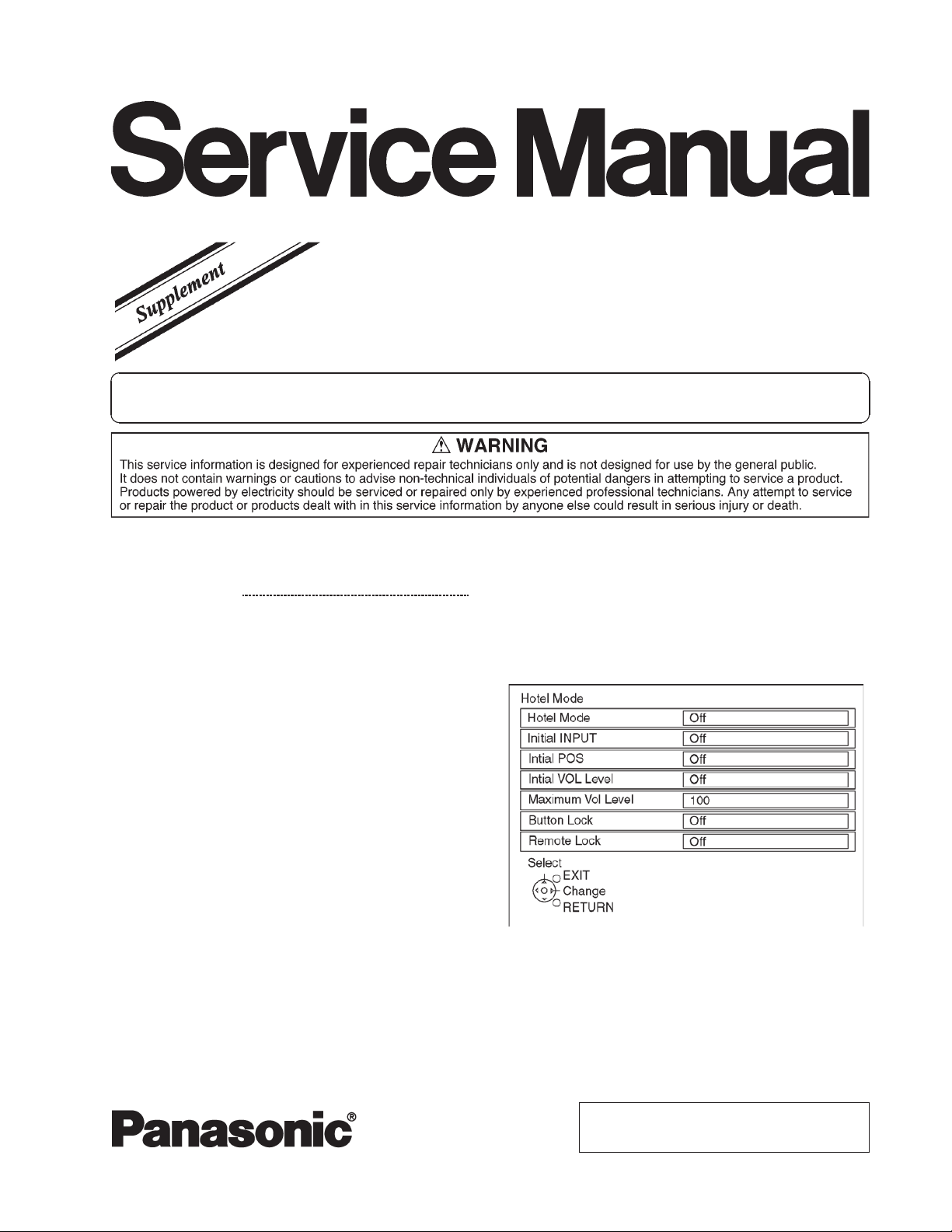

SUPPL NO. MTV0801599SE

Item Function

Hotel Mode Select hotel mode ON/OFF

Initial INPUT Select input signal modes.

Set the input, when each time power is switched

on.

Selection :

Off/TV/AV1/AV2/AV3/HDMI1/HDMI2/PC

• Off: give priority to a last memory.

• Selectable input is depend on the model.

Initial VOL level Adjust the volume when each time power is

switched on.

Selection/Range :

Off/0 to 63

• Off: give priority to a last memory.

Maximum VOLlevel Adjust maximum volume.

Range :

0 to 100

Initial POS Select programme number.

Selection :

Off/0 to 99

• Off: give priority to a last memory.

Button lock Select local key conditions.

Selection :

Off/SETUP/MENU/All

• Off: altogether valid.

• SETUP: only F-key is invalid.

(Tuning guide (menu) can not be selected.)

• MENU: only F-key is invalid.

(only Volume/Mute can be selected.)

• ALL: altogether invalid.

Remote lock Select remote control key conditions.

Selection :

Off/SETUP/MENU

• Off: altogether valid.

• SETUP: only Setup menu is invalid.

• MENU: Picture/Sound/Setup menu are

invalid.

TX-37LXD80A / TX-37LZD800A / TX-37LZD850A
