Panasonic TX-32LX500M Manual de usuario

ORDERNO. ITD0507041CE

Wide LCD TV

TX-32LX500M / TX-32LX500A / TX-32LX500X / TX-26LX500M

/ TX-26LX500A / TX-26LX500X

LH41 Chassis

SPECIFICATIONS

Specifications

Power Source AC 110 - 240 V, 50 / 60 Hz

Power Consumption Averageuse : 137 W(0.8A) (TX-26LX500)

Averageuse : 168 W(1.0A) (TX-32LX500)

Standbycondition : 0.4W

LCD WideXGA(1,366 × 768 pixels)

16 : 9aspect ratioLCD panel

VisiblescreenSize 64.8cmV, 565 mm (W) × 318 mm (H) (TX-26LX500)

80.0cmV, 697 mm (W) × 392 mm (H) (TX-32LX500)

Sound

Speaker Woofer ( 80 mm) × 2pcs, Tweeter (16 mm × 73 mm) ×4pcs

AudioOutput 20 W(5W+ 5W, 5W+ 5W), 10%THD

Headphones M3(3.5mm) Jack × 1

Scanning format 480i(60Hz), 480p(60Hz), 576i(50Hz), 576p(50Hz), 720p(50Hz), 720p(60Hz), 1080i(50Hz),

1080i(60Hz)

PC signals XGAdisplay

VGA, SVGA, XGA

SXGA...... (compressed)

Horizontal scanning frequency31 - 69 kHz

Vertical scanning frequency59 - 86 Hz

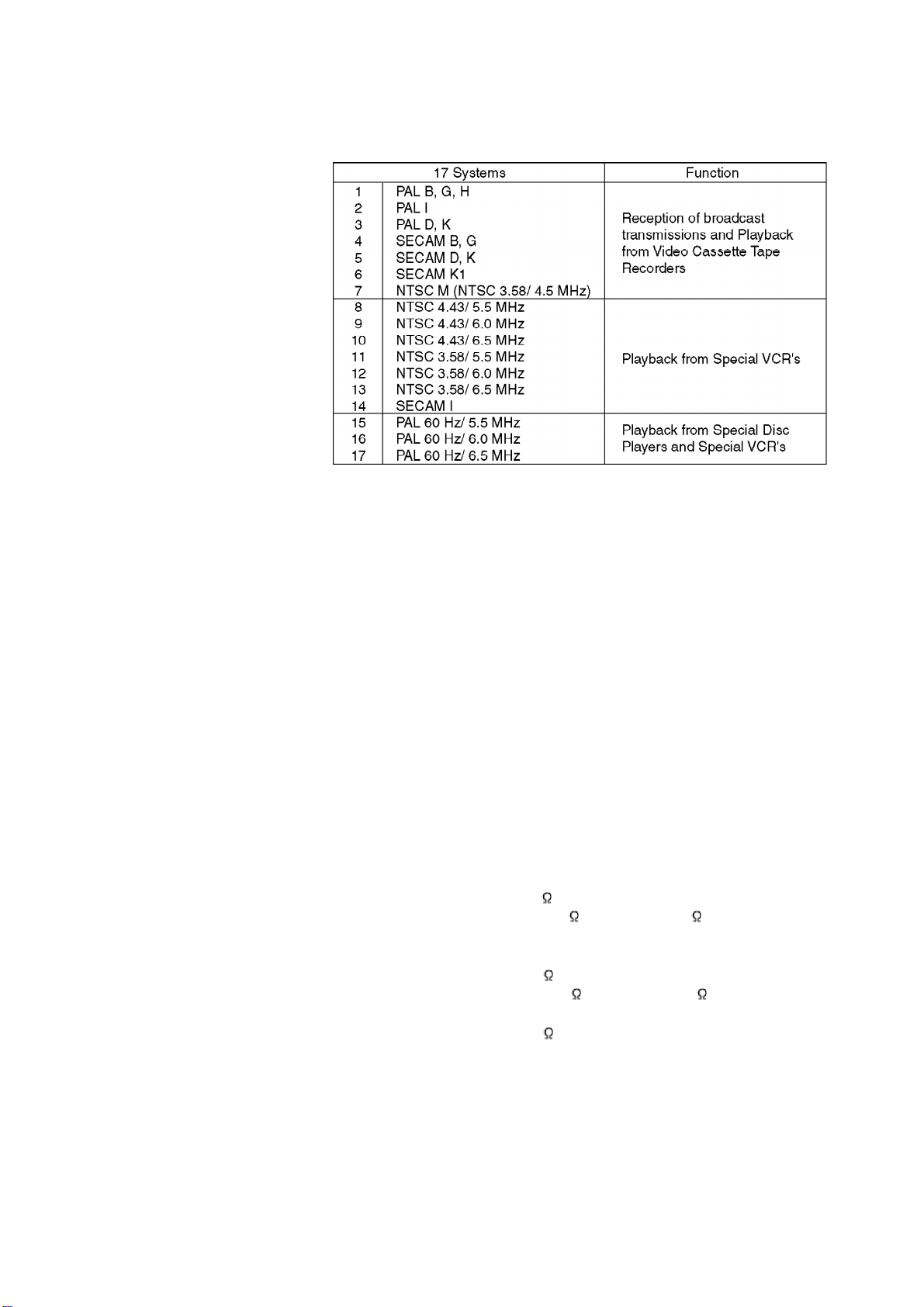

Receiving Systems/ Band name

Receiving Channels Regular TV

VHFBAND 2-12 (PAL/ SECAM B, K1)

0-12 (PALB AUST.)

1-9(PALB N.Z.)

1-12 (PAL/ SECAM D)

1-12 (NTSC M Japan)

2-13 (NTSC M USA)

UHFBAND 21-69 (PALG, H, I / SECAM G, K, K1)

28-69 (PALB AUST.)

13-57 (PALD, K)

13-62 (NTSC M Japan)

14-69 (NTSC M USA)

CATV S1-S20 (OSCAR)

1-125 (USACATV)

C13-C49 (JAPAN)

S21-S41 (HYPER)

Z1-Z37 (CHINA)

5A, 9A(AUST.)

Aerial - Rear UHF/VHF

Operating Conditions Temperature : 5°C - 40 °C

Humidity: 5%- 90 %RH (non-condensing)

Connection Terminals

AV1/2-Rear VIDEO (RCAPinType) 1.0Vp-p(75 )

S VIDEO (MINI DIN 4-Pin) Y: 1.0Vp-p(75 ) C: 0.286Vp-p(75 )

AUDIO L-R (RCAPinType× 2) 0.5Vrms

AV3-Front

VIDEO (RCAPIN Type) 1.0Vp-p(75 )

S-VIDEO (Mini DIN 4-pin) Y: 1.0Vp-p(75 ) C: 0.286 Vp-p(75 )

AUDIO L-R (RCAPIN Type× 2) 0.5Vrms

AV4-Rear VIDEO (RCAPIN Type) 1.0Vp-p(75 )

AUDIO L-R (RCAPIN Type× 2) 0.5Vrms

Y 1.0Vp-p(including synchronization)

PB/CB, PR/CR±0.35 Vp-p

HDMI

PC TYPE AConnecter

HIGH-DENSITY D_SUB 15PIN

AUDIO L- R RCAPIN Type× 2

Cardslot SD CARD slot × 1, PC CARD slot × 1

MONITOR OUT VIDEO (RCAPIN Type) 1.0Vp-p(75 )

AUDIO L-R (RCAPIN Type× 2) 0.5Vrms

Dimensions( W× H × D )

Including TV Stand 724 mm × 549 mm × 300 mm (TX-26LX500)

857 mm × 624 mm × 300 mm (TX-32LX500)

TV Set Only 724 mm × 487 mm × 141 mm (TX-26LX500)

857 mm × 563 mm × 141 mm (TX-32LX500)

Weight 20.5kgNet (TX-26LX500)

22.5kgNet (TX-32LX500)

Note:

Design and Specificationsare subject tochangewithout notice. Weight and Dimensionsshownare approximate.

Unauthorized copying and distribution isaviolation of law.

1. Safety Precautions

1.1. General Guidelines

1. When servicing, observe the original lead dress. Ifashort circuit

isfound, replace all parts which have been overheated or

damaged bythe short circuit.

2. After servicing, see to itthat all the protective devices such as

insulation barriers, insulation papers shields are properly

installed.

3. After servicing, make the following leakage current checks to

prevent the customer from being exposed to shock hazards.

1.1.1. Leakage Current ColdCheck

1. Unplug the AC cord and connect ajumper between the two

prongs on the plug.

2. Measure the resistance value, with an ohmmeter, between the

jumpered AC plug and each exposed metalliccabinet part on the

equipment such as screwheads, connectors, control shafts, etc.

When the exposed metallicpart has areturn path to the chassis,

the reading shouldbe between 1M and 5.2M .

When the exposed metal does not have areturn path to the

chassis, the reading must be .

Figure 1

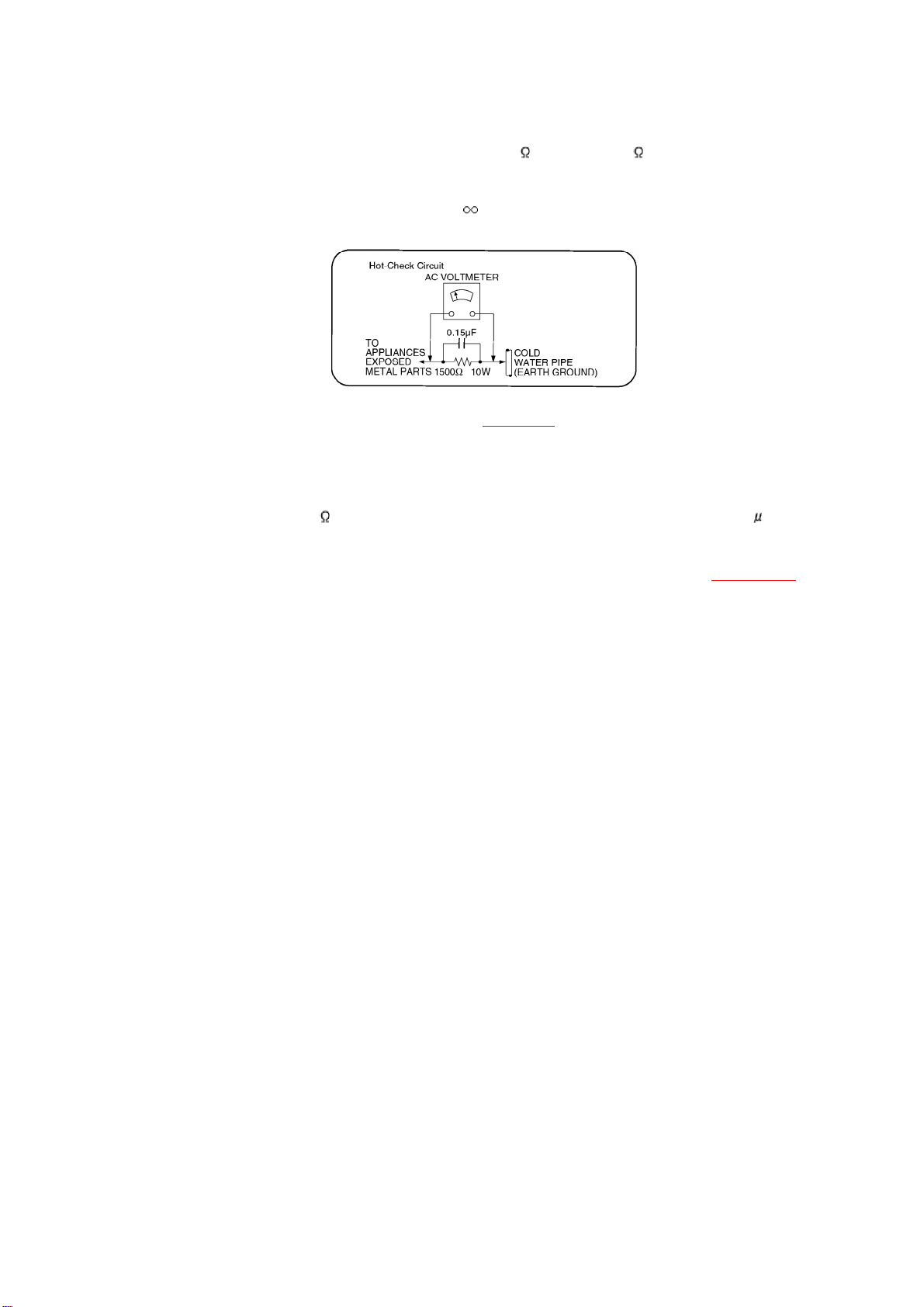

1.1.2. Leakage Current Hot Check (See Figure 1.)

1. Plug the AC cord directlyinto the AC outlet. Donot use an

isolation transformer for thischeck.

2. Connect a1.5k , 10 watts resistor, inparallel with a0.15 F

capacitors, between each exposed metallicpart on the set and a

good earth ground such as awater pipe, as shownin Figure 1.

3. Use an AC voltmeter, with 1000 ohms/voltor more sensitivity, to

measure the potential across the resistor.

4. Check each exposed metallicpart, and measure the voltage at

each point.

5. Reverse the AC plug inthe AC outlet and repeat each of the above

measurements.

6. The potential at anypoint shouldnot exceed 0.75 volts RMS. A

leakage current tester (Simpson Model 229 or equivalent) maybe

used to make the hot checks, leakage current must not exceed 1/2

milliamp. Incase ameasurement isoutside of the limits specified,

there isapossibilityof ashock hazard, and the equipment should

be repaired and rechecked before itisreturned to the customer.

2. Prevention of Electro Static Discharge (ESD) to

Electrostatically Sensitive (ES) Devices

Some semiconductor(solidstate) devices canbe damagedeasilybystatic electricity. Such

components commonlyare calledElectrostaticallySensitive (ES) Devices. Examples of typical

ES devices are integratedcircuits and some field-effect transistors and semiconductor"chip"

components. The following techniques shouldbe usedtohelpreduce the incidence of

component damage causedbyelectrostatic discharge (ESD).

1. Immediatelybefore handling anysemiconductor component or

semiconductor-equipped assembly, drainoff anyESDon your

bodybytouching aknownearth ground. Alternatively, obtainand

wear acommerciallyavailabledischarging ESDwrist strap, which

shouldbe removed for potential shock reasons prior to applying

power to the unitunder test.

2. After removing an electrical assemblyequipped with ES devices,

place the assemblyon aconductive surface such as alminum foil,

to prevent electrostaticcharge buildup or exposure of the

assembly.

3. Use onlyagrounded-tipsoldering iron to solder or unsolder ES

devices.

4. Use onlyan anti-staticsolder removal device. Some solder

removal devices not classified as "anti-static(ESDprotected)"

can generate electrical charge sufficient to damage ES devices.

5. Donot use freon-propelled chemicals. These can generate

electrical charges sufficient to damage ES devices.

6. Donot remove areplacement ES device from its protective

package until immediatelybefore you are readyto install it. (Most

replacement ES devices are packaged with leads electrically

shorted together byconductive foam, alminum foil or comparable

conductive material).

7. Immediatelybefore removing the protective material from the

leads of areplacement ES device, touch the protective material to

the chassisor circuitassemblyinto which the device will be

installed.

Caution

Besure no power isapplied to the chassisor circuit, and observe

all other safetyprecautions.

8. Minimize bodilymotions when handling unpackaged replacement

ES devices. (Otherwise hamless motion such as the brushing

together of your clothes fabricor the lifting of your foot from a

carpeted floor can generate staticelectricity(ESD)sufficient to

damage an ES device).

3. Applicable signals

Note:

-Signalsother than above maynot be displayed properly.

-Applicableinput signal for PCisbasicallycompatibleto VESA

standard timing.

-PCsignal ismagnified or compressed for display, so that itmay

not be possibleto show fine detail with sufficient clarity.

-*: Based on SMPTE295M standard.

4. Self Check Function

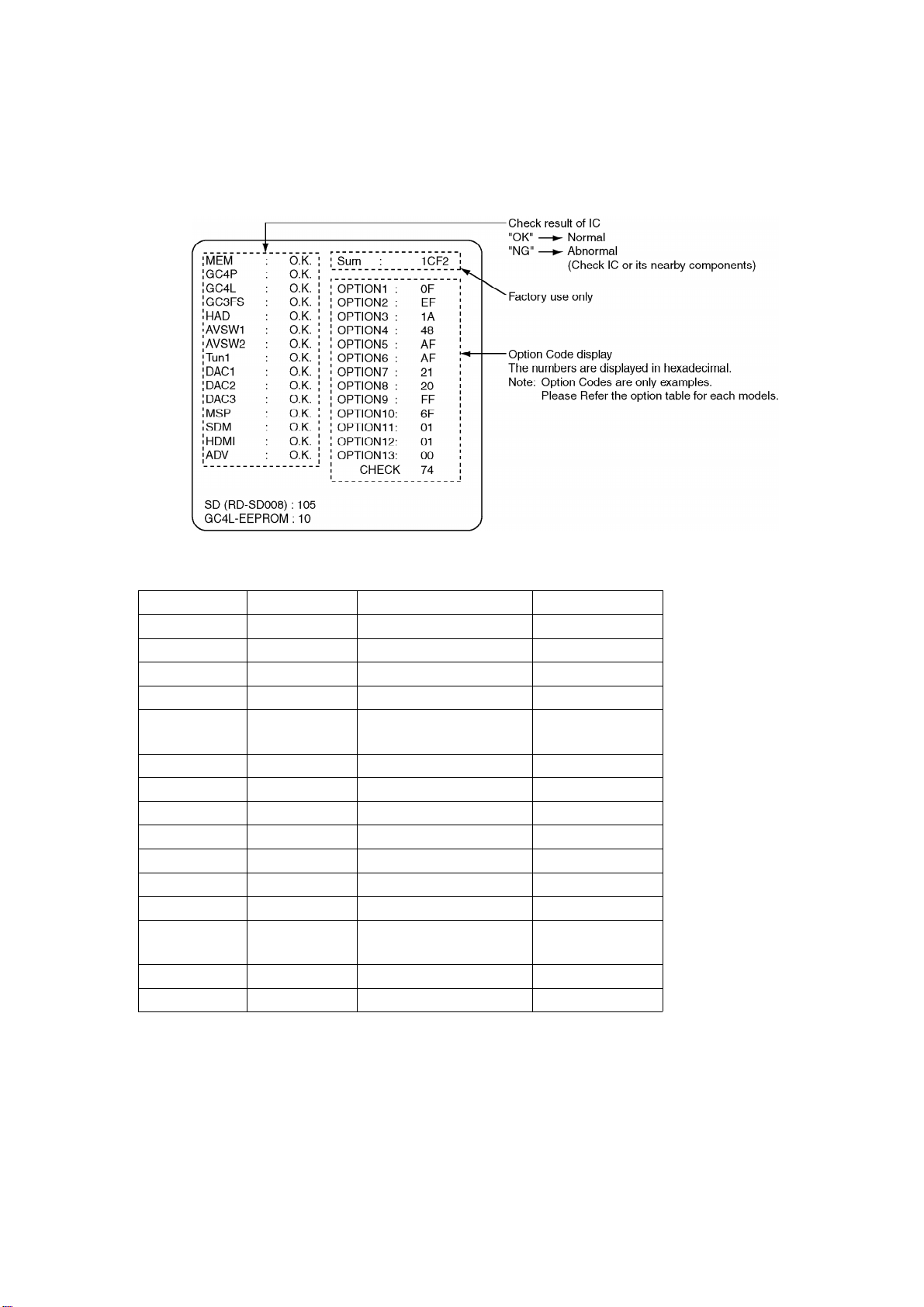

4.1. SelfCheck

1. Self-Check isused to automaticallycheck the bus lines and

hexadecimal code of the TV set.

2. To get into the Self-Check mode press the Down( )button on

the customer controlsat the front of the set, at the same time

pressing the MENU button on the remote control, and the screen

will show :

3. Turn off the TV to reset JPEG Viewer mode after SELF-CHECK.

If the CCU ports have beencheckedand found tobe incorrect ornot locatedthen“--” will

appearinplace of “O.K.”.

Display Ref. No. Description P.C.B.

MEM IC1107 Memory DG-Board

GC4P IC4054 Global Core Processor DG-Board

GC4L IC4057 Global Core DG-Board

GC3FS IC4013 Global Core forSub DG-Board

HAD IC4012 OSD RGB A/D

Converter DG-Board

AVSW1 IC3005 AV SwitchVIDEO H-Board

AVSW2 IC2105 AV SwitchAUDIO H-Board

Tun1 TU3201 Tuner H-Board

DAC1 IC1106 DAC control 1 DG-Board

DAC2 IC1116 DAC control 2 DG-Board

DAC3 IC3006 DAC control 3 H-Board

MSP IC2106 StereoDecoder H-Board

SDM SD-Module MPEG4/PHOTO view,

SD recording SD-Module

HDMI IC5003 HDMI I/FReceiver DV-Board

ADV IC4005 A/D Converter DG-Board

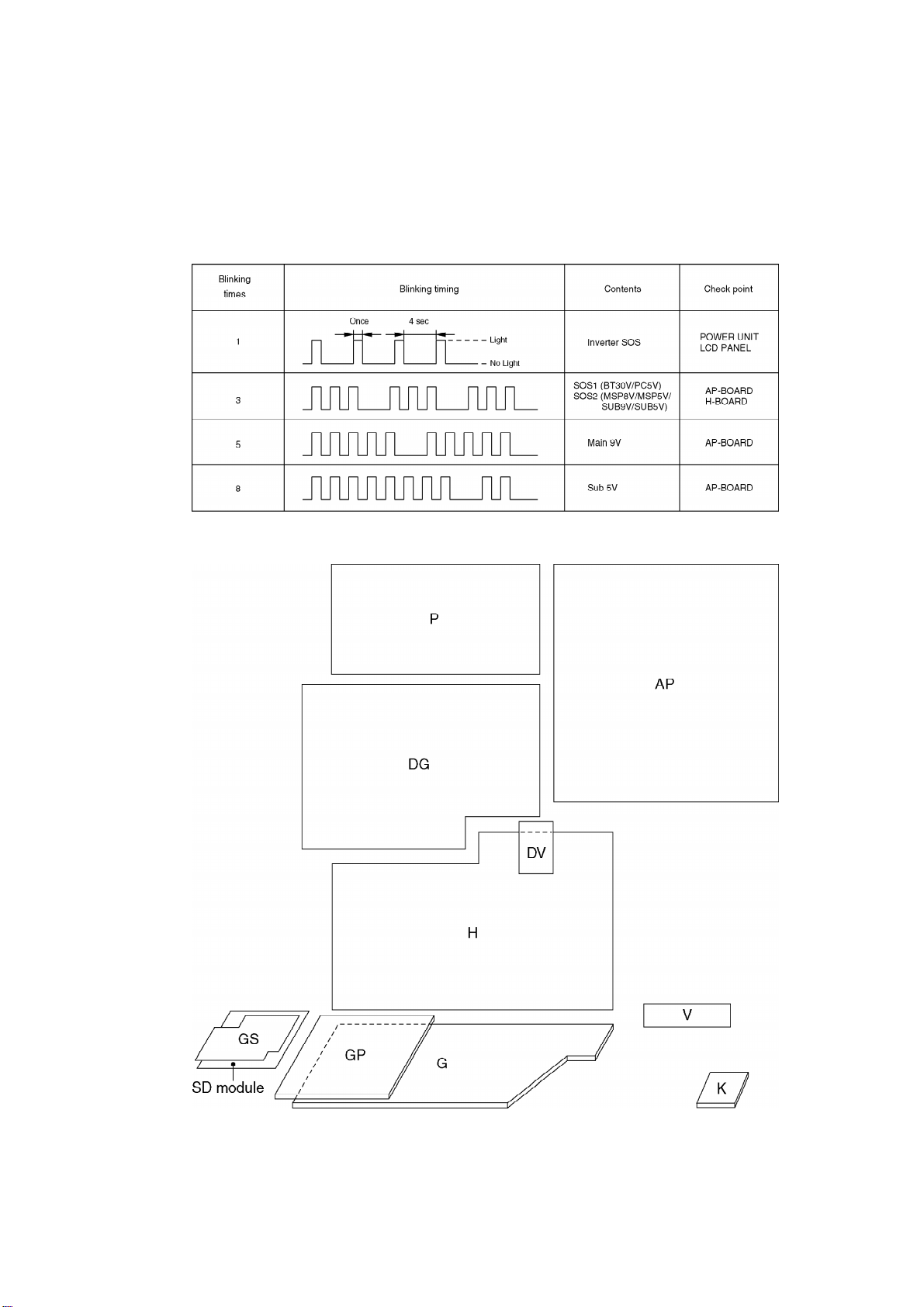

4.2. Power LEDBlinking timing chart

1. Subject

Information of LEDFlashing timing chart.

2. Contents

When an abonormalityhas occurred the unit, the protection

circuitoperates and reset to the stand bymode. Atthistime, the

defective block can be identified bythe number of blinking of the

Power LEDon the front panel of the unit.

5. Chassis Board Layout

BoardName Function

AP-Board Regulator

DG-Board Global Core, A/D Converter, MCU

H-Board AV connector, TV Tuner, AV Switch

K-Board PowerSwitch

G-Board Front AV & HP connector, KeySwitch

PowerUnit DC PowerSupply

None service able.

PowerUnit shouldbe exchange forservice.

V-Board Remote Receiver, LED

DV-Board HDMI interface

GP-Board PC Cardslot, PC Cardinterface

GS-Board SD Cardslot, SD CardInterface

SD Module MPEG/JPEG interface

None service able.

SD Module shouldbe exchange forservice.

6. Before servicing

6.1. Kind and location of the flexiblecableand bridge cable

Ref No. Connectertype Pins Location Opposite Ref No.

G1 - 10pin G-Board V1

G4 - 30pin G-Board H4

G5 - 20pin G-Board H5

G10 - 4pin G-Board speakerbox L

G11 - 5pin G-Board speakerbox R

GP6 - 3pin GP-Board H6

GP10 Flexible type 50pin GP-Board SD Module

GS3 Flexible type 40pin GS-Board SD Module

GS8 - 7pin GS-Board H8

GS9 - 15pin GS-Board H9

AP1 Bridge Type 23pin AP-Board H1

AP2 - 7pin AP-Board P2 (CN101)

AP3 Bridge Type 11pin AP-Board P3 (CN201)

AP4 Bridge Type 22pin AP-Board DG4

AP5 Bridge Type 22pin AP-Board DG5

AP6 - 3pin AP-Board K6

AP10 - 2pin AP-Board AC cord

DG2 Flexible type 40pin DG-Board H2

DG3 Flexible type 40pin DG-Board H3

DG4 Bridge type 23pin DG-Board AP4

DG5 Bridge type 23pin DG-Board AP5

Ref No. Connectertype Pins Location Opposite Ref No.

DG6 - 8pin DG-Board CN3 (Inverter)

DG7 - 32pin DG-Board LCD Panel

DG8 - 7pin DG-Board LCD Panel

DG10 - 60pin DG-Board DV15

DV15 - 60pin DV-Board DG10

H1 Bridge type 23pin H-Board AP1

H2 Flexible type 40pin H-Board DG2

H3 Flexible type 40pin H-Board DG3

H4 - 30pin H-Board G4

H5 - 20pin H-Board G5

H6 - 3pin H-Board GP6

H8 - 7pin H-Board GS8

H9 - 15pin H-Board GS9

K6 - 3pin K-Board AP6

(CN203) - 8pin P-Board CN5 (Inverter)

(CN101) - 7pin P-Board AP2

(CN201) Bridge Type 11pin P-Board AP3

(CN202) - 8pin P-Board CN4 (Inverter)

V1 - 10pin V-Board G1

Otros manuales para TX-32LX500M

Este manual sirve para los siguientes modelos

Otros manuales de Televisor LCD de Panasonic

Panasonic

Panasonic Viera TC-P50ST60 Manual de usuario

Panasonic

Panasonic VIERA TX-42CSR610 Manual de usuario

Panasonic

Panasonic Viera TX-L24C3E Manual de usuario

Panasonic

Panasonic Viera TX-L32E5B Manual de usuario

Panasonic

Panasonic TX-L47ET60E Manual de usuario

Panasonic

Panasonic VIERA TC-32LX44 Manual de usuario

Panasonic

Panasonic TC-20LA2 Manual de usuario

Panasonic

Panasonic VIERA TH-L32DT30A Manual de usuario

Panasonic

Panasonic TC-L4DT50 Manual de instrucciones

Panasonic

Panasonic TC-60AS650U Manual de usuario

Panasonic

Panasonic Viera TH-L19X10ZK Manual de usuario

Panasonic

Panasonic TX-26LX62FA Manual de usuario

Panasonic

Panasonic TC-L32X1 - 31.5" LCD TV Manual de usuario

Panasonic

Panasonic TXL37V20B Manual de usuario

Panasonic

Panasonic Viera TX-20LA70P Manual de usuario

Panasonic

Panasonic VIERA TH-L42S20K Manual de usuario

Panasonic

Panasonic Viera TH-60CX700A Manual de usuario

Panasonic

Panasonic TC-L42U12 - 42" LCD TV Guía de configuración

Panasonic

Panasonic TH-L32C10 Manual de usuario

Panasonic

Panasonic Viera TC-L60E55 Manual de usuario

Panasonic

Panasonic Viera TX-F32LXD84 Manual de usuario

Panasonic

Panasonic Viera TX-39AS650E Manual de usuario

Panasonic

Panasonic Viera TX-L32UX3E Manual de usuario

Panasonic

Panasonic TC-L42S20BL Manual de usuario

Manuales populares de Televisor LCD de otras marcas

LG 32LC4R* Manual de usuario

ViewSonic

ViewSonic N4200w-1 VS10945-1M Manual de usuario

Salora

Salora 22LED1600 Manual de usuario

Samsung

Samsung LA32E420 Guía

Dell

Dell W1900 19 Instrucciones de uso

Samsung

Samsung LN40C670M1F Manual de usuario

Samsung

Samsung Series 4+ Manual de usuario

Samsung

Samsung 5 Series Manual de usuario

Grundig

Grundig 40 VLE 8230 BP Manual de usuario

Philips

Philips 43PFL4901/F7 Manual de usuario

Sony

Sony Bravia XBR-43X830C Manual de usuario

LG 32LS350 Manual de usuario

VIORE

VIORE LED32VF60 Manual de usuario

Toshiba

Toshiba Regza 42HL167 Manual de usuario

JVC

JVC LT-32A220 Manual de usuario

Philips

Philips 20TA1000/93 Manual de usuario

Philips

Philips 32PFL3158T/12 Manual de usuario

Sony

Sony Bravia KDL-V32XBR2 Manual de usuario
