Panasonic EYFLA7A Manual de usuario

Unauthorized copying and distribution is a violation

of law.

Order Number PTD1902E59AE

Cordless Impact Driver / Cordless Impact Wrench

Model No. EYFLA7A

Model No. EYFLA8A

Model No. EYFLA8P

Europe

TABLE OF CONTENTS

PAGE PAGE

1 Warning -------------------------------------------------------------- 2

2 Specifications ----------------------------------------------------- 2

3 Trial Operation (after checking Troubleshooting

Guide) ----------------------------------------------------------------3

4 Disassembly and Assembly Instructions ---------------- 3

5 Exploded View and Replacement Parts List ------------ 5

Please file and use this manual together with the service manual for Model No. EYFLA9C, EYFMA2C,

EYFLA9P, EYFMA2P, order No PTD1902E58CE.

1Warning

Caution:

• Pb free solder has a higher melting point that standard solder; Typicall the melting point is 50 - 70°F (30 - 40°C) higher. Please

use a soldering iron with temperature control and adjust it to 750 ± 20°F (400 ± 10°C). In case of using high temperature solder-

ing iron, please be careful not to heat too long.

• Pb free solder will tend to splash when heated too high (about 1100°F / 600°C).

2 Specifications

3 Trial Operation (after checking Troubleshooting Guide)

4 Disassembly and Assembly Instructions

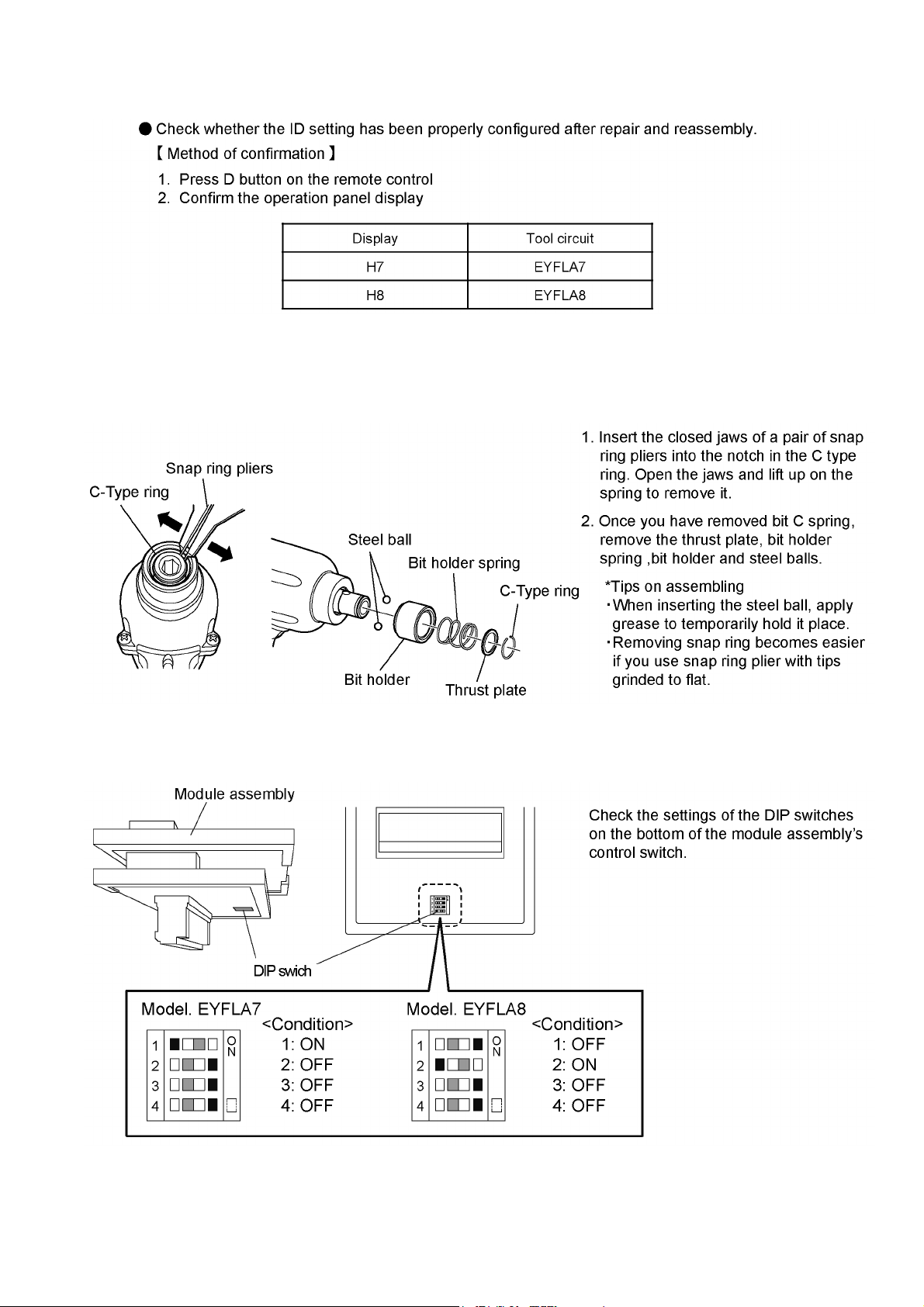

4.1. How to remove the C-Type ring (only for EYFLA7A / EYFLA8A).

4.2. Checking and setting the Module assembly's DIP switches.

4.3. How to remove the Driving shaft assembly.

4.4. Wiring and Assembly Points.

Model No. : EYFLA7A Exploded View

5 Exploded View and Replacement Parts List

Model No. : EYFLA7A Parts List

Change Safety Ref.

No. Part No. Part Name & Description Q'ty Remarks

EYFLA7A

1 WEY6507K1166 C-TYPE RING 1

2 WEY6507L0856 THRUST PLATE 1

3 WEY6507L0196 BIT HOLDER SPRING 1

4 WEYFLA1AK379 BIT HOLDER 1

5 WEY6507L6976 STEEL BALL 2 (2PCS/PK)

6 WEYFMA2CK607 DPT SEMS TAPPING SCREW 4 (5PCS/PK)

7 WEYFLA7AS457 SHAFT COVER ASSEMBLY 1

8 WEYFLA7AS047 THRUST PLATE 1

9 WEYFLA7AS127 ANVIL 1

10 WEYFME1CK967 TAPPING SCREW 9 (5PCS/PK)

11 WEYFLA7AK371 HOUSING AB SET 1

12 WEYFPA1JL377 TIGHTENING CONFIRMATION LAMP COVER 1

13 WEYFLA1AL337 DISCERNMENT PLATE 1

14 WEYFLA1AK327 F/R SELECTOR HANDLE 1

15 WEYFGA1NK337 OPERATION PLATE ASSEMBLY 1

16 WEYFLA7AS157 DRIVING SHAFT ASSMBLY 1

17 WEYFMA1JL087 THRUST PLATE 1

18 WEY7201L6966 STEEL BALL 2 (2PCS/PK)

19 WEYFLA7AS177 HAMMER 1

20 WEY7205L6957 STEEL BALL 29 (29PCS/PK)

21 WEYFLA1AL087 THRUST PLATE 1

22 WEYFLA1AL017 HAMMER SPRING 1

23 WEYFLA1AL097 THRUST PLATE 1

24 WEYFLA1AL037 CUSHION RUBBER 1

25 WEYFLA1AL137 SPRING FIXING PLATE 1

26 WEY6506L1346 PIN 2 (2PCS/PK)

27 WEY2602B1357 PLANET GEAR 2 (2PCS/PK)

28 WEYFLA3JL137 DRIVING SHAFT 1

29 WEYFLA1AL007 MOTOR MOUNTING PLATE ASSEMBLY 1

30 WEYFLA1AK207 SWITCH ASSEMBLY 1

31 WEYFMA2CL207 MODULE ASSEMBLY 1

32 WEYFGA1NW287 CONNECTOR 1

33 WEYFLA7AL107 MOTOR ASSEMBLY 1

34 WEYFLA1AL297 HARNESS 1

35 WEYFMA2CL287 SENSOR LED CIRCUIT ASSEMBLY 1

36 WEY7540L2157 BATTERY TERMINAL BLOCK 1

37 WEYFME1CL267 BUZZER BOARD 1

- WEY001T8957 FLOIL GREASE 1

- WEY002X8977 GREASE (DOUBREX) 1

Model No. : EYFLA8A Exploded View

Model No. : EYFLA8A Parts List

Change Safety Ref.

No. Part No. Part Name & Description Q'ty Remarks

EYFLA8A

1 WEY6507K1166 C-TYPE RING 1

2 WEY6507L0856 THRUST PLATE 1

3 WEY6507L0196 BIT HOLDER SPRING 1

4 WEYFLA1AK379 BIT HOLDER 1

5 WEY6507L6976 STEEL BALL 2 (2PCS/PK)

6 WEYFMA2CK607 DPT SEMS TAPPING SCREW 4 (5PCS/PK)

7 WEYFLA7AS457 SHAFT COVER ASSEMBLY 1

8 WEYFLA7AS047 THRUST PLATE 1

9 WEYFLA7AS127 ANVIL 1

10 WEYFME1CK967 TAPPING SCREW 9 (5PCS/PK)

11 WEYFLA8AK371 HOUSING AB SET 1

12 WEYFPA1JL377 TIGHTENING CONFIRMATION LAMP COVER 1

13 WEYFLA2AL337 DISCERNMENT PLATE 1

14 WEYFLA1AK327 F/R SELECTOR HANDLE 1

15 WEYFGA1NK337 OPERATION PLATE ASSEMBLY 1

16 WEYFLA8AS157 DRIVING SHAFT ASSMBLY 1

17 WEYFMA1JL087 THRUST PLATE 1

18 WEY7201L6966 STEEL BALL 2 (2PCS/PK)

19 WEYFLA8AS177 HAMMER 1

20 WEY7205L6957 STEEL BALL 29 (29PCS/PK)

21 WEYFLA1AL087 THRUST PLATE 1

22 WEYFLA8AL067 HAMMER SPRING 1

23 WEYFLA1AL097 THRUST PLATE 1

24 WEYFLA1AL037 CUSHION RUBBER 1

25 WEYFLA1AL137 SPRING FIXING PLATE 1

26 WEY6506L1346 PIN 2 (2PCS/PK)

27 WEY2602B1357 PLANET GEAR 2 (2PCS/PK)

28 WEYFLA3JL137 DRIVING SHAFT 1

29 WEYFLA1AL007 MOTOR MOUNTING PLATE ASSEMBLY 1

30 WEYFLA1AK207 SWITCH ASSEMBLY 1

31 WEYFMA2CL207 MODULE ASSEMBLY 1

32 WEYFGA1NW287 CONNECTOR 1

33 WEYFLA7AL107 MOTOR ASSEMBLY 1

34 WEYFLA1AL297 HARNESS 1

35 WEYFMA2CL287 SENSOR LED CIRCUIT ASSEMBLY 1

36 WEY7540L2157 BATTERY TERMINAL BLOCK 1

37 WEYFME1CL267 BUZZER BOARD 1

- WEY001T8957 FLOIL GREASE 1

- WEY002X8977 GREASE (DOUBREX) 1

Model No. : EYFLA8P Exploded View

Model No. : EYFLA8P Parts List

Change Safety Ref.

No. Part No. Part Name & Description Q'ty Remarks

EYFLA8P

1 WEYFMA2CK607 DPT SEMS TAPPING SCREW 4 (5PCS/PK)

2 WEYFLA7AS457 SHAFT COVER ASSEMBLY 1

3 WEYFLA7AS047 THRUST PLATE 1

4 WEYFLA8PS127 ANVIL BLOCK 1

5 WEYFME1CK967 TAPPING SCREW 9 (5PCS/PK)

6 WEYFLA8PK379 HOUSING AB SET 1

7 WEYFPA1JL377 TIGHTENING CONFIRMATION LAMP COVER 1

8 WEYFLA2AL337 DISCERNMENT PLATE 1

9 WEYFLA1AK327 F/R SELECTOR HANDLE 1

10 WEYFGA1NK337 OPERATION PLATE ASSEMBLY 1

11 WEYFLA8AS157 DRIVING SHAFT ASSMBLY 1

12 WEYFMA1JL087 THRUST PLATE 1

13 WEY7201L6966 STEEL BALL 2 (2PCS/PK)

14 WEYFLA8AS177 HAMMER 1

15 WEY7205L6957 STEEL BALL 29 (29PCS/PK)

16 WEYFLA1AL087 THRUST PLATE 1

17 WEYFLA8AL067 HAMMER SPRING 1

18 WEYFLA1AL097 THRUST PLATE 1

19 WEYFLA1AL037 CUSHION RUBBER 1

20 WEYFLA1AL137 SPRING FIXING PLATE 1

21 WEY6506L1346 PIN 2 (2PCS/PK)

22 WEY6504L1357 PLANET GEAR 2 (2PCS/PK)

23 WEYFLA3JL137 DRIVING SHAFT 1

24 WEYFLA1AL007 MOTOR MOUNTING PLATE ASSEMBLY 1

25 WEYFLA1AK207 SWITCH ASSEMBLY 1

26 WEYFMA2CL207 MODULE ASSEMBLY 1

27 WEYFGA1NW287 CONNECTOR 1

28 WEYFLA7AL107 MOTOR ASSEMBLY 1

29 WEYFLA1AL297 HARNESS 1

30 WEYFMA2CL287 SENSOR LED CIRCUIT ASSEMBLY 1

31 WEY7540L2157 BATTERY TERMINAL BLOCK 1

32 WEYFME1CL267 BUZZER BOARD 1

- WEY001T8957 FLOIL GREASE 1

- WEY002X8977 GREASE (DOUBREX) 1
