Panasonic EY75A1 Manual de usuario

distribution is a violation of law.

Order Number PTD1211X10CE

Cordless Impact Driver

Model No. EY75A1

Europe

Oceania

TABLE OF CONTENTS

PAGE PAGE

1 Warning -------------------------------------------------------------- 2

2 Specifications ----------------------------------------------------- 2

3 Troubleshooting Guide ----------------------------------------- 3

4 Disassembly and Assembly Instructions ---------------- 7

5 Wiring Connection Diagram ---------------------------------12

6 Schematic Diagram ---------------------------------------------12

7 Exploded View and Replacement Parts List -----------13

1Warning

Caution:

• Pb free solder has a higher melting point that standard solder; Typically the melting point is 50 - 70°F (30 - 40°C) higher. Please

use a soldering iron with temperature control and adjust it to 750 ± 20°F (400 ± 10°C). In case of using high temperature solder-

ing iron, please be careful not to heat too long.

• Pb free solder will tend to splash when heated too high (about 1100°F / 600°C).

2 Specifications

3 Troubleshooting Guide

3.1. Troubleshooting Guide (Refer to Wiring Connection Diagram)

3.2. Trial Operation (after checking Troubleshooting Guide)

3.2.1. Assembly

• Confirm if there is no gap between housing A and B by pinching lead wires.

• There is no dust or deformation on battery terminals.

• Confirm if there is no dirt when repairing.

3.2.2. Operation

• Check whether the tool operates properly in both the forward and reveres directions.

• Check whether the LED light turns on and off each time the LED light on/off button is depressed.

• Check whether the tool speed increases continuously as the trigger is gradually engaged.

• Check whether the tool speed is normal after repair and reassembly.

High mode: 0 to 2,500 rpm

Medium mode: 0 to 1,400 rpm

Low mode: 0 to 1,000 rpm

• Check whether the bit holder slides properly. Insert a bit and verify that it cannot be removed by lightly pulling on it.

• Check whether impact operation functions properly.

For an easy test of impact operation, check whether you can drill a universal screw (φ4.5X75mm) into a substrate Douglas fir

within about 5 seconds.

3.2.3. Integrity

• With the switch activated, shake the tool back and forth and up and down and verify that its sound does not change excessively.

• Check for the presence of any dirt or foreign matter from the repair process on the outside of the tool.

4 Disassembly and Assembly Instructions

*To assemble the tool, start with 4-6 and proceed to 4-1

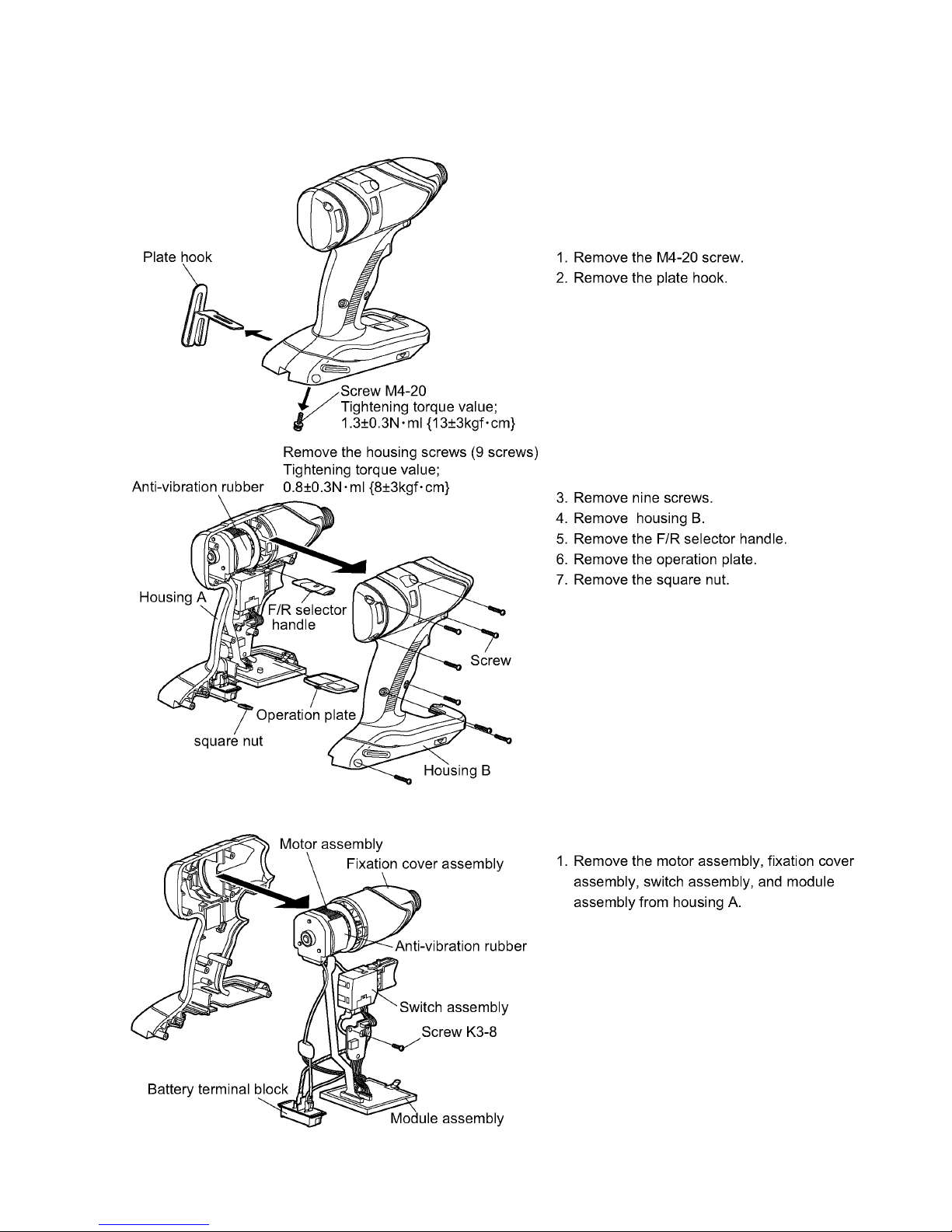

4.1. How to remove the housing

4.2. Removing the Assemblies

4.3. Removing the Motor Mounting Plate, Driving Shaft Assembly, and Fixa-

tion Cover Assembly from the Motor Assembly

4.4. Removing the Fixation assembly, Driving shaft assembly, and Motor

Mounting Plate

4.5. Removing the Motor Assembly, Switch Assembly, and Module assembly

4.6. Precautions When Assembling the Motor Assembly, Switch Assembly,

and Module Assembly
