Installation Manual

Additional Digital Cordless Handset

Model No. KX-TGMA44

KX-TGMA45

Thank you for purchasing a Panasonic product.

You must register this handset with your base unit before it can be used. This

installation manual describes only the steps needed to register and begin using

the handset. Please read the base unit’s operating instructions for further details.

Please read this installation manual before using the unit and save it for future

reference.

For assistance, visit our Web site: http://shop.panasonic.com/support

for customers in the U.S.A.

Printed in Malaysia PNQX7795YA PP0316KT1066

TGMA44_45(en)_0606_ver101.pdf 1 2016/06/06 16:11:27

Installation

Accessory information ...............3

Important Information

For your safety ...........................4

Important safety instructions ......5

Other information .......................6

Getting Started

Setting up ..................................7

Controls ...................................10

Accessibility

Accessibility .............................14

Tone control .............................14

Volume booster .......................15

Speech booster (making your

voice louder) ............................17

Key tones .................................18

Message indicator ...................18

Using assistive listening

devices ....................................19

One-touch ringer off .................20

Memory dial .............................20

Appendix

FCC and other information ......22

Customer services ...................25

Limited Warranty (ONLY FOR

U.S.A.) .....................................26

Table of Contents

TGMA44_45(en)_0606_ver101.pdf 2 2016/06/06 16:11:27

Accessory information

Supplied accessories

Accessory item/Part number Quantity

Charger*11

AC adaptor*2/PNLV226X 1

Rechargeable batteries*3/HHR-4DPA 2

Handset cover*4, *5 1

Belt clip*61

*1 PNLC1071ZW (White), PNLC1071ZS (Silver), PNLC1071ZB (Black)

*2 The AC adaptor comes connected to the charger at the of shipment.

*3 The supplied rechargeable batteries in the handset are installed with yellow

insulation sheet inserted between battery ends and terminals at the time of

shipment. Remove the yellow insulation sheet before use.

*4 The handset cover comes attached to the handset at the time of shipment.

*5 PNYNTGMA44WR (White), PNYNTGMA44BR (Black)

*6 PNKE2076Z1 (White), PNKE2076Z2 (Black)

Note:

RPlease read the base unit’s operating instructions for additional/replacement

accessories.

– Optional headsets: KX-TCA60, KX-TCA400, KX-TCA430

For assistance, please visit http://shop.panasonic.com/support 3

Installation

TGMA44_45(en)_0606_ver101.pdf 3 2016/06/06 16:11:27

For your safety

To prevent severe injury and loss of life/property, read this section

carefully before using the product to ensure proper and safe operation of

your product.

WARNING

Power connection

RCompletely insert the AC adaptor/power plug into the power outlet.

Failure to do so may cause electric shock and/or excessive heat

resulting in a fire.

RRegularly remove any dust, etc. from the AC adaptor/power plug by

pulling it from the power outlet, then wiping with a dry cloth.

Accumulated dust may cause an insulation defect from moisture, etc.

resulting in a fire.

RUnplug the product from power outlets if it emits smoke, an abnormal

smell, or makes an unusual noise. These conditions can cause fire or

electric shock. Confirm that smoke has stopped emitting and contact

us at

www.panasonic.com/contactinfo

Installation

RTo prevent the risk of fire or electrical shock, do not expose the

product to rain or any type of moisture.

RDo not place or use this product near automatically controlled devices

such as automatic doors and fire alarms. Radio waves emitted from

this product may cause such devices to malfunction resulting in an

accident.

CAUTION

Installation and location

RThe AC adaptor is used as the main disconnect device. Ensure that

the AC outlet is installed near the product and is easily accessible.

4For assistance, please visit http://shop.panasonic.com/support

Important Information

TGMA44_45(en)_0606_ver101.pdf 4 2016/06/06 16:11:27

Ni-MH rechargeable batteries (supplied)

RWe recommend using the supplied batteries or additional/replacement

batteries noted on page 3 for replacement battery information. USE

ONLY rechargeable Ni-MH batteries AAA (R03) size.

RDo not mix old and new batteries.

RDo not open or mutilate the batteries. Released electrolyte from the

batteries is corrosive and may cause burns or injury to the eyes or

skin. The electrolyte is toxic and may be harmful if swallowed.

RExercise care when handling the batteries. Do not allow conductive

materials such as rings, bracelets, or keys to touch the batteries,

otherwise a short circuit may cause the batteries and/or the

conductive material to overheat and cause burns.

RCharge the batteries provided with or identified for use with this

product only, in accordance with the instructions and limitations

specified in this manual.

ROnly use a compatible base unit (or charger) to charge the batteries.

Do not tamper with the base unit (or charger). Failure to follow these

instructions may cause the batteries to swell or explode.

Attention:

A nickel metal hydride battery that is

recyclable powers the product you

have purchased.

Please call 1-800-8-BATTERY

(1-800-822-8837) for information on

how to recycle this battery.

Important safety instructions

When using your product, basic safety precautions should always be

followed to reduce the risk of fire, electric shock, and injury to persons,

including the following:

1. Do not use this product near water for example, near a bathtub,

washbowl, kitchen sink, or laundry tub, in a wet basement or near a

swimming pool.

For assistance, please visit http://shop.panasonic.com/support 5

Important Information

TGMA44_45(en)_0606_ver101.pdf 5 2016/06/06 16:11:27

2. Do not use the telephone to report a gas leak in the vicinity of the

leak.

3. Use only the power cord and batteries indicated in this manual. Do

not dispose of batteries in a fire. They may explode. Check with local

codes for possible special disposal instructions.

SAVE THESE INSTRUCTIONS

Other information

ROperating the product near electrical appliances may cause

interference. Move away from the electrical appliances.

CAUTION: Risk of explosion if battery is replaced by an incorrect type.

Dispose of used batteries according to the instructions.

Routine care

RWipe the outer surface of the product with a soft moist cloth.

RDo not use benzine, thinner, or any abrasive powder.

Notice for product disposal, transfer, or return

RThis product can store your private/confidential information. To protect

your privacy/confidentiality, we recommend that you erase information

such as phonebook or caller list entries from the memory before you

dispose of, transfer, or return the product.

6For assistance, please visit http://shop.panasonic.com/support

Important Information

TGMA44_45(en)_0606_ver101.pdf 6 2016/06/06 16:11:27

Setting up

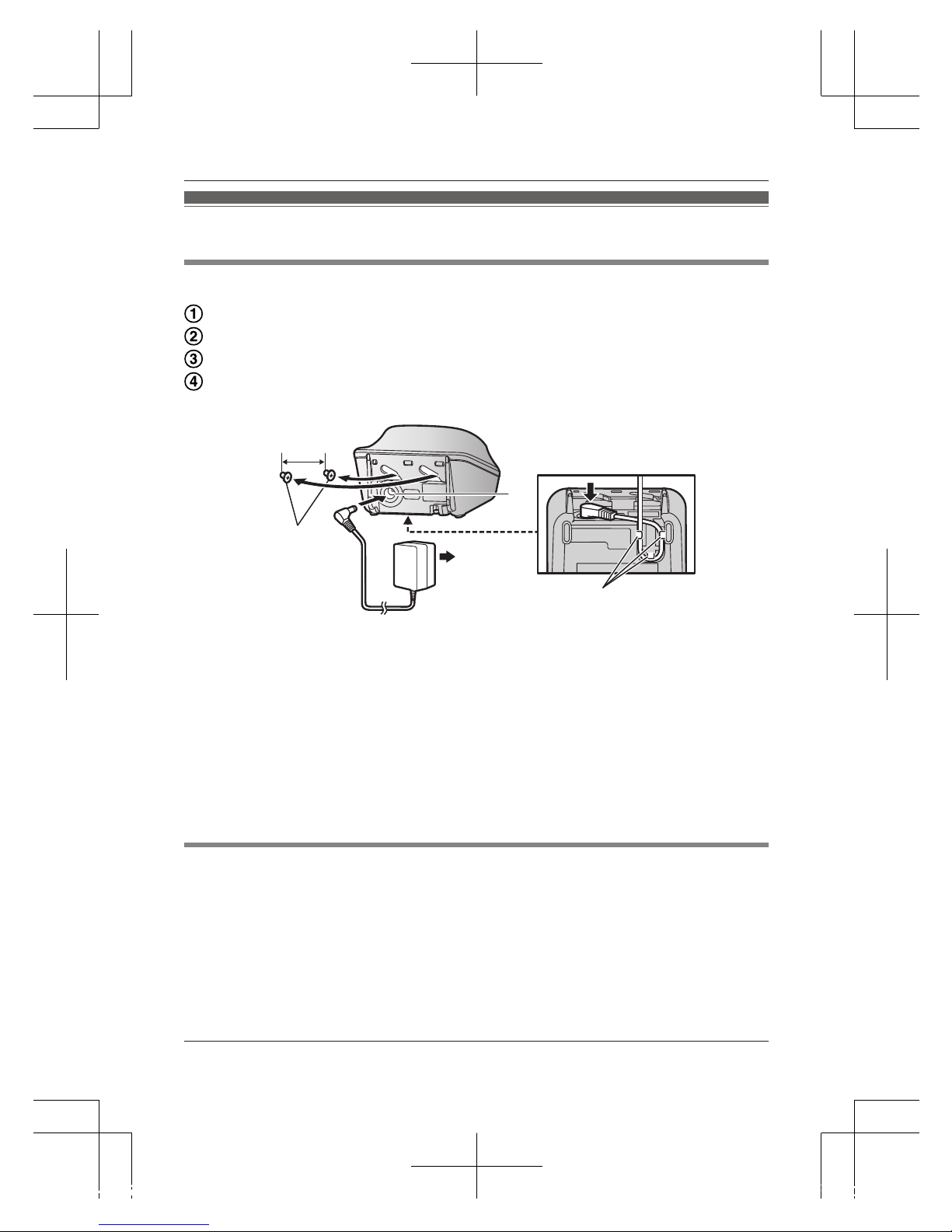

Connections/Wall mounting

Connect the AC adaptor to the unit by pressing the plug firmly.

Fasten the cord by hooking it.

Connect the AC adaptor to the power outlet.

Drive the screws (

) (not supplied) into the wall, if necessary.

25 mm (1 inches)

Note:

RThe AC adaptor comes connected to the charger at the time of

shipment.

RThe AC adaptor must remain connected at all times. (It is normal for

the adaptor to feel warm during use.)

RMake sure that the wall and the fixing method are strong enough to

support the weight of the unit.

Battery charging

Important:

R2 rechargeable Ni-MH batteries are installed in the handset at the time

of shipment.

RBefore initial use: Remove the yellow insulation sheet before using

the handset.

For assistance, please visit http://shop.panasonic.com/support 7

Getting Started

TGMA44_45(en)_0606_ver101.pdf 7 2016/06/06 16:11:27

Charge for about 7 hours.

RConfirm “Charging” is displayed (

RWhen the batteries are fully charged, “Fully charged” is displayed.

Note:

RIf the batteries are fully charged, but the operating time seems to be

shorter, clean the battery ends ( , ) and the charge contacts with a

dry cloth and charge again.

Handset battery level

Icon Battery level

High

Medium

Low

Needs charging.

Empty

Panasonic Ni-MH battery performance

Operation Operating time

In continuous use 13 hours max.*1

Not in use (standby) 9 days max.*1

*1 If eco mode is on and booster is off.

Note:

RActual battery performance depends on usage and ambient

environment.

8For assistance, please visit http://shop.panasonic.com/support

Getting Started

TGMA44_45(en)_0606_ver101.pdf 8 2016/06/06 16:11:27

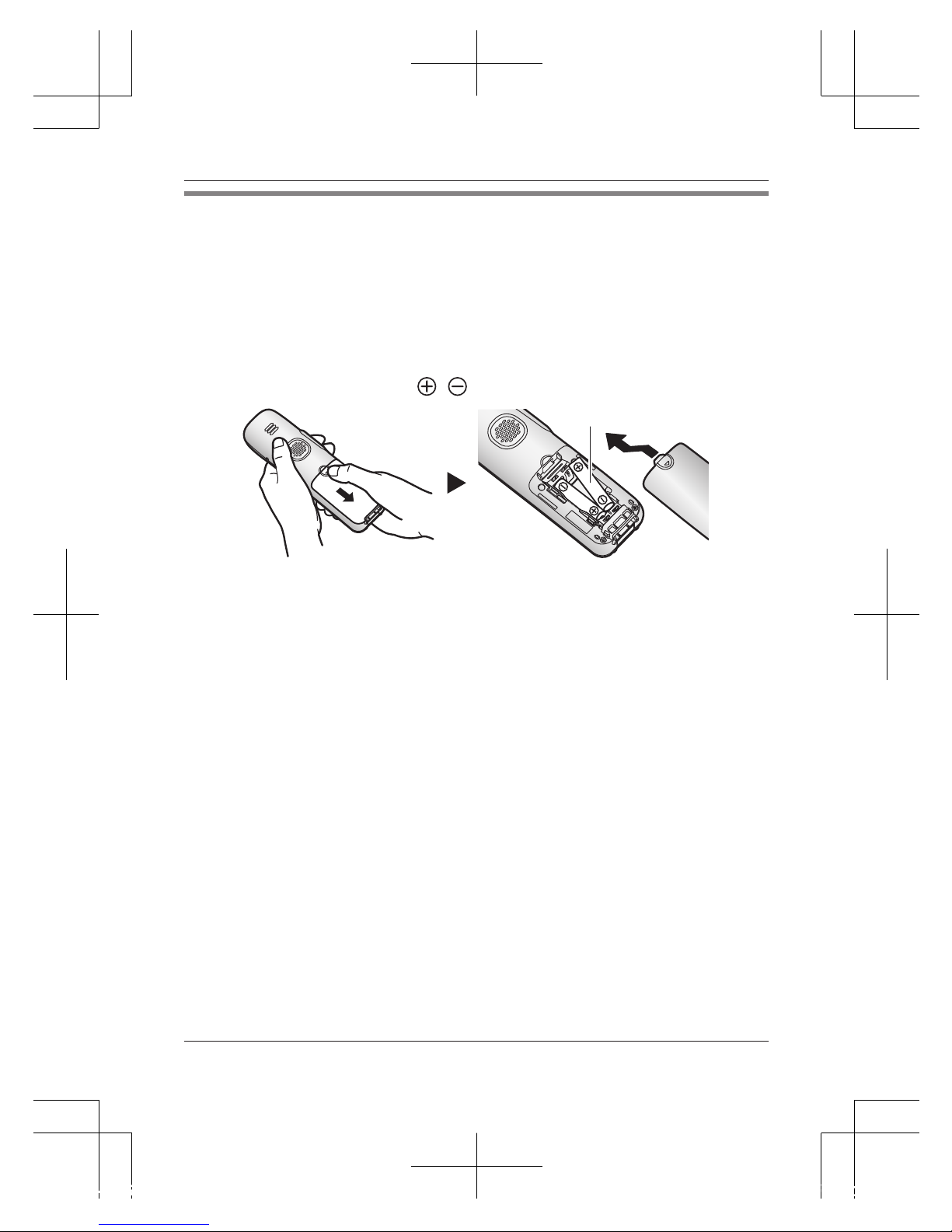

Battery installation (for replacement)

Important:

RUse the supplied rechargeable batteries. For replacement, we

recommend using the Panasonic rechargeable batteries noted on

page 3.

RUSE ONLY rechargeable Ni-MH batteries AAA (R03) size (

RDo NOT use alkaline/manganese/Ni-Cd batteries.

RConfirm correct polarities ( , ).

For assistance, please visit http://shop.panasonic.com/support 9

Getting Started

TGMA44_45(en)_0606_ver101.pdf 9 2016/06/06 16:11:27

Controls

Handset

ABelt clip holes

BSpeaker

CMTONEN (Tone control)

DMjN/MkN (VOL.: Volume

up/down)

EMFLASHN

MTALKN

FDial keypad

*: Temporary tone dialing

0: ( ) Ringer off

GHeadset jack

RThis jack is used to

connect an optional

headset or a

user-supplied neckloop to

the handset. You must set

the “Headset type”

setting to match the type

of device connected.

HMZN (SP-PHONE:

Speakerphone)

10 For assistance, please visit http://shop.panasonic.com/support

Getting Started

TGMA44_45(en)_0606_ver101.pdf 10 2016/06/06 16:11:27

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Auricular de Panasonic

Panasonic

Panasonic TGP600 Manual de usuario

Panasonic

Panasonic KX-TGA661E Manual de usuario

Panasonic

Panasonic KX-TGA641E Manual de usuario

Panasonic

Panasonic KX-TGEA40 Manual de usuario

Panasonic

Panasonic KX-TD7696 Manual de usuario

Panasonic

Panasonic KX-TGA807EX Manual de usuario

Panasonic

Panasonic KX-TGA510M - 5.8GHz Accessory Handset Manual de usuario

Panasonic

Panasonic CY-BT100N Manual de usuario

Panasonic

Panasonic KX-TGWA41 Manual de usuario

Panasonic

Panasonic TGP600 Manual de usuario

Panasonic

Panasonic KX-TGA680 Manual de usuario

Panasonic

Panasonic KX-TG1000N - 2.4GHz Cordless Phone Manual de usuario

Panasonic

Panasonic KX-PRXA15EXB Manual de usuario

Panasonic

Panasonic KX-TGA750EX Manual de usuario

Panasonic

Panasonic KX-TGA510M - 5.8GHz Accessory Handset Instrucciones de funcionamiento e instalación

Panasonic

Panasonic KX-TPA50 Manual de usuario

Panasonic

Panasonic KX-TG5200C Manual de usuario

Panasonic

Panasonic KX-PRSA10 Manual de usuario

Panasonic

Panasonic KX-TGEA40S Manual de usuario

Panasonic

Panasonic KX-TGA850EX Manual de usuario

Panasonic

Panasonic KX-TGFA71 Manual de usuario

Panasonic

Panasonic KX-TGLA40 Manual de usuario

Panasonic

Panasonic KX-HNH100 Manual de usuario

Panasonic

Panasonic KX-TG2700 Manual de usuario

Manuales populares de Auricular de otras marcas

Swissvoice

Swissvoice ePure HD Manual de usuario

Philips

Philips TD6736/BH051P Manual de usuario

ASCOM

ASCOM I62 - Manual de usuario

LG-Ericsson

LG-Ericsson LIP-9010 Manual de usuario

GE 1583 Manual de usuario

iiNet

iiNet Handset Manual de usuario

ASCOM

ASCOM 9p23 Manual de usuario

AT&T

AT&T DLP70110 Manual de usuario

AirCell

AirCell ST 3100 Manual de usuario

Eaton

Eaton HHIR-LCD-PROG Instrucciones de montaje

Mitel

Mitel 112 Manual de usuario

SBC

SBC SBC-381H Manual de usuario

Mitel

Mitel 5602 Manual de usuario

ASCOM

ASCOM d81 Messenger Instrucciones de instalación

SpectraLink

SpectraLink 7522 Manual de usuario

Avaya

Avaya L100 Series Cómo utilizar

ooma

ooma HD2 Handset Manual de usuario

Yealink

Yealink IPW56 Manual de usuario
