Panasonic FV-11VHL2 Manual de usuario

Service Manual

PEG1311048CE

Version:1302

CONTENTS

1. Parts Identification

3. Parts List

2.Wiring Diagram

PAGE

1~7

9~12

Ventilating Fan

SPECIFICATIONS

(North America Market)

Whisper WarmTM

FV-11VHL2

Inch

602

NOTE:

Thermally protected L.

NOTA:

Thermiquementproteges L .

Grille Unit

Lighting Unit

Main Body Section

Frame Section

Ventilation Unit

Circulation

Unit

(3pcs)

(4pcs)

(3pcs)

FV-11VHL2

Inch

602

(1pcs)

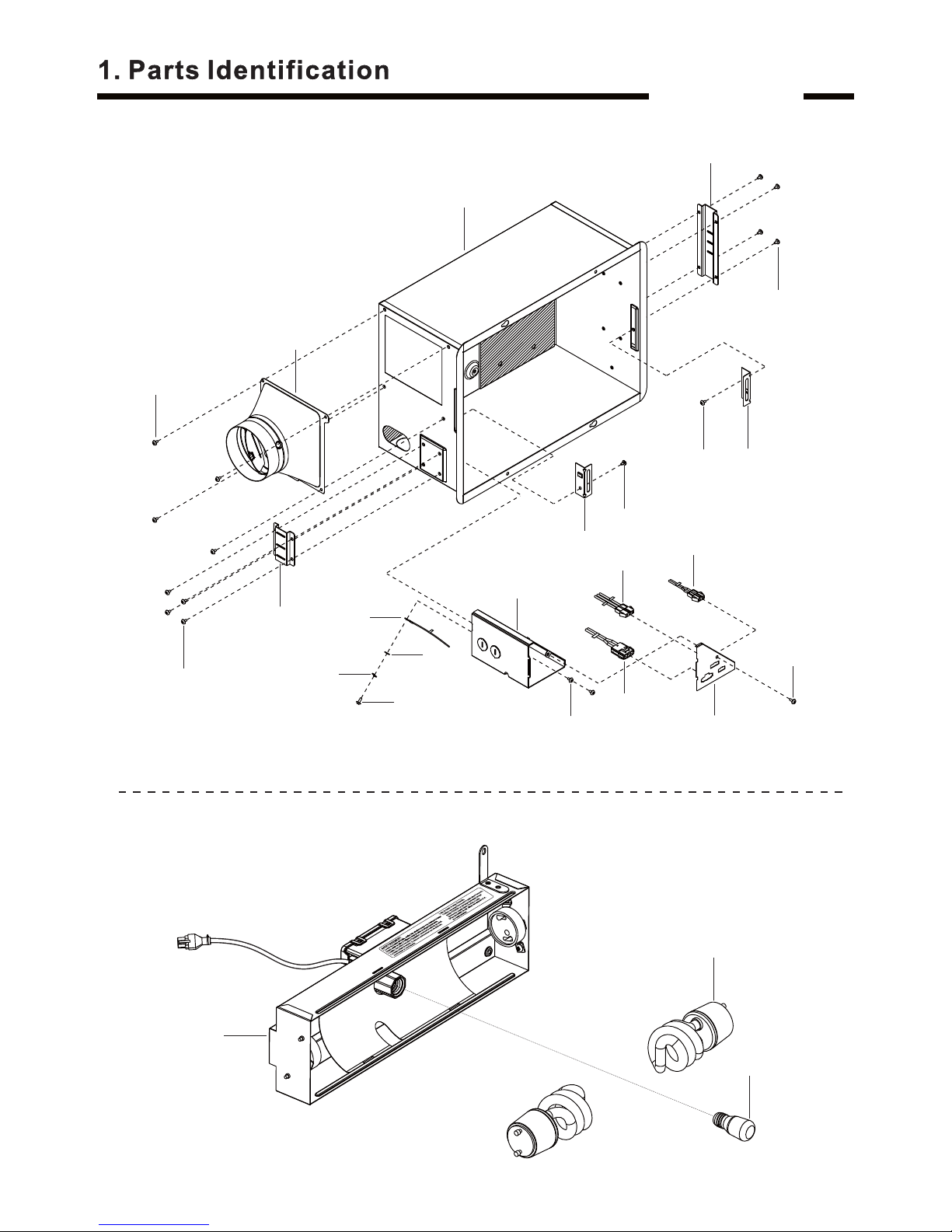

FV-11VHL2

Frame Unit

Lighting Unit

(10)

13 14

(4pcs)

(2pcs)

FV-11VHL2

Circulation Unit

Grille Unit

Heater Section Casing Section

(2pcs)

Casing Section

Heater Section

FV-11VHL2

Heater Unit

(3pcs)

(2pcs)

(38)

(4pcs) D

(2pcs)

Ventilation Unit

FV-11VHL2

Heater Unit

(2pcs)

(4pcs)

(2pcs)

(4pcs) C

(2pcs)

FV-11VHL2

Assembly State

Sponge

S(46) (52)

A&B

If your machine assembled with the old type of Lighting

Assy.,please note below points before you order parts.

Lighting Assy.

(19)

(2pcs)

Fluorescent lamp

1.If the ballast assy. was damaged,please order the new lighting unit(FFV3420077S)

to replace the whole old lighting assy.

2.If it just the fluorescent lamp was damaged,please order no.73(FFV3420007S) as

below photo.

3.The night lamp(FFV420005S) can be common used for old&new type of lighting unit.

FV-11VHL2

Packing & Accessories Section

Spanish/French

Grille Unit

Fan Body

Installation Inst.

English

NOTE:

Thermallyprotected L.

NOTA:

Thermiquementproteges L.

Inch

602

FV-11VHL2

No. Part No. Part Name Q'ty Remark

1 FFV3400115S Grille Unit 1

2 FFV3420077S Lighting Unit 1

3 FFV0930009S Circulation Unit 1

4 FFV6400002S Ventilation Unit 1

5 FFV1600090S Frame Unit 1

A FFV7000011S Machine Screw 1 For Fixing Lighting Unit

B FFV7010042S O.T.Washer 1

C FFV7000063S Truss PC Screw 3 For Fixing Lighting Unit

D FFV7000153S Truss Tap Screw 4 For Fixing Circulation Unit

E FFV7000080S Plus Truss Screw 3 For Fixing Ventilation Unit

F FFV2530003S Tie 1 1

No. Part No. Part Name Q'ty Remark

6 FFV0000083S Adaptor Assy. 1

7 FFV0420025S Bracket Cover 1 1

8 FFV1600091S Frame Assy. 1

9 FFV0420013S Bracket Cover 1

10 FFV3400113S Grille Fix Plate 2

11 FFV2800009S Junction Box Assy. 1

12 FFV2800011S Junction Box Cover 1

13 FFV0900039S Connector Wire L 1

14 FFV0900038S Connector Wire V 1

15 FFV0900026S Connector Wire C 1

16 FFV1300006S Earth Lead Wire 1

A FFV7000011S Machine Screw 1 For Fixing Junction Box Cover

D FFV7000153S Truss Tap Screw 16

G FFV7010002S Plain Washer 1

H FFV7010028S Spring Washer 1

I FFV7000006S Bind Screw 1 For Fixing Earth Lead Wire

No. Part No. Part Name Q'ty Remark

17 FFV3420078S Lighting Assy. 1

18 FFV3420067S Fluorescent Lamp 2 New State

19 FFV3420005S Night Lamp 1

73 FFV3420007S Fluorescent Lamp 2 Old State

Main Body Section

Frame Unit

Lighting Unit
