Panasonic FV-0511VQL1 Manual de usuario

Service Manual

PESMX1710003CE

Version:1701

CONTENTS

1.Specifiaction

2.Parts Identification

3.Wiring Diagram

PAGE

2~4

Ventilating Fan

FV-0511VQL1

4.Parts List 6~7

(North America Market)

WARNING

This service information is designed for experienced repair technicians only and is not designed for use by

the general public. It does not contain warnings or cautions to advise non-technical individuals of potential

dangers in attempting to service a product. Products powered by electricity should be serviced or repaired

only by experienced professional technicians. Any attempt to service or repair the product or products dealt

with in this service information by anyone else could result in serious injury or death.

IMPORTANT SAFETY NOTICE

There are special components used in this equipment which are important for safety. These parts are

marked by in the Schematic Diagrams, Exploded Views and Replacement Parts List. It is essential

that these critical parts should be replaced with manufacturer's specified parts to prevent shock, fire

or other hazards. Do not modify the original design without the manufacturer’s approval.

.Please have a static electricity depletion process in place before handling these components.

. Please use gloves when handling PCB parts during the repair process.

1. Specification

Model No.

Air

direction

Voltage

(V)

Frequency

(Hz)

Duct

diameter

(Inches)

Air volume

at 0.1"WG

(CFM)

Noise

(sones)

Speed

(rpm)

Power

(W)

Weight

lb. (kg)

50 < 0.3 768 4.0

80 < 0.3 867 6.1

110 0.4 1016 11.0

FV-0511VQL1 9.9 (4.5)Exhaust 120 60 4 or 6

HVI Certified performance based on HVI Procedures 915, 916, and 920.

2. Parts Identification

Main Body Section

Main PCB Section

(3pcs)

(5pcs)

(2pcs)

FV-0511VQL1

Main PCB Section

2. Parts Identification

Main Label

(3pcs)

FV-0511VQL1

2. Parts Identification

Packing Section

FV-0511VQL1

Main control circuit

Fan body

LED

Motor

Junction box

AC120V

60Hz

(Power supply)

AC120V

60Hz

(Power supply)

White

Black

Live (Light)

Live (Fan)

Live (N.Light)

Neutral

Ｂlue

White

Black

Green

(Ground wire)

Main control

circuit

BLACK

WHITE

BLUE

GREEN

Wire nuts

Live

(Light)

Live

(N.Light)

Neutral

Junction box

120 VAC

LINE IN

Switch box

Conduit

Ground wire

Live (Fan)

Neutral

Ground wire

4. Parts List

FV-0511VQL1

Main Body Section

No. Part No. Part Name Q'ty Remark

1 FFV11QCL1900A Frame Assembly 1

2 FFV11QCL1910 Adapter Assembly 1

3 FFV11QCL1913 Connector Plate 1

4 FFV11QCL1331 Ground Wire 1

5 FFV11QCL1301A Connector Assy 1

6 FFV11QCL1341A Connector Assy (L) 1

7 FFV11QCL1912A Junction Cover 1

8 FFV11QCL1M20A Motor 1

9 FFV11QCL1904C Motor Support 1

10 FFVM11KSL1802B Blade 1

11 FFV25RG50810A Nut 1

12 FFVS11QCL1906B Casing 1

13 FFV0511VQL1UPCB Main PCB section 1

14 FFV0511VQL1A Grill Assembly 1

15 FFV510SCL070A Led Unit 1

16 FFV0511VQL1S Grill Section 1

A FFVXYM4-E8FJ Screw (M4-8) 1

B FFVXTT4-8FFJ Screw (ST4-8) 5

C FFVXTT4-12GFJ Screw (ST4-12) 8

D FFVXYM4DC8BN Screw (M4-8)w/washer 1

E FFVXSB4-12FJ Screw (M4-12) 2

Main PCB Section

No. Part No. Part Name Q'ty Remark

17 FFV15VQ10991D Main PCB Box 1

18 FFV11QCL1992C Main PCB Cover 1

F FFVXTN3-8GFJ Screw (M3-8) 3

4. Parts List

FV-0511VQL1

Main Label

No. Part No. Part Name Q'ty Remark

19 FFV11QCL1012A CFM Label 1

20 FFV11VQL1050 Name Plate 1

21 FFV08VSL3M082A Caution Label 1 1

22 FFV08VQ3M0082A Caution Label 1

23 FFV08VQL5M051A Warning Label 1

24 FFV11KSL1M020 Holograph Label 1

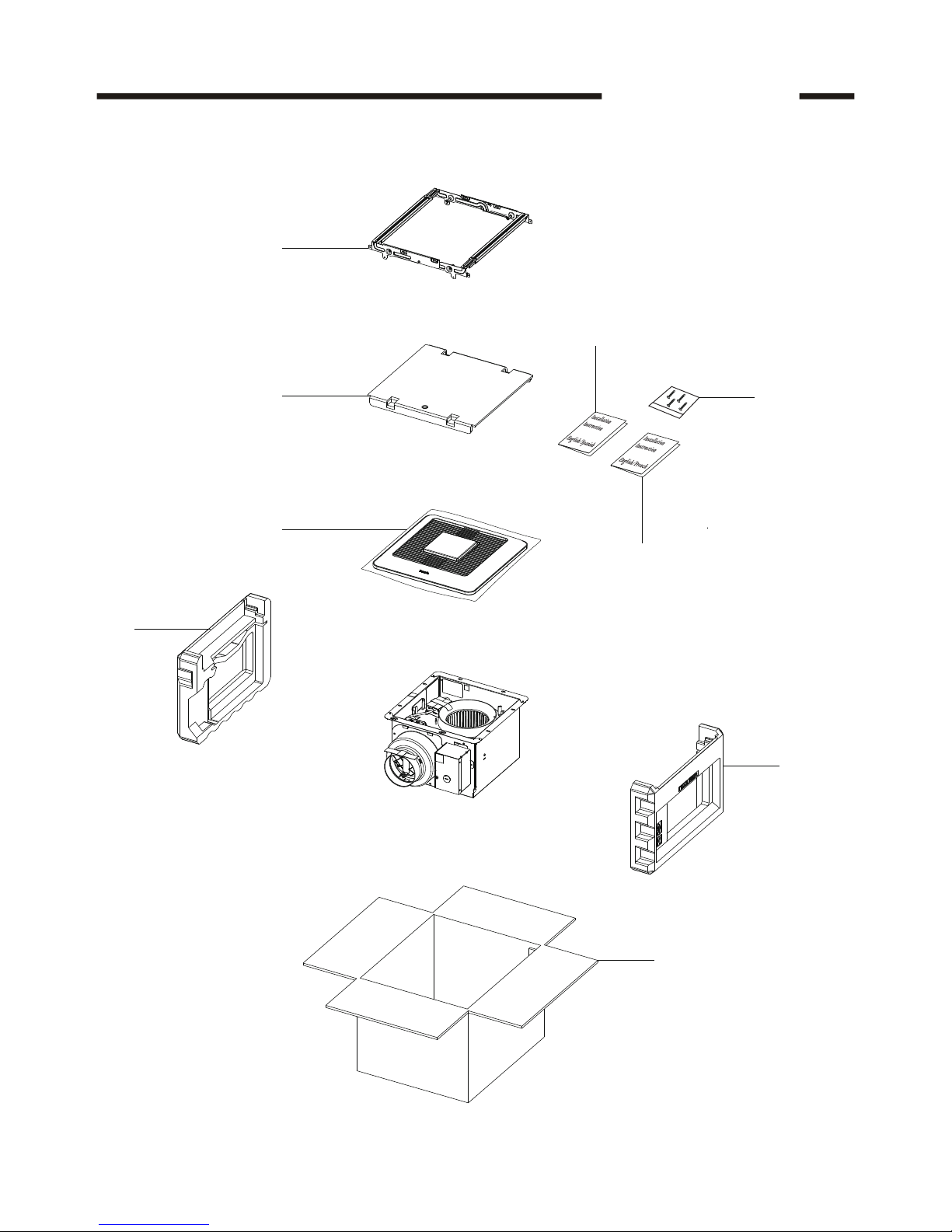

Packing Section

No. Part No. Part Name Q'ty Remark

25 FFV11QCL1920 Hanger Assy 1

26 FFV08VQ3M0137A Grill Pad Assy 1

27 FFV11VK1M0010 Poly Cover 1

28 FFV11QCL1420A Installation Inst 1 English / Spanish For USA Market

29 FFV11QCL1421 Installation Inst 1 English / French For CANADA Market

30 FFV11KSL1M031A Accessory A 1

31 FFV11QCL1891 Left Pad 1

32 FFV11QCL1892 Right Pad 1

33 FFV11VQL1400A Packing Case Assy 1
