Panasonic F-35TMH Manual de usuario

Operating Instructions

DC fan

Contents Page

許淮棋

Safety precautions (Please always

follow these instructions)

Name of parts and how to

assemble

How to use

Cleaning and

storing

Emergency handling

Speciﬁcations

Service center Back cover

Correct use will help to save power

Attached warranty card

Thank you for purchasing Panasonic product.

Before operating this product, please read the instructions carefully,

and save this manual for future use.

To ensure your rights, be sure to ask the dealer to write the date of

purchase and the name of dealer, etc on the warranty card.

Before use Troubleshooting

How to use

Recycling

F-35TMH

35TMH

台灣

Negative ion design has acquired the

Taiwan’s Utility Model patent No. 169699

10 13

15 16

10 13

15 16

Safety precautions Please always follow these instructions

To avoid the possibility of causing injury to users or damage to properties, please follow all the explanations

written below.

The following symbols differentiate the levels of danger and injury that may result if you ignore the

illustrated content and improper use.

WARNING

This symbol indicates improper handling may cause a risk of death or

serious injury.

CAUTION This symbol indicates improper handling may cause a risk of injury or

damage to properties.

The following symbols indicate type of instructions to be observed. (The symbols given below are examples.)

This symbol denotes an action that is PROHIBITED.

This symbol denotes a COMPULSORY action.

WARNING

Never try to take apart, repair or

modify this product.

Taking apart is prohibited

Improper use usually

cause electric shock,

ﬁre and injury.

repairing this product.

Always use with the supplied AC adaptor,

do not exchange to other AC adaptor in

order to avoid damage of the product.

May occur and cause ﬁre or electric shock.

If need to replace AC adaptor, please

contact the service center or dealer.

Please do not turn on the product

unless blade and

guard are installed

properly.

Prohibit

It's easy to

cause injury.

When assembling or storing, do not

press the height adjustment screw

unless blade and guard are installed

properly.

Prohibit

Motor unit and slide pipe may come out

rapidly and cause injury.

Make sure the power plug of AC adaptor

is fully inserted into socket.

May cause ﬁre or electric shock due to

overheat.

Do not use the damage plug or loosen

socket.

Do not immerse the product in

water, or put water on it.

Prohibit

It's easy to cause

short circuit and occur

ﬁre and electric shock.

Contact the service center or dealer for

Please always follow these instructions

WARNING

Do not cut, modify. Do not forcefully bend,

twist or pull. Do not put near heating

appliances, or put anything heavy on.

Do not bundle.

Prohibit Prohibit

If damaged power cord or plugis used,

it's easy to cause electric leakage,

electric shock and occur ﬁre.

Make sure to disconnect the plug when

cleaning and

storing away

the product.

Disconnect the

power plug Improper operating may cause

injury or electric shock.

Do not touch the plug with wet hands.

It may cause electric shock.

Disconnect the plug and wipe it with a dry cloth.

Disconnect the plug unless the produced is been

using.

CAUTION

Do not use the product at

the following locations.

Prohibit Prohibit Prohibit

It may cause health related issue.

Do not touch

It may cause injury.

The product may fall down and

cause injury.

When disconnecting the

plug, please grasp and pull

the plug,

not the cord.

It may cause

short circuit

or damage the power

cord, and occur ﬁre or

electric shock.

CAUTION

If the power cord damaged,please contact the service center or dealer. Exchange by professional in order to avoid danger.

When using the product, do not connect with voltage regulator in order to avoid danger.

Do not operate this product by children.

Reminder : Do not place the product near insecticide, oil corrosive solvent.

(It may cause bad effects on quality, or damage the product.)

Before use

Do not expose yourself to wind

generated by the

productfor a

long time.

Do not use the product near

the obstacles or

unsafe place.

Wipe off dust on the power plug

periodically.

If the plug is used with dust

accumulated on it,humid air etc.

may cause poor insulation and ﬁre.

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental

capabilities,

or lack of experiences and knowledge,unless they have been given supervision or instruction concerning use of the appliance

by a person responsible for their safety.

Do not put your ﬁngers into the

guard or any moving part of

the product.

Flame failure, catching ﬁre,

explosion, short circuit, etc, may

occur and cause electric shock of ﬁre.

Where it maybe exposed to

ﬂammable gas or near sources

of ﬂame such as gas ranges.

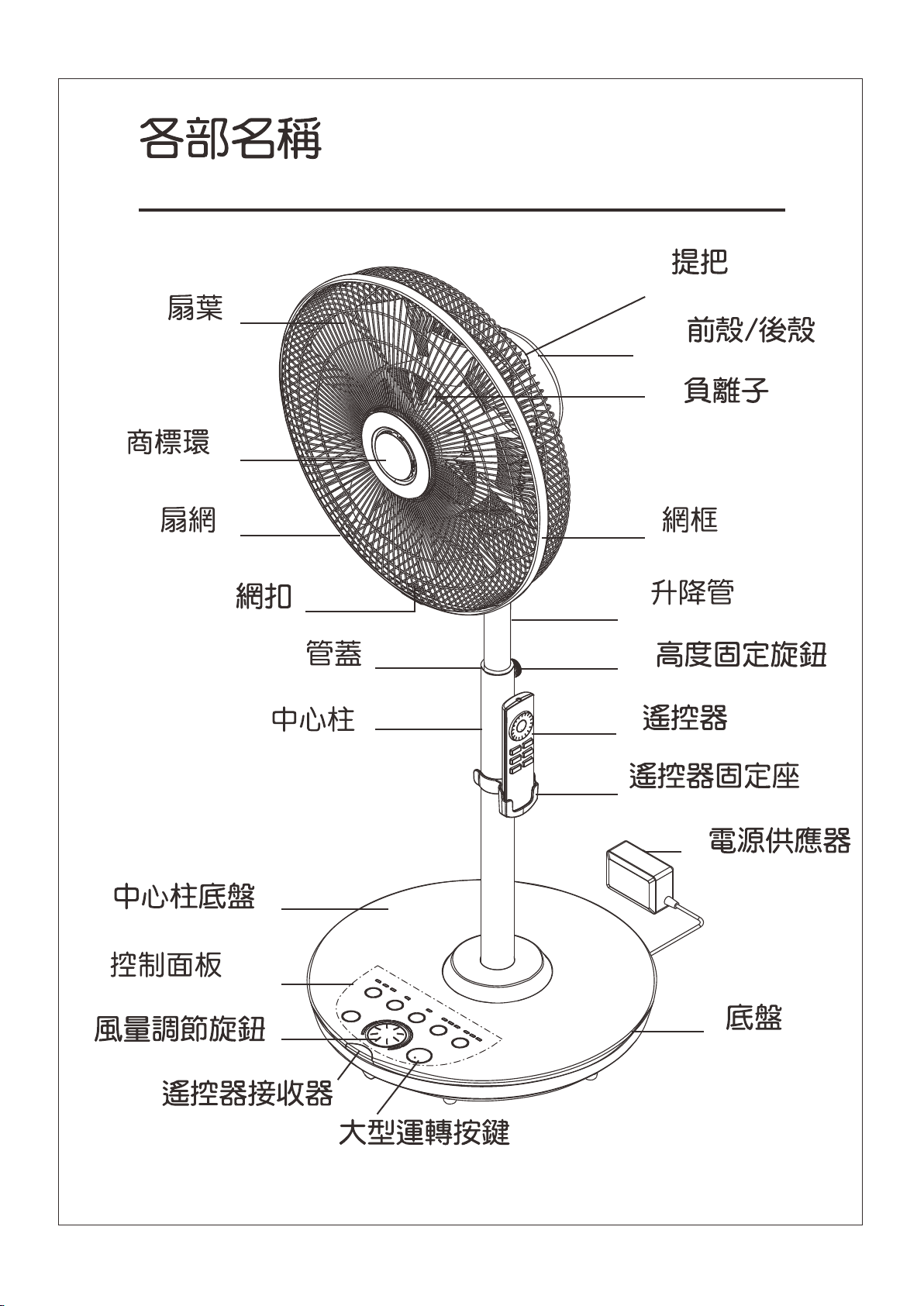

Name of parts

Blade

Guard

Clip

Cover of pipe

Stand

Base of stand

Control panel

Speed control

Remote control receptor

High speed

Base

AC adaptor

Remote control holder

Remote control

Height adjustment

Slide pipe

Guard frame

Negative ion

Front/Back cover

Handle

Logo cap

How to assemble

Remove the nut from the stand, and insert the stand into the base.

Insert the connection plug of the AC adaptor, ﬁx the power cord into the clip, and then close

the cover to ﬁnish the assemble.

Stand

Nut

Reminder: Tighten the nut securely, not to be loosened.

Please follow the step order and install correctly before use

Remove the spinner,cap and guard

stopper nut.

Please keep the plastic bag for future store.

Fix the rear guard to the motor and

then tighten the guard stopper nut securely

Warning

Do not touch the negative

ion emission device when

installing to avoid injury.

Negative ion emission device

Motor shaft

Guard stopper nut

Cap

Spinner

Guard stopper nut

Spinner

Blade

Installing blade

Insert the blade into the motor shaft closely,

then tighten with spinner securely.

(counter clockwise direction)

Installing the front guard

Align the arrowhead of the front guard and

the red mark of the rear guard, and insert

the hook to the wire rod fully.

Engage the clip to ﬁx the front and rear guard.

Red mark Arrowhead

mark

Rear guard clip press place Front guard arrowhead

mark, make sure to

insert into red mark

Make sure the clip

presses backward

Reminder:

This product belongs to double insulation, in order to ensure your safety, please assemble

the guard completely, make sure the clip presses in, then can start the operation.

If the front guard and the rear guard are not assembled as instruction, it may cause electric

charge accumulating phenomena and stop the negative ion from releasing normally.

Please make sure the front guard and the rear guard are assembled correctly.

Installing the base

Installing the blade

Before use

Tighten the nut from the bottom of base to secure the stand to the base.

Align each of 3 holes and 3 projections, then ﬁx the rear

guard to the motor, tighten the guard stopper nut securely

(clockwise direction). (marks the arrowhead of the

rear guard points up)

This product belongs to double insulation,

in order to ensure your safety,

please assemble the clip completely.

Tighten every part securely to avoid the blade from coming out during the operation.

Engage the clip press backward.

Height adjustment

Loose the adjustment nut of slide pipe, adjust the

height of slide pipe to an appropriate position,

then tight the adjustment nut of slide pipe.

Fix the remote

control holder

on the stand.

Remote control

can be stored in

the remote

control holder.

Whether during the Auto swing mode or

not, the wind direction can be adjusted

by hand.

Horizontal swing Vertical swing

Adjust the desired angle

by oscillating to left and right

Adjust the desired angle

by oscillating to up and down.

Remote control holder

Swing (Oscillation)
