Panasonic RG-R811HA Manual de usuario

Service Manual

PESMX2210007CE

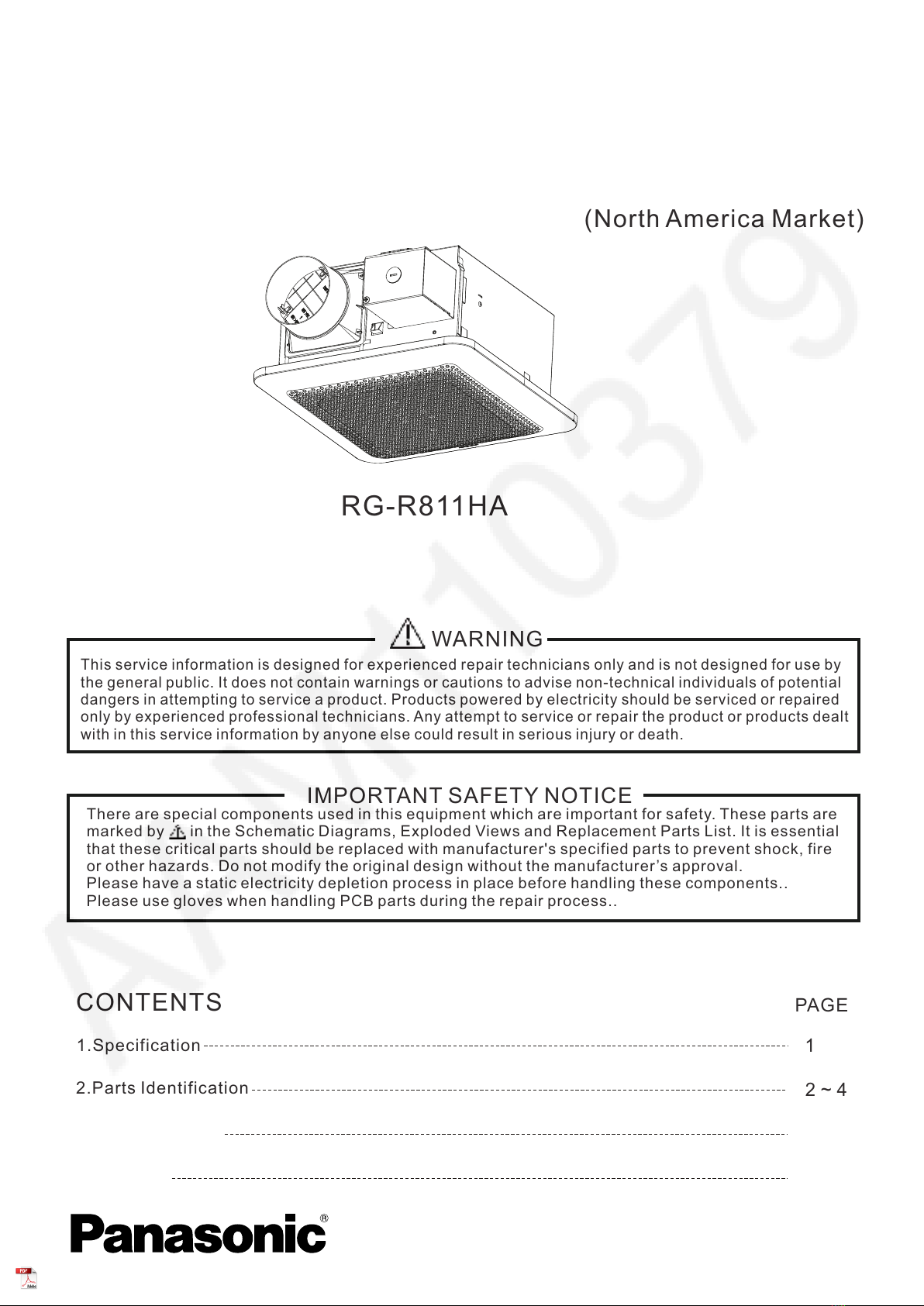

Version:2201CONTENTS1.Specification 2.Parts Identification3.Wiring DiagramPAGE2 ~ 4Ventilating Fan15WARNING

This service information is designed for experienced repair technicians only and is not designed for use by the general public. It does not contain warnings or cautions to advise non-technical individuals of potential dangers in attempting to service a product. Products powered by electricity should be serviced or repaired only by experienced professional technicians. Any attempt to service or repair the product or products dealtwith in this service information by anyone else could result in serious injury or death.

IMPORTANT SAFETY NOTICEThere are special components used in this equipment which are important for safety. These parts are marked by in the Schematic Diagrams, Exploded Views and Replacement Parts List. It is essentialthat these critical parts should be replaced with manufacturer's specified parts to prevent shock, fire or other hazards. Do not modify the original design without the manufacturer’s approval..Please have a static electricity depletion process in place before handling these components.. Please use gloves when handling PCB parts during the repair process.RG-R811HA4.Parts List 6(NorthAmericaMarket)

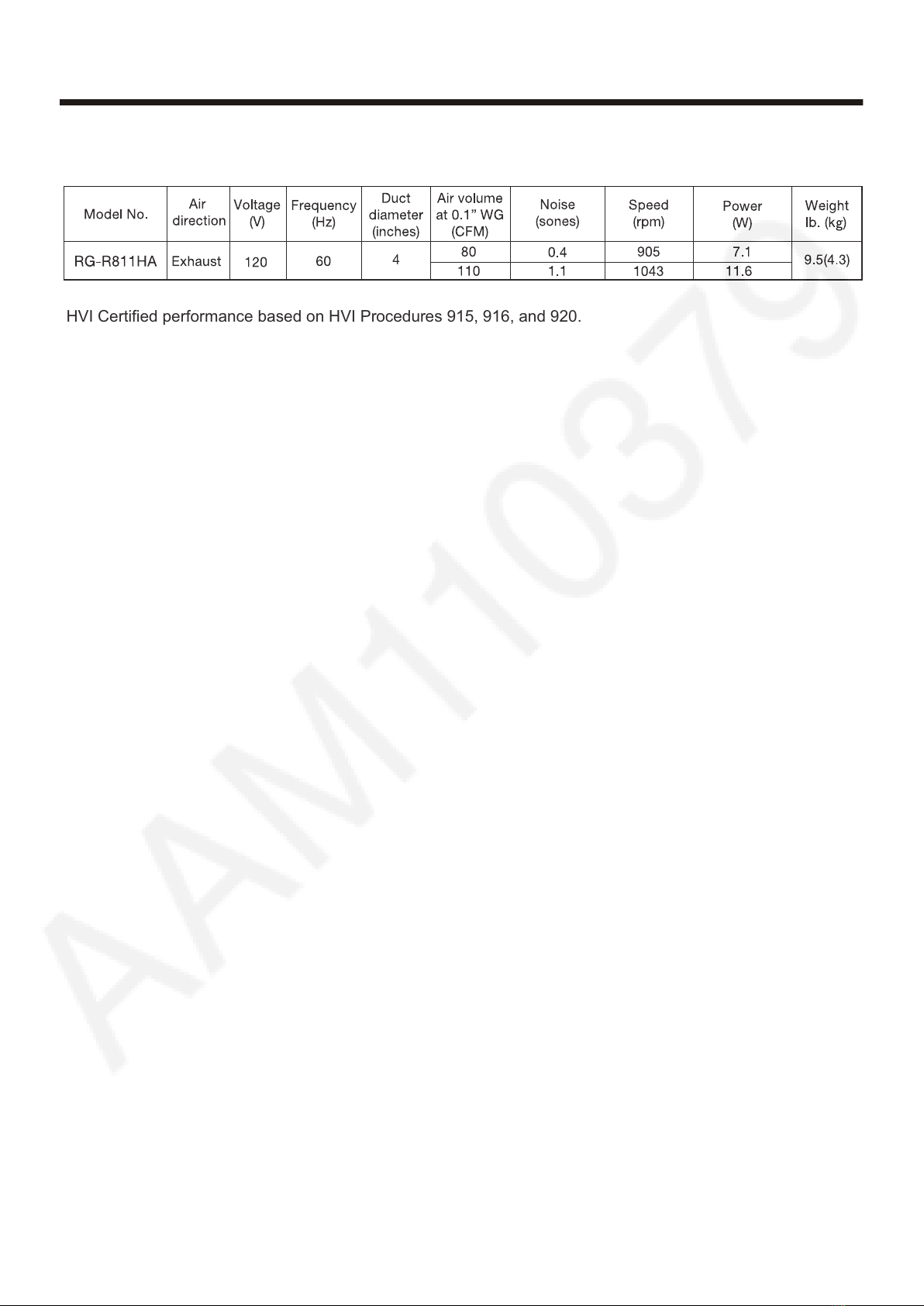

1. Specification1HVI Certified performance based on HVI Procedures 915, 916, and 920.

2. Parts IdentificationMain Body SectionRG-R811HAC(5 pcs)A(3 pcs)212AA(2 pcs)AB34578910C(2 pcs)11126D(2 pcs)13

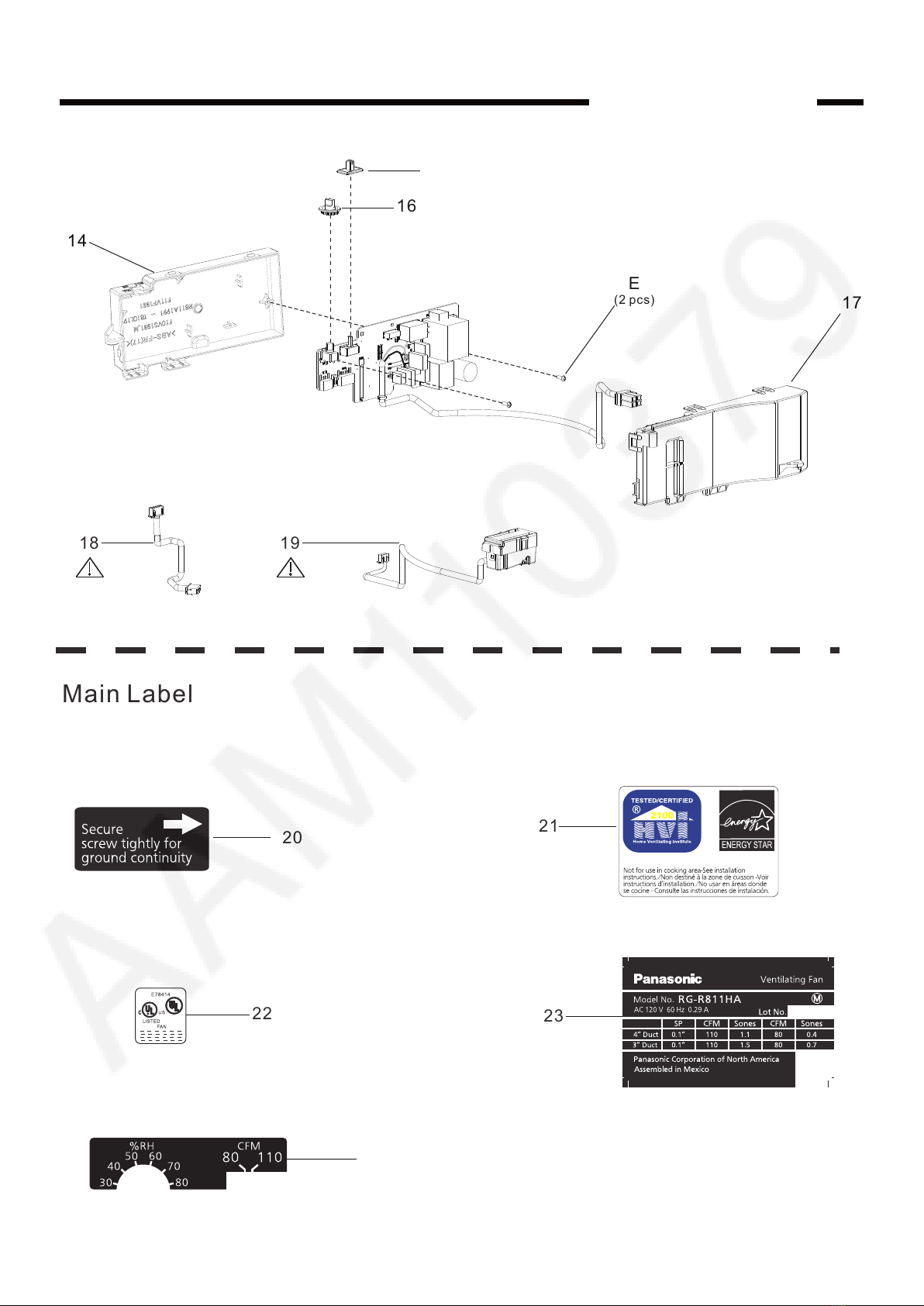

2.Parts Identiﬁcation3Main PCB SectionRG-R811HAMain Label202122231516E(2 pcs)1718192414

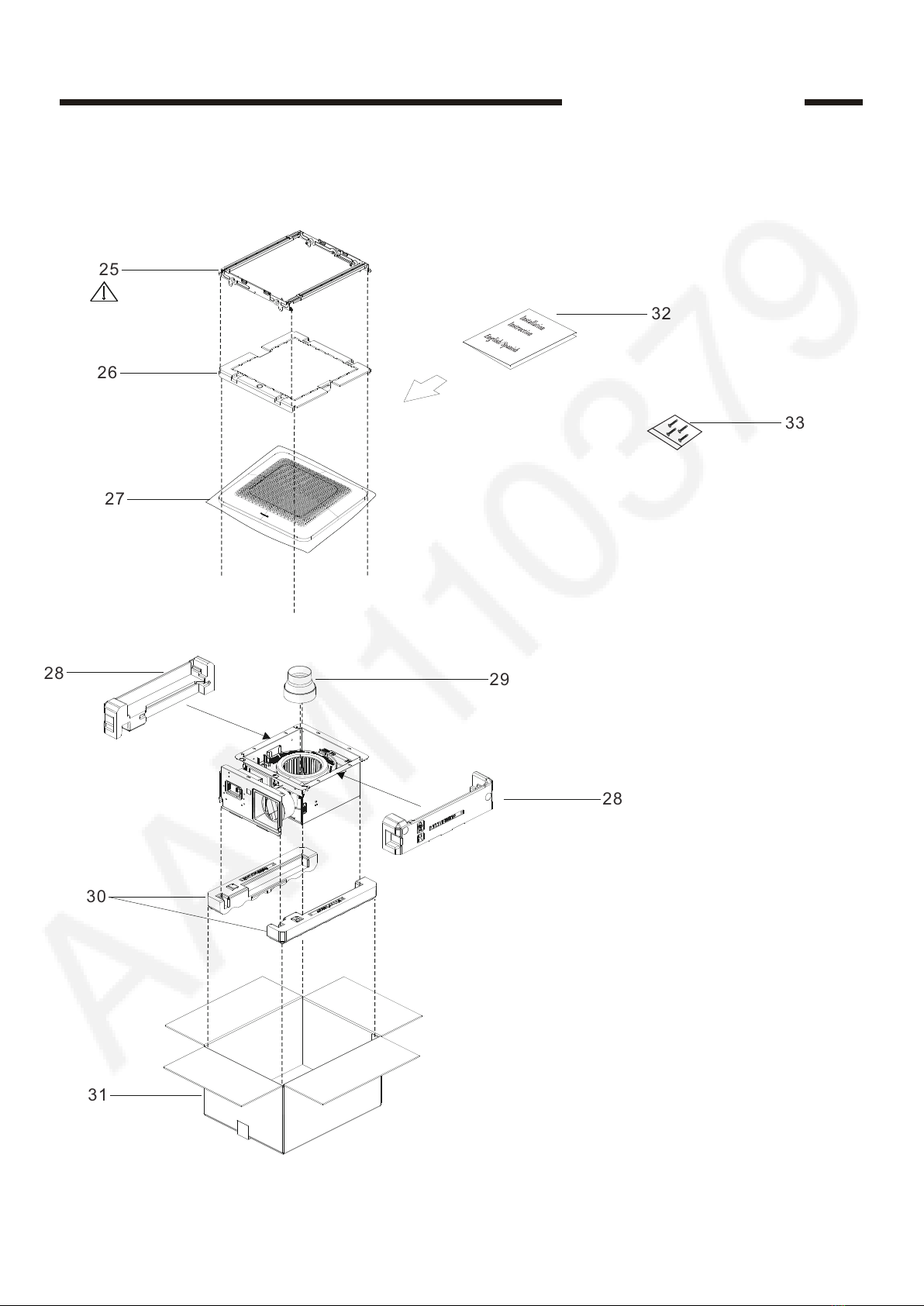

42. Parts IdentificationRG-R811HAPacking Section25262728293031323328

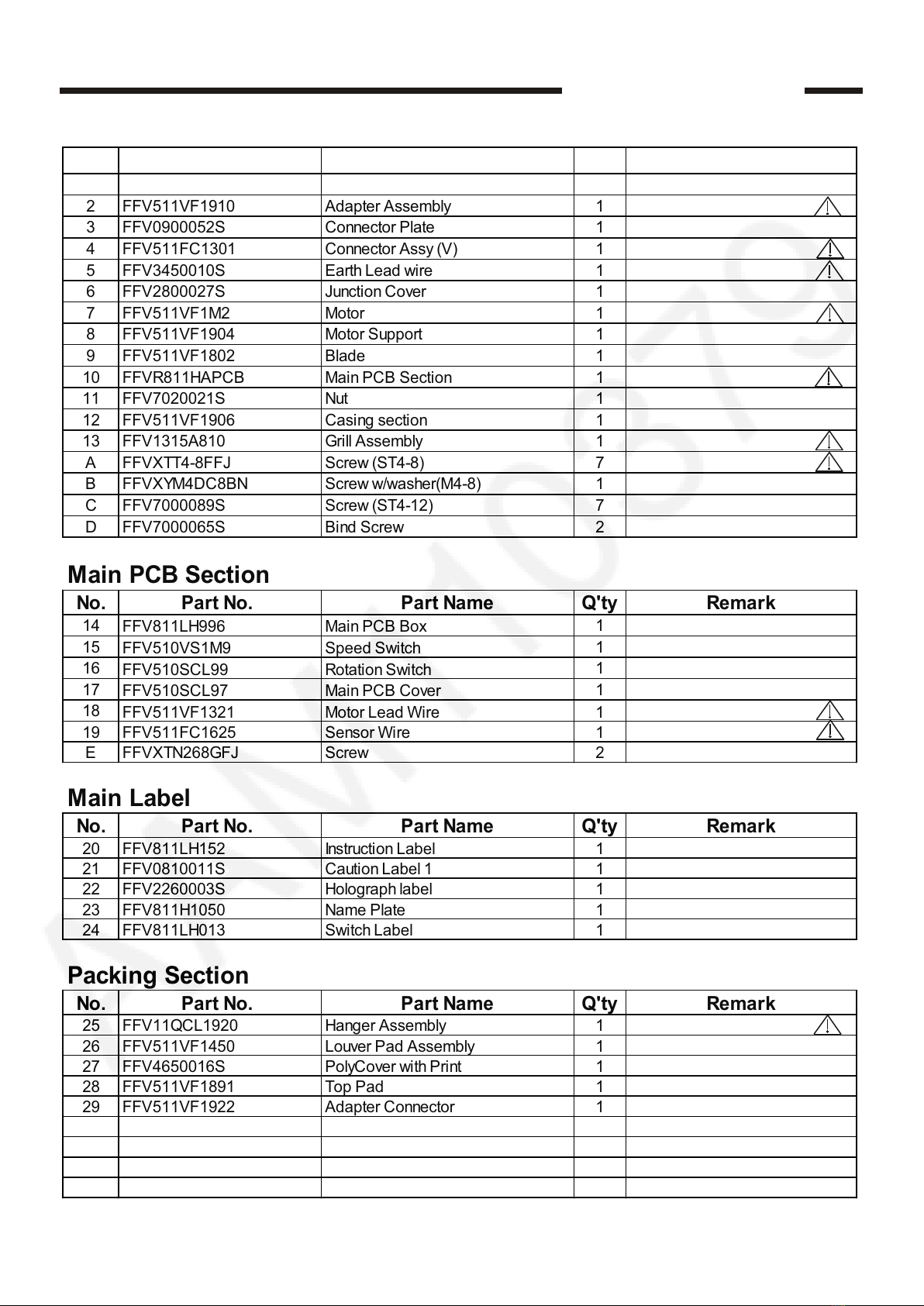

Main Body SectionNo.Part No. Part NameQ'tyRemark1FFVR811LH900Frame Assembly12FFV511VF1910Adapter Assembly13FFV0900052SConnector Plate14FFV511FC1301Connector Assy (V)15FFV3450010SEarth Lead wire16FFV2800027SJunction Cover17FFV511VF1M2Motor18FFV511VF1904Motor Support19FFV511VF1802Blade110FFVR811HAPCB Main PCB Section111FFV7020021SNut112FFV511VF1906Casing section113FFV1315A810Grill Assembly1AFFVXTT4-8FFJScrew (ST4-8)7BFFVXYM4DC8BNScrew w/washer(M4-8)1CFFV7000089SScrew (ST4-12) 7DFFV7000065SBind Screw2Main PCB SectionNo.Part No. Part NameQ'tyRemark14FFV811LH996 Main PCB Box115FFV510VS1M9Speed Switch116FFV510SCL99 Rotation Switch117FFV510SCL97 Main PCB Cover118FFV511VF1321Motor Lead Wire119FFV511FC1625Sensor Wire1EFFVXTN268GFJScrew 2Main LabelNo.Part No. Part NameQ'tyRemark20FFV811LH152Instruction Label121FFV0810011SCaution Label 1122FFV2260003SHolograph label123FFV811H1050Name Plate124FFV811LH013 Switch Label1Packing SectionNo.Part No. Part NameQ'tyRemark25FFV11QCL1920 Hanger Assembly126FFV511VF1450Louver Pad Assembly127FFV4650016SPolyCover with Print128FFV511VF1891Top Pad129FFV511VF1922 Adapter Connector130FFV511VF1892Bottom Pad131FFV811H1400A Packing Case Assy132FFVR811H1420 Installation Inst (ES)133FFV11KSL1M031AAccesory A1

64. Parts ListRG-R811HA
