© Panasonic Electric Works Co., Ltd. 2009.

All rights reserved. Unauthorized copying and distri-

bution is a violation of law.

Order Number PCD0906A61CE

Epilator

Model No. ES-WD71

Asia

TABLE OF CONTENTS

PAGE PAGE

1 Warning -------------------------------------------------------------- 2

2 Specifications ----------------------------------------------------- 2

3 Troubleshooting Guide ----------------------------------------- 3

4 Disassembly and Assembly Instructions ---------------- 5

5 Schematic Diagram ---------------------------------------------- 9

6 Exploded View and Replacement Parts List -----------10

2

1Warning

Caution:

• Pb free solder has a higher melting point that standard solder; Typicall the melting point is 50 - 70°F (30 - 40°C) higher. Please

use a soldering iron with temperature control and adjust it to 750 ± 20°F (400 ± 10°C). In case of using high temperature solder-

ing iron, please be careful not to heat too long.

• Pb free solder will tend to splash when heated too high (about 1100°F / 600°C).

2 Specifications

3

3 Troubleshooting Guide

4

5

4 Disassembly and Assembly Instructions

Follow the procedure below to disassemble the main unit.

4.1. Disassembly Instructions

[MAIN UNIT]

Follow the procedure below to disassemble the main body.

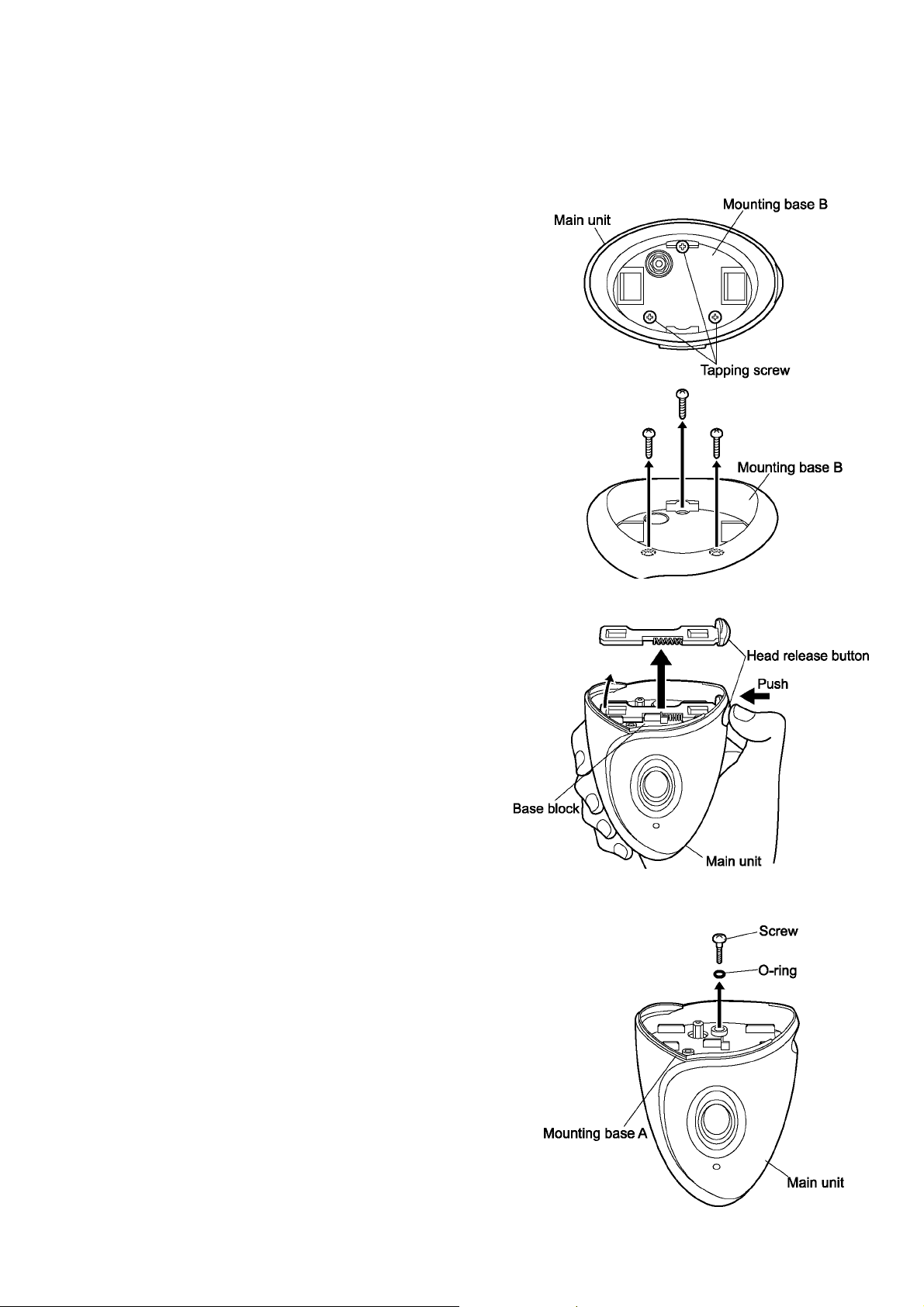

1. Remove the cap and the epilation head.

Loosen three tapping screws on top and take out the

mounting base B.

2. Remove the head release button with pushing the but-

tons. Be careful the spring jumps up when removing the

head release button.

3. Loosen one screw where tightening the mounting base

A.

6

4. Remove the side cover from upper side.

Loosen one screw on bottom.

5. Insert the motor remove jig into the connecting area of

adaptor and push up the motor block.

Take out the motor assembly.

6. Loosen two screws at the rear and take off the Mounting

base B.

7

7. Unsolder the three locations, battery terminals, motor

lead wires and plug chassis.

NOTE:

If the motor lead wires are attached the opposite pole,

the rotation speed will be decrease and the life of

motor will become short.

8. Lift up the plug chassis.

8

4.2. Assembly Instructions

[MAIN UNIT]

For assembly, reverse the order of disassembly.

1. Confirm the colors of each lead wire when soldering with

motor.

2. Put fuse onto the motor and fixed it with the motor cush-

ion.

3. Press fit the plug chassis into the motor base block until

clicking between the hook of plug chassis and the hole of

motor base. Attach the O-rings.

9

5 Schematic Diagram

Model No. : ES-WD71 Exploded View

6 Exploded View and Replacement Parts List
