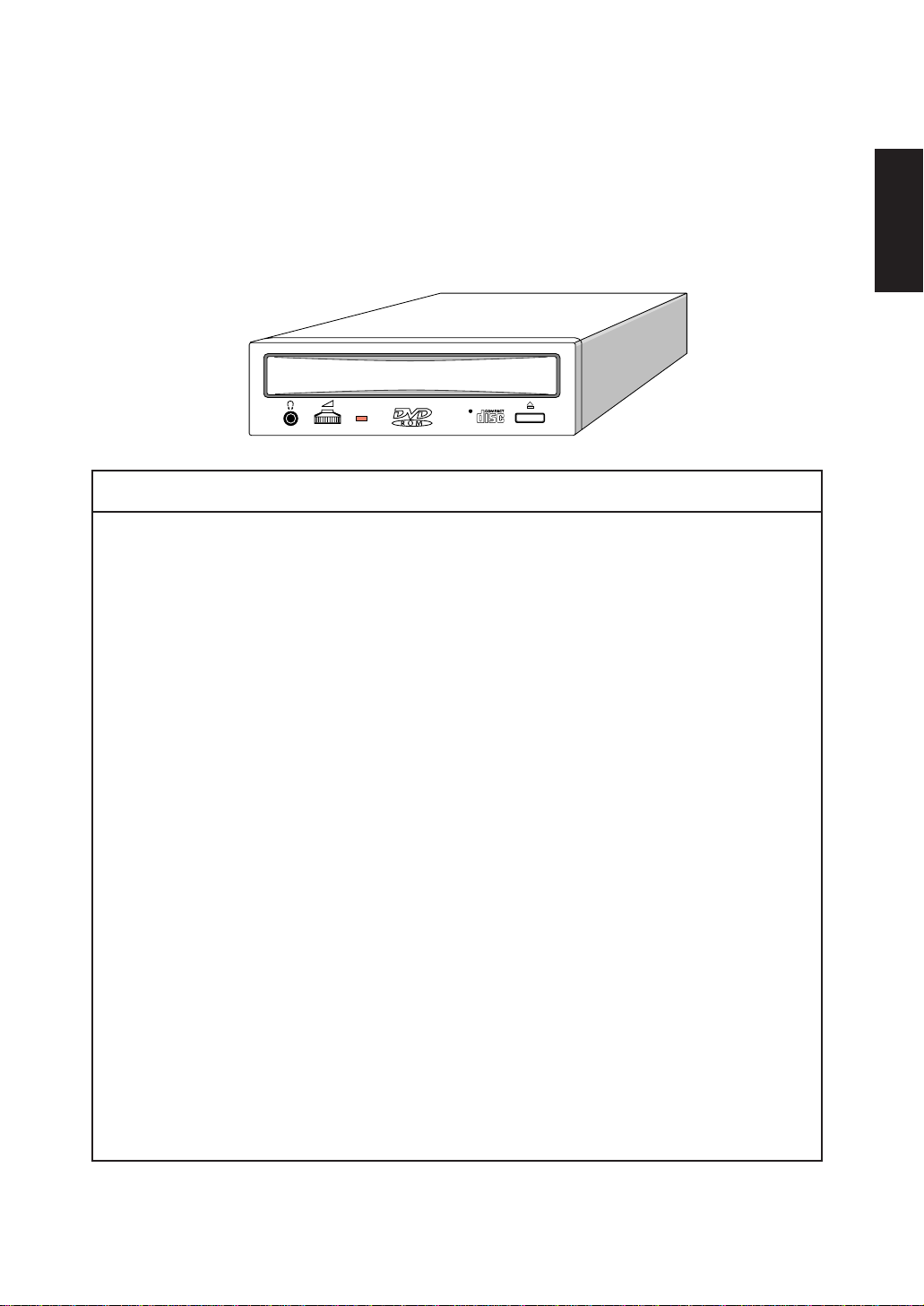

DVD-ROM DRIVE UNIT

SR-8586-B / SR-8586-C

INSTRUCTION MANUAL

Please read through these instructions before operating this unit.

Interface : ATAPI

iii

ENGLISH

DVD-ROM DRIVE UNIT

SR-8586-B / SR-8586-C

INSTRUCTION MANUAL

Please read through these instructions before operating this unit.

Interface : ATAPI

TABLE OF CONTENTS

IMPORTANT SAFETY NOTICE ................................................................................ iv

LASER SAFETY INFORMATION ............................................................................. A-1

INTRODUCTION........................................................................................................ A-4

1. PRECAUTIONS WHEN OPERATING................................................................... A-5

1.1 PRECAUTIONS WHEN TRANSPORTING...................................................... A-5

1.2 INSTALLATION LOCATION ............................................................................ A-5

1.3 PRECAUTIONS FOR USE .............................................................................. A-5

1.4 PRECAUTIONS FOR OPERATION ................................................................ A-5

1.5 PRECAUTIONS WHEN HANDLING DISCS.................................................... A-5

2. PARTS AND FUNCTIONS .................................................................................... A-7

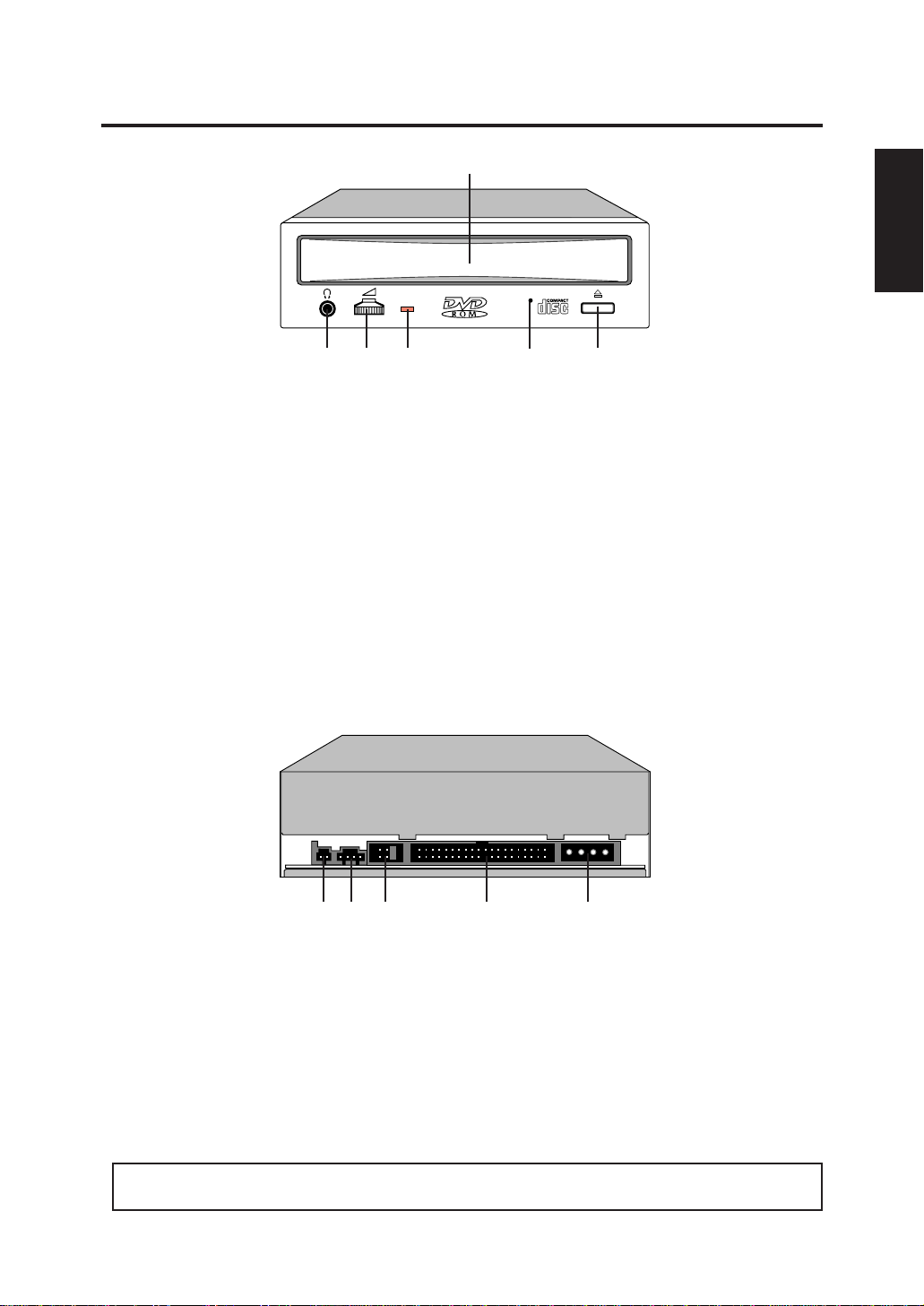

2.1 FRONT VIEW................................................................................................... A-7

2.2 REAR VIEW ..................................................................................................... A-7

3. CONNECTIONS..................................................................................................... A-8

3.1 CONNECTING VIEW....................................................................................... A-8

4. GUIDE TO OPERATION ....................................................................................... A-8

4.1 INSTALLATIONS ............................................................................................. A-8

5. GENERAL DESCRIPTION .................................................................................... A-9

5.1 FEATURE SUMMARY ..................................................................................... A-9

5.2 SYSTEM SET UP ............................................................................................ A-9

5.3 POWER SAVING ............................................................................................. A-9

6. SPECIFICATION SUMMARY................................................................................ A-9

6.1 PERFORMANCE ............................................................................................. A-9

6.2 ERROR RATES ...............................................................................................A-10

6.3 AUDIO PERFORMANCE.................................................................................A-10

6.4 GENERAL PERFORMANCE ...........................................................................A-11

6.5 ENVIRONMENTAL CONDITIONS...................................................................A-11

6.6 PICK UP LASER ..............................................................................................A-11

7. BEFORE REQUESTING SERVICE.......................................................................A-11

7.1 TROUBLESHOOTING .....................................................................................A-11

IMPORTANT SAFETY NOTICE

NOTICE

(1) You may not reproduce or transcribe any part of this publication without permission.

(2) We reserve the right to revise this document at any time without notice.

(3) If you have any questions about this document, contact your sales representative.

SAFETY NOTICE

(1) To prevent fire or electric shock, do not expose this appliance to rain or moisture.

(2) To avoid electric shock or damage to the eyes due to laser beam, do not attempt to

disassemble the cabinet.

FEDERAL COMMUNICATIONS COMMISSION (FCC) RADIO

FREQUENCY INTERFERENCE STATEMENT

Class B Computing Device

NOTE : This equipment has been tested and found to comply with the limits for a Class B

digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a residential installation. This

equipment generates, uses and can radiate radio frequency energy and , if not installed

and used in accordance with the instructions, may cause harmful interference to radio

communications. However, there is no guarantee that interference will not occur in a

particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off and on, the

user is encouraged to try to correct the interference by one or more of the following

measures :

- - Reorient or relocate the receiving antenna.

- - Increase the separation between the equipment and receiver.

- - Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

- - Consult the dealer or an experienced radio/TV technician for help.

FCC WARNING : Changes or modifications not expressly approved by the party

responsible for compliance could void the user's authority to operate the equipment.

For USA (Model SR-8586-B only)

A-1

ENGLISH

LASER SAFETY INFORMATION

Class 1 LASER Product

This equipment is certified to comply with DHHS Rule 21 CFR Chapter 1, Subchapter J in

effect as of date of manufacture.

Elsewhere, the drive is certified to conform to the requirements of the International

Electrotechnical Commission (IEC) 825 and CENELEC EN60825 for Class 1 laser

products.

Class 1 laser products are not considered to be hazardous. To ensure continued product

safety, the following precautions should be heeded. This equipment has the Optical Pickup

which has the Dual Lasers (DVD & CD).

Caution :

(1) The use of controls or adjustments or performance of procedures other than those

specified herein may result in hazardous radiation exposure.

(2) The drive is designed to be incorporated into a computer-based system or unit which

has an enclosing cover. The drive may not be used as a stand-alone unit.

(3) Do not open the drive unit; no user adjustments or serviceable parts are inside.

• This label is attached to the upper shield at the top of the drive unit.

• Märkningen återfinns på den översta kåpan överst på drivenheten. (For Swedish)

• Denne merkelappen er festet til det øverste dekselet på toppen av spilleren. (For Norwegian)

• Denne etiket er sat fast på den øverste skærm på drev-enhedens top. (For Danish)

• Tämä etiketti on liimattu voimayksikön yläosan suojalevyyn. (For Finnish)

CAUTION–

Laser radiation when open.

DO NOT STARE INTO BEAM.

• This label is attached to the inner side of the rear wall on the Mechanism chassis in the drive

unit.

CLASS 1 LASER PRODUCT

LASER KLASSE 1

LUOKAN 1 LASERLAITE

KLASS 1 LASER APPARAT

APPAREIL A LASER DE CLASSE 1

EN60825

A-2

VAROITUS! Laitteen käyttäminen muulla kuin tässä käyttöohjeessa mainitulla tavalla

saattaa altistaa käyttäjän turvallisuusluokan 1 ylittävälle näkymättömälle

lasersäteilylle.

VARNING! Om apparaten används på annat sätt än i denna bruksanvisning

specificerats, kan användaren utsättas för osynlig laserstrålning, som

överskrider gränsen för laserklass 1.

For Finnish

For Swedish

• This label is attached to the bottom of the drive unit.

• Märkningen återfinns på drivenhetens undersida. (For Swedish)

• Denne merkelappen er festet til undersiden av spilleren. (For Norwegian)

• Denne etiket er sat fast i bunden af drev-enheden. (For Danish)

• Tämä etiketti on liimattu laitteen pohjaan. (For Finnish)

CAUTION – INVISIBLE

LASER RADIATION WHEN OPEN

DO NOT STARE INTO BEAM OR VIEW

DIRECTLY WITH OPTICAL INSTRUMENTS

VORSICHT– UNSICHTBARE

LASERSTRAHLUNG, WENN ABDECKUNG

GEOFFNET NICHT IN DEN STRAHL BLICKEN

AUCH NICHT MIT OPTISCHEN INSTRUMENTEN

ADVARSEL– USYNLIG

LASERSTRALING VED ABNING.

SE IKKE IND I STRALEN – HELLER

IKKE MED OPTISKE INSTRUMENTER.

ADVARSEL – USYNLIG

LASERSTRALING NAR DEKSEL APNES.

STIRR IKKE INN I STRALEN ELLER SE

DIREKTE MED OPTISKE INSTRUMENTER.

VARNING – OSYNLIG LASERSTRALNING

NAR DENNA DEL AR OPPNAD.

STIRRA EJ IN I STRAL EN OCH BETRAKTA

EJ STRALEN MED OPTISKA INSTRUMENT.

VARO ! NAKYMATONTA AVATTAESSA

OLET ALTTIINA LASERSATEILYLLE.

ALA TUIJOTA SATEESEEN ALAKA

KATSO SITA OPTISEN LAITTEEN L API.

CAUTION–

LASER RADIATION WHEN OPEN

DO NOT STARE INTO BEAM

VORSICHT– LASERSTRAHLUNG,

WENN ABDECKUNG GEOFFNET

NICHT IN DEN STRAHL BLICKEN

ADVARSEL–

LASERSTRALING VED ABNING

SE IKKE IND I STRALEN

ADVARSEL – L ASERSTRALING

NAR DEKSEL APNES

STIRR IKKE INN I STRALEN

VARNING – LASERSTRALNING

NAR DENNA DEL AR OPPNAD

STIRRA EJ IN I STRALEN

VARO ! AVATTAESSA OLET

ALTTIINA LASERSATEILYLLE

ALA TUIJOTA SATEESEEN

.. ..

.. .. ..

ºº

.. .. .. ..

.. .. .. .. .. ..

....

.. .. ..

ººº

ºº

A-3

ENGLISH

for DVD

LASER Specification

Type: Semiconductor laser InGaAlP or InGaAlP / GaAs

Wave Length: 650 ± 15 nm

Divergence:

= 20 ° ~ 35 ° (Typical 27 °)

Output Power: 0.33 mW

Laser-Daten: (For German)

Typ: InGaAlP oder InGaAlP / GaAs-Halbleiter-Laser

Wellenlänge: 650 ± 15 nm

Divergenz:

= 20 ° ~ 35 ° (Typical 27 °)

Ausgangsleistung: 0,33 mW

LASER: (For French)

Type:Laser semi-conducteur InGaAlP ou InGaAlP/ GaAs

Longueur d’ondes: 650 ± 15 nm

Divergence:

= 20 ° ~ 35 ° (Typical 27 °)

Puissance de sortie: 0,33 mW

Laser- specifikationer: (For Swedish)

Typ: Laserhalvedare InGaAlP eller InGaAlP / GaAs

Våglängd: 650 ± 15 nm

Divergens:

= 20 ° ~ 35 ° (Typical 27 °)

Uteffekt: 0,33 mW

LASER Spesifikasjon: (For Norwegian)

Type: Halvleder laser InGaAlP eller InGaAlP / GaAs

Bølgelengde: 650 ± 15 nm

Divergens:

= 20 ° ~ 35 ° (Typical 27 °)

Utgangseffekt: 0,33 mW

Laser Specifikationer: (For Danish)

Type: Semiconductor InGaAlP eller InGaAlP / GaAs

Bølge-længde: 650 ± 15 nm

Divergens:

= 20 ° ~ 35 ° (Typical 27 °)

Udgang-effekt: 0,33 mW

LASERin tekniset tiedot: (For Finnish)

Tyyppi: Laserpuolijohdin InGaAlP eli InGaAlP / GaAs

Aallon pituus: 650 ± 15 nm

Hajaantuminen:

= 20 ° ~ 35 °

(Tyypillinen 27 °)

Teho: 0,33 mW

for CD

LASER Specification

Type: Semiconductor laser GaAs

Wave Length: 790 ± 20 nm

Divergence:

= 20 ° ~ 45 ° (Typical 39 °)

Output Power: 0.33 mW

Laser-Daten: (For German)

Typ: GaAs-Halbleiter-Laser

Wellenlänge: 790 ± 20 nm

Divergenz:

= 20 ° ~ 45 ° (Typisch 39 °)

Ausgangsleistung: 0,33 mW

LASER: (For French)

Type: Laser semi-conducteur GaAs

Longueur d’ondes: 790 ± 20 nm

Divergence:

= 20 ° ~ 45 ° (Environ 39 °)

Puissance de sortie: 0,33 mW

Laser- specifikationer: (For Swedish)

Typ: Laserhalvedare GaAs

Våglängd: 790 ± 20 nm

Divergens:

= 20 ° ~ 45 ° (Typiskt 39 °)

Uteffekt: 0,33 mW

LASER Spesifikasjon: (For Norwegian)

Type: Halvleder laser GaAs

Bølgelengde: 790 ± 20 nm

Divergens:

= 20 ° ~ 45 ° (Typisk 39 °)

Utgangseffekt: 0,33 mW

Laser Specifikationer: (For Danish)

Type: Semiconductor GaAs

Bølge-længde: 790 ± 20 nm

Divergens:

= 20 ° ~ 45 ° (Typisk 39 °)

Udgang-effekt: 0,33 mW

LASERin tekniset tiedot: (For Finnish)

Tyyppi: Laserpuolijohdin GaAs

Aallon pituus: 790 ± 20 nm

Hajaantuminen:

= 20 ° ~ 45 °

(Tyypillinen 39 °)

Teho: 0,33 mW

A-4

INTRODUCTION

DVD-ROM is read-only memory using a CD-ROM disc system and an audio compact

disc system as a media package which handles digital data. To enjoy audio CD, please

insert the Headphone plug into the Headphone jack.(Model SR-8586-B only)

This drive unit uses DVD-ROM discs which bear the following mark.

This drive unit uses CD-ROM discs which bear the following mark.

This drive unit uses CD-R discs which bear the following mark (read only).

This drive unit uses audio compact discs which bear the following mark.

COMPACT

Recordable

COMPACT

DIGITAL AUDIO

A-5

ENGLISH

CHAPTER 1 PRECAUTIONS WHEN OPERATING

1.1 PRECAUTIONS WHEN TRANSPORTING

To avoid damage

* Keep the original packing materials for the drive unit.

* Before you transport the drive unit, remove the disc from the drive unit and repack

the drive unit in its original packing.

1.2 INSTALLATION LOCATION

Do not place unit in the following environments.

* High-temperature, high-humidity, extreme temperature changes.

* Dusty

* Excessive vibration/ sudden shock.

* Inclined place.

* Direct sunlight.

1.3 PRECAUTIONS FOR USE

* Never push objects of any kind through the Cabinet slots, never spill liquid of any

kind on the unit.

* Do not place objects on the product.

* Do not attempt to service this product yourself.

* Do not open or remove covers.

* Do not place foreign objects in the disc insertion slot and attempt to operate.

* Do not use DVD-ROM drive when vertically installed. (Horizontal installation type only)

1.4 PRECAUTIONS FOR OPERATION

To avoid error

* Do not move the drive unit during operation.

* Do not operate the unit directly after a sudden increase in temperature.

NOTE :

A great proportion of problems are usually caused by the following.

➀Dust or Finger-prints on the surface of the disc.

➁Random Electrical Noise.

➂Scratches and Defects on the surface of the disc.

1.5 PRECAUTIONS WHEN HANDLING DISCS

➀Hold the disc by the edges, do not touch

the surface of the disc.

➁To remove dust or fingerprint, use a clean,

soft, dry cloth.

A-6

➂Do not write on, or paste paper

to the surface of the disc.

Should not paste a large or thick

label to the outer back surface

(the label side) of the disc, or it

generates drive vibration due to

imbalance of the disc.

➃Do not store the disc in a place where

the temperature is high.

➄Do not use benzine, thinners and

cleaners, etc.

➅Do not make the center hole larger.

➆Do not bend the disc.

➇Do not drop the disc, or subject it to

shock.

A-7

ENGLISH

CHAPTER 2 PARTS AND FUNCTIONS

2.1 FRONT VIEW

➀DISC TRAY

Accepts a disc.

➁HEAD PHONE JACK (Model SR-8586-B only)

Headphone can be connected using a 3.5mm stereo mini plug.

➂VOLUME (Model SR-8586-B only)

Adjusts audio output level of Headphone.

➃BUSY INDICATOR

Lights when data is being accessed from the disc, or the drive is playing an audio CD.

➄EJECT/LOAD BUTTON

Ejects and loads the disc tray.

➅EMERGENCY EJECT HOLE

Insert an instrument such as straightened paper clip into this hole to manually

eject the tray. (See 4.1)

➀

➁➂➃ ➄➅

2.2 REAR VIEW

➀INTERFACE CONNECTOR

Connects to host computer’s interface connector.

➁DC (IN) CONNECTOR

➂AUDIO OUT CONNECTOR (Analog)

➃JUMPER PIN

Insert the jumper according to the Master / Slave / CSEL drive.

(See the figure in the next page.)

➄DIGITAL AUDIO OUT CONNECTOR

NOTE:

The serial format of digital data (not Audio data) output functions with some models.

➀➁➂➃

➄

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Unidad de DVD de Panasonic

Panasonic

Panasonic CF-VDD283 Manual de usuario

Panasonic

Panasonic CF-VDD283 Manual de usuario

Panasonic

Panasonic CW-8572-B Manual de usuario

Panasonic

Panasonic CF-VDD371M Manual de usuario

Panasonic

Panasonic KXL-CB30AU Manual de usuario

Panasonic

Panasonic LF-D102U Manual de usuario

Panasonic

Panasonic CF-VDD721M Manual de usuario

Panasonic

Panasonic LFD521U - DISK DRIVE Manual de usuario

Panasonic

Panasonic CF-VDD712M Manual de usuario

Panasonic

Panasonic SR-8585-B Manual de usuario

Panasonic

Panasonic LF-D103E Manual de usuario

Panasonic

Panasonic VW-BN1 - DVD-RW / DVD-RAM Drive Manual de usuario

Panasonic

Panasonic CF-VDD285 Manual de usuario

Panasonic

Panasonic VWBN2 - PORTABLE DVD BURNER Manual de usuario

Panasonic

Panasonic VW-BN1 - DVD-RW / DVD-RAM Drive Manual de usuario

Panasonic

Panasonic SR-8588-B Manual de usuario

Panasonic

Panasonic FZ-VDR551 Series Manual de usuario

Panasonic

Panasonic CF-VDR302U Manual de usuario

Panasonic

Panasonic CF-VDR282 Manual de usuario

Panasonic

Panasonic CF-VDR721M Manual de usuario

Panasonic

Panasonic SW-9501-S Manual de usuario

Panasonic

Panasonic CF-VDM302AT Manual de usuario

Panasonic

Panasonic LF-D101E Manual de usuario

Panasonic

Panasonic CF-VDD723M Manual de usuario

Manuales populares de Unidad de DVD de otras marcas

LG GSA-4160B Manual de usuario

Sony

Sony DRU-500AX Manual de usuario

LG GSA-2164D Manual de usuario

Plextor

Plextor PX-755SA Manual de usuario

Pioneer

Pioneer BDC-TD03RS Manual del propietario

Samsung

Samsung SM-332B Manual de usuario

Freecom

Freecom MOBILE DVD RW II Manual de usuario

Plextor

Plextor PX-712 Manual de usuario

NEC

NEC ND-3550A Manual de usuario

Emprex

Emprex Slim Writer DVD R/RW USB 2.0 External Drive Manual de usuario

Philips

Philips PCA532K Manual de usuario

Sony

Sony AD-7740H Manual de usuario

Philips

Philips PCDV5016 Series Guía de referencia

Pioneer

Pioneer LaserMemory DVD-115 Manual de usuario

Samsung

Samsung SE-S224Q Manual de usuario

IBM

IBM 71P7285 Manual de usuario

Pioneer

Pioneer DVR-A04 Manual de usuario

IBM

IBM 27L2579 Manual de usuario
