Innovation matters.

EVERYTHING MATTERS.

2008

LUMIX G1

01.11.08

The New-Generation

Digital Interchangeable Lens Camera

The LUMIX G Micro System will change the way you see – and enjoy –

the digital interchangeable lens camera.

It does so with a collection of features that put enormous photographic power

in a palm-sized camera with interchangeable lens.

The Micro Four Thirds System standard for high quality and wide compatibility.

Full-time Live View for setting up the perfect shot.

The unique iA mode for capturing stunning photos with all the ease of a compact digital camera.

The LUMIX G Micro System is a camera you'll love from day one.

It's easy to take with you. It makes every day a new opportunity for discovery.

It lets you capture the emotion behind the moment.

It gives you the freedom to express yourself visually. And most of all,

it makes photography more fun than you've ever imagined.

The LUMIX G Micro System will forever change the way you see the world around you,

and the role that photography plays in your life.

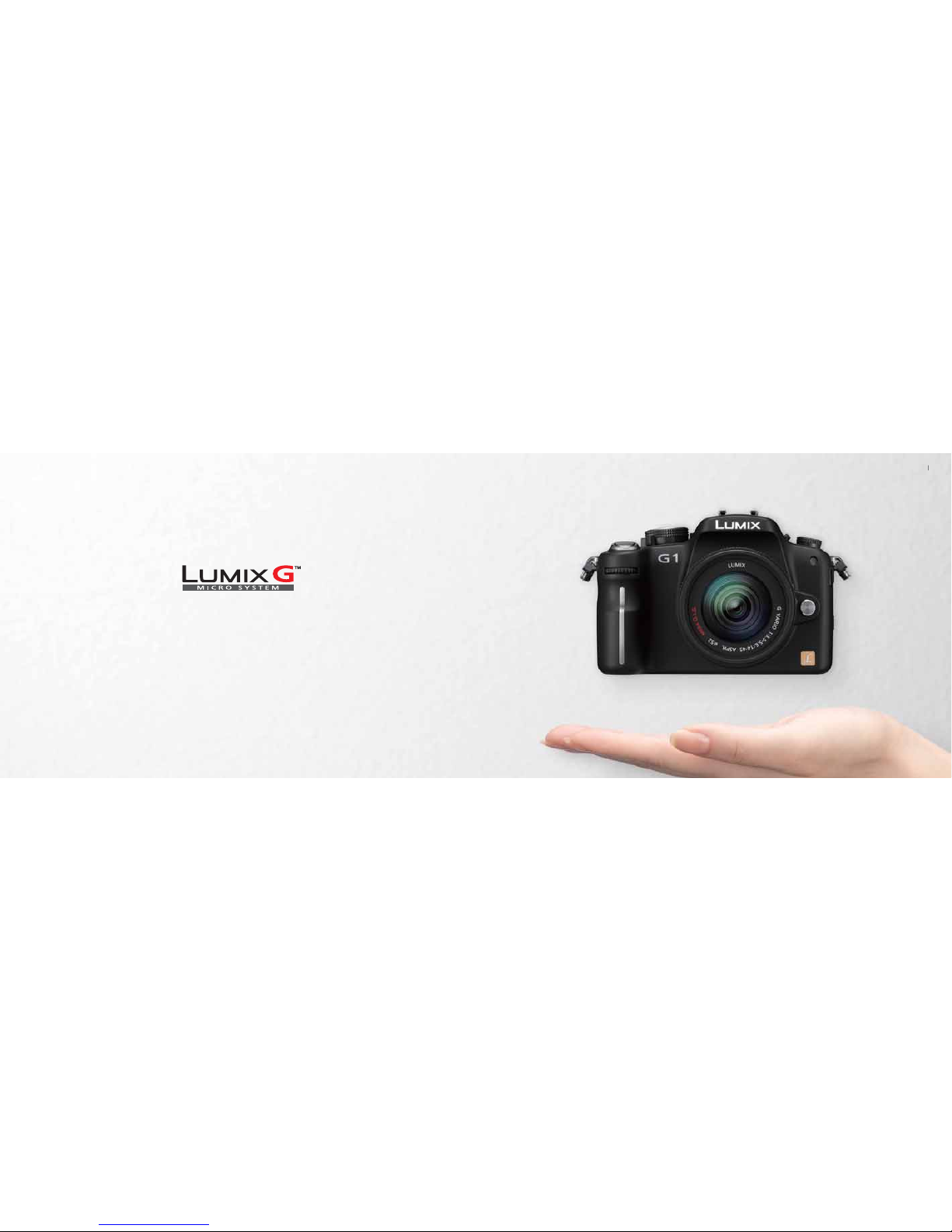

Actual Size

LUMIX G

2 3

WHY SHOULD D-SLR

CAMERAS BE COMPLICATED?

4 5

01.11.08

Advanced AF helps make focusing

quick, easy and precise.

Full-Time Live View Lets You Take It Easy

Live View Finder makes shooting

through the viewﬁnder more comfortable.

Free-angle LCD allows easy shooting

at high angles or low angles.

iA mode helps you get beautiful

shots anytime, anyplace.

Full-time Live View lets you see

exactly what the camera sees.

Real-time histogram

Movable guidelines

Full-time Live View shows you - before you shoot - how the settings change the photo.

pressing the shutter button – how the exposure compensation and white

balance adjustment will affect the photo. You can even see how adjusting

the aperture and shutter speed settings will affect the photo. In other

words, the LUMIX G Micro System gives you easy Live View shooting that

simply isn't possible with conventional digital SLR cameras.

Taking photos is a lot more fun when you don't have to struggle to get

perfect images. With the LUMIX G Micro System – and its Full-time Live

View – using a digital interchangeable lens camera is now as easy as

using a digital compact camera. The LUMIX G Micro System can display

guidelines and a histogram on the LCD and Live View Finder along with the

image composition. But more than that, you can see through them – before

6 7

Bright and easy-to-see free-angle LCD

Shots around obstacles or

barriers, where an ordinary

viewﬁnder just won't work

Shoot any way you want to shoot. High angle, low angle, side angle – it's easy with the

Lumix G Micro System.

The large 3.0-inch LCD rotates 180º horizontally and 270º

vertically, making it easy for you to capture dynamic shots

from extreme angles without getting into an awkward

position. And when the lighting around you changes, the

LCD backlighting level automatically changes too, so you

get comfortable, easy-on-the-eyes viewing at all times.

High angle shots over a

crowd

Low angle shots near

ground level

Tripod shots without

having to crouch

270°

180°

Free-angle LCD allows easy shooting

at high angles or low angles.

8 9

iA mode can make all the right settings – automatically

Shake detection – MEGA O.I.S.

Gyrosensors built into the lens

detect hand-shake and an O.I.S.

shifts to compensate. Assisting

you in getting those clear,

beautiful, blur-free photos.

If the subject moves as you

snap the shot, the camera

automatically adjusts the ISO

sensitivity and shutter speed to

help prevent subject blur.

The camera can correct the

brightness in parts of the image

that are too dark due to insufﬁcient

lighting, backlighting or use of the

ﬂash.

The camera detects when there are faces in

the frame and adjusts the focus and exposure

to capture them properly. This allows you to

shoot beautiful portraits without any hassle.

Once you've focused on a subject, AF

Tracking keeps the subject in focus – even

if it moves – until you press the shutter

button.

The camera automatically selects

whichever of ﬁve Scene modes – Portrait,

Night Portrait, Scenery, Night Scenery,

and Close-up – best suits the situation.

Digital Red-Eye Correction for beautiful night portraits

The red-eye correction in the built-in flash and the

camera's image processing circuit work together to reduce

red-eye when you're using the ﬂash to take shots of people.

If you've resisted buying a digital SLR camera because you think they're hard

to use, your wait is over. Meet the LUMIX G Micro System, with iA (Intelligent

Auto) mode. A big hit in LUMIX compact digital cameras, iA mode activates

Motion detection – Intelligent ISO Control

Light detection – Intelligent Exposure

Face detection – Face Detection AF/AE

Scene detection – Intelligent Scene Selector

Subject detection – AF Tracking

six detection and compensation functions that work

automatically, leaving you free to just aim and shoot.

It's easier to get a beautiful shot any time, any place.

iA mode helps you get beautiful

shots anytime, anyplace.

MEGA O.I.S. OFF MEGA O.I.S. ON

Normal ISO Auto

Intelligent ISO Control

Face Detection AF/AE

Intelligent Exposure

10 11

Live View Finder makes shooting through

the viewﬁnder more accurate and comfortable.

You've never looked into a viewfinder like this one. Developed by Panasonic for the

LUMIX G Micro System, this high-performance electronic viewfinder boasts a Full-

time Live View function that converts the optical viewﬁnder unit into a digital form.

You experience a new level of shooting convenience through the high-performance

viewﬁnder that is simply not possible with optical viewﬁnders of the past.

Live View Finder

an electronic viewfinder complete

with Full-time Live View When you look into the viewﬁnder, a sensor automatically

turns the Live View Finder on and the LCD off. You enjoy

smoother, easier shooting without having to switch the

setting of the display.

Eye sensor: Live View Finder switches on when you look into it

The LUMIX G Micro System's Live View Finder has the large 1.4x (0.7x*) magniﬁcation

and 100% field of view of the optical viewfinders on high-end digital SLR cameras.

This, plus the 1,440,000-dot equivalent resolution, makes it easy to shoot the exact

image the camera sees. *35 mm equivalent.

100% ﬁeld of view with high resolution

Customize the camera to ﬁt your shooting preference by changing the display style or

switching to a full-screen display. The LUMIX G Micro System also features the Quick

Menu that's popular on LUMIX compact digital cameras, so you can make a variety of

settings without taking your eye from the Live View Finder.

Freely customizable information display

100% ﬁeld of view

12 13

Versatile 1-area auto focus for ﬁner focusing precision

To optimize the use of Full-time Live View, the LUMIX G Micro System uses contrast AF rather

than the conventional phase difference AF. This makes it possible to offer functions like Face

Detection AF and AF Tracking that digital SLR cameras with phase difference AF can't match.

23 AF areas cover more of the frame

When using 1-area AF mode, you can move the auto-

focusing area in the frame. You can also change the size

of focus area to Spot, Normal, L, or XL to ﬁne-tune the

focusing in complicated shooting compositions.

Once you've focused on a subject, the AF Tracking function keeps the focus locked on that

subject – even if the subject moves – until you press the shutter button. This helps you

get clear, sharp,

focused photos even

when shooting kids

or pets that won't

hold still.

AF Tracking can keep the subject in focus – even if it moves

The camera begins focusing the instant it determines you're in a shooting stance. This

system focuses quicker than the usual method of pressing the shutter button halfway,

so you're ready sooner to capture the moment.

*The focus speed may be slower in dark surroundings.

Quick AF: Focusing starts as soon as you aim the camera

Normal Begins focusing

Ready to shoot

Press the

shutter button

Press the shutter button halfway

Press the

shutter button

Quick AF Begins focusing

Advanced contrast AF helps make Full-time Live View even

more effective

The auto focus system uses 23 areas all around the frame

to optimize the focusing for the scene you're shooting. This

makes it easier to frame a shot when you don't know exactly

where the subject will appear, because you can simply leave

the focusing to the camera.

*This is a simulated image. All 23

AF areas are not simultaneously

displayed in fact.

14 15

Advanced AF helps make focusing quick,

easy and precise.

WHY SHOULD D-SLR

CAMERAS BE BULKY?

16 17

01.11.08

Micro Four Thirds: Exquisite Beauty in a Smaller Package

Micro Four Thirds – the extended digital

interchangeable lens camera system standard

Unique LUMIX technologies

render exquisite images

LUMIX G VARIO 45-200mm/

F4.0-5.6/MEGA O.I.S

LUMIX G VARIO 14-45mm/

F3.5-5.6 ASPH./MEGA O.I.S

•Four Thirds, Micro Four Thirds and Micro Four Thirds Logo marks are trademarks

or registered trademarks of Olympus Imaging Corporation.

18 19

Micro Four Thirds – the extended digital

Interchangeable lens camera system standard

The open standard that led to the mirror-less body

The LUMIX G Micro System adopts the Micro Four Thirds System standard, developed

as an extended version of the Four Thirds System standard for digital camera systems.

Using this standard, and developing a camera body that eliminates the mirror box and

optical viewfinder unit, the lens mount outer diameter was reduced by about 6 mm

(compared with the conventional Four Thirds camera) and shorten the flange-back

distance* by about half.

Removing the mirror box

also makes for smoother

operation. The result is

a digital interchangeable

lens camera that's both

extremely compact and

highly mobile. The LUMIX

G Micro System is a

camera that you can take

anywhere – and that, in

turn, can take you as far

as you want to go.

*The distance between the lens

mount and image sensor.

These interchangeable lenses, designed exclusively for the Micro Four Thirds cameras,

brings out the full potential of the 4/3-type image sensor. For instance, some aspherical

lenses and ED lenses can

ensure the impressive image

rendering even in the smaller

size than the Four Thirds lens.

Also, as a prerequisite for

Full-time Live View shooting,

all lenses support contrast AF.

The LUMIX G lenses incorporate Panasonic's MEGA O.I.S., the advanced optical

image stabilization system that has highly proven in

LUMIX digital cameras. In the LUMIX G lenses, efﬁcient

stabilization elaborated by a special integrated LSI that

processes output from the gyrosensors, which operate

4,000 times per second. This enhanced system helps

achieve an exceptional hand-shake compensation

performance.

LUMIX G lenses: Superior portability, superior rendering

Panasonic's renowned MEGA O.I.S.

75°(28mm)

Flange Back =20mm

Image Sensor

LCD

LVF

Flange Back =40mm

Ocular lens

(eyeglass)

Image Sensor

Flange Back =40mm

Flange Back =20mm

75°(28mm)

Ocular lens

(eyeglass)

Four Thirds System

Micro Four Thirds System

Image Sensor

Structure image

Este manual sirve para los siguientes modelos

Otros manuales de Cámara digital de Panasonic

Panasonic

Panasonic Lumix DMC-LX5 Especificaciones técnicas

Panasonic

Panasonic Lumix DMC-GX8A Especificaciones técnicas

Panasonic

Panasonic PalmCam PV-SD5000 Manual de usuario

Panasonic

Panasonic LUMIX DMC-FP1 Especificaciones técnicas

Panasonic

Panasonic Lumix DMC-TZ10 Especificaciones técnicas

Panasonic

Panasonic Lumix DMC-FX500P Manual de usuario

Panasonic

Panasonic DMC-GF3C Instrucciones de instalación y servicio

Panasonic

Panasonic Lumix DMC-FH6 Manual de usuario

Panasonic

Panasonic Lumix DMC-FX90 Manual de usuario

Panasonic

Panasonic Lumix DC-GH5S Manual del propietario

Panasonic

Panasonic Lumix DMC-FX07K Manual de usuario

Panasonic

Panasonic Lumix DMC-L10 Manual de usuario

Panasonic

Panasonic Lumix DC-FZ1000 II Instrucciones de instalación y servicio

Panasonic

Panasonic Lumix DMC-FT10 Manual de usuario

Panasonic

Panasonic Lumix DMC-ZS7 Especificaciones técnicas

Panasonic

Panasonic Lumix DMC-LC40 Manual de usuario

Panasonic

Panasonic DMC-FZ300PP Manual de usuario

Panasonic

Panasonic Lumix DMC-LZ10P Manual de usuario

Panasonic

Panasonic Lumix DMC-FS35 Especificaciones técnicas

Panasonic

Panasonic LUMIX DMC-FX33 Manual de usuario

Panasonic

Panasonic Lumix DMC-LX5 Manual de usuario

Panasonic

Panasonic AG-GH4 series Manual de uso y cuidado

Panasonic

Panasonic DMC-FX12 Manual de usuario

Panasonic

Panasonic DMCFP1 - DIGITAL STILL CAMERA Manual de usuario

Manuales populares de Cámara digital de otras marcas

Mercury

Mercury 350K Manual de usuario

Pentax

Pentax Optio LS 465 Manual de usuario

Sanyo

Sanyo VPC-S1085 Manual de usuario

GE SMART A1255 Manual de usuario

Point Grey

Point Grey Gazelle Manual de usuario

Nikon

Nikon COOLPIX A Manual de usuario

Pentax

Pentax P-5 Manual de usuario

BlazeVideo

BlazeVideo A280 Manual de usuario

Sony

Sony MCA-20 Manual de usuario

Sony

Sony Alpha DSLR-A290 Manual de usuario

ATIK Cameras

ATIK Cameras One Manual de usuario

CohuHD Costar

CohuHD Costar 3930 Series Manual de usuario

Leica

Leica M10-R Manual de usuario

FujiFilm

FujiFilm FinePix A700 Manual de usuario

Lorex

Lorex LNZ81P25 Series Manual de usuario

GE J1470S Manual de usuario

Sony

Sony A6700 Guía del usuario

Canon

Canon EOS ELAN7 Manual de usuario
