Getting Started

Introduction

Thank you for purchasing this Panasonic product. For optimum performance and

safety, please read these instructions carefully.

nTerms and illustrations in these instructions

CAUTION : Conditions that may result in minor or moderate

injury.

NOTE : Useful and helpful information.

“Windows 10 Pro 64-bit” as “Windows” or “Windows 10”

Enter

: Press [Enter] key.

Alt

Del

: Press and hold [Alt] key, and then press [Del]

key.

è: Page in these Operating Instructions.

: Reference to the on-screen manuals.

(Start) - [All Programs] : Touch (Start), and then touch [All Programs].

You may need to double-touch in some cases.

l Someillustrationsaresimpliedtohelpyourunderstandingandmaylookdif-

ferent from the actual unit.

lIf you do not sign in as an administrator, you cannot use some functions or

cannot display some screens.

lRefer for the latest information about optional products to the catalogs, etc.

lIn these instructions, the names and terms are referred as follows.

“Multilingual User Interface” as “MUI”

lScreen messages are explained in [English (United States)].

(Depending on the language preference, some screen messages in these

instructions are different from the actual screen messages. For example, [Flight

mode] may be displayed instead of [Airplane mode] in some language prefer-

ence.)

nDisclaimer

Computerspecicationsandmanualsaresubjecttochangewithoutnotice.Pana-

sonic Corporation assumes no liability for damage incurred directly or indirectly

from errors, omissions or discrepancies between the computer and the manuals.

Downloaded from ManualsNet.com search engine

Getting Started

nTrademarks

Microsoft, Windows, and the Windows logo are registered trademarks or trade-

marks of Microsoft Corporation of the United States and/or other countries.

Intel, Core, and PROSet are either registered trademarks or trademarks of Intel

Corporation.

microSDXC Logo is a trademark of SD-3C, LLC.

Adobe and Flash are registered trademarks or trademarks of the United States

and/or other countries.

Bluetooth®is a registered trademark owned by Bluetooth SIG, Inc., U.S.A. and

licensed to Panasonic Corporation.

ThetermsHDMIandHDMIHigh-DenitionMultimediaInterface,andtheHDMI

Logo are trademarks or registered trademarks of HDMI Licensing Administrator,

Inc. in the United States and other countries.

Names of products, brands, etc., appearing in this manual are trademarks or reg-

istered trademarks of their respective own companies.

nOn-screen Manual

For further information about the computer, you can refer to the on-screen manual.

lOperating Instructions - Reference Manual

The Operating Instructions - Reference Manual contains the practical informa-

tion to help you fully enjoy the computer’s performance.

lImportant Battery Tips

The Important Battery Tips will provide you with the battery information so that

you can use the battery in the optimum condition to obtain longer operation

time.

To access the on-screen manuals, follow the steps below.

On the Start screen, touch the [Manual Selector] tile, and select the on-screen

manual.

NOTE

l[Contents] tab or [Search] tab is displayed on the left side of the window.

Select tab and display the desired item.

Downloaded from ManualsNet.com search engine

Getting Started

A: Wireless WAN Antenna

<Only for model with wireless

WAN>

èOperating Instructions - Ref-

erence Manual “Wireless WAN”

B: Wireless LAN Antenna

èOperating Instructions - Ref-

erence Manual “Wireless LAN”

C: Ambient Light Sensor

The ambient light sensor is

equipped with an automatic bright-

ness adjustment function that ad-

justs the display screen. (èpage 16)

Front Camera

 è Operating Instructions - Ref-

erence Manual “Camera”

D: Camera Lens

E: Camera Indicator

F: LED Indicators

: Power Indicator

Off: Display off/Hibernation,

Green: Display on.

: Drive status

: Battery status

èpage 15 “When the battery

indicator does not light on”

èOperating Instructions -

Reference Manual “Battery

Power”

G: Wireless LAN Antenna / Blue-

tooth Antenna

èOperating Instructions - Ref-

erence Manual “Wireless LAN”

“Bluetooth”

H: Windows Button

èOperating Instructions - Ref-

erence Manual “Tablet Buttons”

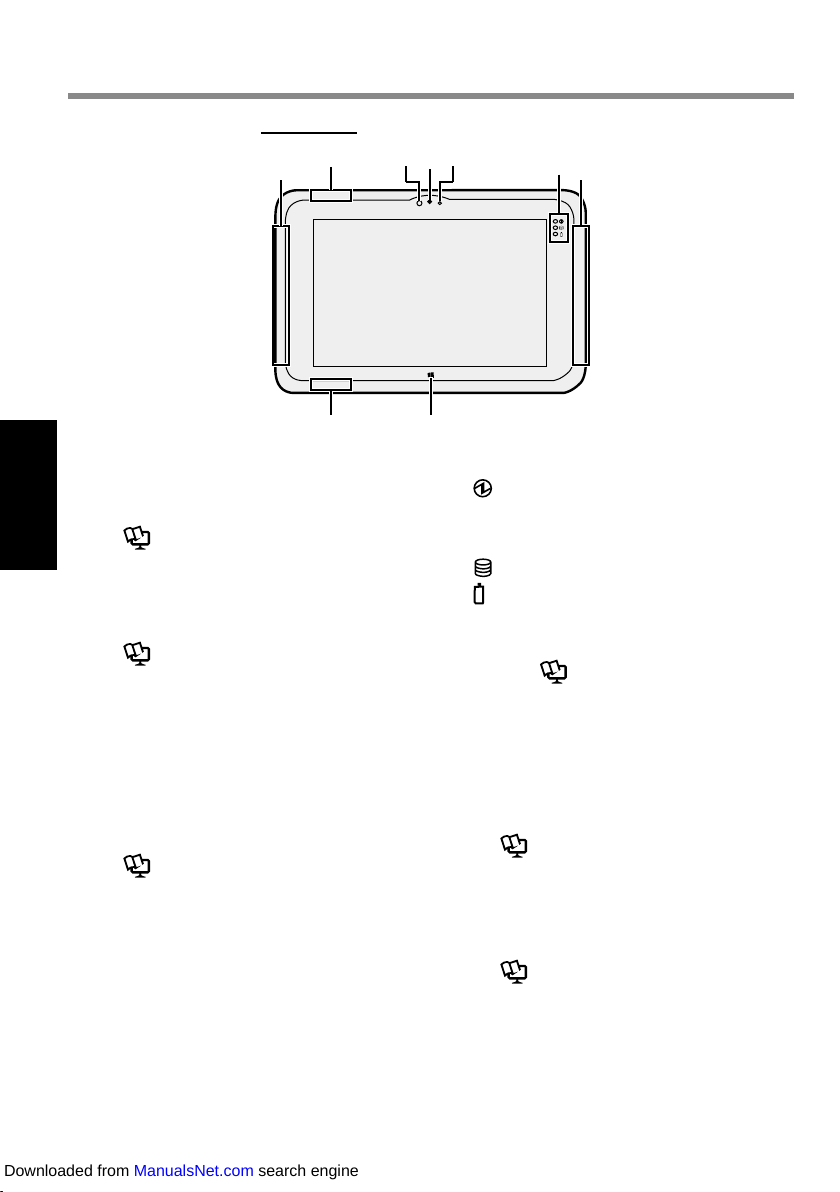

Description of Parts

ABD E

Front side

Downloaded from ManualsNet.com search engine

Getting Started

A: Microphone

B: Volume Button

èOperating Instructions - Ref-

erence Manual “Tablet Buttons”

C: Power Switch

D: Rotation Lock Button

èOperating Instructions - Ref-

erence Manual “Display Rota-

tion”

E: A Button

èOperating Instructions - Ref-

erence Manual “Tablet Buttons”

F: DC-IN Jack

G: Headset Jack

A headset or headphone can be

connected.

H: USB3.0 Port

èOperating Instructions - Ref-

erence Manual “USB Devices”

I: Security Lock

A Kensington cable can be con-

nected.

For further information, read the

manual that comes with the cable.

J: Expansion Bus Connector

èOperating Instructions - Ref-

erence Manual “Cradle”

K: External Antenna Connector

<Only for model with wireless

WAN>

Left side Right side

EDCBA

Top

Bottom

Downloaded from ManualsNet.com search engine

Getting Started

Description of Parts

Rear Camera

èOperating Instructions - Ref-

erence Manual “Camera”

A: Camera Lens

B: Camera Light

C: Camera Indicator

D: Speaker

E: Battery Indicator

F: Battery Latch

èOperating Instructions - Ref-

erence Manual “Battery Power”

G: Battery Pack

H: microSIM Card Slot

èOperating Instructions - Ref-

erence Manual “Wireless WAN”

I: microSD Memory Card Slot

Operating Instructions - Reference

Manual “microSD Memory Card”

J: Barcode Reader / LAN Port

Operating Instructions - Refer-

ence Manual

“Barcode Reader”

èOperating Instructions - Ref-

erence Manual “LAN”

K: Built-in Bridge Battery

<Only for model with Built-in Bridge

Battery>

L: Smart Card Reader / Magnetic

Stripe Card Reader / Contactless

Smart Card Reader

Operating Instructions - Refer-

ence Manual “Smart Card”

<Only for model with Magnetic

Stripe Card Reader>

Operating Instructions - Reference

Manual “Magnetic Stripe Card Reader”

<Only for model with Contactless

Smart Card Reader>

èOperating Instructions - Ref-

erence Manual “Contactless

Smart Card Reader”

Rear side

Top (optional)

Downloaded from ManualsNet.com search engine

Getting Started

nPreparation

ACheck and identify the supplied accessories.

Ifyoudonotndthedescribedaccessories,contactPanasonicTechnical

Support (èpage 42).

• AC Adaptor...... 1

Model No: CF-AA6373A

• AC Cord ........ 1 • Battery Pack . . . . . 1

Model No: FZ-VZSU94W

• Soft Cloth .............................................1

• Stylus*1 ...............................................1

• Tether*1 ...............................................1

• Hand Strap*1 ...........................................1

• OPERATING INSTRUCTIONS - Read Me First ...............1

*1 Not included with some models.

BRead the LIMITED USE LICENSE AGREEMENT before breaking the seal

on the computer’s packaging (èpage 29).

First-time Operation

1 Inserting the Battery Pack.

Turn over the computer and insert the battery pack

until it touch to the secured position.

Make sure no foreign objects are under the computer.

CAUTION

lMake sure the latch is securely locked. Otherwise the

battery pack may fall when you carry the computer.

lDo not touch the terminals of the battery pack and the

computer. Doing so can make the terminals dirty or

damaged, and may cause malfunction of the battery

pack and the computer.

㪉

㪈

Downloaded from ManualsNet.com search engine

Getting Started

First-time Operation

NOTE

Note that the computer consumes electricity even when the

computer power is off. If the battery pack is fully charged,

the battery will fully discharge in the following period of time:

Status FZ-VZSU94W FZ-VZSU95W

(optional)

When power is off

Approx. 7 weeks Approx. 17 weeks

In sleep*2 Approx. 9 days Approx. 20 days

In hibernation Approx. 7 weeks Approx. 17 weeks

*2 <Only for model with LAN>

If “Wake Up from wired LAN” is enabled, the period

of time will be shorter.

2 Connect your computer to a power out-

let.

The battery charging starts automatically.

CAUTION

l DonotdisconnecttheACadaptoruntiltherst-time

operation procedure is completed.

l Whenusingthecomputerforthersttime,donotcon-

nect any peripheral device (including wired LAN cable)

except the battery pack and AC adaptor.

lHandling the AC adaptor



Problems such as sudden voltage drops may arise dur-

ing periods of thunder and lightning. Since this could

adversely affect your computer, an uninterruptible

power source (UPS) is highly recommended unless

running from the battery pack alone.

3 Turn on the computer.

Press and hold the power switch (A) (longer than 2

seconds) until the power indicator (B) lights.

CAUTION

lDo not press the power switch repeatedly or do not

hold the power switch for ten seconds or longer.

lAny changes from the default setting of the Setup Util-

ity must not be made until the First-time Operation is

completed.

㪈

㪉

Downloaded from ManualsNet.com search engine

Getting Started

4 Setup Windows.

Select language and touch [Next].

Follow the on-screen instructions.

lThe computer restarts several times. Do not touch

the screen or tablet buttons, and wait until the drive

indicator has turned off.

lAfter the computer is turned on, the screen remains

black or unchanged for a while, but this is not a

malfunction. Wait for a moment until the Windows

setup screen appears.

lSetup of Windows will take approximately 5 min-

utes.

Gotothenextstep,conrmingeachmessageon

the display.

lYou can set the Wireless Network after the setup of

Windows is complete.

If “Let’s get connected” is displayed, you can select

“Skip this step”.

CAUTION

lYou can change the user name, password, image and

security setting after setup of Windows.

lRemember your password. If you forget the password,

you cannot use Windows. Creating a password reset

disk beforehand is recommended.

lDo not use the following words for user name: CON,

PRN, AUX, CLOCK$, NUL, COM1 to COM9, LPT1 to

LPT9, LPT, &, space.

5 Restart the computer

ATouch (Start).

BTouch (Power) - [Restart].

lA portion of the Panasonic PC Settings Utility func-

tions will be enabled after the computer restarts.

Downloaded from ManualsNet.com search engine

Getting Started

First-time Operation

6 Update the on-screen manual

AConnect to the internet. Sign in to Windows as an

administrator.

For further information, refer to Connect to a

network.

BUpdate the on-screen manual.

Double-touch the [Panasonic PC Settings Utility]

on the desktop screen, and then touch [Support] -

[Manual] - [Launch Manual Selector].

7 <For MUI OS model>

Deleting language packs.

Language Pack Cleanup Utility deletes the unused

languagepackfromtheashmemorydrive.

Deleting such language packs will shorten the post-

processing time.

Perform this utility before running the following functions.

Backup

Create a Recovery drive

Refresh

NOTE

lDo not disconnect the AC adaptor until this utility has

beennished.

lNo need to perform this utility more than twice.

ALog on to Windows as an administrator.

BTouch (Start) - (All apps) - [Panasonic] -

[Language Pack Cleanup Utility].

If [User Account Control] is displayed, touch [Yes].

CAttheconrmationmessage,touch[Yes]- [OK].

This utility requires several hours to perform, and

restarts more than 10 times while performing.

DIf “Completed” is displayed, touch [OK].

8 Create a recovery drive.

A recovery drive allows you to install OS and restore

its factory default condition, in case, for example, the

recoverypartitionoftheashmemoryisdamaged.

We recommend creating a recovery drive before you

begin using the computer.

Refer to è

Operating Instructions - Reference Manual “Re-

covery Disc Creation Utility” about creating the recovery drive.

Downloaded from ManualsNet.com search engine

Otros manuales para FZ-M1 Series

Tabla de contenidos

Otros manuales de De oficina de Panasonic

Panasonic

Panasonic CF-74 Series Diagrama de cableado

Panasonic

Panasonic CF-07 Series Manual de usuario

Panasonic

Panasonic CF-MX4 series Manual de usuario

Panasonic

Panasonic Toughbook CF-47 Series Manual de usuario

Panasonic

Panasonic CF-LX6 Series Manual de usuario

Panasonic

Panasonic CF-T5 Series Diagrama de cableado

Panasonic

Panasonic JR-200U Manual de usuario

Panasonic

Panasonic CF-33 series Manual de usuario

Panasonic

Panasonic Toughpad FZ-M1CCAAXBM Manual de usuario

Panasonic

Panasonic CF-20 series Manual de usuario

Panasonic

Panasonic CF-W2 Series Manual de usuario

Panasonic

Panasonic FZ-G1 Series Manual de usuario

Panasonic

Panasonic CF-T2 Series Manual de usuario

Panasonic

Panasonic CF-55 Series Manual de usuario

Panasonic

Panasonic Toughbook CF-48 Series Manual de usuario

Panasonic

Panasonic CF-52 Series Manual de usuario

Panasonic

Panasonic CF-19 series Manual de usuario

Panasonic

Panasonic Toughbook CF-18 Series Diagrama de cableado

Panasonic

Panasonic CF-T7 Series Manual de usuario

Panasonic

Panasonic Toughbook CF-07LZAZYDM Manual de usuario

Panasonic

Panasonic CF-63 Series Manual de usuario

Panasonic

Panasonic CF-27 Series Manual de usuario

Panasonic

Panasonic CF-37 Series Diagrama de cableado

Panasonic

Panasonic CF-T5 Series Manual de usuario

Manuales populares de De oficina de otras marcas

HP m9060n - Pavilion - Elite Hoja de especificaciones

Asus

Asus E210 Series Manual de usuario

Dell

Dell Inspiron 600m Manual de usuario

Dell

Dell Inspiron 3662 Manual de usuario

TotalFlow

TotalFlow uFLO Manual de usuario

HP Presario SV7000 - Desktop PC Manual de usuario

HP ProDesk 400 G5 Manual

Logitech

Logitech MK320 Manual de usuario

Dell

Dell XPS 730 H2C Manual de usuario

Sony

Sony Vaio Series Manual de usuario

Sony

Sony VGC-LT32E - Vaio All-in-one Desktop Computer Manual de usuario

Alto

Alto MD 250 Manual de usuario

Lenovo

Lenovo ThinkCentre Edge 72 Manual

Lenovo

Lenovo ThinkStation D20 Manual

Arbor Technology

Arbor Technology FPC-7800 Series Manual de usuario

Sony

Sony VAIO VGX-TP1 Series Manual de usuario

Asus

Asus Eee Box B204 Manual de usuario

Dell

Dell Optiplex 9010 All In One Manual de usuario
