Panasonic CF-T5 Series Manual de usuario

ORDER NO.

CPD0610202C1

Personal Computer

CF-T5

Model No. CF-T5LWETZ1 2

: Operat on System

B: M crosoft® W ndows® XP Profess onal

: Area

M: Refer to above area table

Th s s the Serv ce Manual for

the follow ng areas.

M …for U.S.A. and Canada

Unauthor zed copy ng and d str but on s a v olat on of law.

CONTENTS

1. Spec f cat ons 6

2. Names and Funct ons of Parts 8

3. Block D agram 10

4. D agnos s Procedure 11

5. Power-On Self Test (Boot Check) 13

6. L st of Error Codes <Only when the port repl cator s connected> 14

7. Self D agnos s Test 16

8. W r ng Connect on D agram 21

9. D sassembly/Reassembly 22

10. Exploded V ew 74

11. Replacement Parts L st 78

A :Function Key

B :Keyboard

C :LED Indicator

: Caps lock

: Numer c key (NumLk)

: Scroll lock (ScrLk)

: Hard d sk dr ve status

ECO

: Economy Mode (ECO) status

: Battery status

D :Power Switch

page 13

Power Indicator

Off: Power off/H bernat on

Green: Power on

Bl nk ng green: Standby

E : Wire ess Switch

<Only for model w th w reless LAN/w reless WAN/

Bluetooth>

F : Touch Pad

G :LCD/Touchscreen

H :Speaker

I : LAN Port

If the M n Port Repl cator s connected to the computer,

connect the LAN cable to the LAN port on the M n Port

Repl cator. You cannot use the LAN port on the computer.

J : Modem Port

Be sure to use the ncluded modem telephone cable,

and nsert the end of the cable w th the phyll te core

nto the modem port on the computer.

K :Security Lock

You can connect a Kens ngton cable. Refer to the nstruc-

t on manual of the cable. The secur ty lock and cable s a

theft prevent on dev ce. Matsush ta Electr c Industr al Co.,

Ltd. w ll bear no respons b l ty n the event of theft.

L : USB Ports

M :Wire ess LAN Antenna

N :B uetooth Antenna

Wire ess WAN Antenna

For model w th EVDO or w thout w reless WAN:

The SIM card slot under th s cover s not used for th s model. Do not open the cover.

For other models:

Refer to the add t onal nstruct ons.

2 Names and Functions of Parts

EXT.

A :DC-IN Jack

B :Externa Disp ay Port

If the M n Port Repl cator s connected to the com-

puter, connect the external d splay to the external d s-

play port on the M n Port Repl cator. You cannot use

the external d splay port on the computer.

C :Mini Port Rep icator Connector

Connect the M n Port Repl cator (opt onal).

D :SD Memory Card S ot

E : PC Card S ot

F : SD Memory Card Indicator

Bl nk ng: Dur ng access

G :Microphone Jack

A condenser m crophone can be used. If other types

of m crophones are used, aud o nput may not be pos-

s ble, or malfunct ons may occur as a result.

When record ng n stereo us ng a stereo m crophone:

Double-cl ck n the not f cat on area, cl ck

[Opt ons] - [Propert es], and add a check mark for

[Record ng], cl ck [OK] - [Opt ons] - [Advanced Con-

trols] - [Advanced], remove a check mark for [Mono

M crophone], and then cl ck [Close].

When us ng a monaural m crophone w th a 2-term nal plug:

W th the sett ngs outl ned above, only aud o on the

left track w ll be recorded.

When mon tor ng the m crophone aud o us ng head-

phones, sounds on the left track cannot be heard,

regardless of the above sett ngs. Th s s a result of the

computer s spec f cat ons, and s not a malfunct on.

H :Latch

I : Headphone Jack

You can connect headphones or ampl f ed speakers.

When they are connected, aud o from the nternal

speakers s not heard.

J : RAM Modu e S ot

K :Battery Latches

L : Hand Strap

M :Battery Pack

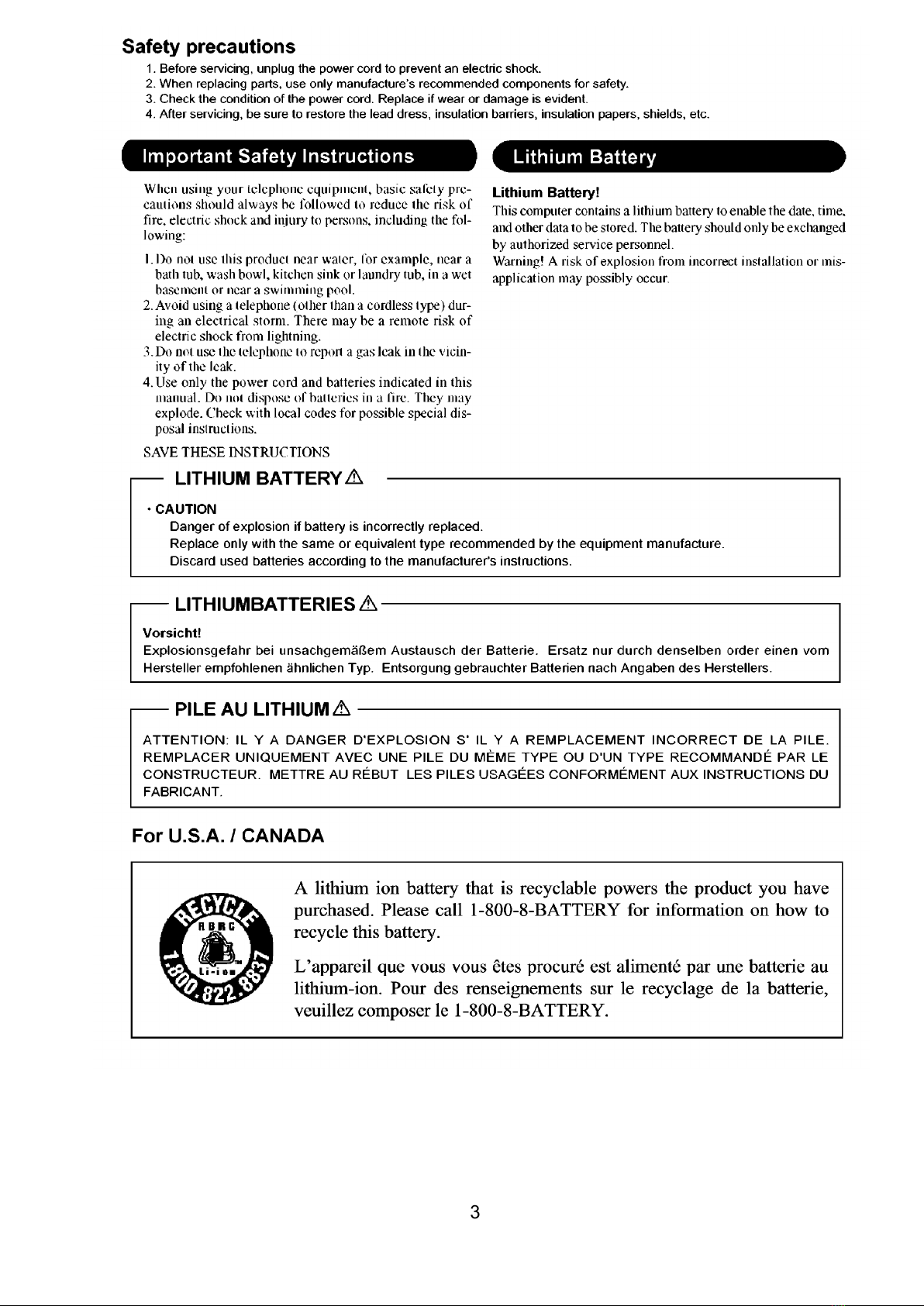

A l th um on battery that s recyclable powers the product you have purchased.

Please call 1-800-8-BATTERY for nformat on on how to recycle th s battery.

L appare l que vous vous Œtes procurØ est al mentØ par une batter e au l th um- on.

Pour des rense gnements sur le recyclage de la batter e, veu llez composer le

1-800-8-BATTERY.

3 Block Diagram
