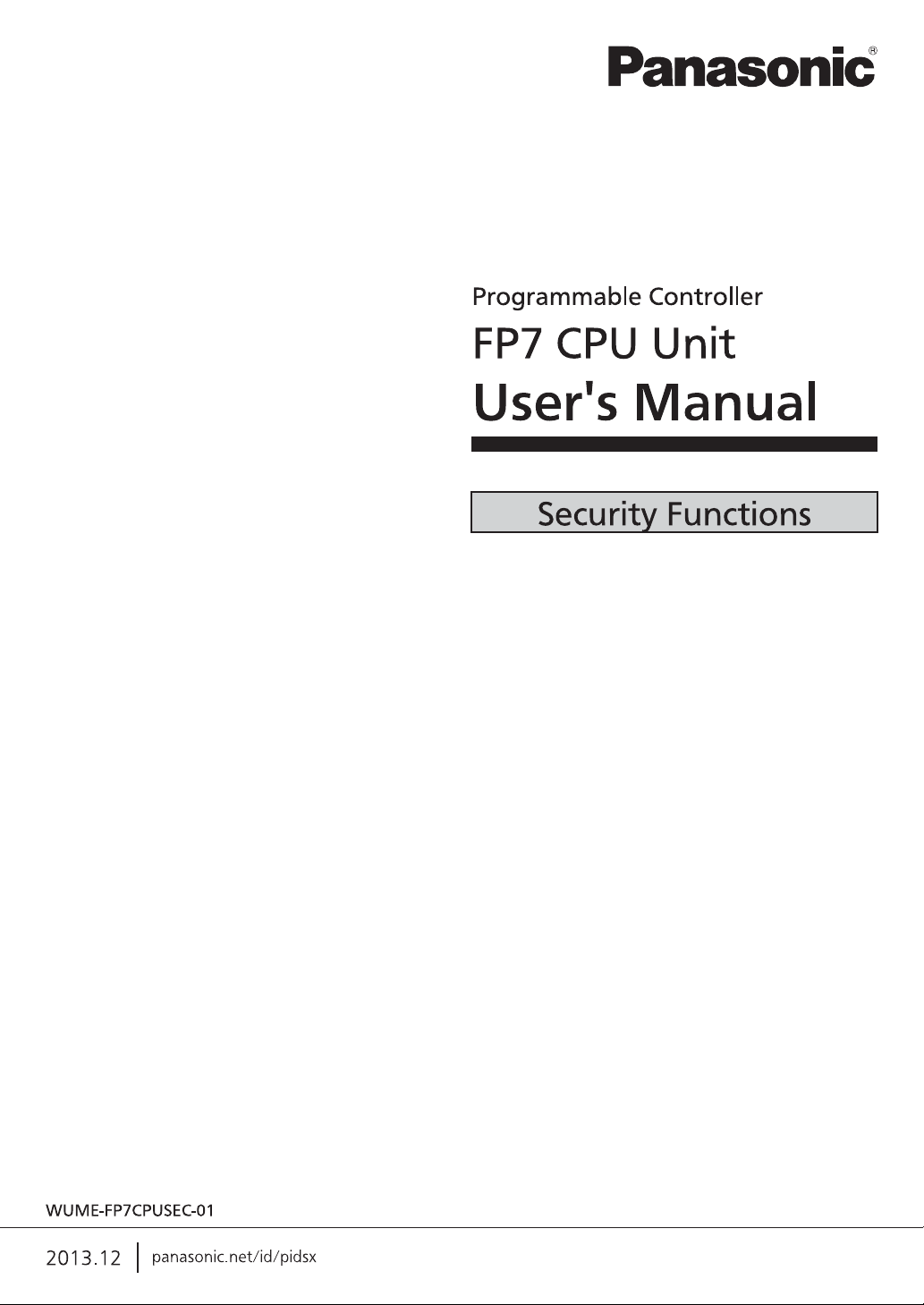

Panasonic FP7 Series Manual de usuario

Introduction

Thank you for buying a Panasonic product. Before you use the product, please carefully read

the installation instructions and the users manual, and understand their contents in detail to

use the product properly.

Types of Manual

There are different types of users manual for the FP7 series, as listed below. Please refer to

a relevant manual for the unit and purpose of your use.

The manuals can be downloaded on our website:

http://industrial.panasonic.com/ac/e/dl_center/manual/ .

Unit name or purpose of

use Manual name Manual code

FP7 Power Supply Unit FP7 CPU Unit Users Manual (Hardware) WUME-FP7CPUH

FP7 CPU Unit Command Reference Manual WUME-FP7CPUPGR

FP7 CPU Unit Users Manual

(Logging Trace Function) WUME-FP7CPULOG

FP7 CPU Unit

FP7 CPU Unit Users Manual (Security Function) WUME-FP7CPUSEC

Instructions for Built-in

LAN Port

FP7 CPU Unit Users Manual

(LAN Port Communication) WUME-FP7LAN

Instructions for Built-in

COM Port

FP7 Extension Cassette

(Communication)

(RS-232C/RS485 type)

FP7 series Users Manual (SCU communication) WUME-FP7COM

FP7 Extension Cassette

(Communication)

(Ethernet type)

FP7 series Users Manual (Communication

cassette Ethernet type) WUME-FP7CCET

FP7 Extension (Function)

Cassette

Analog Cassette

FP7 Analog Cassette Users Manual WUME-FP7FCA

(Upcoming)

FP7 Digital Input/Output Unit FP7 Digital Input/Output Unit Users Manual WUME-FP7DIO

FP7 Analog Input Unit FP7 Analog Input Unit Users Manual WUME-FP7AIH

FP7 Analog Output Unit FP7 Analog Output Unit Users Manual WUME-FP7AOH

FP7 High-speed counter Unit FP7 High-speed counter Unit Users Manual WUME-FP7HSC

FP7 Pulse Output Unit FP7 Pulse Output Unit Users Manual WUME-FP7PG

(Upcoming)

FP7 Positioning Unit FP7 Positioning Unit Users Manual WUME-FP7POSP

FP7 Serial Communication

Unit FP7 series Users Manual (SCU communication) WUME-FP7COM

PHLS System PHLS System Users Manual WUME-PHLS

Programming Software

FPWIN GR7 FPWIN GR7 Introduction Guidance WUME-FPWINGR7

Selection of CPU Units

Note the following points when selecting a CPU unit.

Specification changes of CPU unit

The firmware version of CPU units has been changed in accordance with the extension of

the specifications. Specify units with new model numbers.

Conventional

model number

（Ver.1）

New model number

（Ver.2）

Program

capacity

Ethernet

function

With Encryption

function

No Eencryption

function

With Encryption

function

196K steps Available AFP7CPS4E →AFP7CPS41E AFP7CPS41ES

Available AFP7CPS3E →AFP7CPS31E AFP7CPS31ES

120K steps

Not available AFP7CPS3 →AFP7CPS31 AFP7CPS31S

The CPU units Ver.2 are upward compatible with the conventional Ver.1.

For using CPU units Ver.2, Ver.2.0 or later version of FPWIN GR7 is required.

For using the projects (programs, comments and configuration data) created for the

conventinal CPUs Ver.1, the projects must be converted to the projects for CPU units Ver.2

using the "Convert PLC Type" function of the tool software.

For using the units released after December 2013 or add-on cassettes, Ver.2 or later version

of CPU unit is required.

The layout of the operation monitor LEDs on the CPU units has been changed.

Regulations on Encryption function in China

Some CPU units have the encryption function which encrypts a part or all parts of programs

in projects.

In China, the types equipped with the encryption function cannot be used as they are subject

to "Regulation of Commercial Encryption Codes". For using machines or systems

incorporating FP7 series in China, or exporting and importing them, select the types without

the encryption function.

Table of Contents

1. Security Function ................................................................1-1

1.1 Overview of Security Function ................................................................ 1-2

1.1.1 Precautions on Using Security Function .................................................1-2

1.1.2 Type of Security Functions......................................................................1-2

1.1.3 Target Items of Security Functions .........................................................1-5

1.2 Password Protection Function................................................................ 1-6

1.2.1 How to Set Password (1) Administrative Previleges...............................1-6

1.2.2 How to Set Password (2) User Privileges ...............................................1-8

1.2.3 Reading Project that Password Has Been Set (1) Administrative

Previleges..............................................................................................1-10

1.2.4 Reading Project that Password Has Been Set (2) User privileges .......1-11

1.2.5 Cancelling Password.............................................................................1-12

1.2.6 Limited Distribution Password...............................................................1-13

1.3 Upload Protection Setting..................................................................... 1-14

1.3.1 Operation When Upload Protection Has Been Set...............................1-14

1.3.2 Setting Method ......................................................................................1-14

1.3.3 Cancelling Upload Protection Setting ...................................................1-15

1.4 Encryption Setting................................................................................. 1-16

1.4.1 Feature of Encryption Setting Function.................................................1-16

1.4.2 Encryption Setting for Program Blocks (PB) .........................................1-16

1.4.3 Confirming Encrypted State (Decryption) .............................................1-18

1.4.4 Changing or Deleting Encryption Key ...................................................1-19

1.4.5 How to Set Encryption Keyword for PLC (1).........................................1-20

1.4.6 How to Set Encryption Keyword for PLC (2).........................................1-21

1.5 Cancelling Security Setting................................................................... 1-22

1.5.1 Setting Method ......................................................................................1-22

1.6 Restrictions on SD Memory Card Operation and Copy Operation ....... 1-23

Table of Contents

1.6.1 SD Memory Card Operation and Copy Operation of SD Memory Card1-23

Security Function

1-2

1.1 Overview of Security Function

1.1.1 Precautions on Using Security Function

Security information set for each function can be cleared using the tool software, however,

performing the clearing operation also deletes project data. Fully confirm before determining

the operations of each security function.

Although the encryption function encrypts programs to make them unreadable, it cannot

protect projects from being read or rewritten. Use the password protection function in

combination as necessary.

1.1.2 Type of Security Functions

Password function （1）

This is a function to set a password for project data downloaded to the PLC for preventing

data from being read and written. Using this function prevents unnecessary rewrting or leak

of know-how.

The password is valid for configuration data, ladder programs and comments.

Operation memories can be read or written even when a password has been set.

A project for which a password has been set is saved as a password-protected file even

when it is saved on a PC. (Available in FPWIN GR7 Ver.1.3 or later)

Item Specifications

No. of registerable passwords 16 (Settable as administrator or users) (Note)

No. of characters 8 to 16 characters

Open and close for each

communication route Only connected port is allowed to access.

Limit on number of failed open

request

Access is blocked when opening operation failed three times. It is

recovered when the power turns on again.

Status when power is on All passwords are closed when the power turns on.

(Note) The number one password is set with administrator privileges.

FP7 CPU FP7 CPU

PB1

PB2

PB3

---------

Configuration data

Password

1.1 Overview of Security Function

1-3

Password function （2）User-level password

This is a function to set passwords for administrator or each user, which enables to change

levels of access.

All operations can be performed with administrative privileges as in the case no password is

set.

For user-level passwords, it is possible to specify the allowable range of PB numbers of

program blocks accessible when reading or writing.

This function is available from FPWIN GR7 Ver.1.3 and CPU Ver.1.3.

Password No.2

FP7 CPU

PB1

PB2

PB3

---------

Configuration data

Password No.2

Password No.3

FP7 CPU

PB1

PB2

PB3

---------

Configuration data

Password No.3

Password No.1

FP7 CPU

PB1

PB2

PB3

---------

Configuration data

Password No.1, 2, 3

Privileges

Item Administrator User Remarks

Registration, deletion of passwords, limited

distribution setting

Upload protection setting, encryption setting,

security forced reset



Reading configuration data 

Writing or changing configuration data 

Reading files from PC ○

Saving files into PC ○

Uploading program blocks from PLC ○

Downloading program blocks to PLC ○

Converting program blocks ○

With user privileges,

executable only in the

range specified in the

password setting dialog

box

Converting projects 

Reading operation memories 

Writing operation memories 

Security Function

1-4

Upload protection function

This is a function to prevent downloaded projects from being uploaded. This function

prevents the leak of programs and know-how.

The upload protection function is valid for configuration data, ladder programs and

comments.

Even when the upload protection function has been set, projects can be downloaded and

overwritten.

This function can be used in combination with the password function.

FP7 CPUFP7 CPU

Encryption function (Models with the encryption function only)

This is a function to encrypt a part or all parts of programs in projects.

Encryption is valid for ladder programs and comments.

Encryption can be performed for each program block (PB).

Encrypted programs become valid only when an encryption key has been set to the PLC and

it matches.

A project for which an encryption keyword has been set is saved as a file with the encrypted

keyword even when it is saved on a PC.

This function can be used in combination with the password function.

FP7 CPU FP7 CPU

PB1

PB2

PB3

---------

Keyword

Configuration data
