Setup Reference guide for KX-HTS Series

(Tested with HTS824 Version 1.6)

“LCR” SIP Trunk service

with External Router

Version 0.1(PSCEU) 29th August, 2017

Draft Version

SUMMARY

This document is a reference for configuring “LCR Telecom” SIP trunks onto Panasonic HTS and

includes the settings required for Incoming Call DDI routing and Outgoing Call CLI presentation.

SIP trunk specific account details are provided to you by LCR Telecom.

Attention:

This document was created based on the results of test environment accounts.

Panasonic cannot guarantee SIP Trunk operation in all environments, however as a result of

completing this Inter-Operability Test Panasonic will provide technical support for any issues

experienced an assist as far as possible in providing a resolution.

Please obtain relevant information from Service provider before configuration of SIP trunks.

Panasonic will not be held liable for any information provided in this guidance document.

Information used in this document is for interoperability testing.

Information and Specifications in this document are subject to change without notice.

Note

CLIR

HTS and LCR do not support CLIR (Anonymous).

CLIP when Transfer/Forward to CO

LCR does not support to notify the call originator CLI when call Transfer/Forward to CO.

Table of Contents

(1) SIP Trunk, Extension Port Number and NAT Configuration: Page 4

(2) Network Settings: Page 5

(3) Trunk Port Attribution: Page 7

(4) Provisioning a SIP trunk: Page 8

(5) Incoming Call Routing: Page 12

(6) Outgoing Call CLI: Page 13

(7) CLIR Call (Anonymous call):HTS and LCR Not supported Page 14

(8) Router/Firewall Port Forwarding: Page 15

With External Router and Network Example

Existing User Network: 192.168.22.0 / Subnet Mask: 255.255.255.0 (/24)

Existing Router IP Address: 192.168.22.1,

Static DNS: Primary DNS Server 192.168.22.1 / Secondary DNS Server: 8.8.8.8

Note

Configure the settings according to the IP address system of the existing user network.

Also, set the IP address which does not duplicate other IP devices.

Internet

To Existing Router

To PC/HUB

LAN1: 192.168.0.101/24

WAN1: 192.168.22.99/24

Existing Router

(Enable DHCP)

KX-HDV series

(e.g., KX-HDV230)

Existing User Network

(192.168.22.0 /24)

HUB

(192.168.22.1/24)

(1) SIP Trunk, Extension Port Number and NAT Configuration

SIP Extension & SIP Trunk Common

Select [PBX Configuration] - [2. Extension] - [7.SIP Extension Property]

[SIP Extension & SIP Trunk Common]

1. Voice (RTP) UDP port No.(Server): Leave at 12000-

2. SIP Port Number: Leave at 5060

3. NAT Traversal: Leave Off

4. NAT – Fixed Global IP Address: Leave at 0.0.0.0

All other settings can be left at default.

Click [Apply]

Click [Apply Now]

(2) Network Settings

Network Configuration WAN Setting

Select [Network Configuration] - [3.WAN]– [1.WAN Setting] and Select [WAN 1 Channel]

Click [Modify]

HTS WAN-1 IP: 192.168.22.99 (Example)

Assigned HTS WAN IP address by user network administrator

1. WAN Type: Fix IP

2. WAN Connection Name: Leave WAN1_Fix_IP - Reference only-

3. IP address, by your ISP: 192.168.22.99 (Enter your actual IP address)

4. Subnet Mask: 255.255.255.0

5. ISP Gateway Address: 192.168.22.1

6. Static DNS Change to Enable

7. Primary DNS Server: 192.168.22.1

8. Secondary DNS Server: 8.8.8.8

Click [Apply]

LAN Settings

Go to [Network Configuration] - [4.LAN] - [2.LAN Settings]

1. IP Address: 192.168.0.101

2. Subnet Mask: 255.255.255.0

3. DHCP Mode: Server

[DHCP server]

4. IP Pool Staring Address: Leave 192.168.0.102

5. IP Pool Ending Address: Leave 192.168.0.254

6. Lease Time: Leave One day

(3) Trunk Port Attribution

Select [PBX Configuration] -[3.Trunk]- [1.Port] and click [Edit / CO Line Number 1 to 8]

[CO Line Number 1]

1. Attribution: SIP Carrier - 1

2. Trunk Group: Leave at 1

Click [Apply]

Click [Apply Now]

Example, Configure “CO-Line 1-2: SIP Carrier-1, Other CO-Line: No Connect”

SIP Trunk 2 Channels

Others 6 CO Line are not used,

Configure to No Connect from

Analog Line.

(4) Provisioning the SIP Trunk

SIP Trunk Property - Common

Select [PBX Configuration] - [3.Trunk] - [7. SIP Trunk Property] - [Common]

1. DNS SRV Record Resolve Ability: Leave Disable

[Register]

2. Register Sending Interval (s): Leave at 3600

3. Register Resending Interval (s): Leave at 300

4. RTCP Sending Interval (s): Leave at 5

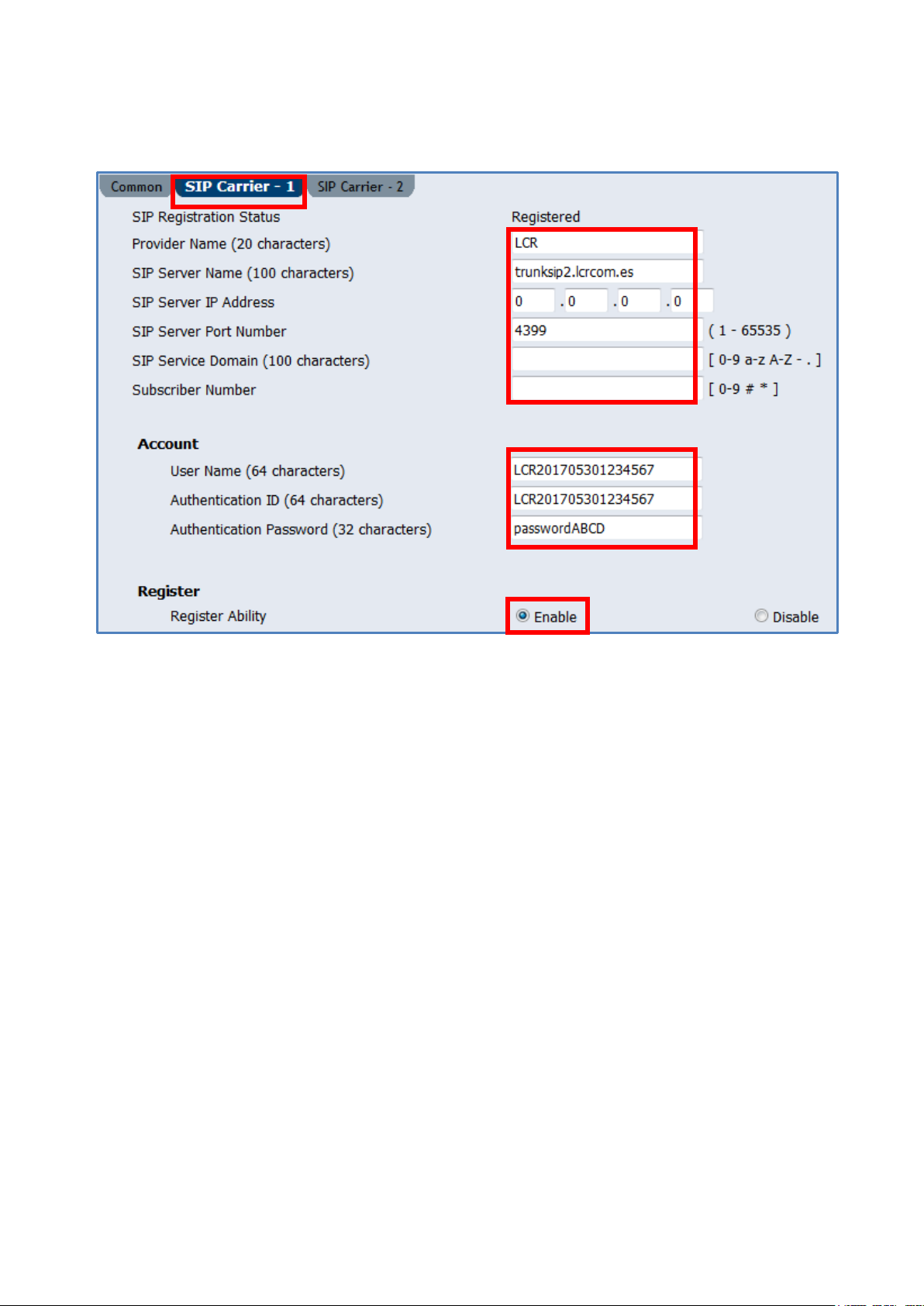

SIP Trunk Property continued – SIP Carrier-1

[SIP Carrier-1]

1. Provider Name: Enter a name – reference only

2. SIP Server Name: trunksip2.lcrcom.es

3. SIP Server IP Address: Leave at 0.0.0.0

4. SIP Server port Number: 4399

5. SIP Server Domain: Not required

6. Subscriber Number: Not required

[Account]

7. User name:

Enter the

User name as supplied by LCR Telecom

(Note this is user name without @trunksip2.lcrcpm.es)

For example: Account (User name) =LCR201705301234567

Enter: LCR201705301234567

8. Authentication ID: Enter the Authentication ID as supplied by LCR Telecom

(Note this is user name without @trunksip2.lcrcpm.es)

For example: Authentication ID = LCR201705301234567

Enter: LCR201705301234567

9. Authentication Password:

Enter the

Authentication Password as supplied by LCR Telecom

For example: Authentication Password = passwordABCD

Enter: passwordABCD

[Register]

10. Register Ability: Enable

SIP Trunk Property continued – SIP Carrier-1

[Calling Party]

1. Header Type: Leave From Header

2. Host Name: Leave BLANK

3. Format: Leave Without “+”

4. Send CLIP of caller when call from SIP Leave Enable

Carrier is forwarded to same SIP carrier: *CLI will be converted to PBX No by LCR

[Called Party]

5. Format: Leave Without “+”

[Voice]

1. IP Codec Priority 1st: Leave G.711A

2. IP Codec Priority 2nd: Leave G.711Mu

3. IP Codec Priority 3rd: Leave None

4. Packet Sampling Time: Leave at 20 (ms)

5. DTMF: Leave Outband (RFC2833)

6. Payload Type (DTMF): Leave at 101
