Panasonic KXHGC200 - PCMCIA WIRELESS LAN Manual de usuario

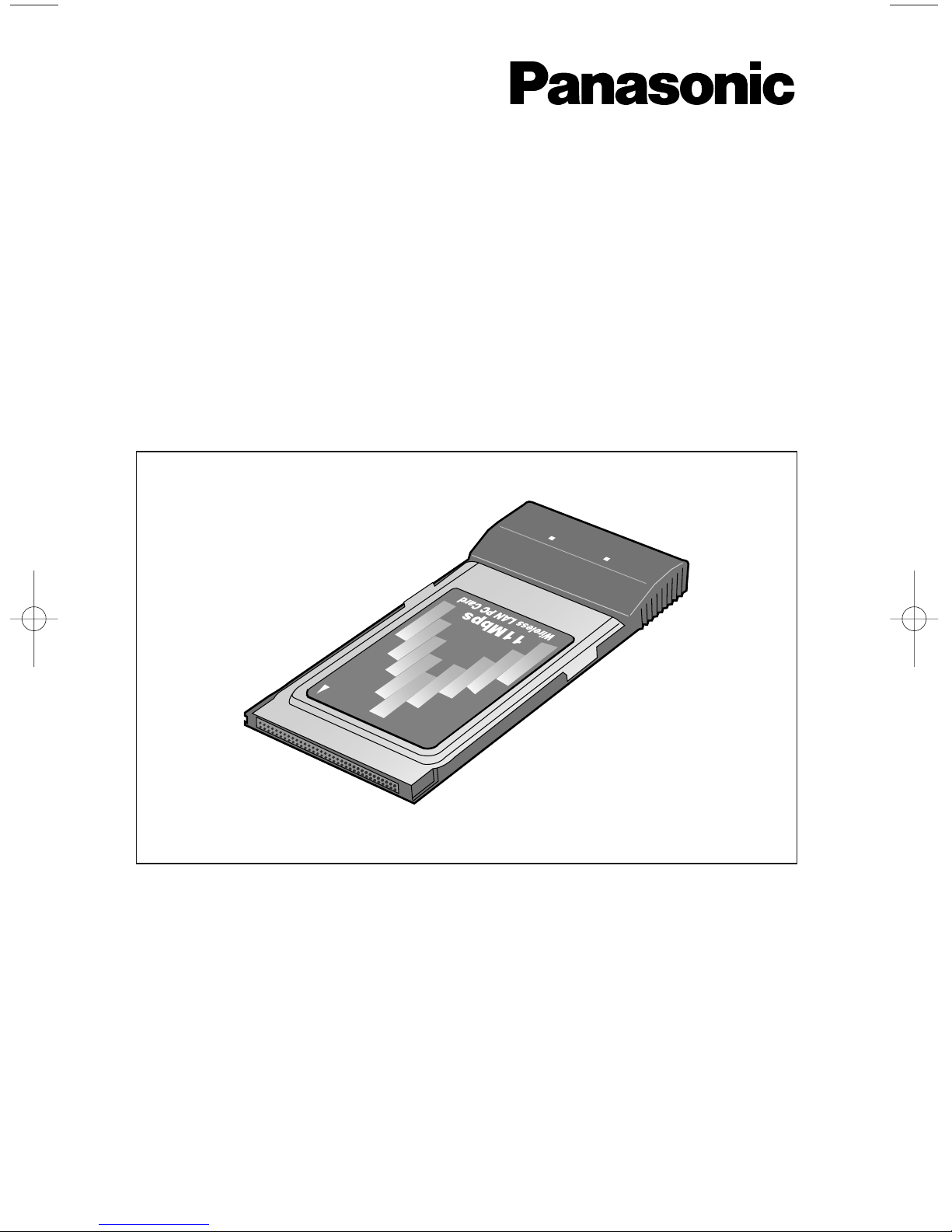

11Mbps Wireless LAN PC Card

Operating Instructions

Model No. KX-HGC200

PLEASE READ BEFORE USE AND SAVE.

Panasonic World Wide Web Address:

http://www.panasonic.com

for customers in the USA or Puerto Rico

Panasonic

KX-HGC200

READY

LINK

PQQX12925ZA01.2.273:55PMページ1

Before Initial Use

Thank you for purchasing the Panasonic 11 Mbps

Wireless LAN PC Card.

For your future reference

Serial No. Date of purchase

(found on the rear side of the unit)

Name and address of dealer

FOR OPERATION ASSISTANCE:

–Call

1-800-272-7033

–Refer to

the Panasonic world wide web site

http://www.panasonic.com

≥Microsoft, Windows and Netmeeting are either registered trademarks or

trademarks of Microsoft Corporation in the United States and/or other

countries.

≥Ethernet is a registered trademark of Xerox Corporation.

≥Whitecap™ is a trademark of ShareWave™, Inc.

≥Screen shots reprinted with permission from Microsoft Corporation.

All other brands and product names are trademarks or registered

trademarks of their respective companies.

The operating instructions are subject to change without notice.

The screens of the device driver, Network Manager software and the

Broadband Networking Gateway administration web screens that are

shown in this Operating Instructions manual are subject to change without

notice.

Attach your purchase receipt here.

PQQX12925ZA01.2.273:55PMページ2

For Best Performance

For assistance, please call: 1-800-272-7033

Location of the units

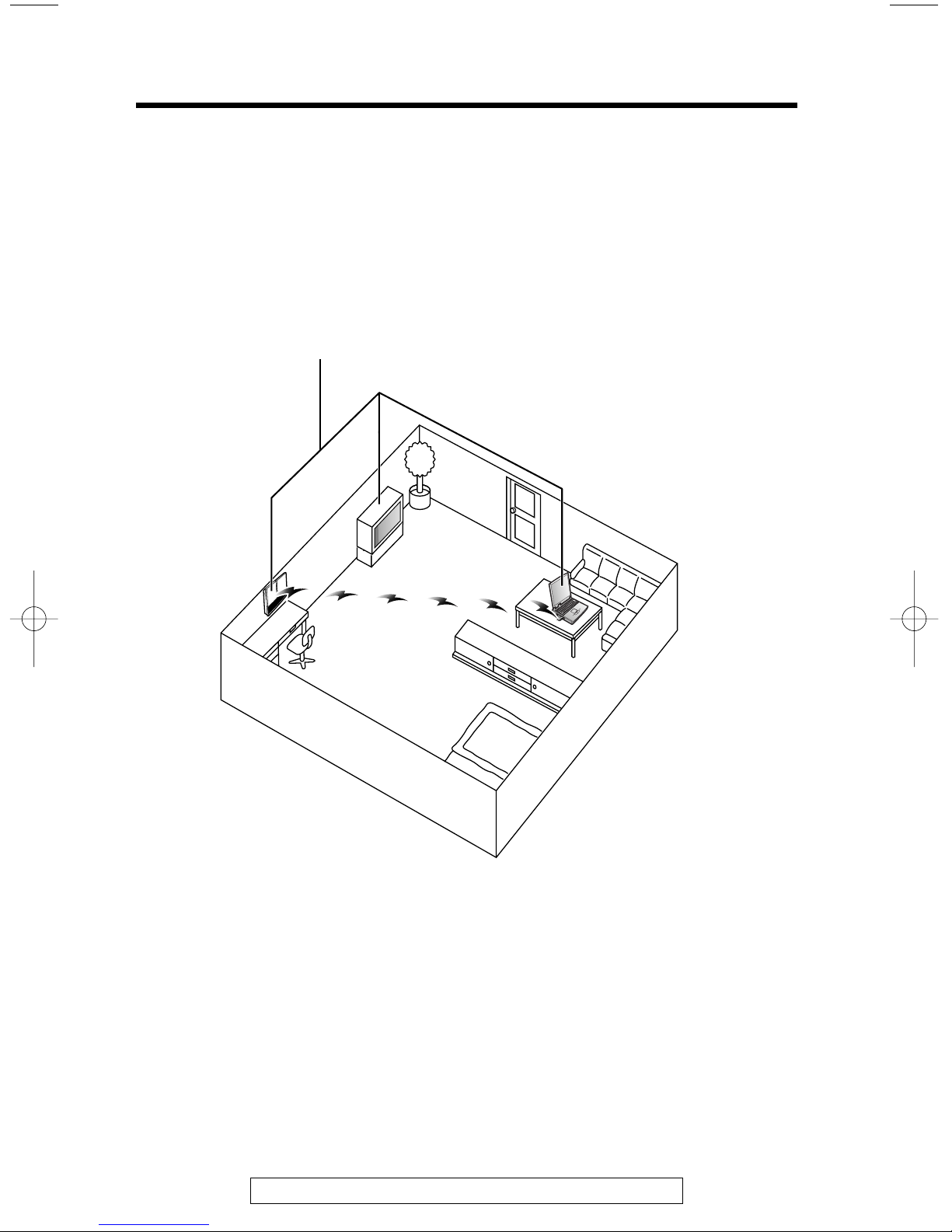

Communications are transmitted between the KX-HGC200s using

wireless radio waves at 11Mbps data speed. For maximum

performance, it is recommended that the KX-HGC200 be operated:

≥Metal or steel framework, such as refrigerators, can hinder radio

communications. Open areas offer better performance.

≥If the KX-HGC200 is located near a microwave oven which is in use,

communication may be interfered with. For maximum performance,

operate the KX-HGC200 away from microwave ovens.

≥It is recommended that the KX-HGC200s be located no closer than

about 1.6 ft. (50 cm) apart.

Away from electrical appliances

such as TVs or cordless

telephones.

KX-HGC200

LINK

ANT.

READY

PQQX12925ZA01.2.273:55PMページ3

Installation

Table of Contents

Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

System requirements . . . . . . . . . . . . . . . . . . 6

Included Accessory. . . . . . . . . . . . . . . . . . . . 7

Contents of the CD-ROM . . . . . . . . . . . . . . . 7

Part Names . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Part names. . . . . . . . . . . . . . . . . . . . . . . . . . 9

Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Installation Overview. . . . . . . . . . . . . . . . . . 10

4 important parameters to create a

wireless network. . . . . . . . . . . . . . . . . . . . 10

Network with the Broadband Networking

Gateway. . . . . . . . . . . . . . . . . . . . . . . . . . 11

Network consisting only of wireless

computers . . . . . . . . . . . . . . . . . . . . . . . . 12

Before Start

Installing the KX-HGC200 in

the Broadband Networking Gateway. . . . 13

Conﬁrming the Broadband Networking

Gateway ﬁrmware version. . . . . . . . . . . . 13

Inserting the KX-HGC200 in the

Broadband Networking Gateway. . . . . . . 15

Setting up the Broadband Networking

Gateway . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Setting up from a wired computer. . . . . . . . 17

Setting up from a wireless computer. . . . . . 19

Caution when initializing the Broadband

Networking Gateway. . . . . . . . . . . . . . . . 22

Helpful functions. . . . . . . . . . . . . . . . . . . . . 23

Installing the KX-HGC200 to a Computer. . 25

Before inserting the KX-HGC200 . . . . . . . . 25

Inserting the KX-HGC200 into a computer . 27

Installing the device driver . . . . . . . . . . . . . 29

Installing the Network Manager . . . . . . . . . 38

Conﬁrming the KX-HGC200 setup . . . . . . . 42

PQQX12925ZA01.2.273:55PMページ4

Installation

Setting up Your Computer . . . . . . . . . . . . . 44

Conﬁrming the network protocols . . . . . . . . 44

Setting an IP address. . . . . . . . . . . . . . . . . 46

Sharing Files and Printers . . . . . . . . . . . . . 52

Preparing for sharing ﬁles and printers . . . . 52

Before Start Installation

Network Manager

Appendix

For assistance, please call: 1-800-272-7033

Appendix

Removing the KX-HGC200 . . . . . . . . . . . . . 63

Removing the KX-HGC200 from

a computer . . . . . . . . . . . . . . . . . . . . . . . 63

Removing the KX-HGC200 from

the Broadband Networking Gateway. . . . 64

Updating the KX-HGC200 Firmware . . . . . . 65

Uninstalling the KX-HGC200 Software . . . . 67

Troubleshooting . . . . . . . . . . . . . . . . . . . . . 69

Glossary. . . . . . . . . . . . . . . . . . . . . . . . . . . . 73

Speciﬁcations . . . . . . . . . . . . . . . . . . . . . . . 75

FCC and Other Information. . . . . . . . . . . . . 76

Index. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78

Network

Manager

About the Network Manager Software . . . . 54

Using the Network Management Web

Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

About the Network Management web

screen . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

Using the function menu. . . . . . . . . . . . . . . 56

Using the Device Management

Dialog Box . . . . . . . . . . . . . . . . . . . . . . . . . 59

About the Device Management dialog box . 59

Creating a new wireless network/

Joining another wireless network . . . . . . . 61

Changing the channel (radio frequency) . . . 62

Setting a computer to the Master Node. . . . 62

Forward Error Correction (FEC) . . . . . . . . . 62

PQQX12925ZA01.2.273:55PMページ5

Overview

Features

No wiring

The KX-HGC200 helps you network without troublesome wiring using

wireless technology and accommodates up to 10 wireless users*.

*Accommodates up to 9 wireless users when used with the Broadband

Networking Gateway.

High data-transmission quality by using the Whitecap

™

protocol

The features of the Whitecap™ protocol are as follows:

≥Error correction and dynamic TDMA (Time Division Multiple Access) for

higher usable network throughput and range

≥Carries several multimedia (video, voice, audio) data streams

simultaneously

Internet sharing and expandability of the home network (With the

Panasonic Broadband Networking Gateway)

When operated with the Panasonic Broadband Networking Gateway (In

the following pages, Broadband Networking Gateway), the KX-HGC200

allows you to share an Internet connection with the other computers in

your home network at the same time and expand your home network by

using the HomePNA phoneline and Ethernet interfaces of the Broadband

Networking Gateway.

Easy to conﬁgure/administrate

The KX-HGC200 setup wizard and Network Manager software lead you

through an easy installation and administration.

System requirements

Operating System

Interface

RAM

Other (for installation)

Protocol

CPU

Microsoft®Windows®95 operating system

(OSR2.0 or later)

Microsoft®Windows®98 operating system

Microsoft®Windows®Me operating system

PCMCIA Type II PC card slot equipped

32MB or more

CD-ROM drive/Ethernet or HomePNA card

TCP/IP installed

Pentium 133 MHz or faster

≥The Network Management web screen (p. 20–21, 55–58) can be

viewed using Internet Explorer 4.0 or later.

PQQX12925ZA01.2.273:55PMページ6

Before Start

For assistance, please call: 1-800-272-7033

Included Accessory

“

For extra orders, call 1-800-332-5368.

∑11Mbps Wireless LAN

Setup CD-ROM

Order No. PQLV50I5AZ

(p. 30, 32, 35)

≥If the item is missing or damaged, check with the place of purchase.

≥The order number listed above is subject to change without notice.

≥Save the original carton and packing materials for future shipping and

transportation of the unit.

Contents of the CD-ROM

The CD-ROM contains the following software and ﬁles:

The device driver for Windows 95, Windows 98 and Windows Me

–Used while conﬁguring the KX-HGC200. During conﬁguration, the

appropriate driver software is installed depending on the operating

system of your computer.

The Network Manager software

–Used for administrating the wireless network. For more details, refer to

“About the Network Manager Software” on p. 54.

The ﬁrmware update utility software

–Used for updating the KX-HGC200 ﬁrmware written in the Flash-ROM.

For more details, refer to “Updating the KX-HGC200 Firmware” on p. 65.

The uninstall software

–Used for uninstalling all the software of the KX-HGC200 that has been

installed to a computer. For more details, refer to “Uninstalling the

KX-HGC200 Software” on p. 67.

The Broadband Networking Gateway ﬁrmware for upgrade

–Used for upgrading the Broadband Networking Gateway ﬁrmware. For

more details about the ﬁrmware, refer to “To obtain and upgrade the

Broadband Networking Gateway ﬁrmware” on p. 14.

The Readme.txt

–Contains the latest information about the KX-HGC200.

one

PQQX12925ZA01.2.273:55PMページ7

“

Included Accessory

≥Do not touch or write on the

surface of the disc. ≥Do not leave the disc in direct

sunlight or near heat sources.

≥Do not place heavy objects on

the disc case or drop the case. ≥To clean the disc, hold the disc

by its edges and wipe it from the

center to the edges with a dry,

soft cloth.

♪

To prevent accidental damage to the CD-ROM:

≥Do not play the disc on an audio

CD player.

PQQX12925ZA01.2.273:55PMページ8

Before Start

For assistance, please call: 1-800-272-7033

Part Names

Part names

Indicators

Panasonic

KX-HGC200

READY

LINK

PCMCIA Connector

with 68 pins

Arrow mark

(p. 15, 27)

LINK indicator

READY indicator

Note:

≥To prevent the KX-HGC200 from

being damaged, never touch the

PCMCIA connector.

LED

LINK

READY

Status

Green

(Blinking)

Off

Green

Indicates

≥The KX-HGC200 is turned on and

transmitting/receiving data to/from

another KX-HGC200.

≥The KX-HGC200 is turned on and

transmitting/receiving data to/from

another KX-HGC200, but the data

transmission status is not stable.

≥The KX-HGC200 is not connected to

any wireless network.

≥The KX-HGC200 is turned on and

ready for communication.

PQQX12925ZA01.2.273:55PMページ9

Installation Overview

4 important parameters to create a wireless

network

A wireless network can be created using the 4 parameters below which

are programmed in the Flash-ROM of the KX-HGC200 or in a node*.

Normally, you would only program the Network Name because the other

parameters have been already set. However, for later customization, be

sure to read about the parameters below.

*Node: A device that is connected to the network and can communicate

with other network devices. In this Operating Instructions, we use

this word for the Broadband Networking Gateway or a computer.

Network Name

Name for a wireless network. For security, only the nodes that are

programmed with the same Network Name can communicate. It is

necessary to set a Network Name for all the KX-HGC200 during the

installation of the Network Manager software or on the Broadband

Networking Gateway administration web screen.

Network ID

The ID that is created from the Network Name. Actually, this ID is used for

maintaining a wireless network instead of the Network Name. However,

users do not need to care what Network ID is programmed to each node.

Node Name

Name of each node in your network (wireless or wired) for identiﬁcation.

The Node Name of the Broadband Networking Gateway is set on its

administration web screen. The Node Name of a computer is set in the

Identiﬁcation tab in the Network dialog box which can be accessed via the

Control Panel menu on your computer.

Channel Number

Number of the radio frequency channel on which a wireless network

communicates. To prevent the radio frequency interference with other

wireless products, the channels below can be selected depending on the

status of the wireless communications:

Channel 1 (2412 MHz)

Channel 6 (2437 MHz)–default setting of the KX-HGC200

Channel 11 (2462 MHz)

On each channel, data-transmission can be performed on a speed up to

11Mbps. Only the nodes that are programmed with the same channel

number can communicate.

PQQX12925ZA01.2.273:55PMページ10

Otros manuales para KXHGC200 - PCMCIA WIRELESS LAN

Tabla de contenidos

Otros manuales de Hardware de computadora de Panasonic

Panasonic

Panasonic CF-BAW0512AU Manual de usuario

Panasonic

Panasonic WZ-AESDA Manual de usuario

Panasonic

Panasonic AJ-YAD455 Manual de usuario

Panasonic

Panasonic ET-MDN12G10C Manual de usuario

Panasonic

Panasonic TY-FB10HD Manual de usuario

Panasonic

Panasonic KX-TDA0170 Manual de usuario

Panasonic

Panasonic CF-BAW1024AU Manual de usuario

Panasonic

Panasonic KX-TDA6181X Manual de usuario

Panasonic

Panasonic 2SC4626J Manual de usuario

Panasonic

Panasonic AV-HS04M4 Manual de usuario

Panasonic

Panasonic AJ-YA93 Manual de usuario

Panasonic

Panasonic 2SB0710A Manual de usuario

Panasonic

Panasonic FP7 Series Manual de usuario

Panasonic

Panasonic CF-VEB471 Manual de usuario

Panasonic

Panasonic MICROCOMPUTER MN103S Manual de usuario

Panasonic

Panasonic KX-TDE0101 Manual de usuario

Panasonic

Panasonic AY-PB2001 Manual de usuario

Panasonic

Panasonic MN101C00 Manual de usuario

Panasonic

Panasonic PAW-SERVER-PKEA-1 Manual de usuario

Panasonic

Panasonic AW-PB307P Manual de usuario

Panasonic

Panasonic MAYS0750Z Manual de usuario

Panasonic

Panasonic ET-MCYDV100 Manual de usuario

Panasonic

Panasonic 2SA1309A Manual de usuario

Panasonic

Panasonic TY-FB10HMD - Monitor Terminal Expansion... Manual de usuario

Manuales populares de Hardware de computadora de otras marcas

EMC2

EMC2 VNX Series Manual del propietario

Mitsubishi Electric

Mitsubishi Electric Q81BD-J61BT11 Manual de usuario

Gigabyte

Gigabyte B660M DS3H AX DDR4 Manual de usuario

Raidon

Raidon iT2300 Manual de usuario

National Instruments

National Instruments PXI-8186 Manual de usuario

Hauppauge

Hauppauge WinTV-HVR-2250 Manual de usuario

Kontron

Kontron CP6002 Manual de usuario

Manhattan

Manhattan 702843 Manual de usuario

Aphex

Aphex 230 Manual de usuario

AMD

AMD Phenom II Manual operacional

Intel

Intel NUC 12 Pro Manual de usuario

dbx

dbx Zone Pro 1260 Manual de usuario

Galaxy

Galaxy GHDX2-2430S-24F4D Manual de usuario

Intel

Intel AXXRMFBU4 Manual de usuario

Kontron

Kontron DIMM-PC/MD Manual de usuario

ST X-NUCLEO-SAFEA1B Instrucciones de funcionamiento

STEINWAY LYNGDORF

STEINWAY LYNGDORF SP-1 Manual de usuario

Advantech

Advantech ASMB-935 Series Manual de usuario
