Panasonic SL-CT582VEE Manual de usuario

rights reserved. Unauthorized copying and

distribution is a violation of law.

SL-CT582VEE

Colour

(H)..........Gray Type

(S)..........Silver Type

Portable CD Player

AD0502017C2

1 Accessories 2

2 Location of Controls 3

3 Precaution of Laser Diode 4

4 Handling Precautions for Traverse Deck 5

4.1. Handling of traverse deck (optical pick-up) 5

4.2. Caution when replacing traverse deck 5

4.3. Grounding for electrostatic breakdown prevention 5

5 Operation Checks and Component Replacement Procedures

5.1. Checking for the P.C.B. 6

5.2. Replacement for the CD lid unit 8

5.3. Replacement for the LCD, VOL/OPR etc. button,

MEMORY/EQ etc. button, Lid ornament and multi button

SW unit 9

5.4. Replacement for the retainer plate, open spring 1 and

open spring 2 9

5.5. Replacement for the traverse motor 10

5.6. Replacement for the optical pick-up 10

5.7. Replacement for the rest switch 12

6 Display of Self-Diagnostic Function 12

7 Checking the Operation Problems on the Traverse Deck

(Optical Pick-up) 13

7.1. Check the operations described below on the traverse

deck after replacing 13

AC adaptor

(RFEA419E-M)................................................1 pc.

Stereo earphones

(L0BAB0000183)...........................................1 pc.

8 Automatic Adjustment Results Display Function (Self-Check

Function) 14

8.1. How to display automatic adjustment results 14

8.2. Display of automatic adjustment results (Self-Check

Function) 14

9 Type Illustration of ICs, Transistors and Diodes 15

10 Schematic Diagram Notes 16

10.1. Cautions in Repair exchange of the Diode (D1101, D1102)

11 Schematic Diagram 17

12 Printed Circuit Board and Wiring Connection Diagram 23

13 Block Diagram 25

14 Terminal Function of ICs 27

14.1. IC301(C2BBGF000593): System Control 27

14.2. IC501(MN6627962JB): Servo Amp, Servo Processor,

Digital Signal Processor, Digital Filter & D/A Converter 27

14.3. IC1301(C2FBEB000007): System Control/LCD Drive 28

15 Measurements and Adjustments 30

15.1. Tuner section 30

16 Replacement Parts List 31

17 Cabinet Parts Location 35

18 Traverse Unit Parts Location 36

19 Packaging 37

Wired remote control

(N2QCBD000011)........................................1 pc.

External battery case

(RFA2666-H)..................................................1 pc.

CONTENTS

Page Page

1 Accessories

SL-CT582VEE

2 Location of Controls

SL-CT582VEE

3 Precaution of Laser Diode

SL-CT582VEE

The laser diode in the traverse deck (optical pick-up) may break

down due to potential difference caused by static electricity of

clothes or human body.

So, be careful of electrostatic breakdown during repair of the

traverse deck (optical pick-up).

4.1. Handling of traverse deck

(optical pick-up)

1. Do not subject the optical pick-up to static electricity as it is

extremely sensitive to electrical shock.

2. To protect the laser diode against electrostatic breakdown,

be sure that the short land of the flexible board (FFC board)

should be short-circuit by solder before pulling out the FFC.

Then inserting a short pin or similar object into the tip of the

flexible board.

(Refer to Fig. 4-1.)

3. Take care not to apply excessive stress to the flexible board

(FFC board).

4. Do not turn the variable resistor (laser power adjustment). It

has already been adjusted. (Refer to Fig. 4-1.)

Fig. 4-1.

4.2. Caution when replacing

traverse deck

The new traverse deck short-circuits by the short pin, the foil

(B) and short lands to protect the laser diode against

electrostatic breakdown. Be sure to replace to new one

following procedures.

1. Remove the short pin from the FFC, and then connect it to

the connector.

2. Cut the foil (B). (Refer to Fig. 4-1.) (Take care not to make

contact with cutting point each other.)

3. Unsolder the short lands. (Refer to Fig. 4-1.)

4.3. Grounding for electrostatic

breakdown prevention

4.3.1. Human body grounding

Use the anti-static wrist strap to discharge the static electricity

from your body. (Refer to Fig. 4-2.)

Fig. 4-2.

4.3.2. Work table grounding

Put a conductive material (sheet) or steel sheet on the area

where the traverse deck (optical pick-up) is placed, and ground

the sheet. (Refer to Fig. 4-3.)

Fig. 4-3.

Caution:

The static electricity of your clothes will not be grounded

through the wrist strap.

So take care not to let your clothes touch the traverse deck

(optical pick-up).

4 Handling Precautions for Traverse Deck

SL-CT582VEE

This section describes procedures for checking the

operation of the major printed circuit boards and

replacing the main components.

For reassembly after operation checks or replacement,

reverse the respective procedures. Special reassembly

procedures are described only when required.

5.1. Checking for the P.C.B.

5.1.1. Checking for the P.C.B. (A side)

5 Operation Checks and Component Replacement

Procedures

SL-CT582VEE

Check the P.C.B. (A side) as shown below.

5.1.2. Checking for the P.C.B. (B side)

Follow the (Step 1) -(Step 7) of item 5.1.1.

Check the P.C.B. (B side) as shown below.

SL-CT582VEE

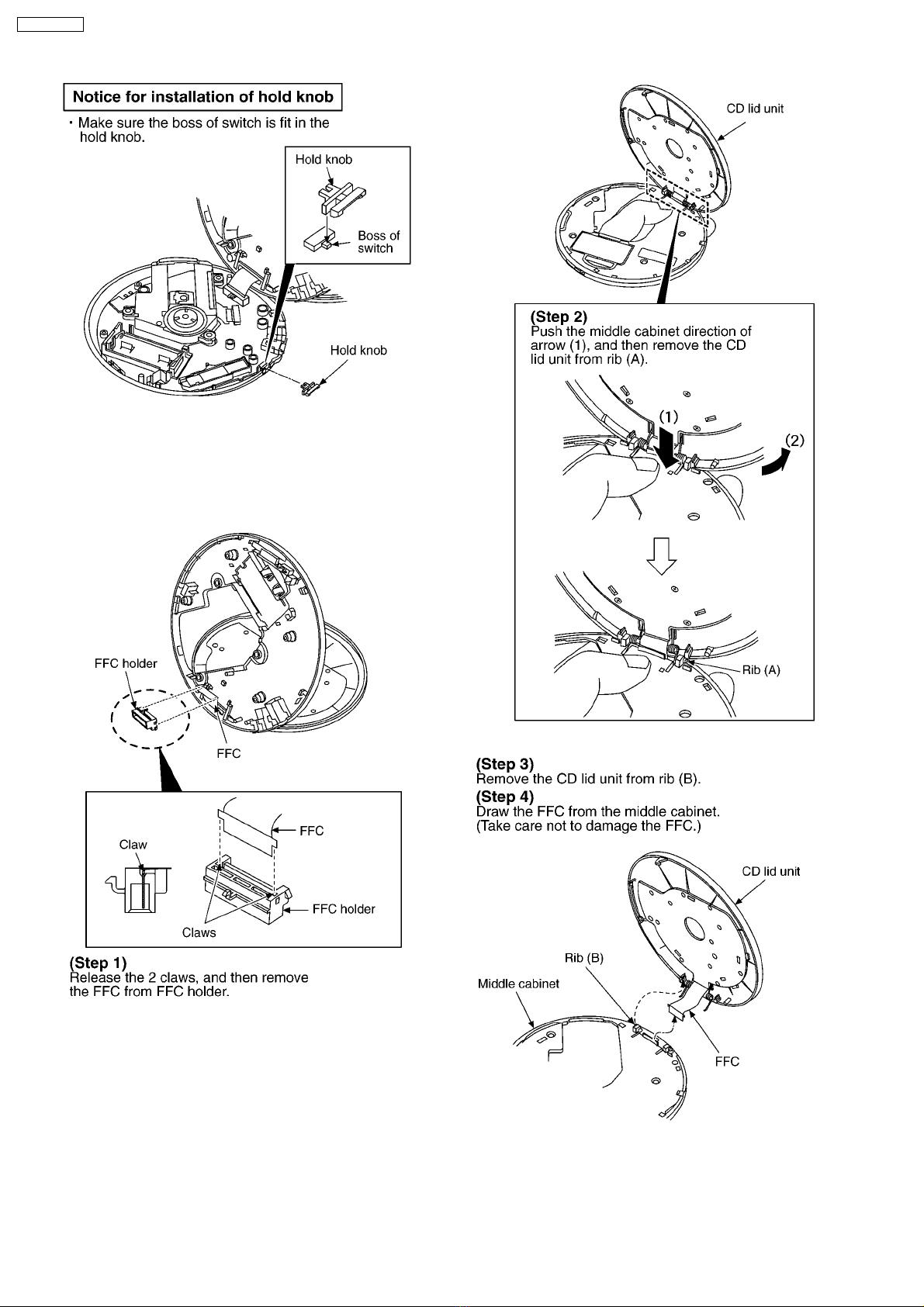

5.2. Replacement for the CD lid

unit

Follow the (Step 1) -(Step 5) of item 5.1.1.

SL-CT582VEE

5.3. Replacement for the LCD,

VOL/OPR etc. button,

MEMORY/EQ etc. button, Lid

ornament and multi button SW

unit

Follow the (Step 1) -(Step 5) of item 5.1.1.

Follow the (Step 1) -(Step 4) of item 5.2.

5.4. Replacement for the retainer

plate, open spring 1 and open

spring 2

Follow the (Step 1) -(Step 5) of item 5.1.1.

Follow the (Step 1) -(Step 4) of item 5.2.

SL-CT582VEE

5.5. Replacement for the traverse

motor

Follow the (Step 1) -(Step 4) of item 5.1.1.

5.6. Replacement for the optical

pick-up

Follow the (Step 1) -(Step 4) of item 5.1.1.

Follow the (Step 1) -(Step 3) of item 5.5.

SL-CT582VEE
