Panasonic SL-SX430EB Manual de usuario

ORDERNo.AD0402012C8

PortableCD Player

SL-SX430EB/ SL-SX430EG / SL-SX430GC/ SL-SX430GK/ SL

-SX430GS

Colours

(S)..................SilverType

(A)..................BlueType(EB, EG, GCareas)

SPECIFICATIONS

Specification

Audio (CD-DA)

Sampling frequency: 44.1kHz

No. ofchannels: 2 (left and right, stereo)

Frequencyresponse: 20 to 20,000 Hz/ (+0dBto -7dB)

Headphoneoutputlevel: RMSmax. 6mW+6mW/ 16 /

(adjustable)

Pickup

Lightsource: Semiconductorlaser

Wavelength: 780 nm

MP3

Supported bit-rates: 32 kbpsto 320 kbps/ (128

kbpsisrecommended)

Supported sampling frequency: 48 kHz/44.1kHz/32 kHz

Maximumnumberofitems /

(total no. ofalbums and tracks): 999

Maximumalbumlevels: 100

General

Powersupply:

DCinput; DC4.5V

ACadaptorinput; EB:AC220 -240V50/60Hz

EG:AC220 -230V50/60Hz

GC:AC110 -127V/ 220 -240V

/ 50/60Hz

GK:AC220V50Hz

GS: AC220 -240V50/60Hz

Powerconsumption:

Using ACadaptor; EB, EG, GK, GS: 0.7W

GC:2.8W

Recharging; EB, EG, GK, GS: 3.1W

GC:4.5W

Playtime:

Using on aflatstablesurface at25°C, EQisoff, Hold ison, Anti-

skip ison POS1(CD-DA), recommended bitrate(MP3:128 kbps),

and theDigital Re-masterisoff (MP3).Playtime areinhoursand

approximate.

Batteries used:

2optional alkalinebatteries; MP3disc....85h / CD-DA

disc....50h

2optional rechargeablebatteries

;MP3disc....40h / CD-DA

disc....23h

Recharging time: 4 to 5hours

-Theplay timemay beless depending on theoperating conditions.

-Play timewill beconsiderablyreducedwhenplaying CD-RW.

Operational temperaturerange: 0°C-40°C

Rechargeabletemperaturerange: 5°C-40°C

Dimensions(WxHxD): 135x24.3x135mm

Mass: 224g (with batteries)

180g (withoutbatteries)

Note:

Specificationsaresubjectto changewithoutnotice.

Mss and dimensionsareapproximate.

Noteon CD-Rand CD-RW:

Thisunitcan playCD-Rand CD-RW recorded with CD-DA orMP3.

Use an audio recording disc forCD-DA and finalize*itwhen you

finish recording. Theunitmaynotbeableto playsome

discsdueto thecondition oftherecording. / *Aprocess performed

afterrecording thatenables CD-R/CD-RW playersto playaudio

CD-Rand CD-RW.

1. Precaution of LaserDiode

CAUTION:

Thisunitutilizes aclass 1laser. Invisiblelaserradiation isemitted

fromthepickup lenswhentheunitisturnedon:

1. Donotlookdirectlyintothepickup lens.

2. Donotuse optical instruments tolookat thepickup lens.

3. Donotadjust thepreset variableresistoron theoptical pickup.

4. Donotdisassembletheoptical pickup unit.

5. Iftheoptical pickup isreplaced, use themanufactures specified

replacementpickup only.

6. Use ofcontrol oradjustments orperformance ofprocedures other

thanthose specifiedherinmayresultinhazardousradiation

exposure.

CAUTION:

Thisproduct utilizes aliserdiodewiththeunitturned“on”, invisible

laserradiation isemittedfromthepickup lens. / Wavelength:780nm

/ Maximumoutputwadiation powerfrompickup:100 W/VDE/

Laserradiationfromthepickup lensissafetylevel, butbesurethe

followings:

1. Donotdisassembletheoptical pickup unit, since radiation from

exposedlaserdiodeisdangerous.

2. Donotadjust thevariableresistoron thepickup unit. Itwas

alreadyadjusted.

3. Donotlookat thefocuslensusing optical instruments.

4. Recommend nottolookat pickup lensforalong time.

ACHTUNG:

Dieses Produkt enthalteineLaserdiode. ImeingeschaltetenZustand

WirdunsichtbareLeserstrahlung von derLasereinheitabgestrahlt. /

Wellenlage:780nm/ MaximaleStrahlungsleistung derLasereinheit:

100 W/VDE/ DieStrahlungasderLasereinheitist ungefahrlich,

wenn folgendePunkte beachtet werden:

1. DieLasereinheitnichtzeriegen, dedieStrahlung ander

freigelegtenLaserdiodegefahrlichist.

2. DenwerkseitigJustiertenEinstellreglerderLasereinhitnicht

verstellen.

3. NichtmitoptischenInstrumentenindieFokussierlines blicken.

4. NichtuberlangereZeitindieFokussierlines blicken.

2. Accessories

For all area:

-Stereoearphones..................................................1pc.

(L0BAB0000186)

-Wiredremote control.............................................1pc.

(N2QCBD000010)

For (EB), (GS)areas:

-ACadaptor...............................................................1pc.

(RFEA435B-S)

For (EG)area:

-ACadaptor...............................................................1pc.

(RFEA431E-S)

For (GC) area:

-ACadaptor...............................................................1pc.

(N0JDCE000001)

-Powerplug adaptor................................................1pc.

(K2DA42E00001)

For (GK) area:

-ACadaptor...............................................................1pc.

(RFEA437T-S)

3. Location of controls/ Connection toother

equipment

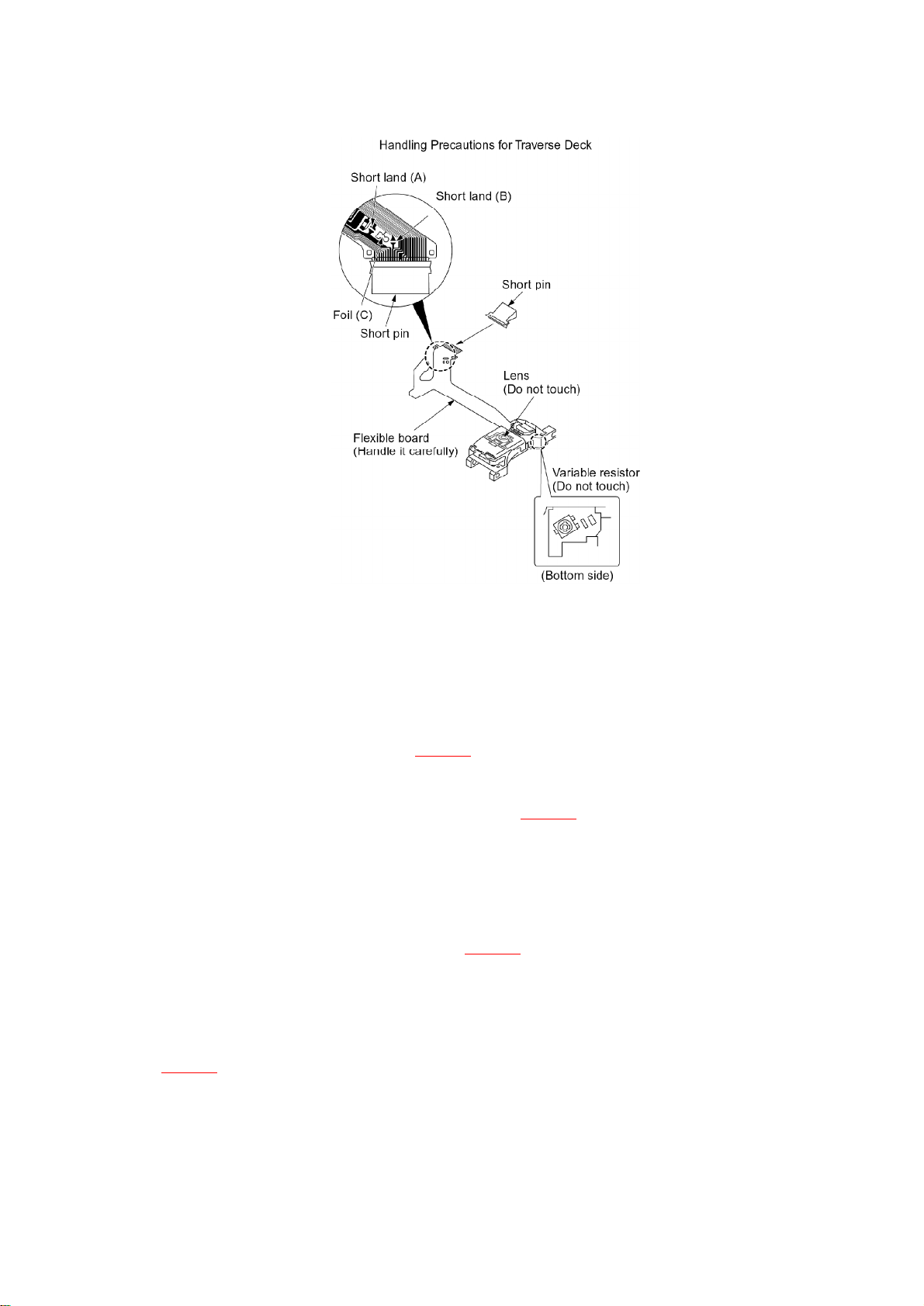

4. Handling Precautions forTraverse Deck

Thelaserdiodeinthetraverse deck (optical pickup)may break downduetopotential difference

causedbystaticelectricityofclothes or humanbody.

So, becareful ofelectrostaticbreakdownduring repairofthetraverse deck (optical pickup).

4.1. Handling thetraverse deck (optical pickup)

1. Thetraverse deck (optical pickup)isanextremelyhigh-precision

construction and must notbesubjectedtoimpact, excessive

vibration, orothertypes ofrough handling.

2. To protect thelaserdiodeagainst electrostaticbreakdown, be

surethat theshortland Aand Boftheflexibleboard(FFCboard)

shouldbeshort-circuitbysolderbeforepulling outtheFFC. Then

inserting ashortpinorsimilarobject intothetipoftheflexible

board. / (Referto Fig. 1 )

3. Handletheflexiblecircuitboardswithcare;excessiveforce could

cause themtobebroken.

4. Donotturnthepre-set variableresistor(foradjustmentofthe

laserpower);ithas beenadjustedat thefactory.

(as shownin Fig. 1 )

Fig. 1

4.2. Caution whenreplacing traverse deck

Thenewtraverse deck short-circuitsbytheshortpin, thefoil (C) and shortlandstoprotectthe

laserdiodeagainstelectrostaticbreakdown. Besuretoreplace tonewonefollowing procedures.

1. RemovetheshortpinfromtheFFC, and thenconnect ittothe

connector.

2. Cutthefoil (C). (Referto Fig. 1 )(Take carenottomake contact

withcutting pointeachother.)

3. Unsoldertheshortlands. (Referto Fig. 1 )

4.3. Grounding forelectrostaticbreakdownprevention

1. Humanbodygrounding

Use theanti-staticwrist straptodischargethestaticelectricity

fromyourbody. (as shownin Fig. 2 )

2. Worktablegrounding

Putaconductivematerial (sheet) orsteel sheet on thearea where

theoptical pickup isplaced, and fround thesheet. (as shownin

Fig. 3 )

Caution

Thestaticelectricityofyourclothes will notbegroundedthrough

thewrist strap.

So, take carenottolet yourclothes touchthetraverse deck (optical

pickup). Fig. 2

Fig. 3

5. Operation Checks and Component Replacement

Procedures

-Thissection describes procedures forchecking theoperation of

themajorprintedcircuitboardsand replacing themain

components.

-Forreassemblyafteroperation checks orreplacement, reverse the

respectiveprocedures. Special reassemblyprocedures are

describedonlywhenrequired.

5.1. Checking fortheP.C.B. ass’y

5.1.1. Checking for theP.C.B. ass’y/ (A side)

-Check theP.C.B. ass’y(Aside) as shownbelow.

5.1.2. Checking for theP.C.B. ass’y/ (B side)

-Follow the(Step1)-(Step6) ofitem5.1.1.

-Check theP.C.B. ass’y(Bside) as shownbelow.
