Order No.DSC1109054CE
B26
Interchangeable Lens for Digital Camera
Model No. H-PS45175PP
H-PS45175E
H-PS45175GK
Colour
Vol.1
(K)...............Black Type
(S)...............Silver Type
file:///C|/U.../Temp/Rar$EXa0.980/viewing/SGML_VIEW_DATA/ALL/H-PS45175PP/SVC/DSC1109054CE/doc/DSC1109054CE_cvr.xml[11/12/2018 3:58:01 PM]
© Panasonic Corporation 2011 Unauthorized copying and distribution is a violation of law.
file:///C|/U...l/Temp/Rar$EXa0.980/viewing/SGML_VIEW_DATA/ALL/H-PS45175PP/SVC/DSC1109054CE/doc/DSC1109054CE_01.xml[11/12/2018 3:58:26 PM]
1 Service Navigation
1.1 Introduction
This service manual contains technical information, which allow service personnel’s to understand and service this model.
Please place orders using the parts list and not the drawing reference numbers.
1.2 Important Notice
1.2.1 About LENS MAIN BLOCK UNIT (Ref. 212)
1. This Service Manual does not contain the repair service information for "LENS MAIN BLOCK UNIT"(Ref.212), because it requires
special facilities and equipment.
2.
3. In case of the "LENS MAIN BLOCK UNIT"(Ref.212) defects, contact to the service department of sales company.

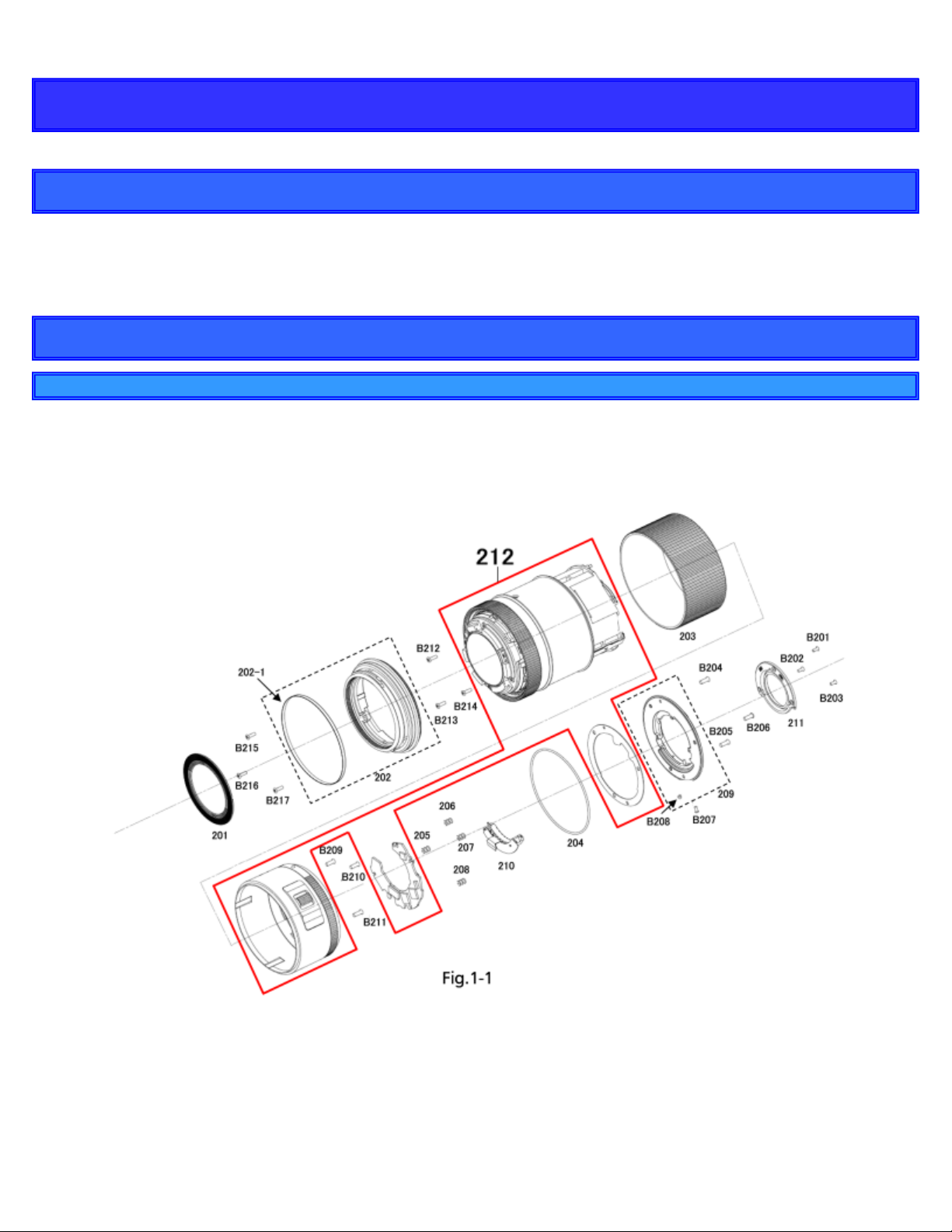

4. No adjustment is required when replacing the part mentioned on Fig.1-1. But, when tighten the concerned screws,apply proper
torque mentioned on "4. Disassembly and Assembly Instruction" section.
file:///C|/U...l/Temp/Rar$EXa0.980/viewing/SGML_VIEW_DATA/ALL/H-PS45175PP/SVC/DSC1109054CE/doc/DSC1109054CE_02.xml[11/12/2018 3:59:44 PM]
2 Operating Guide
2.1 Before Use
(Information for Your Safety)
2.2 Cautions For Use
file:///C|/U...l/Temp/Rar$EXa0.980/viewing/SGML_VIEW_DATA/ALL/H-PS45175PP/SVC/DSC1109054CE/doc/DSC1109054CE_02.xml[11/12/2018 3:59:44 PM]
2.3 Components
Note;
Change in the image by the focus operation may be more visible depending on the recording condition when the AF operates during the motion
you.
2.3.1 Accessories
file:///C|/U...l/Temp/Rar$EXa0.980/viewing/SGML_VIEW_DATA/ALL/H-PS45175PP/SVC/DSC1109054CE/doc/DSC1109054CE_02.xml[11/12/2018 3:59:44 PM]
2.3.2 Attaching/Detaching the Lens
file:///C|/U...l/Temp/Rar$EXa0.980/viewing/SGML_VIEW_DATA/ALL/H-PS45175PP/SVC/DSC1109054CE/doc/DSC1109054CE_03.xml[11/12/2018 4:00:41 PM]
3 Service Fixture and Tools
3.1 Service Fixture and Tools
The following Service Fixture and Tools are used for Checking & Servicing for this unit.
3.2 Clean Box
10,000 (Federal Standard 209D).
(When remove the 1st lens frame, it is indispensable.)
[NOTE]
for cleaning.
file:///C|/U...l/Temp/Rar$EXa0.980/viewing/SGML_VIEW_DATA/ALL/H-PS45175PP/SVC/DSC1109054CE/doc/DSC1109054CE_04.xml[11/12/2018 4:02:41 PM]
4 Disassembly and Assembly Instructions
4.1 Outline
Proceed disassemble and assemble, by referring the following table and Fig.4-1.
IMPORTANT:
1. It is recommended dealing with Clean box, to keep maintaining the dustproof environment.
(Refer to "3.2. Clean Box" section of this service manual for details.)
2. To minimize the possibilities/risk of getting the dust/dirt on the lens surface, keep covering the lens unit with Lens caps (front &
rear), other than necessary cases.
3.
4. Blow off the dust on the surface of the lens with a blower brush.
5. Use lens cleaning KIT (BK)(VFK1900BK).
NOTE:
1.
2. Use VFK1390 (small driver) when screwing/unscrewing the B208.
CAUTION:
Keep covering the lens unit with Lens caps (front & rear), other than necessary
cases.
file:///C|/U...l/Temp/Rar$EXa0.980/viewing/SGML_VIEW_DATA/ALL/H-PS45175PP/SVC/DSC1109054CE/doc/DSC1109054CE_04.xml[11/12/2018 4:02:41 PM]
4.2 Disassembly Procedure
1. Remove the 3 screws showed in the following picture, then remove SHADING FLAME UNIT.
(B201, B202, B203)
2. Remove the 4 screws showed in the following picture, then remove L MOUNT UNIT.
(B204, B205, B206 and B207)
file:///C|/U...l/Temp/Rar$EXa0.980/viewing/SGML_VIEW_DATA/ALL/H-PS45175PP/SVC/DSC1109054CE/doc/DSC1109054CE_04.xml[11/12/2018 4:02:41 PM]
3. Remove MOUNT SPACER.
4.
(B209, B210, B211)
5.
(4 FLOATING RUBBER is attached on LENS PCB UNIT.)
