Micro-Imagechecker

AX30/AX40

37709_ax30_40_ENGL 06.04.2005 14:43 Uhr Seite 1

AX30/AX40

Micro-Imagechecker AX30/AX40

37709_ax30_40_ENGL 06.04.2005 14:43 Uhr Seite 2

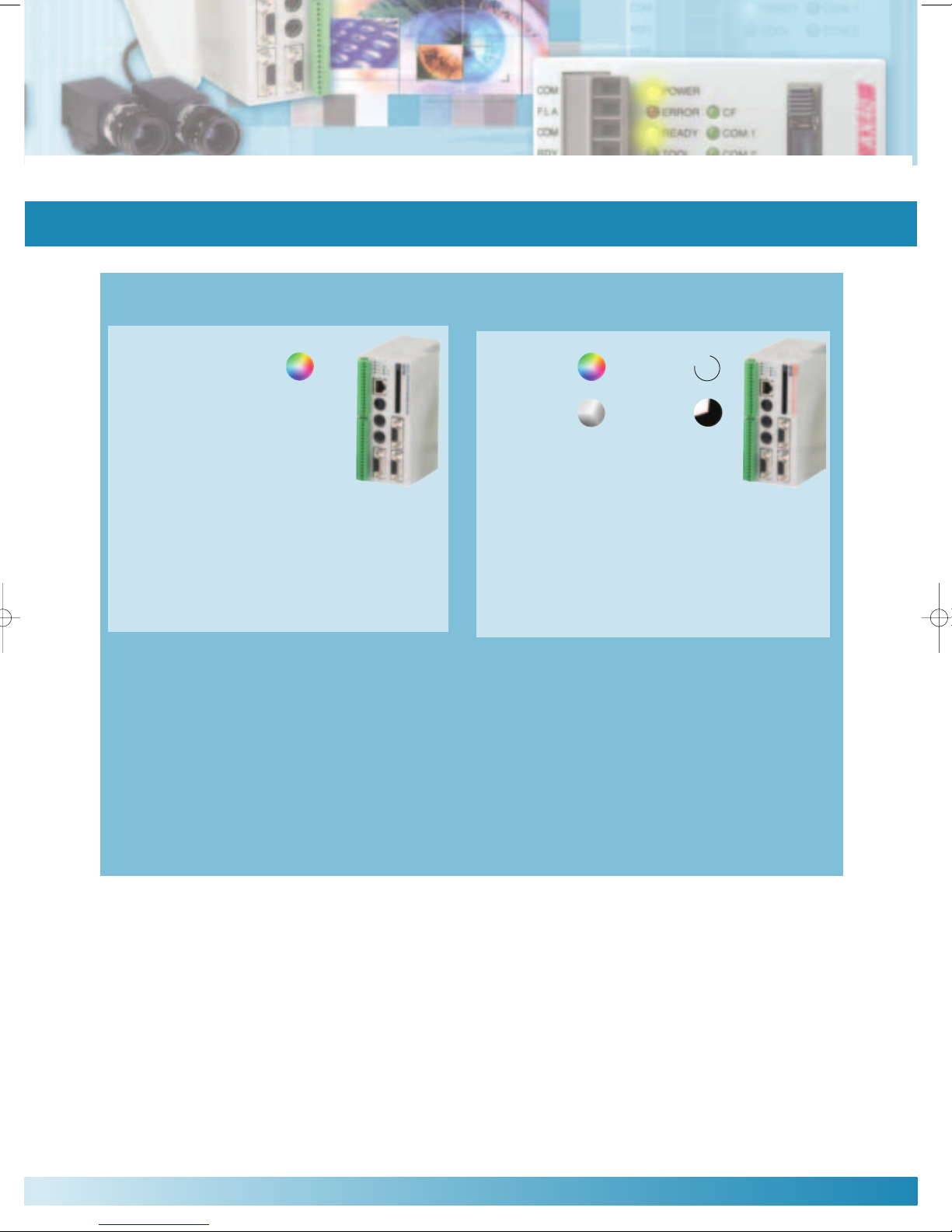

The Systems at a Glance

AX30 AX40

Compact and industrial stand-alone hardware

Fast and reliable

Time-saving setup thanks to an easy-to-use graphical interface

Two colour-CCD cameras connectable

Serial, parallel and Ethernet interfaces

VGA-monitor connection

Data storage of Compact Flash memory cards

Support dual language menu

Optional project management software AXTOOL

Contents:

The Sytems at a Glance . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Hardware Highlights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Software Highlights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Special Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

User Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

Inspection Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

Software AXTOOL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

Technical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

System Configuration and Dimensions . . . . . . . . . . . . . . . .14

Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

Easy to use colour image

processing system

Various ready-to-use inspection

tools for a wide range of visual

inspection applications

Supports 360° contour matching function

Everything the AX30 can do

plus several functions from tried and

tested A200

Colour processing and additional grey

value routines such as sub-pixel edge

detection, feature extraction and smart matching

Fast binary routines such as feature extraction

New differential pre-processing

Several useful add-ons such as setting help, data

monitoring and display functions

Micro-Imagechecker AX30/AX40

Colour Colour

Binary

Grey Value

Differential

Micro-Imagechecker

37709_ax30_40_ENGL 06.04.2005 14:44 Uhr Seite 3

Compact and industrial

With their dimensions of just 130 x 59 mm, AX30/AX40 Imagecheckers help you

realise the growing demand of downsizing equipment.They permit space saving

DIN-rail installation in a switching cabinet or direct mounting at the inspection site.

All interface connectors are located on the front side, which makes it easy to install

and service the systems. Furthermore, they have an impressive record in industrial

safety, which results also from the fact that they do not employ any mechanical parts

such as fans or hard disks.

Precise and reliable

Being the successors to our successful A-Series Imagecheckers, AX30/AX40 systems

inherit proven image-processing technology built up over many years. These high-

precision devices ensure advanced quality inspection of your products, since they

include colour data in the evaluation process. They are designed as stand-alone

devices with a proprietary operating system and a dedicated inspection firmware.

The systems are ready for operation immediately after power up and can provide

inspections 24 hours per day, 365 days a year.

Powerful dual camera inspection

AX Series Imagecheckers include a dedicated 32-bit RISC CPU that secures a high-

performance inspection level. Besides the short response time, the systems enable

very powerful inspection algorithms, such as those used for the newly developed

contour matching. They detect objects reliably, even if they partially overlap or if

ambient light changes.

AX30/AX40 process the images of up to two colour CCD cameras in parallel and

output inspection results after a few milliseconds.

Micro-Imagechecker AX30/AX40

Hardware Highlights

37709_ax30_40_ENGL 06.04.2005 14:50 Uhr Seite 4

Two serial ports1)

■Communicate with PCs

and/or PLCs

■Direct connection to various PLCs

without programming efforts

Indicator LEDs

■Display of all essential signals

on the controller

DIN rail installation

■One touch at the rear, is all that is

required for DIN rail installation

Ethernet port

■100 Base-Tx

■Several backup/restore functions

■Optional: AXTOOL software

Compact flash

memory card slot

■Backup/restore of camera images,

screenshots and project data

■Very reliable, rugged and cost

efficient storage media

Keypad interface

■Easy video-game-like setting with

a four-button keypad

Parallel I/O

■14 digital outputs for judgement and

result data output plus additional

signals for error, ready, flash-light

trigger, etc.

■13 digital inputs for program change

teach-in, etc.

■PhotoMOS technology

Two colour cameras

connectable

■Single chip CCD technology

■Fast progressive scan image

capturing

■All camera parameters adjustable via

software

■Miniature camera design

VGA-monitor interface

■High-quality display (flicker-free)

■Use of cost effective standard

monitors

Micro-Imagechecker AX30/AX40

A Sophisticated Hardware Concept

Original Product size

1) Cannot be used simmultaneously

37709_ax30_40_ENGL 06.04.2005 14:50 Uhr Seite 5

Micro-Imagechecker AX30/AX40

Software Highlights

Human eye-like sensitivity

The colour recognition/extraction

algorithms of AX30 and AX40 are based

on the LCH (luminosity, chroma and

hue) mode, which covers all colours a

human eye can recognise. This mode

allows for colour recognition more

similar to that of the human eye than

conventional RGB-mode colour

extraction.

Colour Detection, Presence Checking

Measures the area of the specified region or pre-defined

colours to detect foreign objects, perform presence checking,

sort or count objects.

Inspection examples

Size Measurement

Grey-scale based inspection functions such as edge finders

allow the system to measure dimensions, angles, diameters,

radii, etc. with sub-pixel resolution.

Numerous advantages

Independent evaluation of luminance, saturation and hue

Low influence by variation in luminance

Higher recognition certainty

Reliable detection of objects barly distinguishable

in grey colour pictures

Colours like green,

cyan or yellow can

hardly be

distinguished in

grey colour pictures.

Only a colour system makes reliable

control possible.

Colour image processing opens a new world of possibilities.

37709_ax30_40_ENGL 06.04.2005 14:51 Uhr Seite 6

Position detection

Several algorithms in the systems are made for precisely

detecting the position of an object.

x/y coordinates and the rotation angle are typically output.

Matching

Advanced matching functions such as contour-matching and

smart matching1) can be used to identify or to validate object

details reliably and efficiently.

1) AX40 only

Fast and easy setup

Our newly designed user interface

allows you to set up your inspection

routine quickly. The clearly structured

screen with its pull-down menus,

semitransparent spreadsheets and

indicators makes it easy to configure the

AX30 or AX40 to each individual

application, even for non-experts.

37709_ax30_40_ENGL 06.04.2005 14:52 Uhr Seite 7

Micro-Imagechecker AX30/AX40

Special Features

Colour tone diagram

Fine adjustment for color inspection is

possible. Even when colors resemble

each other, the target color alone can be

extracted to enable highly accurate

inspection.

Mask

The shape of the inspection area can be

set to match particular targets. Also,

mask area settings can be combined so

that efficient inspection can be carried

out just for a required part.

Print screen

You can save setting displays or

displays that occur during operation as

bitmaps on a memory card. This is

convenient for creating documents or for

verifying previously shot images.

360° contour-matching

By calculating contour lines and judging,

stable positional detection is possible

even for hidden, overlapped objects that

have been difficult to detect up to now.

Thanks to this, better yields are

achieved.

AX40Previous

Versatile rotational and positional

adjustment

Highly accurate and reliable inspection

is realized by automatically adjusting

object orientation and stop-position

deviation. Since adjustment is done

using grey scale data, the AX40 shows

its strength when it comes to changes in

brightness. Complicated adjustments

are possible because of the priority

adjustment function.

37709_ax30_40_ENGL 06.04.2005 15:03 Uhr Seite 8

Micro-Imagechecker AX30/AX40

Additional Features of the AX40

Smart matching

Grey scale matching makes sub-pixel

positional detection possible

Furthermore, shape inspection, such as

for the detection of chipped objects, can

be carried out simultaneously with the

grey scale difference processing

function

Full colour

LCH mode for human-eye like colour

inspection

Suitable for various inspection tasks

such as sorting, counting, parts

recognition, etc.

Grey scale

256 grey tones for precise

measurement, positioning, etc.

Binary

A reduction of the image data to black

and white pixels allows fastest

inspection

Differential

Extracts edges/changes in the

image data

Ideal method e.g. for surface

inspection

Template

Detected


Difference result

1 System – 4 inspection modes

AX40 commands four different inspection modes: colour, binary, grey-scale and differential image processing. Combined with a

large pool of ready-made and easy-to-configure inspection functions such as 360° contour-matching and smart matching, AX40

can handle nearly any inspection task.

Data monitor

Up to 50 inspection results are displayed

on the monitor in chart form for operator

verification. Also, threshold adjustment

(upper and lower limit values) can be

changed on the data monitor without

entering them in the setting menu.

Statistical support

Data can be tracked, e.g. as maximum

value, minimum value, average value,

and number of NG (no-good) results.

Maximum, minimum, average and other

OK judgment values can be verified,

which is useful as a guide for making

upper and lower limit settings.

Numerical calculation/judgement

output

The computation function, which has

been troublesome up to now, now can

be easily made, even by beginners.

Also, operation has become even easier

thanks to the ability to set both

numerical calculation and judgement

output on the same screen.

37709_ax30_40_ENGL 06.04.2005 15:03 Uhr Seite 9

Micro-Imagechecker AX30/AX40

User-friendly User Interface

Intuitive and clearly arranged

Our newly designed user interface saves you time and allows you to set your visual inspection routine efficiently. The clearly

structured screen with its pull-down menus, semitransparent spreadsheets and indicators makes it easy even for non-experts to

adjust AX30/AX40 to each individual application. The big overall good/bad display as well as the status indicators give you

reliable output information any time during the setting and inspection procedure.

Since AX30/AX40 has a standard VGA interface, it can be connected to any normal computer monitor.

System uses

18-dot fonts.

Operating systems

equipped with pull-down

menus and dialogue

windows. System closer to

“look and feel” of Windows

applications for more

intuitive operation.

Easy-to-see overall

pass/fail result display.

Colour window achieves unrivaled ease of operation!

Select colours to detect right on the screen.

Image display area (512 x 480)

Easy-to-see

semitransparent menu

screen. Configure various

settings while viewing

captured image.

Reserved area for status

display (128 x 480).

Display results and more

without affecting the

camera image.

Other highlights:

Password protection

Multiple language configuration (German, English, French, etc.)

Setting help for focus and apperture (AX40)

37709_ax30_40_ENGL 06.04.2005 15:03 Uhr Seite 10

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Accesorios para cámaras de Panasonic

Panasonic

Panasonic AJ-DE97P Manual de usuario

Panasonic

Panasonic LUMIX DMW-MCTZ3E Manual de usuario

Panasonic

Panasonic AW-PB303 Manual de usuario

Panasonic

Panasonic VIDEOALARM PODV7CPNS Manual de usuario

Panasonic

Panasonic PDM9 Manual de instalación y operación

Panasonic

Panasonic UP-RW1245P1 Manual de usuario

Panasonic

Panasonic AW-PB302 Manual de usuario

Panasonic

Panasonic WV-Q175E Manual de usuario

Panasonic

Panasonic WVPS11B - CAMERA DRIVE UNIT Manual de usuario

Panasonic

Panasonic BB-HGW700A - Network Camera Router Manual de usuario

Panasonic

Panasonic KXCPG100 - VIDEO TELECONFERENCI Manual de usuario

Panasonic

Panasonic WV7220D - CCTV ACCESSORIES Manual de usuario

Panasonic

Panasonic YAX800G Manual de usuario

Panasonic

Panasonic AW-LZ17ST66G Manual de usuario

Panasonic

Panasonic VIDEOALARM PODV7CWNS/PODV7CPNS Manual de usuario

Panasonic

Panasonic WV-Q122AS Manual de usuario

Panasonic

Panasonic PUM8 Manual de usuario

Panasonic

Panasonic ET-DLE105 Manual de usuario

Panasonic

Panasonic WV-Q161 Manual de usuario

Panasonic

Panasonic WV-CF5SA Manual de usuario

Panasonic

Panasonic BB-HCS301A - Network Camera Server Manual de usuario

Panasonic

Panasonic DP-100 series Manual de usuario

Panasonic

Panasonic AJ-BS900P Manual de usuario

Panasonic

Panasonic AJ-RC905EN Manual de usuario

Manuales populares de Accesorios para cámaras de otras marcas

Viltrox

Viltrox EF-NEX Instrucciones de instalación

Calumet

Calumet 7100 Series CK7114 Manual de usuario

Ropox

Ropox 4Single Series Manual de usuario

Cambo

Cambo Wide DS Digital Series Instrucciones de funcionamiento

Samsung

Samsung SHG-120 Manual de usuario

Ryobi

Ryobi BPL-1820 Manual de operación

Aegis

Aegis ABL-36020P Manual de usuario

Pentax

Pentax Data Back Fc Manual de usuario

Fantasea

Fantasea EyeGrabber F Series Manual de usuario

Honeywell

Honeywell HDZ20HD Manual de usuario

EGO

EGO BA1400T Manual de usuario

Sima

Sima SRW-62 Manual de usuario

Shape

Shape A7SSMKIT Manual de usuario

Slide Kamera

Slide Kamera HST-2 Manual de usuario

Power works

Power works 2902613 Manual de usuario

SES

SES SE-2047-2 Manual de usuario

Olympus

Olympus PT-EP05L Manual de usuario

Starlite

Starlite OctoDome nxt Manual de usuario
