Panasonic H-FT012PP Manual de usuario
© Panasonic Corporation 2010 Unauthorized copy-
ing and distribution is a violation of law.
ORDER NO. DSC1011066CE
B26
Interchangeable Lens for Digital Camera
Model No. H-FT012PP
H-FT012E
H-FT012GK
Vol.1
2
TABLE OF CONTENTS PAGE PAGE
1 INTRODUCTION ---------------------------------------------------3
1.1. INTRODUCTION-------------------------------------------3
1.2. IMPORTANT NOTICE ------------------------------------3
2 OPERATING GUIDE ----------------------------------------------4
2.1. BEFORE USE-----------------------------------------------4
2.2. CAUTIONS FOR USE ------------------------------------5
2.3. About 3D -----------------------------------------------------5
2.4. COMPONENTS --------------------------------------------6
3 SERVICE FIXTURE & TOOLS ---------------------------------7
3.1. SERVICE FIXTURE AND TOOLS---------------------7
3.2. CLEAN BOX-------------------------------------------------7
4 Disassembly/Assembly procedures------------------------8
4.1. Disassembly/Assembly procedures -------------------8
5 MAINTENANCE ----------------------------------------------------9
5.1. ABOUT THE LENS----------------------------------------9
6 EXPLODED VIEWS ---------------------------------------------10
6.1. Frame & Casing Section -------------------------------10
6.2. PACKING PARTS & ACCESSORIES
SECTION--------------------------------------------------- 11
7 REPLACEMENT PARTS LIST -------------------------------12
7.1. MECHANICAL REPLACEMENT PARTS LIST---12
3
1 INTRODUCTION
1.1. INTRODUCTION
This service manual contains technical information, which allow service personnel’s to understand and service this model.
Please place orders using the parts list and not the drawing reference numbers.
If the circuit is changed or modified, the information will be followed by supplement service manual.
1.2. IMPORTANT NOTICE
1.2.1. About Lens MAIN Block unit (Ref. 203)
1. This Service Manual does not contain the repair service information for “LENS MAIN BLOCK UNIT”(Ref.203),
because it requires special facilities and equipment.
2. The “LENS MAIN BLOCK UNIT”(Ref.203) performance must be confirmed.
3. In case of the “LENS MAIN BLOCK UNIT”(Ref.203) defects, contact to the service department of sales company.
Fig. S1

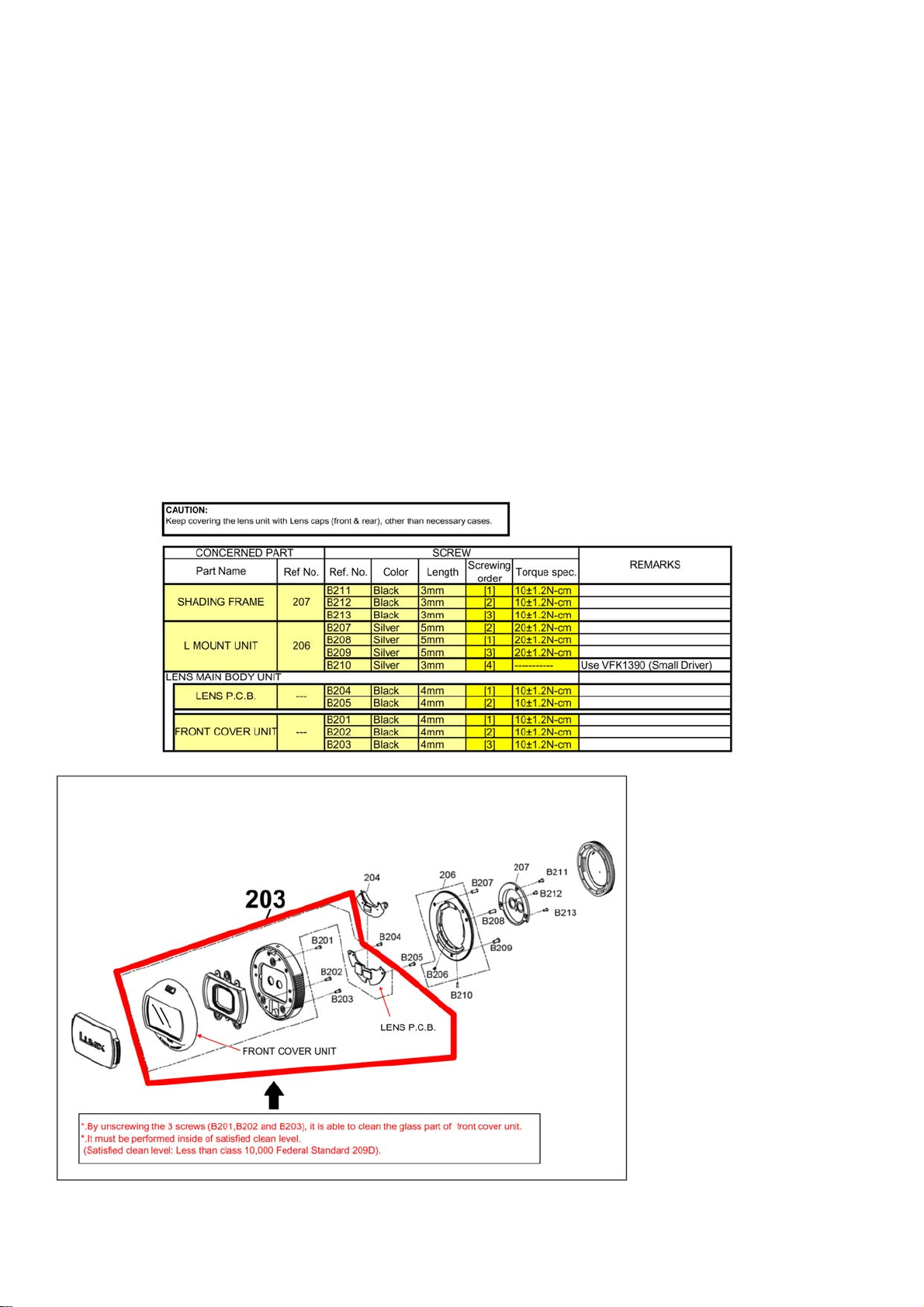

4. No adjustment is required when replacing the part mentioned on Fig.S1. But, when tighten the concerned screws,
apply proper torque mentioned on “4 Disassembly / Assembly procedures”.
4
2 OPERATING GUIDE
2.1. BEFORE USE
(Information for Your Safety)
5
2.2. CAUTIONS FOR USE
2.3. About 3D
6
2.4. COMPONENTS
2.4.1. Accessories
2.4.2. Attaching/Detaching the Lens
7
3 SERVICE FIXTURE & TOOLS
3.1. SERVICE FIXTURE AND TOOLS
The following Service Fixture and Tools are used for Checking & Servicing for this unit.
3.2. CLEAN BOX
• The repair quality is considered, and it is recommended working in the environment of satisfied clean level less than class
10,000 (Federal Standard 209D).
(When remove the 1st lens frame, it is indispensable.)
[NOTE]
• Work in the environment of satisfied clean level less than class 10,000 (Federal Standard 209D) when remove the 1st lens frame
for cleaning.
*Refer to “5.2. General description” section of this service manual for details
8
4 Disassembly/Assembly procedures
4.1. Disassembly/Assembly procedures
It is recommended dealing with Clean box, to keep maintaining the dustproof environment.
(Refer to “3.2. Clean Box” section of this service manual for details.)
IMPORTANT:
1. When servicing the surrounding part with red line (refer to Fig.D1), it must be performed inside of satisfied clean level.
(Satisfied clean level: Less than class 10,000 Federal Standard 209D).
As for procedure, refer to the “5 Maintenance” for details.
2. To minimize the possibilities/risk of getting the dust/dirt on the lens surface, keep covering the lens unit with Lens caps
(front & rear), other than necessary cases.
3. Do not touch the surface of the lens glasses with your fingers.
4. Blow off the dust on the surface of the lens with a blower brush.
5. Use lens cleaning KIT (BK)(VFK1900BK).
Proceed disassemble/ and assemble, by referring the following table and Fig.D1
NOTE:
1. When tightening the screw, use a Torque driver (RFKZ0456) by ordering the screwing order with specified torque
mentioned in each step.
2. The screw Ref.B206 is no need to remove for disassembly.
3. Use VFK1390 (small driver) when screwing/unscrewing the B206 and B210.
Fig. D1
9
5 MAINTENANCE
5.1. ABOUT THE LENS
5.1.1. DUST/DIRT ON THE OUTER CASING PART(S)
1. Blow off the dust first, then sweep out the dust from narrower spaces with soft cleaning brush.
2. Wipe up the Outer casing part with the dry fuzz-free cloth.
5.1.2. DUST/DIRT ON THE LENS GLASSES
Define the location of the dust/dirt first, whether it is outside lens surface or not.
1. When it is outside surface of the lens:
When the dust and/or dirt gets on the outer side surface of the Lens glasses, order the following procedures.
a. Blow off the dust on the Lens glass surface with the Blower, gently. (Do not Blow too strongly.)
b. Wipe out the dirt on the lens glass surface with Lens cleaning KIT (VFK1900BK) if necessary.
(Consult the Instruction sheet which is included in the Lens cleaning KIT in details.)
10
6 EXPLODED VIEWS
6.1. Frame & Casing Section
