Panasonic SDR-H80P Manual de usuario

ing and distribution is a violation of law.

Order No. VM0910511SE

SD Card / Hard Disk Video Camera

Model No. SDR-H80P

SDR-H80PC

SDR-H80EG

SDR-H80EE

SDR-H80EB

SDR-H80EP

SDR-H80EF

SDR-H80EC

SDR-H80GC

SDR-H80GN

SDR-H80GJ

SDR-H80GK

SDR-H80PU

SDR-H80PR

SDR-H81EE

SDR-H81EB

Subject : Change the parts No. of SUB P.C.B.

Please use this service manual together with the service manual for Order No. VM0812041CE.

TABLE OF CONTENTS PAGE PAGE

1 INTORODUCTION -------------------------------------------------3

2 REPLACEMENT PARTS LIST ---------------------------------3

3 HOW TO DIFFERENTIATE--------------------------------------3

4 ADJUSTMENT WITH SERVICE SOFTWARE--------------4

1 INTORODUCTION

The SUB P.C.B. is changed by the part change of G-SENSOR.

The new SUB P.C.B. is compatible with a original SUB P.C.B..

However, it is necessary to adjust it with the service software after it exchanges SUB P.C.B..

2 REPLACEMENT PARTS LIST

Parts Number List

3 HOW TO DIFFERENTIATE

In a new SUB P.C.B, there is a description of “A” next to the SUB P.C.B name display.

Ref No. Original Part No. New Part No. Part Name & Description I/C Remarks

17 LSEP8463P1 LSEP8463P2 SUB P.C.B. A H80EB,EC,EE,EF,EG,EP,GC,GJ,GK,GN

4 ADJUSTMENT WITH SERVICE SOFTWARE

[1] Environment

(PC)

(Software)

Except PC and measuring instruments.

(Others)

[2] How to setup the software and camera

This camera adjustment uses USB Serial-port. RS-232C Serial-port is not used.

Installation method of the USB-SERIAL driver (Panasonic DVC) used for adjustment

The USB driver for DVC is used.

1. Download the “USB_COM.ZIP” file into your PC from TSN-WEB.

2. Please execute “Setup.exe” in “ComMass” folder. Install it according to the message.

3. Activate the camera following below procedures in order for the camera to communicate with PC.

3-1. Turn the [Power SW] on.

3-2. Set the normal record mode.

3-3. “iA” and “OIS” button are pressing at the same time for three seconds or more while raising Joystick.

3-4. If “COM” blinks under the LCD screen, it is OK.

(attention)

Please do the same operation without fail and release “COM communication mode” after completing the adjustment.

Even if the power supply is turned off, it is not released.

4. Connect the camera to PC with USB cable.

“USB-SERIAL Driver” is automatically installed. (This is the case of WindowsXP)

5. Confirm either the USB-SERIAL driver is properly installed or not by checking “System properties device manager” (Fig A).

After competing the drive installation.

Type: IBM PC/AT Compatible

OS: Windows 98SE / ME / 2000 / XP

CPU: Intel Pentium class or more.

Memory: Windows 98SE / Me: 64Mbyte or more. Windows 2000 / XP: 128Mbyte or more.

HDD: 3Mbyte or more.

PORT: USB serial port.

VGA: 800 * 600 / 256 colour or more.

(1)Adustment software for SDR-H80 series. Download from TSN-WEB.

(2)USB-SERIAL driver for adjustments. Download from TSN-WEB.

Optics equipment. Common for KDV2006 series.

Communications cable. USB cable.

Measuring equipment. Oscilloscope.

[3] Connect communication

[4] Seve EEPROM data

[5] Automatic EEPROM correction

[6] Check and optimize of the SUB-PCB version

[7] Main menu

[8] Write EEPROM data.

[9] Edit

There are two kinds of editors. Usually, do not use it.

[10] Diagnosis

It is only an external control.

[11] Adjustment

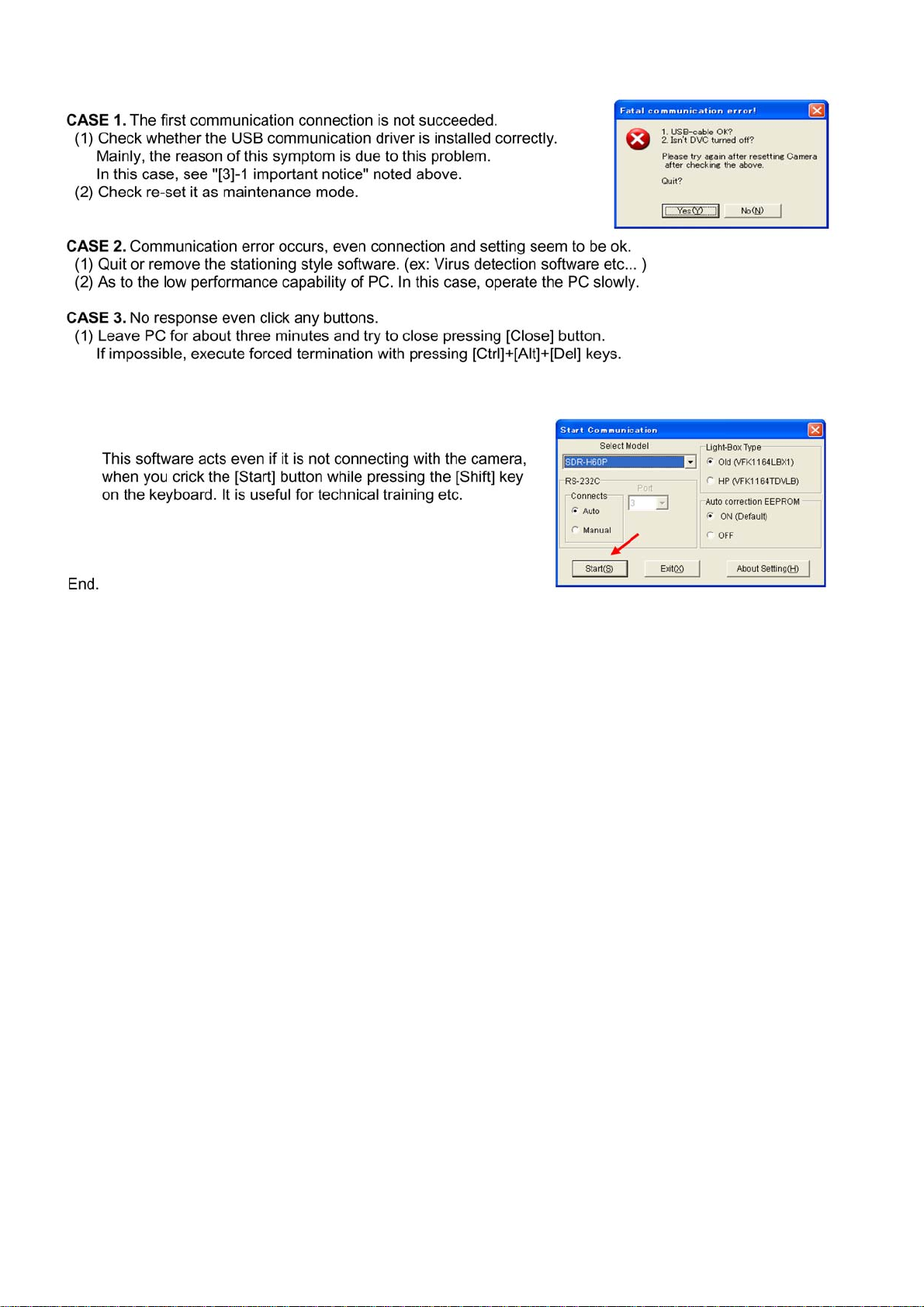

[12] Trouble shoot (Symptom and remedy for Adjustmet Software usage)

[13] Remarks
