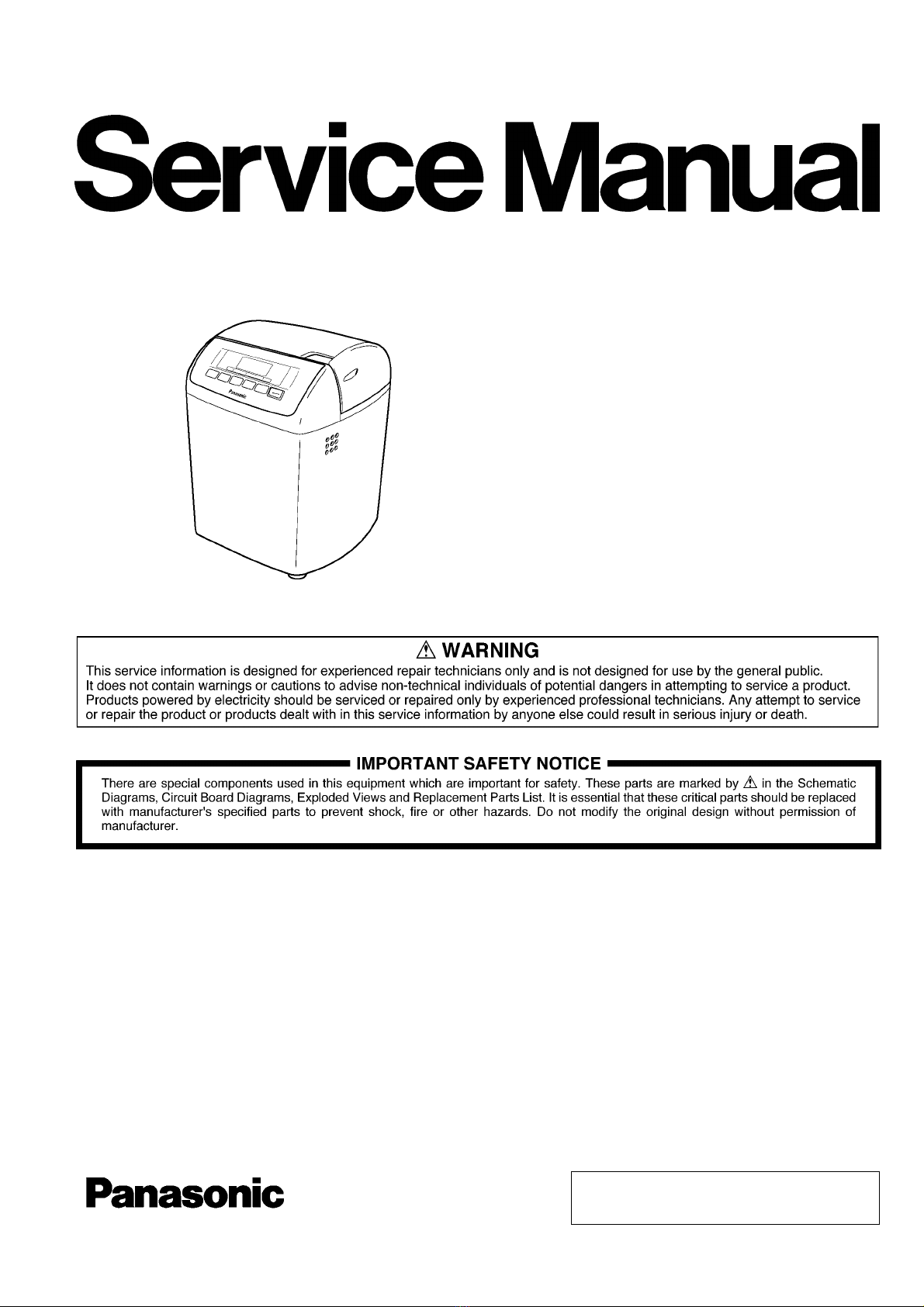

Panasonic SD-257WXE Manual de usuario
© Panasonic Corporation 2010 Unauthorized copy-
ing and distribution is a violation of law.
Order Number PTW1002502CE
Automatic Bread Maker
Model No. SD-257WXE
Chassis
Product Color White
Destination Belgium
TABLE OF CONTENTS
PAGE PAGE
1 Safety Precautions----------------------------------------------- 2
2 Specifications ----------------------------------------------------- 3
3 Location of Controls and Components ------------------- 4
4 Operating Instructions------------------------------------------ 6
5 Test Mode ----------------------------------------------------------12
6 Troubleshooting Guide ----------------------------------------14
7 Disassembly and Assembly Instructions ---------------16
8 Wiring Connection Diagram ---------------------------------29
9 Exploded View and Replacement Parts List -----------31
31
9 Exploded View and Replacement Parts List
9.1. PARTS LOCATION
32
9.2. REPLACEMENT PARTS LIST
Notes:Important safety notice
• Components identified by mark have special characteristics important for safety.
• " When replacing any of these components use only manufacturer's specified parts."
MODEL No.SD-257-WXE
Belgium
Safety Ref. No. Part No. Part Name & Description Pcs/Set Remarks
<PARTS LIST>
1 ADA39E160-W Dispenser cover assy 1
2 ADY02E1421-W Caution label 1
3 ADD04P156-H Dispenser cover 1
4 ADD37E142 Magnet Plate B 1
5 ADD35-143 Fixing Spring 2
6 ADD34-145-H Seal rubber 1
7 ADD30-145-H Middle Lid 1
8 ADA44-145-H Dispenser B assy 1
9 ADJ15A1071 Hinge screw 1
10 ADD01E147-W0 Top Lid 1
11 ADJ30E142 Washer A 1
12 ADD38E142 Magnet 1
13 ADD36E142 Magnet plate A 2
14 ADD29-145-H Lid cover 1
15 ADG02-143 Spring B 1
16 ADD41-145-H Lid lever B 1
17 ADD05E160-H0 Steam vent 1
18 ADD02E147 Inner lid 1
19 ADB97E160-WS Control panel unit 1
20 ASD850-108-W Spring A 1
21 ADA40E147-H Solenoid assy B 1
22 ADQ07-1431 Solenoid fixing Plate 1
23 ADP10E147 Flat cable 1
24 ADR40E160 P.C.Board A assy 1
25 ADT03E147 P.C.B.cover 1
26 ADB03E147-W Upper frame 1
27 ADT11-156 P.C.B.holder lid 1
28 ADR41E160 P.C.Board B assy 1
29 ADT01-156 P.C.B.holder 1
30 ADE03E147 Heat insulator 1
31 ADA17E147 Thermal fuse assy 1 Blowout temp. is 142 degrees
of centigrades.
32 ADP97-143 Lead wire B unit 1
33 ADP50-143 Bind wire A 5
34 ADA22G147 Heater 1
35 ADE09-143 Heater insulater A 1
36 ASD452-108CK Heater insulater B 2
37 ADA25-137 Heater case base assy 1
38 ADE97A107 Connector lower unit 1
39 ADE98-137 Heater case base unit 1
40 ADE96-145-H Heater case unit 1
41 ADA11-145 Sensor assy 1
42 ADA30E147 Ground wire A assy 1
43 ADE01-145 Angle 1
44 ADF05R140 Pully B 1
45 ASD867-100AW Lock washer 1
46 ADA10G147 Motor assy 1
47 ADF01R1401 Belt 1
48 ADD96E160 Kneading blade B unit 1
49 ADD97G160 Kneading blade A unit 1
50 ADA12E160 Bread pan assy 1
51 ADA12R160-0S Bread pan 1
52 ADA29A115 Mounting shaft assy 1
53 ASD191U103-K Packing 1
54 ADB01-145-W Body 1
55 ADY01B160 Rating plate 1
56 ADB09E160-H Rubber leg 4
57 ADP07-145-W Cord support 1
58 ADP02R129 Cord bushing 1
59 ADA24G13200Z Power cord assy 1
60 ASD917-108-K Measuring cup 1
61 ASD911U112BK Measuring spoon 1
62 AST-HG-T50 Glass tape 1
33
<SMALL STANDARDIZED METAL PARTS>
A XTB4+14BFC 4 x 14 Binding head tapping screw 5
B XTT4+10BFC 4 x 10 Truss head tapping screw 7
C XTB4+14BFJ 4 x 14 Binding head tapping screw 5
D XTB4+22BFJ 4 x 22 Binding head taptite screw 1
E XSS4+8UW 4 x 8 Flush head machine screw 3
F XSN4+8FFJ 4 x 8 Pan head machine screw 1
G X0227-031 Motor washer A 2
H XUE6FPJ U-cripe 1
I XTT4+18HFN 4 x 18 Truss head taptite screw 1
J XNG4BFJ Hexagon nut 3
K DJ17A1151 4 x 10 Screw P 5
L XTB4+10BFJ 4 x 10 Binding head taptite screw 3
M XTT4+8FN 4 x 8 Truss head taptite screw 1
N SD938-101AD 5 x 10 Screw R 4
O XWG5E10FJ Round plain washer 1
P SD873-100AZ Hexagon nut (special) 1
Q DJ14-145 4 x 20 Truss head C tite and washer
assemblies screw 4
R XWA4BFJ Spring washer 2
S XTN4+10FFJ 4 x 10 Pan head taptite screw 1
<PACKING SPECIFICATIONS>
ADZ01B160 Carton 1
ADZ02-145 Upper cusion 1
ADZ03-145 Lower cushion 1
ADZ50B160 Operation insturactions 1
ADZ51E147 Manual book 1
ADZ04-145 Protection sheet 1
ASD05A143 Lid protection sheet 1
ADZ06E160 Protection board 1
ADP50E160 Bind wire 2
Safety Ref. No. Part No. Part Name & Description Pcs/Set Remarks
34
9.3. PACKING INSTRUCTION
