Digital Cordless Answering System

Operating Instructions

Model No. KX-TCD420NZ

Caller ID Compatible

PLEASE READ BEFORE USE AND SAVE.

Charge the battery for about 7 hours before initial use.

Preparation Cordless Telephone Useful InformationAnswering System

Contents

Preparation

Before Initial Use ......................... 2

Important Information .................. 3

Setting up .................................... 4

Cordless Telephone

Using the Telephone ................... 9

Making Calls.............................. 10

Caller ID .................................... 11

Answering Calls......................... 14

Phonebook ................................ 15

Handset Settings ....................... 19

Base Unit Settings..................... 25

Initial Settings ............................ 27

Multi-unit User Operation........... 29

Intercom .................................... 33

Answering System

Answering System..................... 34

Remote Operation ..................... 40

Useful Information

Before Requesting Help ............ 42

Technical Information ................ 45

Index.......................................... 46

TCD420NZ_e.book Page 1 Tuesday, June 17, 2003 2:07 PM

Before Initial Use

Thank you for purchasing your new Panasonic digital cordless telephone.

Dear purchaser,

You have acquired a KX-TCD420NZ, which is a product made in regard with

the Digital Enhanced Cordless Telecommunications (DECT). DECT technology is

characterized by high-security protection against interceptions as well as high-quality

digital transmission. This telephone was designed for a wide range of applications. For

example, this telephone can be used within a network of base units and handsets,

constituting a telephone system which:

•operates up to 6 handsets at one base unit.

•allows an intercom between 2 handsets.

•allows the operation of a handset at up to 4 base units, expanding the communication

radio area.

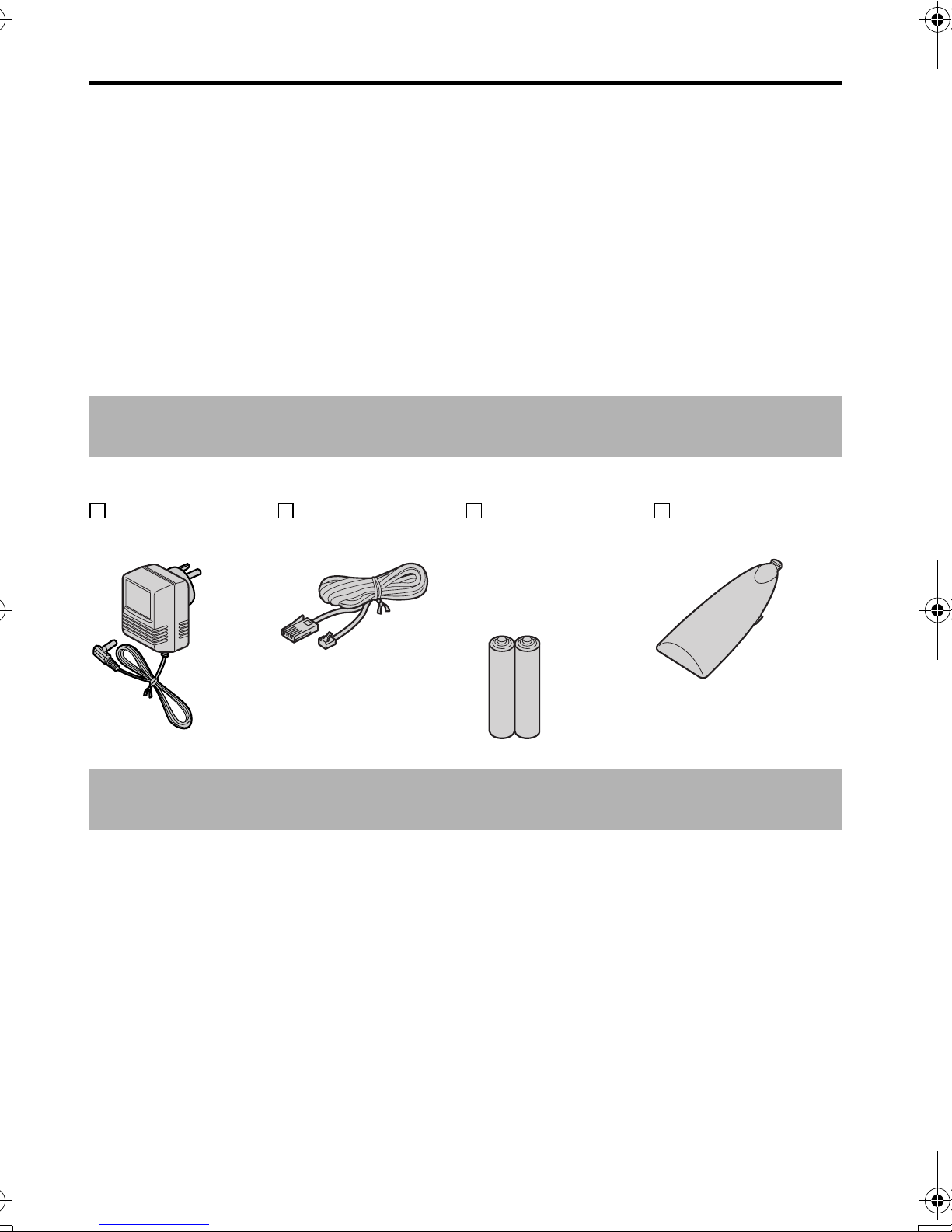

Accessories (included)

General Warning:

The grant of a Telepermit for any item of terminal equipment indicates only that Telecom

has accepted that the item complies with minimum conditions for connection to its

network. It indicates no endorsement of the product by Telecom, nor does it provide any

sort of warranty. Above all, it provides no assurance that any item will work correctly in

all respects with another item of Telepermitted equipment of a different make or model,

nor does it imply that any product is compatible with all of Telecom’s network services.

Caller ID Service, where available, is a telephone company service. After subscribing

to Caller ID, this phone will display the caller’s phone number.

AC Adaptor

PQLV19AL

Telephone Line

Cord

Rechargeable

Batteries

(AAA size)

HHR-4EPT/BA2

(HHR-4EPT)

Battery Cover

Additional accessories are available for purchase. Contact your Panasonic Service

Centre for further details.

TCD420NZ_e.book Page 2 Tuesday, June 17, 2003 2:07 PM

Preparation

Important Information

Only use the power supply included with

the product.

Do not connect the AC Adaptor to any AC

outlet other than the standard AC230 V.

The apparatus is approved for use with

PQLV19AL power supply.

This apparatus is unable to make

emergency telephone calls under the

following conditions:

•The portable handset batteries need

recharging, or have failed.

•During a mains power failure.

•When the Key Lock is set to ON.

•When the unit is in Direct Call mode.

Do not open the base unit or handset

(other than to change the batteries).

This apparatus should not be used near

emergency/intensive care medical

equipment and should not be used by

people with pacemakers.

Care should be taken that objects do not

fall onto, and liquids are not spilled into

the unit. Do not subject this unit to

excessive smoke, dust, mechanical

vibration or shock.

Environment

Do not use this unit near water.

This unit should be kept away from heat

sources such as radiators, cookers, etc. It

should also not be placed in rooms where

the temperature is less than 5 °C or

greater than 40 °C.

The AC Adaptor is used as the main

disconnect device, ensure that the AC

outlet is located/installed near the unit and

is accessible.

Battery Caution

Use only specified batteries.

Only use rechargeable batteries.

Do not mix old and new batteries.

Do not dispose of batteries in a fire, they

may explode.

Check local waste management codes for

special disposal instructions.

Do not open or mutilate the batteries.

Released electrolyte is corrosive and may

cause burns or injury to the eyes or skin.

The electrolyte may be toxic if swallowed.

Exercise care in handling the batteries in

order not to short the batteries with

conductive materials such as rings,

bracelets and keys.

The batteries and/or conductor may

overheat and cause burns.

Charge the batteries provided in

accordance with the information given in

this operating guide.

Location

•For maximum distance noise-free

operation, place your base unit:

- Away from electrical appliances such

as TV, radio, personal computer or

another phone.

- In a convenient high and central

location.

Safety Caution

The ringer tone is reproduced through the

earpiece. To avoid damage to hearing,

first answer the call, then hold the phone

to the ear.

WARNING:

TO PREVENT THE RISK OF

ELECTRICAL SHOCK, DO NOT

EXPOSE THIS PRODUCT TO RAIN

OR ANY OTHER TYPE OF

MOISTURE.

TCD420NZ_e.book Page 3 Tuesday, June 17, 2003 2:07 PM

Setting up

Connection

Plug in the AC adaptor and the telephone line cord in order 1, 2, 3, 4.

•Never install telephone wiring during a lightning storm.

Battery Installation

Please ensure the batteries are inserted as shown. part should be inserted first.

Close the cover as indicated by the arrow.

•When you replace the batteries, part should be removed first.

The AC adaptor must remain connected at all times. (It is normal for the adaptor to

feel warm during use.)

LINE

Fasten the AC adaptor

cord to prevent it from

being disconnected.

Hooks

To replace the battery:

Press the notch on the cover firmly

and slide it as indicated by the arrow.

Replace 2 batteries and close the

cover then charge the handset for

about 7 hours.

TCD420NZ_e.book Page 4 Tuesday, June 17, 2003 2:07 PM

Preparation

Setting up

Battery Charge

At the time of shipment, the batteries are

not charged. To charge, place the

handset on the base unit. Please charge

the batteries for about 7 hours before

initial use. During charging, the battery

icon is as shown below.

Fully charged During charging

The handset, when off, will be

turned on automatically when it is placed

on the base unit.

In normal use, the handset and the base

unit should be powered on at all times.

Battery Life

Battery life is dependent on use and

conditions but in general when using fully

charged Ni-MH batteries (700 mAh):

Talk time: 10hrs approx.

Standby time: 120hrs approx.

When using Ni-Cd batteries (250 mAh):

Talk time: 4hrs approx.

Standby time: 40hrs approx.

(Times indicated are for peak

performance.)

The batteries reach peak performance

after several full charge/discharge cycles.

The batteries cannot be overcharged

unless they are repeatedly removed and

replaced.

If battery life is shortened then please

check that battery and charge terminals

are clean.

For maximum battery life, it is

recommended that the handset not be

recharged until battery icon flashes .

Display icon Battery strength

High

Medium

Low

Needs to be

charged

(Flashing)

TCD420NZ_e.book Page 5 Tuesday, June 17, 2003 2:07 PM

Setting up

Symbols Used in This Operating Instructions

Replacing the Batteries

If the icon flashes after a few telephone calls even when the handset batteries have

been fully charged, 2 batteries must be replaced.

Charge new batteries for approximately 7 hours before initial use.

(The telephone line cord must not be connected to the telephone socket at this

time.)

When replacing the batteries, ensure that the correct battery type is selected.

Selecting the Battery Type

•To exit the operation, press any time.

•Do not use non-rechargeable batteries. If non-rechargeable batteries are fitted and

start charging, it may cause the leakage of the battery electrolyte.

Please use only Panasonic HHR-4EPT(Ni-MH) or P-4NPT(Ni-Cd) batteries.

Symbol Meaning

To search the desired item, press UP or DOWN.

To select the desired item, press RIGHT.

To search and then to select the desired item, press UP or DOWN then

RIGHT.

To move the cursor to the right or to the left, press RIGHT or LEFT.

To go to the next step.

" " The words in " " indicate the words in display.

Press MENU. Search/Select

"OTHER OPT".

Search/Select

"SETTING HS".

12 3

Search/Select

"BATTERY TYPE".

Search/Select

"NI-CD" or "NI-MH".

TCD420NZ_e.book Page 6 Tuesday, June 17, 2003 2:07 PM

Preparation

Setting up

Location of Controls

Handset

Base unit

Handset Display

1 - : PHONEBOOK Button

2 - TALK Button

3 - Navigator Key

4 - REDIAL/PAUSE Button

5 - RECALL Button

6 - :MENU/OKButton

7 - OFF/POWER Button

8 - CLEAR Button

9 - INTERCOM Button

INT

ALL

OFF

Charge

Contact

Charge

Contact

Display

Receiver

Microphone

INT

LINE

PAGE Button and Indicato

Within range of a base unit

Out of range/No registration/

No power on base unit

Paging

Making or answering calls

Phonebook Mode

In Setting Mode

Battery strength is low.

Battery strength is high.

Answering System ON

Call BAR ON (p. 22)

Direct Call ON (p. 23)

Key Lock ON (p. 24)

Ringer Volume OFF (p. 20)

TCD420NZ_e.book Page 7 Tuesday, June 17, 2003 2:07 PM

Setting up

Wall Mounting

This unit can be mounted on a wall.

- Insert screws into the wall. The centre of the screw hole should be 8 cm horizontally

apart.

- Connect the AC adaptor and the telephone line cord.

- Arrange the wires as shown, then mount the unit.

8 cm

Screws

Hooks

8 cm

Wall Template

TCD420NZ_e.book Page 8 Tuesday, June 17, 2003 2:07 PM

Cordless Telephone

Using the Telephone

Power On/Off

Power on Power off

*1 When button is released, the display changes to the standby mode.

*2 The display goes blank.

Making a Call

Pre-dialling Post-dialling

*1 If you need correction, press CLEAR. Digit is cleared to the left, then enter numbers.

Answering a Call

Terminating a Call

•Each ringer will start ringing with lower volume then gradually increase the volume

when receiving a call.

*1 You can also answer a call by pressing any dialling button, INTERCOM, tor x.

Setting the Clock/Date

After a mains power failure the clock needs to be reset. Ensure that icon is not

flashing.

•To exit the operation, press any time.

*1 For example, to set 7:15, enter 0715.

*2 For example, to set the 16th of February, 2003, enter 160203.

Press for more than 2 seconds.*2Press for more than 1 second.*1

Press TALK.

Phone Number

Press TALK.

Phone Number

1122

Press TALK.*1

(During a call)

Press OFF.

"INPUT CODE"

Press MENU.Search/Select

"SETTING BS".

Press OK.

Time

Enter time.

4-digit

(24 hour clock)*1

Date

Enter day,

month then

year.*2

Press OK.

twice

"INPUT CODE"

Press

RIGHT.

TCD420NZ_e.book Page 9 Tuesday, June 17, 2003 2:07 PM

Making Calls

Redialling

The last 10 numbers dialled are stored in the redial list automatically.

Dialling with the Redial List Dialling the Last Number Dialled

Editing the Dialled Number in the Redial List

Clearing One/All Dialled Item(s) in the Redial List

•To exit the operation, press any time.

*1 If there is no item stored in the redial list, the display shows "NO ITEM".

*2 Digits are cleared to the left of the flashing digit.

*3 Digits are added to the left of the flashing digit. If you need to clear and/or add more

than one number, repeat from step 4.

Press

REDIAL.*1

Search the desired

dialled item.

Press

TALK.

Press TALK.Press REDIAL.

11223

Press REDIAL.*1 Search/Select the

desired dialled item.

Search/Select

"EDIT CALL NO".

The 1st digit of

the desired dialled

number blinks.

Move

cursor.

If you need to

store a name,

go to Name

on page 15 or

press OK.

Press

CLEAR.*2

Number

Edit the phone

number.*3

Press TALK.

Press OK 3 times

to store the number.

AND/

45 6

Search/Select the

desired dialled item.

Search/Select

"CLEAR" or

"ALL CLEAR".

Search/Select

"YES".

Press REDIAL.*1

12 34

TCD420NZ_e.book Page 10 Tuesday, June 17, 2003 2:07 PM

Tabla de contenidos

Otros manuales de Contestador automático de Panasonic

Panasonic

Panasonic KX-TH111 Manual de usuario

Panasonic

Panasonic KX-TG5431S - 5.8 GHz DSS Cordless Phone Manual de usuario

Panasonic

Panasonic KX-TGJ322E Manual de usuario

Panasonic

Panasonic KX-TG5671BXS Manual de usuario

Panasonic

Panasonic KX-TG7862NZ Manual de usuario

Panasonic

Panasonic KX-TG5838AL Manual de usuario

Panasonic

Panasonic KXTCM415B - CORDLES/ANS MAC/HYBR Manual de usuario

Panasonic

Panasonic KX-TG7341AL Manual de usuario

Panasonic

Panasonic KX-TG8563AZ Manual de usuario

Panasonic

Panasonic KX-TCM418ALW Manual de usuario

Panasonic

Panasonic KX-TCM939B Manual de usuario

Panasonic

Panasonic KX-TGC220AL Manual de usuario

Panasonic

Panasonic KX-TG8562AZ Manual de usuario

Panasonic

Panasonic KX-TG2481B Manual de usuario

Panasonic

Panasonic KX-TG5521E Manual de usuario

Panasonic

Panasonic Easa-Phone KX-T5000 Manual de usuario

Panasonic

Panasonic KX-TG5831AL Manual de usuario

Panasonic

Panasonic EASA-PHONE KX-T1000BA Manual de usuario

Panasonic

Panasonic KXTG5456S - Refurb 5.8GHz Cordless Phone,1.4" Color LCD,Digital Answering... Manual de usuario

Panasonic

Panasonic KX-TGE820E Manual de usuario

Panasonic

Panasonic KX-TCD420E Manual de usuario

Panasonic

Panasonic KXF160 - CONSUMER FACSIMILE Manual de usuario

Panasonic

Panasonic KX-TCD420 Manual de usuario

Panasonic

Panasonic KX-TG5521RUB Manual de usuario

Manuales populares de Contestador automático de otras marcas

Radio Shack

Radio Shack TAD-795 Manual de usuario

AT&T

AT&T 2455 Manual de usuario

BellSouth

BellSouth GH9488 Guía de seguridad

GE 2-9985 Manual de usuario

Krown

Krown PortaPrinter 2000STD Manual de usuario

AT&T

AT&T 1717 Manual de usuario

Alcatel

Alcatel TEMPORIS 55-CE Manual de usuario

AT&T

AT&T E2562 Manual de usuario

Telstra

Telstra Monitor 420 Manual de usuario

Kortex

Kortex IAM V90 Manual de usuario

Philips

Philips VOIP8551B/05 Manual de usuario

Topcom

Topcom LUCCA Answering Machine Manual de usuario

TIPTEL

TIPTEL Ergophone 307 Manual de usuario

Conairphone

Conairphone TAD2012 Manual de usuario

AT&T

AT&T 1738 Manual de funcionamiento

Philips

Philips SE6554B/05 Manual de usuario

Lucent Technologies

Lucent Technologies Definity System 75 Manual de usuario

Sony

Sony TAM-2000 Manual de usuario
