Panasonic SE-HD560E Manual de usuario

ORDERNo.AD0203061C2

Amplifier

SE-HD560E / SE-HD560EB / SE-HD560EG / SE-HD560EP

Colour

(N)...........GoldType

System

SC-HD560:

Tuner; ST-HD560, Amplifier; SE-HD560,

CD Player; SL-HD560, Cassette Deck; RS-HD560,

Speakers; SB-HD560 (Made inSpain.)

SPECIFICATIONS

Specifications

Amplifier section (Low

frequency)

Power output:

DIN 1kHz, THD 1%

bothchannelsdriven; 2x23W(6 )

RMS 1kHz, THD 10 %

bothchannelsdriven; 2x30W(6 )

Total hormonicdistortion:

Half power at 1kHz; 0.07 %(6 )

Loadimpedance: 6

Amplifier section (High

frequency)

Power output:

DIN 10 kHz, THD 1%, / both

channelsdriven;

2x7 W(6 )

RMS 10 kHz, THD 10%, / both

channelsdriven;

2x10 W(6 )

Loadimpedance: 6

S/N:

(E), (EG), (EP) areas; 83dB

(EB) area; 78dB

Headphones

Jack type: 3.5mm STEREO

Loadimpedance: 16 - 32

General

Power supply:

(E), (EG), (EP) areas; AC 230 V, 50 Hz

(EB) area; AC 230 - 240 V, 50 Hz

Power consumption: 130 W

STANDBY condition: 0.9W

Dimensions(WxHxD): 210x104.8x309 mm

Mass: 3.4kg

Notes:

Specificationsare subject tochangewithout notice.

Mass and dimensionsare approximate.

Total harmonicdistortion ismeasuredbythedigital

spectrumanalyzer.

Unauthorized copying and distribution isaviolation of law.

1. Note

Because of unique interconnecting cables, whena component requires service, send orbring in

the entire system.

2. Before Repair

1. Turn off the power supply. Using a10 , 10 Wresistor, connect

both ends of power supplycapacitors (C601, C602) inorder to

discharge the voltage.

2. Before turning the power supplyon, after completion of repair,

slowlyapplythe primaryvoltage byusing apower supplyvoltage

controller to make sure that the consumed current at 50 HzinNO

SIGNALmode shouldbe shownbelow with respecttosupply

voltage 230/240 V.

Powersupply

voltage AC 230 V AC 240 V

Consumedcurrent

50 Hz 50 - 180 mA

3. Protection Circuitry

The protection circuitrymayhave operatedif eitherof the following conditions is noticed:

-Nosound isheard when the power issupplied.

-Sound stops during aperformance.

The functions of this circuitryis toprevent circuitrydamage if, forexample, the positive and

negative speakerconnection wires are shorted, orif speakersystems withanimpedance less

thanthe indicatedratedimpedance of this unit are used.

If this occurs, followthe procedure outlinedbellow:

1. Press the Standby/on button, switch to standbymode.

2. Determine the cause of the problem and correct it.

3. Press the Standby/on button once again, supplythe power.

Note:

When the protection circuitryfunctions, the unitwill not operate

unless the Standby/on button isfirst switched Standbyand then

ONagain.

4. Accessories

-AC power supplycord for (E), (EG), (EP) areas

(RJA0019-2X)...........................................1pc.

-AC power supplycord for (EB)area

(RJA0053-3X)...........................................1pc.

-AMloop antenna set

(RSA0033B-1)..............................................1pc.

-FM indoor antenna

(RSA0007).................................................1pc.

-Speaker cords

(REE1195).........................2pcs.

-Remote control transmitter

(EUR7702010).........................................1pc.

-Remote control batteries

(R6/LR6, AA, UM-3)..................................2pcs.

Note: These are availableon sales route.

-Antenna plug adaptor for (EB)area

(SJP9009)..............................................1pc.

5. Caution for AC Mains Lead

6. Location of Controls

7. Operation Checks and Component Replacement

Procedures

-Thissection describes procedures for checking the operation of

the major printed circuitboards and replacing the main

components.

-For reassemblyafter operation checks or replacement, reverse the

respective procedures. Special reassemblyprocedures are

described onlywhen required.

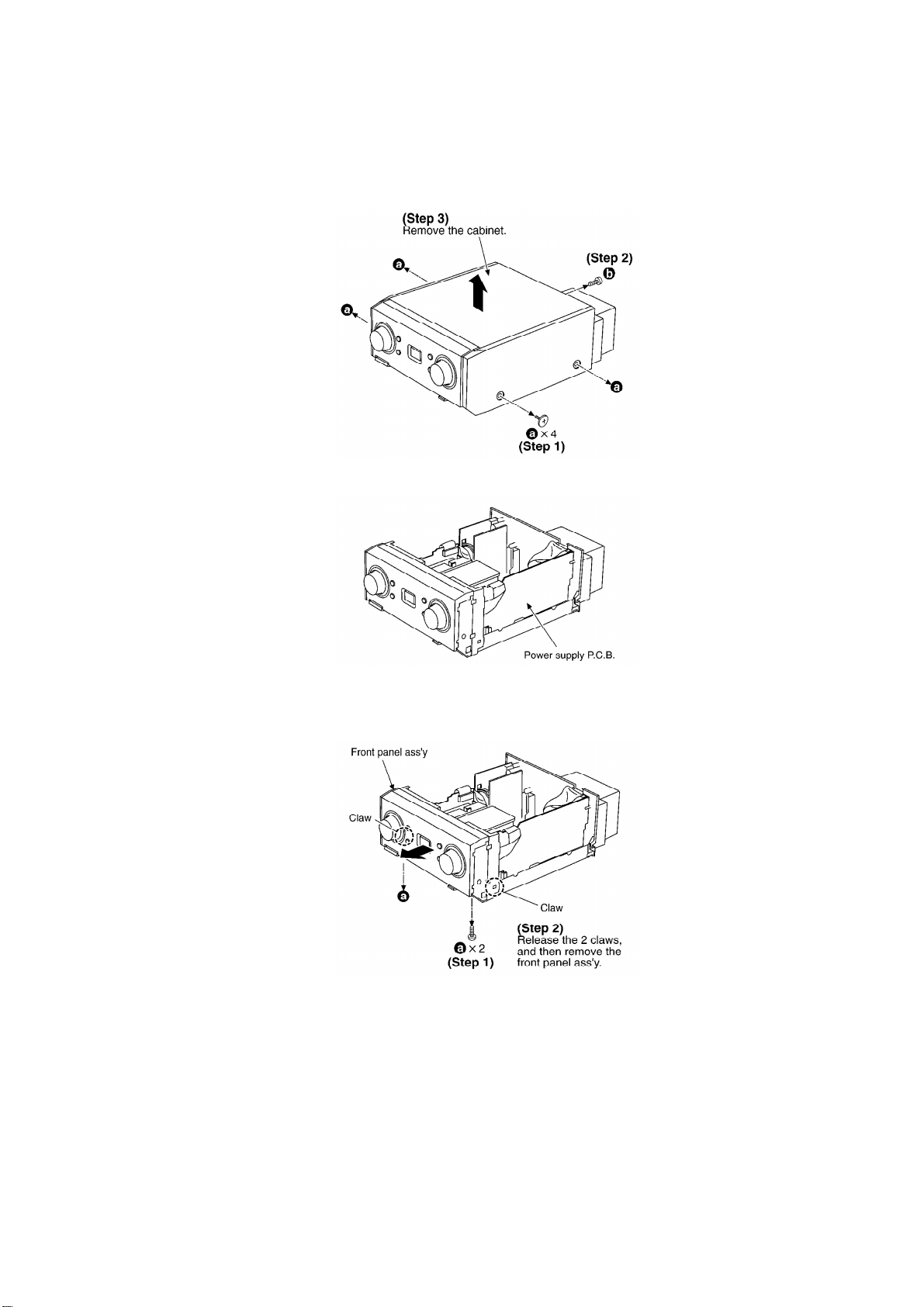

7.1. Checking for the power supplyP.C.B.

-Check the power supplyP.C.B. as shownbelow.

7.2. Checking for the operation P.C.B.

-Follow the (Step 1) -(Step 3) of item 7.1.

-Check the operation P.C.B. as shownbelow.

7.3. Checking for the mainP.C.B.

-Follow the (Step 1) -(Step 3) of item 7.1.

-Check the mainP.C.B. as shownbelow.

7.4. Replacement for the fan motor ass’y

-Follow the (Step 1) -(Step 3) of item 7.1.

7.5. Replacement for the power IC

-Follow the (Step 1) -(Step 3) of item 7.1.

-Follow the (Step 1) -(Step 3) of item 7.3.
